RM35X0E _58 Vehicle Interior _078602 SEAT BELT _0385912 SEAT BELT WARNING SYSTEM J

SEAT BELT  SEAT BELT WARNING SYSTEM  Rear Seat Belt Warning Light Malfunction


DESCRIPTION

The combination meter assembly detects the rear seat belt state. The rear seat belt warning light on the telltale light assembly illuminates, blinks or turns off in accordance with the vehicle speed and rear seat belt state.

WIRING DIAGRAM

except Wagon

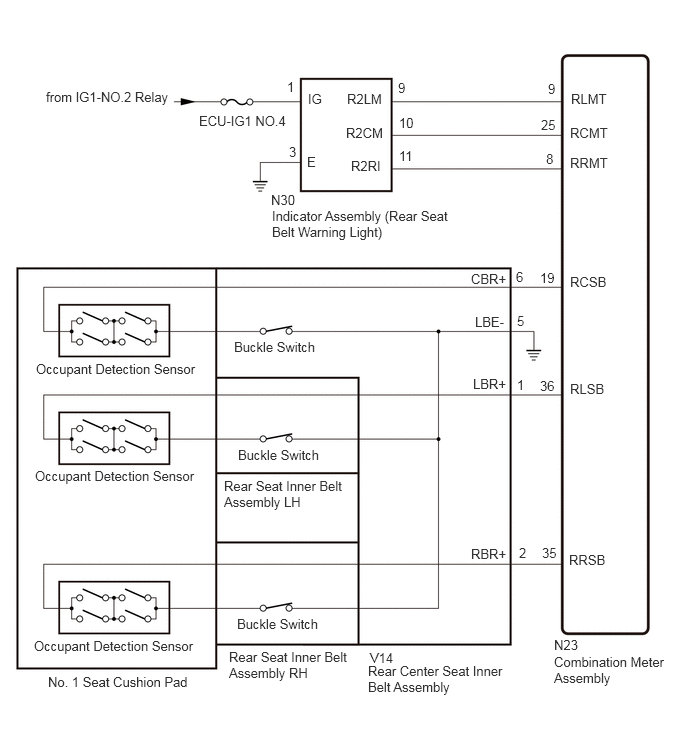

E416527E02
2.385,6.76 3.719,7.146 1.333,0.385 10 false Rear Seat Inner Belt Assembly RH 2.333,4.979 3.667,5.365 1.333,0.385 10 false Rear Seat Inner Belt Assembly LH 3.854,6.771 5.281,7.146 1.427,0.375 10 false V14 3.833,6.906 5.26,7.281 1.427,0.375 10 false Rear Center Seat Inner Belt Assembly 5.771,6.635 7.052,7.01 1.281,0.375 10 false N23 5.771,6.813 7.052,7.188 1.281,0.375 10 false Combination Meter Assembly 5.927,5.75 6.729,6.031 0.802,0.281 10 false RRSB 5.938,3.969 6.74,4.25 0.802,0.281 10 false RLSB 5.938,2.854 6.74,3.135 0.802,0.281 10 false RCSB 2.469,6.417 3.802,6.802 1.333,0.385 10 false Buckle Switch 2.479,4.656 3.813,5.042 1.333,0.385 10 false Buckle Switch 2.438,3.531 3.771,3.917 1.333,0.385 10 false Buckle Switch 0.375,3.76 2.229,4.083 1.854,0.323 10 false Occupant Detection Sensor 0.365,4.875 2.219,5.198 1.854,0.323 10 false Occupant Detection Sensor 0.354,6.646 2.208,6.969 1.854,0.323 10 false Occupant Detection Sensor 0.5,7.021 2.354,7.344 1.854,0.323 10 false No. 1 Seat Cushion Pad 4.906,2.823 5.521,3.198 0.615,0.375 10 false CBR+ 4.948,3.271 5.563,3.646 0.615,0.375 10 false LBE- 4.927,3.917 5.542,4.292 0.615,0.375 10 false LBR+ 5.385,3.927 6,4.302 0.615,0.375 10 false 1 5.385,3.26 6,3.635 0.615,0.375 10 false 5 5.375,2.802 5.99,3.177 0.615,0.375 10 false 6 5.406,5.677 6.021,6.052 0.615,0.375 10 false 2 4.906,5.688 5.521,6.063 0.615,0.375 10 false RBR+ 5.646,5.677 6.26,6.052 0.615,0.375 10 false 35 5.625,3.938 6.24,4.313 0.615,0.375 10 false 36 5.625,2.813 6.24,3.188 0.615,0.375 10 false 19 2.823,2 4.646,2.385 1.823,0.385 10 false N30 2.833,2.167 4.771,2.552 1.938,0.385 10 false Indicator Assembly (Rear Seat Belt Warning Light) 2.073,1.177 3.406,1.563 1.333,0.385 10 false ECU-IG1 NO.4 0.479,0.927 1.813,1.313 1.333,0.385 10 false from IG1-NO.2 Relay 3.208,0.948 3.708,1.344 0.5,0.396 10 false IG 3.198,1.604 3.698,2 0.5,0.396 10 false E 3.01,1.5 3.51,1.896 0.5,0.396 10 false 3 2.99,0.823 3.49,1.219 0.5,0.396 10 false 1 3.615,0.948 4.115,1.344 0.5,0.396 10 false R2LM 5.948,0.948 6.448,1.344 0.5,0.396 10 false RLMT 3.604,1.302 4.104,1.698 0.5,0.396 10 false R2CM 5.938,1.302 6.438,1.698 0.5,0.396 10 false RCMT 5.938,1.615 6.438,2.01 0.5,0.396 10 false RRMT 3.656,1.646 4.156,2.042 0.5,0.396 10 false R2RI 4.156,1.542 4.656,1.938 0.5,0.396 10 false 11 4.156,1.198 4.656,1.594 0.5,0.396 10 false 10 4.146,0.833 4.646,1.229 0.5,0.396 10 false 9 5.708,0.844 6.208,1.24 0.5,0.396 10 false 9 5.635,1.219 6.135,1.615 0.5,0.396 10 false 25 5.688,1.573 6.188,1.969 0.5,0.396 10 false 8


for Wagon

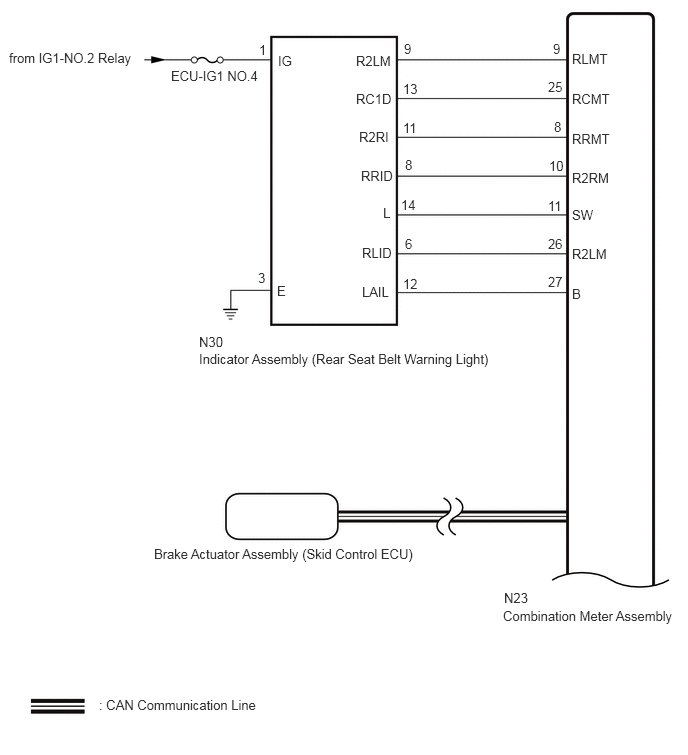

B546833E07
0.094,0.521 5.323,0.875 5.229,0.354 10 false from IG1-NO.2 Relay 2.073,3.656 5.708,4.167 3.635,0.51 10 false Indicator Assembly (Rear Seat Belt Warning Light) 1.781,0.708 5.417,1.219 3.635,0.51 10 false ECU-IG1 NO.4 2.896,0.552 6.531,1.063 3.635,0.51 10 false IG 2.885,2.948 6.521,3.458 3.635,0.51 10 false E 3.708,0.552 6.104,1.01 2.396,0.458 10 false R2LM 3.708,0.948 6.104,1.406 2.396,0.458 10 false RC1D 3.74,1.344 6.135,1.802 2.396,0.458 10 false R2RI 3.76,1.75 6.156,2.208 2.396,0.458 10 false RRID 3.99,2.135 6.385,2.594 2.396,0.458 10 false L 3.771,2.552 6.167,3.01 2.396,0.458 10 false RLID 3.771,2.958 6.167,3.417 2.396,0.458 10 false LAIL 4.208,0.427 5.125,0.844 0.917,0.417 10 false 9 5.958,0.948 6.875,1.365 0.917,0.417 10 false RCMT 5.958,1.365 6.875,1.781 0.917,0.417 10 false RRMT 5.958,1.771 6.875,2.188 0.917,0.417 10 false R2RM 5.958,2.156 6.875,2.573 0.917,0.417 10 false SW 5.958,2.563 6.875,2.979 0.917,0.417 10 false R2LM 5.958,2.979 6.875,3.396 0.917,0.417 10 false B 1.604,5.688 5.24,6.198 3.635,0.51 10 false Brake Actuator Assembly (Skid Control ECU) 5.24,6.333 7.083,7.052 1.844,0.719 10 false Combination Meter Assembly 1.031,7.26 4.667,7.771 3.635,0.51 10 false : CAN Communication Line 5.958,0.531 6.875,0.948 0.917,0.417 10 false RLMT 5.76,0.427 6.677,0.844 0.917,0.417 10 false 9 5.771,1.24 6.688,1.656 0.917,0.417 10 false 8 4.198,1.25 5.115,1.667 0.917,0.417 10 false 11 5.708,0.823 6.625,1.24 0.917,0.417 10 false 25 4.198,0.844 5.115,1.26 0.917,0.417 10 false 13 4.219,1.635 5.135,2.052 0.917,0.417 10 false 8 5.719,1.646 6.635,2.063 0.917,0.417 10 false 10 5.708,2.063 6.625,2.479 0.917,0.417 10 false 11 4.177,2.052 5.094,2.469 0.917,0.417 10 false 14 4.219,2.458 5.135,2.875 0.917,0.417 10 false 6 5.708,2.458 6.625,2.875 0.917,0.417 10 false 26 5.708,2.854 6.625,3.271 0.917,0.417 10 false 27 4.198,2.875 5.115,3.292 0.917,0.417 10 false 12 2.698,0.438 3.615,0.854 0.917,0.417 10 false 1 2.688,2.813 3.604,3.229 0.917,0.417 10 false 3 2.073,3.479 5.708,3.99 3.635,0.51 10 false N30 5.25,6.146 7.094,6.865 1.844,0.719 10 false N23

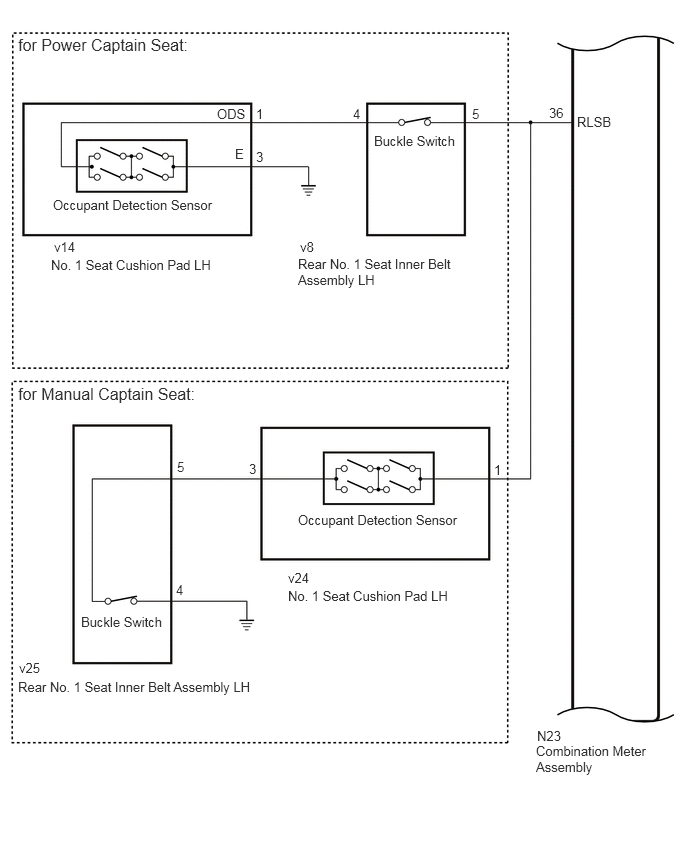

C427063E30
3.104,5.333 6.927,5.531 3.823,0.198 10 false Occupant Detection Sensor 0.552,2.052 4.375,2.25 3.823,0.198 10 false Occupant Detection Sensor 0.531,2.677 4.354,2.875 3.823,0.198 10 false No. 1 Seat Cushion Pad LH 3,6.125 6.823,6.323 3.823,0.198 10 false No. 1 Seat Cushion Pad LH 0.188,0.365 3.771,0.563 3.583,0.198 12 false for Power Captain Seat: 0.188,4 3.771,4.198 3.583,0.198 12 false for Manual Captain Seat: 3.104,2.667 5.094,3.146 1.99,0.479 10 false Rear No. 1 Seat Inner Belt Assembly LH 0.188,7.073 3.771,7.271 3.583,0.198 10 false Rear No. 1 Seat Inner Belt Assembly LH 3.896,1.385 5.323,1.625 1.427,0.24 10 false Buckle Switch 0.844,6.396 2.271,6.635 1.427,0.24 10 false Buckle Switch 2.448,1.521 3.875,1.76 1.427,0.24 10 false E 2.26,1.104 3.688,1.344 1.427,0.24 10 false ODS 6.01,1.188 7.156,1.448 1.146,0.26 10 false RLSB 5.583,7.74 7.052,8.292 1.469,0.552 10 false Combination Meter Assembly 2.667,1.104 4.094,1.344 1.427,0.24 10 false 1 2.667,1.552 4.083,1.76 1.417,0.208 10 false 3 4.917,1.104 6.344,1.344 1.427,0.24 10 false 5 3.677,1.104 5.104,1.344 1.427,0.24 10 false 4 3.125,2.49 4.552,2.729 1.427,0.24 10 false v8 0.563,2.49 1.99,2.729 1.427,0.24 10 false v14 5.719,1.094 6.865,1.354 1.146,0.26 10 false 36 1.833,6.063 3.26,6.302 1.427,0.24 10 false 4 1.844,4.781 3.271,5.021 1.427,0.24 10 false 5 3,5.938 4.427,6.177 1.427,0.24 10 false v24 5.594,7.583 7.063,8.135 1.469,0.552 10 false N23 5.146,4.813 6.573,5.052 1.427,0.24 10 false 1 2.594,4.802 4.01,5.01 1.417,0.208 10 false 3 0.198,6.875 0.656,7.073 0.458,0.198 10 false v25

C427063E31
3.177,5.354 7,5.552 3.823,0.198 10 false Occupant Detection Sensor 0.552,2.052 4.375,2.25 3.823,0.198 10 false Occupant Detection Sensor 0.531,2.677 4.354,2.875 3.823,0.198 10 false No. 1 Seat Cushion Pad RH 3.083,6.135 6.906,6.333 3.823,0.198 10 false No. 1 Seat Cushion Pad RH 0.198,0.375 3.781,0.573 3.583,0.198 12 false for Power Captain Seat: 0.167,4 3.75,4.198 3.583,0.198 12 false for Manual Captain Seat: 3.115,2.667 5.01,3.24 1.896,0.573 10 false Rear No. 1 Seat Inner Belt Assembly RH 0.25,7.063 3.833,7.26 3.583,0.198 10 false Rear No. 1 Seat Inner Belt Assembly RH 3.896,1.385 5.323,1.625 1.427,0.24 10 false Buckle Switch 0.896,6.417 2.323,6.656 1.427,0.24 10 false Buckle Switch 2.448,1.521 3.875,1.76 1.427,0.24 10 false E 2.26,1.104 3.688,1.344 1.427,0.24 10 false ODS 6.01,1.188 7.156,1.448 1.146,0.26 10 false RRSB 5.573,7.729 7.042,8.281 1.469,0.552 10 false Combination Meter Assembly 2.688,1.094 4.115,1.333 1.427,0.24 10 false 1 2.688,1.542 4.115,1.781 1.427,0.24 10 false 3 3.677,1.094 5.104,1.333 1.427,0.24 10 false 4 4.917,1.083 6.344,1.323 1.427,0.24 10 false 5 3.135,2.49 4.563,2.729 1.427,0.24 10 false v1 0.563,2.5 1.99,2.74 1.427,0.24 10 false v7 0.25,6.833 3.833,7.031 3.583,0.198 10 false v28 5.156,4.771 6.583,5.01 1.427,0.24 10 false 1 2.573,4.802 4,5.042 1.427,0.24 10 false 3 5.604,7.563 7.031,7.802 1.427,0.24 10 false N23 5.75,1.073 6.896,1.333 1.146,0.26 10 false 35 3.073,5.906 3.531,6.104 0.458,0.198 10 false v27 1.885,4.781 2.229,5.063 0.344,0.281 10 false 5 1.854,6.052 2.063,6.323 0.208,0.271 10 false 4

w/o Rear No. 3 Seat:
C427063E32
3.167,5.354 6.99,5.552 3.823,0.198 10 false Occupant Detection Sensor 0.552,2.052 4.375,2.25 3.823,0.198 10 false Occupant Detection Sensor 0.531,2.688 4.354,2.885 3.823,0.198 10 false No. 2 Seat Cushion Pad LH 3.073,6.135 6.896,6.333 3.823,0.198 10 false No. 2 Seat Cushion Pad LH 0.198,0.375 3.781,0.573 3.583,0.198 12 false for Power Captain Seat: 0.188,4.01 3.771,4.208 3.583,0.198 12 false for Manual Captain Seat: 3.5,2.667 5.125,3.125 1.625,0.458 10 false Rear No. 2 Seat Inner Belt Assembly LH 3.896,1.385 5.323,1.625 1.427,0.24 10 false Buckle Switch 0.885,6.396 2.313,6.635 1.427,0.24 10 false Buckle Switch 1.844,4.771 2.635,5.521 0.792,0.75 10 false 5 1.833,6.031 3.26,6.271 1.427,0.24 10 false 4 2.448,1.521 3.875,1.76 1.427,0.24 10 false E 2.26,1.104 3.688,1.344 1.427,0.24 10 false ODS 6.01,1.188 7.156,1.448 1.146,0.26 10 false RDC 5.583,7.76 7.052,8.313 1.469,0.552 10 false Combination Meter Assembly 0.229,7.104 2.719,7.542 2.49,0.438 10 false Rear No. 2 Seat Inner Belt Assembly LH 5.74,1.083 6.885,1.344 1.146,0.26 10 false 37 4.917,1.083 6.063,1.344 1.146,0.26 10 false 5 3.688,1.073 4.833,1.333 1.146,0.26 10 false 4 2.708,1.073 3.854,1.333 1.146,0.26 10 false 1 2.698,1.531 3.844,1.792 1.146,0.26 10 false 3 5.594,7.604 7.063,8.156 1.469,0.552 10 false N23 3.51,2.479 5.135,2.938 1.625,0.458 10 false v39 0.552,2.521 4.375,2.719 3.823,0.198 10 false y14 3.063,5.875 5.552,6.313 2.49,0.438 10 false v32 2.563,4.75 3.99,4.99 1.427,0.24 10 false 3 5.146,4.76 6.573,5 1.427,0.24 10 false 1 0.271,6.896 0.938,7.229 0.667,0.333 10 false v33

w/o Rear No. 3 Seat:

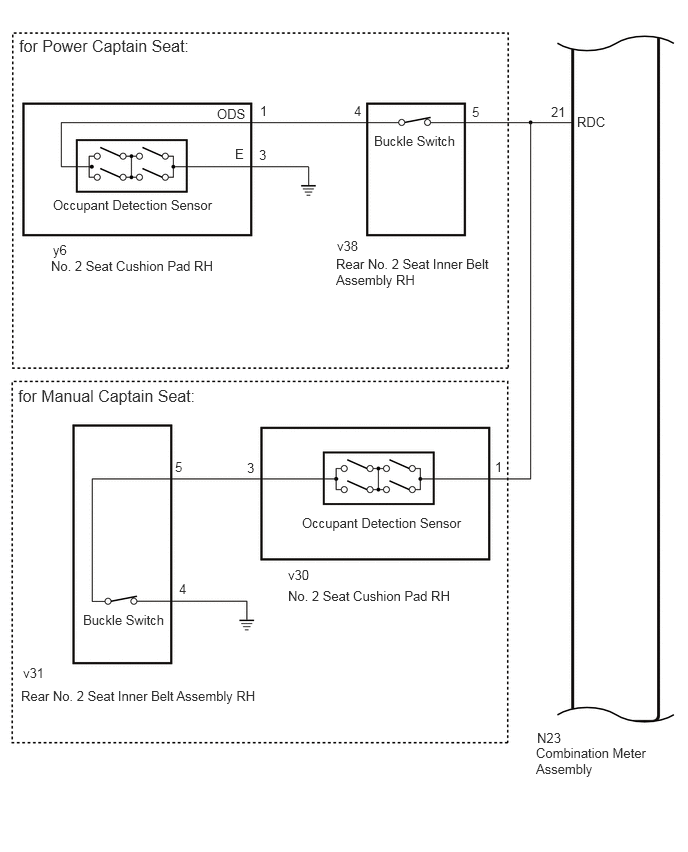

C427063E33
3.146,5.365 6.969,5.563 3.823,0.198 10 false Occupant Detection Sensor 0.552,2.052 4.375,2.25 3.823,0.198 10 false Occupant Detection Sensor 0.531,2.688 4.354,2.885 3.823,0.198 10 false No. 2 Seat Cushion Pad RH 3,6.125 6.823,6.323 3.823,0.198 10 false No. 2 Seat Cushion Pad RH 0.198,0.375 3.781,0.573 3.583,0.198 12 false for Power Captain Seat: 0.188,4.021 3.771,4.219 3.583,0.198 12 false for Manual Captain Seat: 3.5,2.667 5.125,3.125 1.625,0.458 10 false Rear No. 2 Seat Inner Belt Assembly RH 3.896,1.385 5.323,1.625 1.427,0.24 10 false Buckle Switch 0.865,6.375 2.292,6.615 1.427,0.24 10 false Buckle Switch 5.156,4.781 6.583,5.021 1.427,0.24 10 false 1 1.865,6.052 3.292,6.292 1.427,0.24 10 false 4 2.448,1.521 3.875,1.76 1.427,0.24 10 false E 2.26,1.104 3.688,1.344 1.427,0.24 10 false ODS 6.01,1.188 7.156,1.448 1.146,0.26 10 false RDC 5.583,7.76 7.052,8.313 1.469,0.552 10 false Combination Meter Assembly 0.219,7.167 2.708,7.604 2.49,0.438 10 false Rear No. 2 Seat Inner Belt Assembly RH 5.74,1.083 6.885,1.344 1.146,0.26 10 false 21 4.917,1.083 6.063,1.344 1.146,0.26 10 false 5 3.688,1.073 4.833,1.333 1.146,0.26 10 false 4 2.708,1.073 3.854,1.333 1.146,0.26 10 false 1 2.698,1.531 3.844,1.792 1.146,0.26 10 false 3 5.594,7.604 7.063,8.156 1.469,0.552 10 false N23 3.51,2.479 5.135,2.938 1.625,0.458 10 false v38 0.552,2.521 4.375,2.719 3.823,0.198 10 false y6 0.24,6.927 0.677,7.333 0.438,0.406 10 false v31 1.823,4.781 3.25,5.021 1.427,0.24 10 false 5 2.573,4.792 4,5.031 1.427,0.24 10 false 3 3,5.906 3.458,6.104 0.458,0.198 10 false v30

w/ Rear No. 3 Seat:

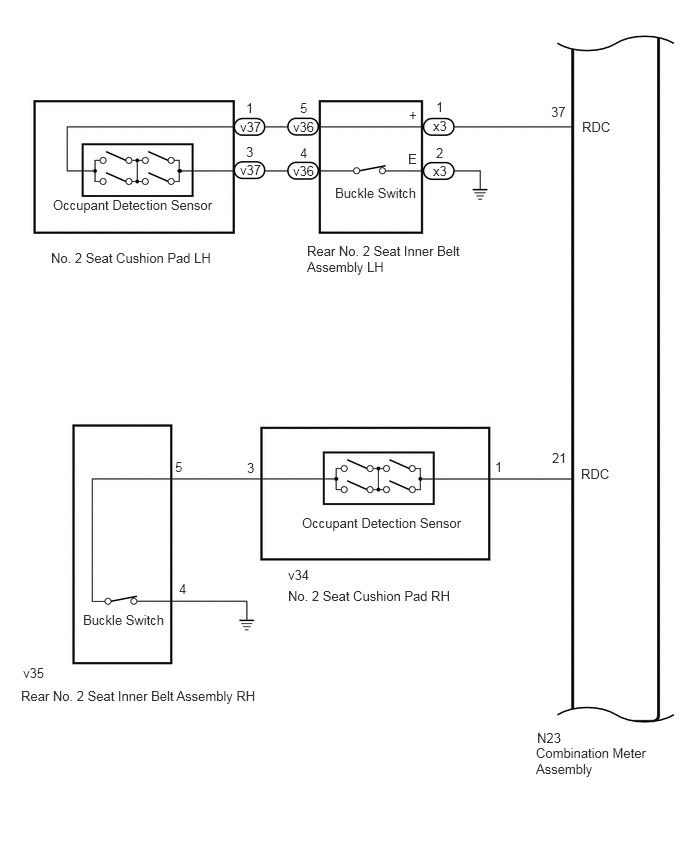

C427741E04
3.146,5.365 6.969,5.563 3.823,0.198 10 false Occupant Detection Sensor 0.552,2.052 4.375,2.25 3.823,0.198 10 false Occupant Detection Sensor 0.531,2.604 4.354,2.802 3.823,0.198 10 false No. 2 Seat Cushion Pad LH 3,6.125 6.823,6.323 3.823,0.198 10 false No. 2 Seat Cushion Pad RH 3.198,2.531 4.823,2.99 1.625,0.458 10 false Rear No. 2 Seat Inner Belt Assembly LH 3.49,1.927 4.917,2.167 1.427,0.24 10 false Buckle Switch 0.865,6.375 2.292,6.615 1.427,0.24 10 false Buckle Switch 5.156,4.781 6.583,5.021 1.427,0.24 10 false 1 1.865,6.052 3.292,6.292 1.427,0.24 10 false 4 4.25,1.573 5.677,1.813 1.427,0.24 10 false E 4.26,1.115 5.688,1.354 1.427,0.24 10 false + 6.052,4.854 6.76,5.417 0.708,0.563 10 false RDC 5.583,7.76 7.052,8.313 1.469,0.552 10 false Combination Meter Assembly 0.219,7.167 2.708,7.604 2.49,0.438 10 false Rear No. 2 Seat Inner Belt Assembly RH 5.74,1.083 6.885,1.344 1.146,0.26 10 false 37 4.51,1.229 5.656,1.49 1.146,0.26 10 false x3 3.125,1.51 4.271,1.771 1.146,0.26 10 false 4 4.542,1.031 5.688,1.292 1.146,0.26 10 false 1 4.542,1.51 5.688,1.771 1.146,0.26 10 false 2 5.594,7.604 7.063,8.156 1.469,0.552 10 false N23 0.24,6.927 0.677,7.333 0.438,0.406 10 false v35 1.823,4.781 3.25,5.021 1.427,0.24 10 false 5 2.573,4.792 4,5.031 1.427,0.24 10 false 3 3,5.906 3.458,6.104 0.458,0.198 10 false v34 4.51,1.698 5.656,1.958 1.146,0.26 10 false x3 3.052,1.698 3.51,1.896 0.458,0.198 10 false v36 3.052,1.24 3.51,1.438 0.458,0.198 10 false v36 3.125,1.042 4.271,1.302 1.146,0.26 10 false 5 2.5,1.24 2.958,1.438 0.458,0.198 10 false v37 2.5,1.688 2.958,1.885 0.458,0.198 10 false v37 2.563,1.042 2.865,1.302 0.302,0.26 10 false 1 2.563,1.5 2.865,1.76 0.302,0.26 10 false 3 6.063,1.24 6.75,1.833 0.688,0.594 10 false RDC 5.75,4.688 6.063,4.885 0.313,0.198 10 false 21

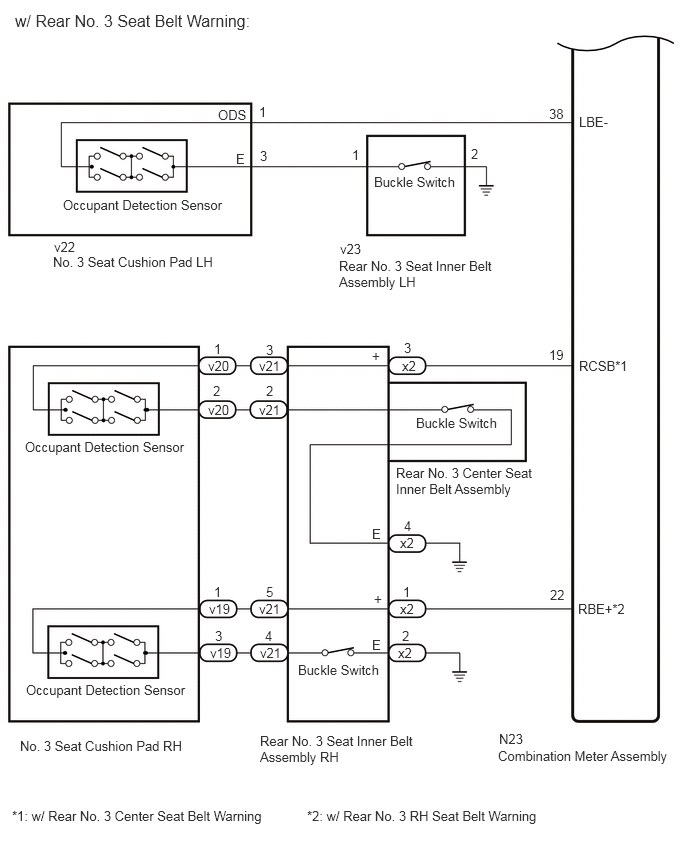

B546834E05
0.656,2.052 4.479,2.25 3.823,0.198 10 false Occupant Detection Sensor 0.26,4.573 4.083,4.771 3.823,0.198 10 false Occupant Detection Sensor 0.271,7.104 4.094,7.302 3.823,0.198 10 false Occupant Detection Sensor 3.896,1.813 5.479,2.083 1.583,0.271 10 false Buckle Switch 4.333,4.323 5.917,4.594 1.583,0.271 10 false Buckle Switch 3.104,6.896 4.688,7.167 1.583,0.271 10 false Buckle Switch 6.031,1.188 6.792,1.49 0.76,0.302 10 false LBE- 6.031,3.729 6.792,4.031 0.76,0.302 10 false RCSB*1 6.021,6.26 6.781,6.563 0.76,0.302 10 false RBE+*2 2.271,1.115 3.031,1.417 0.76,0.302 10 false ODS 2.458,1.573 3.219,1.875 0.76,0.302 10 false E 3.875,5.479 4.635,5.781 0.76,0.302 10 false E 3.875,6.635 4.635,6.938 0.76,0.302 10 false E 3.896,6.156 4.656,6.458 0.76,0.302 10 false + 3.875,3.625 4.635,3.927 0.76,0.302 10 false + 5.188,7.792 7.063,8.302 1.875,0.51 10 false Combination Meter Assembly 0.208,7.688 2.083,8.198 1.875,0.51 10 false No. 3 Seat Cushion Pad RH 0.552,2.646 2.427,3.156 1.875,0.51 10 false No. 3 Seat Cushion Pad LH 2.708,7.635 4.583,8.146 1.875,0.51 10 false Rear No. 3 Seat Inner Belt Assembly RH 3.531,2.688 5.281,3.188 1.75,0.5 10 false Rear No. 3 Seat Inner Belt Assembly LH 4.125,4.844 5.781,5.26 1.656,0.417 10 false Rear No. 3 Center Seat Inner Belt Assembly 2.698,1.083 3.458,1.385 0.76,0.302 10 false 1 5.719,1.104 6.479,1.406 0.76,0.302 10 false 38 3.667,1.531 4.427,1.833 0.76,0.302 10 false 1 2.708,1.542 3.469,1.844 0.76,0.302 10 false 3 4.906,1.521 5.667,1.823 0.76,0.302 10 false 2 4.198,6.083 4.958,6.385 0.76,0.302 10 false 1 4.188,6.542 4.948,6.844 0.76,0.302 10 false 2 4.208,3.542 4.969,3.844 0.76,0.302 10 false 3 4.208,5.396 4.969,5.698 0.76,0.302 10 false 4 5.729,6.115 6.49,6.417 0.76,0.302 10 false 22 5.719,3.615 6.479,3.917 0.76,0.302 10 false 19 0.563,2.49 1.323,2.792 0.76,0.302 10 false v22 4.146,6.719 4.906,7.021 0.76,0.302 10 false x2 3.542,2.51 4.302,2.813 0.76,0.302 10 false v23 2.698,6.26 3.458,6.563 0.76,0.302 10 false v21 5.198,7.615 7.073,8.125 1.875,0.51 10 false N23 0.156,0.115 3.979,0.313 3.823,0.198 12 false w/ Rear No. 3 Seat Belt Warning: 2.708,6.719 3.469,7.021 0.76,0.302 10 false v21 2.698,4.188 3.458,4.49 0.76,0.302 10 false v21 2.698,3.729 3.458,4.031 0.76,0.302 10 false v21 4.167,6.26 4.927,6.563 0.76,0.302 10 false x2 4.167,5.573 4.927,5.875 0.76,0.302 10 false x2 4.188,3.729 4.948,4.031 0.76,0.302 10 false x2 2.167,4.188 2.927,4.49 0.76,0.302 10 false v20 2.167,3.729 2.927,4.031 0.76,0.302 10 false v20 2.177,6.26 2.938,6.563 0.76,0.302 10 false v19 2.188,6.719 2.948,7.021 0.76,0.302 10 false v19 2.219,3.99 2.979,4.292 0.76,0.302 10 false 2 2.771,3.99 3.531,4.292 0.76,0.302 10 false 2 2.229,3.552 2.99,3.854 0.76,0.302 10 false 1 2.771,3.563 3.531,3.865 0.76,0.302 10 false 3 2.229,6.083 2.99,6.385 0.76,0.302 10 false 1 2.24,6.542 3,6.844 0.76,0.302 10 false 3 2.76,6.542 3.521,6.844 0.76,0.302 10 false 4 2.771,6.083 3.531,6.385 0.76,0.302 10 false 5 0.125,8.417 3.135,8.844 3.01,0.427 10 false *1: w/ Rear No. 3 Center Seat Belt Warning 3.198,8.417 6.115,8.865 2.917,0.448 10 false *2: w/ Rear No. 3 RH Seat Belt Warning


CAUTION / NOTICE / HINT

NOTICE:
·

The seat belt warning system uses the CAN communication system. First, confirm that there is no malfunction in the CAN communication system. Refer to the How to Proceed with Troubleshooting procedure.

·

When replacing the combination meter assembly, always replace it with a new one. If a combination meter assembly which was installed to another vehicle is used, the information stored in it will not match the information from the vehicle and a DTC may be stored.

·

Inspect the fuses for circuits related to this system before performing the following procedure.



PROCEDURE

1.CHECK VEHICLE TYPE
a.

Check vehicle condition.


Result:
Result Proceed to
except Wagon A
for Wagon B



A

2.CHECK REAR SEAT BELT WARNING LIGHT

B

26.CHECK REAR SEAT BELT WARNING LIGHT
2.CHECK REAR SEAT BELT WARNING LIGHT
a.

Check the rear seat belt warning light.


Result:
Result Proceed to
No rear seat belt warning lights illuminate. A
LH side rear seat belt warning light does not illuminate. B
Center side rear seat belt warning light does not illuminate. C
RH side rear seat belt warning light does not illuminate. D



A

3.INSPECT REAR CENTER SEAT INNER BELT ASSEMBLY

B

6.READ VALUE USING GTS

C

13.READ VALUE USING GTS

D

19.READ VALUE USING GTS
3.INSPECT REAR CENTER SEAT INNER BELT ASSEMBLY
a.

Remove the rear center seat inner belt assembly.

Click hereVehicle Interior>SEAT BELT>REAR SEAT INNER BELT ASSEMBLY (for Van)>REMOVAL


b.

Inspect the rear center seat inner belt assembly.

Click hereVehicle Interior>SEAT BELT>REAR SEAT INNER BELT ASSEMBLY (for Van)>INSPECTION


Result:
Proceed to
OK
NG



OK

4.CHECK HARNESS AND CONNECTOR (REAR CENTER SEAT INNER BELT ASSEMBLY - BODY GROUND)

NG

REPLACE REAR CENTER SEAT INNER BELT ASSEMBLY

Click hereVehicle Interior>SEAT BELT>REAR SEAT INNER BELT ASSEMBLY (for Van)>REMOVAL


4.CHECK HARNESS AND CONNECTOR (REAR CENTER SEAT INNER BELT ASSEMBLY - BODY GROUND)
a.

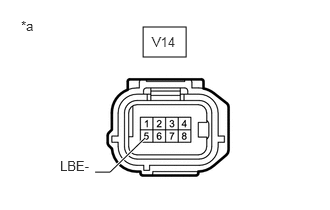

E416740C02
1.49,0.281 1.938,0.594 0.448,0.313 0.99,1.792 1.146,1.792 1.146,1.792 1.51,1.438 true 0.219,0.188 0.531,0.385 0.313,0.198 10 false *a 1.583,0.354 1.896,0.552 0.313,0.198 10 false V14 0.625,1.646 1.052,1.896 0.427,0.25 10 false LBE-
*a Front view of wire harness connector
(to Rear Center Seat Inner Belt Assembly)


Disconnect the rear center seat inner belt assembly connector.


b.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
V14-5 (LBE-) - Body ground Always Below 1 Ω



Result:
Proceed to
OK
NG



OK

5.CHECK HARNESS AND CONNECTOR (INDICATOR ASSEMBLY [REAR SEAT BELT WARNING LIGHT] - BATTERY AND BODY GROUND)

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

5.CHECK HARNESS AND CONNECTOR (INDICATOR ASSEMBLY [REAR SEAT BELT WARNING LIGHT] - BATTERY AND BODY GROUND)
a.

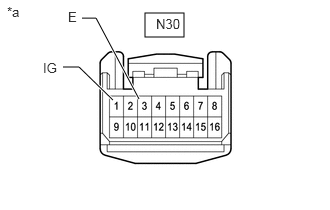

E285189C19
1.51,0.135 1.917,0.385 0.406,0.25 1.177,1.042 0.823,0.698 0.823,0.698 0.656,0.698 true 0.854,0.188 1,0.188 1,0.188 1.448,1.031 true 0.073,0.042 0.385,0.198 0.313,0.156 10 false *a 1.625,0.167 2.083,0.365 0.458,0.198 10 false N30 0.448,0.625 0.813,0.833 0.365,0.208 10 false IG 0.708,0.094 1.073,0.302 0.365,0.208 10 false E
*a Front view wire harness connector
(to Indicator Assembly [Rear Seat Belt Warning Light])


Disconnect the indicator assembly (rear seat belt warning light) connector.


b.

Measure the voltage according to the value(s) in the table below.

Standard Voltage:
Tester Connection Switch Condition Specified Condition
N30-1 (IG) - Body ground Ignition switch ON 11 to 14 V
Ignition switch off Below 1 V



c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
N30-3 (E) - Body ground Always Below 1 Ω



Result:
Proceed to
OK
NG



OK

REPLACE INDICATOR ASSEMBLY

Click hereVehicle Interior>SEAT BELT>SEAT BELT WARNING LIGHT (for Rear Seat)>REMOVAL


NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

6.READ VALUE USING GTS
a.

Read the Data List according to the display on the GTS.

Click hereVehicle Interior>SEAT BELT>SEAT BELT WARNING SYSTEM>DATA LIST / ACTIVE TEST

Body Electrical > Combination Meter > Data List
Tester Display Measurement Item Range Normal Condition Diagnostic Note
Rear Left Seat Buckle / Occupant Detection Warning Switch Rear seat inner belt LH buckle and occupant detection sensor signal OFF or ON OFF: Rear LH seat belt fastened and occupied
ON: Rear LH seat belt not fastened and occupied 		-
Body Electrical > Combination Meter > Data List
Tester Display
Rear Left Seat Buckle / Occupant Detection Warning Switch
50003 409 31
OK:

The GTS display changes correctly in response to the rear seat belt condition.



Result:
Proceed to
OK
NG



OK

7.CHECK HARNESS AND CONNECTOR (INDICATOR ASSEMBLY [REAR SEAT BELT WARNING LIGHT] - COMBINATION METER ASSEMBLY)

NG

9.INSPECT REAR SEAT INNER BELT ASSEMBLY LH
7.CHECK HARNESS AND CONNECTOR (INDICATOR ASSEMBLY [REAR SEAT BELT WARNING LIGHT] - COMBINATION METER ASSEMBLY)
a.

Disconnect the N30 indicator assembly (rear seat belt warning light) connector.


b.

Disconnect the N23 combination meter assembly connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
N30-9 (R2LM) - N23-9 (RLMT) Always Below 1 Ω
N30-9 (R2LM) or N23-9 (RLMT) - Body ground Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

8.CHECK INDICATOR ASSEMBLY

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

8.CHECK INDICATOR ASSEMBLY
a.
C406366C18
1.5,0.167 1.885,0.427 0.385,0.26 0.885,1.188 0.594,1.906 0.594,1.906 0.427,1.906 true 0.115,0.083 0.427,0.24 0.313,0.156 10 false *a 1.573,0.208 1.885,0.365 0.313,0.156 10 false N23 0.031,1.802 0.49,2.094 0.458,0.292 10 false RLMT
*a Front view of wire harness connector
(to Combination Meter Assembly)


Disconnect the combination meter assembly connector.


b.

Measure the voltage according to the value(s) in the table below.

Standard Voltage:
Tester Connection Switch Condition Specified Condition
N23-9 (RLMT) - Body ground Ignition switch ON 11 to 14 V
Ignition switch off Below 1 V



Result:
Proceed to
OK
NG



OK

REPLACE COMBINATION METER ASSEMBLY

Click hereVehicle Interior>METER / GAUGE / DISPLAY>COMBINATION METER>REMOVAL


NG

REPLACE INDICATOR ASSEMBLY

Click hereVehicle Interior>SEAT BELT>SEAT BELT WARNING LIGHT (for Rear Seat)>REMOVAL


9.INSPECT REAR SEAT INNER BELT ASSEMBLY LH
a.

Remove the rear seat inner belt assembly LH.

Click hereVehicle Interior>SEAT BELT>REAR SEAT INNER BELT ASSEMBLY (for Van)>REMOVAL


b.

Inspect the rear seat inner belt assembly LH.

Click hereVehicle Interior>SEAT BELT>REAR SEAT INNER BELT ASSEMBLY (for Van)>INSPECTION


Result:
Proceed to
OK
NG



OK

10.INSPECT NO. 1 SEAT CUSHION PAD

NG

REPLACE REAR SEAT INNER BELT ASSEMBLY LH

Click hereVehicle Interior>SEAT BELT>REAR SEAT INNER BELT ASSEMBLY (for Van)>REMOVAL


10.INSPECT NO. 1 SEAT CUSHION PAD
a.

Remove the No. 1 seat cushion pad (occupant detection sensor).

Click hereVehicle Interior>SEAT>OCCUPANT DETECTION SENSOR (for Van)>REMOVAL


b.

Inspect the No. 1 seat cushion pad (occupant detection sensor).

Click hereVehicle Interior>SEAT>OCCUPANT DETECTION SENSOR (for Van)>INSPECTION


Result:
Proceed to
OK
NG



OK

11.INSPECT REAR CENTER SEAT INNER BELT ASSEMBLY

NG

REPLACE NO. 1 SEAT CUSHION PAD

Click hereVehicle Interior>SEAT>OCCUPANT DETECTION SENSOR (for Van)>REMOVAL


11.INSPECT REAR CENTER SEAT INNER BELT ASSEMBLY
a.

Remove the rear center seat inner belt assembly.

Click hereVehicle Interior>SEAT BELT>REAR SEAT INNER BELT ASSEMBLY (for Van)>REMOVAL


b.

Inspect the rear center seat inner belt assembly.

Click hereVehicle Interior>SEAT BELT>REAR SEAT INNER BELT ASSEMBLY (for Van)>INSPECTION


Result:
Proceed to
OK
NG



OK

12.CHECK HARNESS AND CONNECTOR (REAR CENTER SEAT INNER BELT ASSEMBLY - COMBINATION METER ASSEMBLY)

NG

REPLACE REAR CENTER SEAT INNER BELT ASSEMBLY

Click hereVehicle Interior>SEAT BELT>REAR SEAT INNER BELT ASSEMBLY (for Van)>REMOVAL


12.CHECK HARNESS AND CONNECTOR (REAR CENTER SEAT INNER BELT ASSEMBLY - COMBINATION METER ASSEMBLY)
a.

Disconnect the V14 rear center seat inner belt assembly connector.


b.

Disconnect the N23 combination meter assembly connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
V14-1 (LBR+) - N23-36 (RLSB) Always Below 1 Ω
V14-1 (LBR+) or N23-36 (RLSB) - Body ground Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

REPLACE COMBINATION METER ASSEMBLY

Click hereVehicle Interior>METER / GAUGE / DISPLAY>COMBINATION METER>REMOVAL


NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

13.READ VALUE USING GTS
a.

Read the Data List according to the display on the GTS.

Click hereVehicle Interior>SEAT BELT>SEAT BELT WARNING SYSTEM>DATA LIST / ACTIVE TEST

Body Electrical > Combination Meter > Data List
Tester Display Measurement Item Range Normal Condition Diagnostic Note
Rear Center Seat Buckle / Occupant Detection Warning Switch Rear seat inner belt (for Center) buckle and occupant detection sensor signal OFF or ON OFF: Rear center seat belt fastened and occupied
ON: Rear center seat belt not fastened and occupied 		-
Body Electrical > Combination Meter > Data List
Tester Display
Rear Center Seat Buckle / Occupant Detection Warning Switch
50003 409 32
OK:

The GTS display changes correctly in response to the rear seat belt condition.



Result:
Proceed to
OK
NG



OK

14.CHECK HARNESS AND CONNECTOR (INDICATOR ASSEMBLY [REAR SEAT BELT WARNING LIGHT] - COMBINATION METER ASSEMBLY)

NG

16.INSPECT REAR CENTER SEAT INNER BELT ASSEMBLY
14.CHECK HARNESS AND CONNECTOR (INDICATOR ASSEMBLY [REAR SEAT BELT WARNING LIGHT] - COMBINATION METER ASSEMBLY)
a.

Disconnect the N30 indicator assembly (rear seat belt warning light) connector.


b.

Disconnect the N23 combination meter assembly connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
N30-10 (R2CM) - N23-25 (RCMT) Always Below 1 Ω
N30-10 (R2CM) or N23-25 (RCMT) - Body ground Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

15.CHECK INDICATOR ASSEMBLY

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

15.CHECK INDICATOR ASSEMBLY
a.

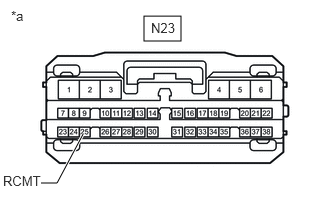

C406366C19
1.5,0.167 1.885,0.427 0.385,0.26 0.865,1.396 0.594,1.906 0.594,1.906 0.427,1.906 true 0.115,0.083 0.427,0.24 0.313,0.156 10 false *a 1.573,0.208 1.885,0.365 0.313,0.156 10 false N23 0.031,1.802 0.49,2.094 0.458,0.292 10 false RCMT
*a Front view of wire harness connector
(to Combination Meter Assembly)


Disconnect the combination meter assembly connector.


b.

Measure the voltage according to the value(s) in the table below.

Standard Voltage:
Tester Connection Switch Condition Specified Condition
N23-25 (RCMT) - Body ground Ignition switch ON 11 to 14 V
Ignition switch off Below 1 V



Result:
Proceed to
OK
NG



OK

REPLACE COMBINATION METER ASSEMBLY

Click hereVehicle Interior>METER / GAUGE / DISPLAY>COMBINATION METER>REMOVAL


NG

REPLACE INDICATOR ASSEMBLY

Click hereVehicle Interior>SEAT BELT>SEAT BELT WARNING LIGHT (for Rear Seat)>REMOVAL


16.INSPECT REAR CENTER SEAT INNER BELT ASSEMBLY
a.

Remove the rear center seat inner belt assembly.

Click hereVehicle Interior>SEAT BELT>REAR SEAT INNER BELT ASSEMBLY (for Van)>REMOVAL


b.

Inspect the rear center seat inner belt assembly.

Click hereVehicle Interior>SEAT BELT>REAR SEAT INNER BELT ASSEMBLY (for Van)>INSPECTION


Result:
Proceed to
OK
NG



OK

17.INSPECT NO. 1 SEAT CUSHION PAD

NG

REPLACE REAR CENTER SEAT INNER BELT ASSEMBLY

Click hereVehicle Interior>SEAT BELT>REAR SEAT INNER BELT ASSEMBLY (for Van)>REMOVAL


17.INSPECT NO. 1 SEAT CUSHION PAD
a.

Remove the No. 1 seat cushion pad (occupant detection sensor).

Click hereVehicle Interior>SEAT>OCCUPANT DETECTION SENSOR (for Van)>REMOVAL


b.

Inspect the No. 1 seat cushion pad (occupant detection sensor).

Click hereVehicle Interior>SEAT>OCCUPANT DETECTION SENSOR (for Van)>INSPECTION


Result:
Proceed to
OK
NG



OK

18.CHECK HARNESS AND CONNECTOR (REAR CENTER SEAT INNER BELT ASSEMBLY - COMBINATION METER ASSEMBLY)

NG

REPLACE NO. 1 SEAT CUSHION PAD

Click hereVehicle Interior>SEAT>OCCUPANT DETECTION SENSOR (for Van)>REMOVAL


18.CHECK HARNESS AND CONNECTOR (REAR CENTER SEAT INNER BELT ASSEMBLY - COMBINATION METER ASSEMBLY)
a.

Disconnect the V14 rear center seat inner belt assembly connector.


b.

Disconnect the N23 combination meter assembly connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
V14-6 (CBR+) - N23-19 (RCSB) Always Below 1 Ω
V14-6 (CBR+) or N23-19 (RCSB) - Body ground Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

REPLACE COMBINATION METER ASSEMBLY

Click hereVehicle Interior>METER / GAUGE / DISPLAY>COMBINATION METER>REMOVAL


NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

19.READ VALUE USING GTS
a.

Read the Data List according to the display on the GTS.

Click hereVehicle Interior>SEAT BELT>SEAT BELT WARNING SYSTEM>DATA LIST / ACTIVE TEST

Body Electrical > Combination Meter > Data List
Tester Display Measurement Item Range Normal Condition Diagnostic Note
Rear Right Seat Buckle / Occupant Detection Warning Switch Rear seat inner belt RH buckle and occupant detection sensor signal OFF or ON OFF: Rear RH seat belt fastened and occupied
ON: Rear RH seat belt not fastened and occupied 		-
Body Electrical > Combination Meter > Data List
Tester Display
Rear Right Seat Buckle / Occupant Detection Warning Switch
50003 409 30
OK:

The GTS display changes correctly in response to the rear seat belt condition.



Result:
Proceed to
OK
NG



OK

20.CHECK HARNESS AND CONNECTOR (INDICATOR ASSEMBLY [REAR SEAT BELT WARNING LIGHT] - COMBINATION METER ASSEMBLY)

NG

22.INSPECT REAR SEAT INNER BELT ASSEMBLY RH
20.CHECK HARNESS AND CONNECTOR (INDICATOR ASSEMBLY [REAR SEAT BELT WARNING LIGHT] - COMBINATION METER ASSEMBLY)
a.

Disconnect the N30 indicator assembly (rear seat belt warning light) connector.


b.

Disconnect the N23 combination meter assembly connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
N30-11 (R2RI) - N23-8 (RRMT) Always Below 1 Ω
N30-11 (R2RI) or N23-8 (RRMT) - Body ground Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

21.CHECK INDICATOR ASSEMBLY

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

21.CHECK INDICATOR ASSEMBLY
a.

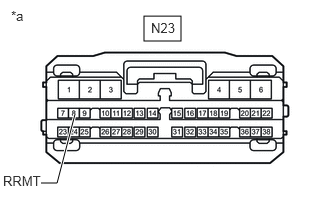

C406366C17
1.5,0.167 1.885,0.427 0.385,0.26 0.781,1.188 0.594,1.906 0.594,1.906 0.427,1.906 true 0.115,0.083 0.427,0.24 0.313,0.156 10 false *a 1.573,0.208 1.885,0.365 0.313,0.156 10 false N23 0.031,1.802 0.49,2.094 0.458,0.292 10 false RRMT
*a Front view of wire harness connector
(to Combination Meter Assembly)


Disconnect the combination meter assembly connector.


b.

Measure the voltage according to the value(s) in the table below.

Standard Voltage:
Tester Connection Switch Condition Specified Condition
N23-8 (RRMT) - Body ground Ignition switch ON 11 to 14 V
Ignition switch off Below 1 V



Result:
Proceed to
OK
NG



OK

REPLACE COMBINATION METER ASSEMBLY

Click hereVehicle Interior>METER / GAUGE / DISPLAY>COMBINATION METER>REMOVAL


NG

REPLACE INDICATOR ASSEMBLY

Click hereVehicle Interior>SEAT BELT>SEAT BELT WARNING LIGHT (for Rear Seat)>REMOVAL


22.INSPECT REAR SEAT INNER BELT ASSEMBLY RH
a.

Remove the rear seat inner belt assembly RH.

Click hereVehicle Interior>SEAT BELT>REAR SEAT INNER BELT ASSEMBLY (for Van)>REMOVAL


b.

Inspect the rear seat inner belt assembly RH.

Click hereVehicle Interior>SEAT BELT>REAR SEAT INNER BELT ASSEMBLY (for Van)>INSPECTION


Result:
Proceed to
OK
NG



OK

23.INSPECT NO. 1 SEAT CUSHION PAD

NG

REPLACE REAR SEAT INNER BELT ASSEMBLY RH

Click hereVehicle Interior>SEAT BELT>REAR SEAT INNER BELT ASSEMBLY (for Van)>REMOVAL


23.INSPECT NO. 1 SEAT CUSHION PAD
a.

Remove the No. 1 seat cushion pad (occupant detection sensor).

Click hereVehicle Interior>SEAT>OCCUPANT DETECTION SENSOR (for Van)>REMOVAL


b.

Inspect the No. 1 seat cushion pad (occupant detection sensor).

Click hereVehicle Interior>SEAT>OCCUPANT DETECTION SENSOR (for Van)>INSPECTION


Result:
Proceed to
OK
NG



OK

24.INSPECT REAR CENTER SEAT INNER BELT ASSEMBLY

NG

REPLACE NO. 1 SEAT CUSHION PAD

Click hereVehicle Interior>SEAT>OCCUPANT DETECTION SENSOR (for Van)>REMOVAL


24.INSPECT REAR CENTER SEAT INNER BELT ASSEMBLY
a.

Remove the rear center seat inner belt assembly.

Click hereVehicle Interior>SEAT BELT>REAR SEAT INNER BELT ASSEMBLY (for Van)>REMOVAL


b.

Inspect the rear center seat inner belt assembly.

Click hereVehicle Interior>SEAT BELT>REAR SEAT INNER BELT ASSEMBLY (for Van)>INSPECTION


Result:
Proceed to
OK
NG



OK

25.CHECK HARNESS AND CONNECTOR (REAR CENTER SEAT INNER BELT ASSEMBLY - COMBINATION METER ASSEMBLY)

NG

REPLACE REAR CENTER SEAT INNER BELT ASSEMBLY

Click hereVehicle Interior>SEAT BELT>REAR SEAT INNER BELT ASSEMBLY (for Van)>REMOVAL


25.CHECK HARNESS AND CONNECTOR (REAR CENTER SEAT INNER BELT ASSEMBLY - COMBINATION METER ASSEMBLY)
a.

Disconnect the V14 rear center seat inner belt assembly connector.


b.

Disconnect the N23 combination meter assembly connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
V14-2 (RBR+) - N23-35 (RRSB) Always Below 1 Ω
V14-2 (RBR+) or N23-35 (RRSB) - Body ground Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

REPLACE COMBINATION METER ASSEMBLY

Click hereVehicle Interior>METER / GAUGE / DISPLAY>COMBINATION METER>REMOVAL


NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

26.CHECK REAR SEAT BELT WARNING LIGHT
a.

Check the rear seat belt warning light.


Result:
Result Proceed to
No rear seat belt warning lights illuminate. A
LH side rear No. 1 seat belt warning light does not illuminate. B
RH side rear No. 1 seat belt warning light does not illuminate. C
LH side rear No. 2 seat belt warning light does not illuminate. D
RH side rear No. 2 seat belt warning light does not illuminate. E
LH side rear No. 3 seat belt warning light does not illuminate. (w/ Rear No. 3 Seat Belt Warning) F
Center side rear No. 3 seat belt warning light does not illuminate. (w/ Rear No. 3 Center Seat Belt Warning) G
RH side rear No. 3 seat belt warning light does not illuminate. (w/ Rear No. 3 RH Seat Belt Warning) H



A

27.INSPECT INDICATOR ASSEMBLY (REAR SEAT BELT WARNING LIGHT)

B

29.CHECK VEHICLE TYPE

C

44.CHECK VEHICLE TYPE

D

59.CHECK VEHICLE TYPE

E

81.CHECK VEHICLE TYPE

F

103.READ VALUE USING GTS

G

110.READ VALUE USING GTS

H

118.READ VALUE USING GTS
27.INSPECT INDICATOR ASSEMBLY (REAR SEAT BELT WARNING LIGHT)
a.

Remove the indicator assembly (rear seat belt warning light).

Click hereVehicle Interior>SEAT BELT>SEAT BELT WARNING LIGHT (for Rear Seat)>REMOVAL


b.

Inspect the indicator assembly (rear seat belt warning light).

Click hereVehicle Interior>SEAT BELT>SEAT BELT WARNING LIGHT (for Rear Seat)>INSPECTION


Result:
Proceed to
OK
NG



OK

28.CHECK HARNESS AND CONNECTOR (INDICATOR ASSEMBLY [REAR SEAT BELT WARNING LIGHT] - BATTERY AND BODY GROUND)

NG

REPLACE INDICATOR ASSEMBLY

Click hereVehicle Interior>SEAT BELT>SEAT BELT WARNING LIGHT (for Rear Seat)>REMOVAL


28.CHECK HARNESS AND CONNECTOR (INDICATOR ASSEMBLY [REAR SEAT BELT WARNING LIGHT] - BATTERY AND BODY GROUND)
a.
E285189C19
1.51,0.135 1.917,0.385 0.406,0.25 1.177,1.042 0.823,0.698 0.823,0.698 0.656,0.698 true 0.854,0.188 1,0.188 1,0.188 1.448,1.031 true 0.073,0.042 0.385,0.198 0.313,0.156 10 false *a 1.625,0.167 2.083,0.365 0.458,0.198 10 false N30 0.448,0.625 0.813,0.833 0.365,0.208 10 false IG 0.708,0.094 1.073,0.302 0.365,0.208 10 false E
*a Front view wire harness connector
(to Indicator Assembly [Rear Seat Belt Warning Light])


Disconnect the indicator assembly (rear seat belt warning light) connector.


b.

Measure the voltage according to the value(s) in the table below.

Standard Voltage:
Tester Connection Switch Condition Specified Condition
N30-1 (IG) - Body ground Ignition switch ON 11 to 14 V
Ignition switch off Below 1 V



c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
N30-3 (E) - Body ground Always Below 1 Ω



Result:
Proceed to
OK
NG



OK

REPLACE COMBINATION METER ASSEMBLY

Click hereVehicle Interior>METER / GAUGE / DISPLAY>COMBINATION METER>REMOVAL


NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

29.CHECK VEHICLE TYPE
a.

Check vehicle condition.


Result:
Result Proceed to
for Manual Captain Seat A
for Power Captain Seat B



A

30.READ VALUE USING GTS

B

37.READ VALUE USING GTS
30.READ VALUE USING GTS
a.

Read the Data List according to the display on the GTS.

Click hereVehicle Interior>SEAT BELT>SEAT BELT WARNING SYSTEM>DATA LIST / ACTIVE TEST

Body Electrical > Combination Meter > Data List
Tester Display Measurement Item Range Normal Condition Diagnostic Note
Rear Left Seat Buckle / Occupant Detection Warning Switch Rear seat inner belt LH buckle and occupant detection sensor signal OFF or ON OFF: Rear LH seat belt fastened and occupied
ON: Rear LH seat belt not fastened and occupied 		-
Body Electrical > Combination Meter > Data List
Tester Display
Rear Left Seat Buckle / Occupant Detection Warning Switch
50003 409 31
OK:

The GTS display changes correctly in response to the rear seat belt condition.



Result:
Proceed to
OK
NG



OK

31.INSPECT INDICATOR ASSEMBLY (REAR SEAT BELT WARNING LIGHT)

NG

33.INSPECT REAR NO. 1 SEAT INNER BELT ASSEMBLY LH
31.INSPECT INDICATOR ASSEMBLY (REAR SEAT BELT WARNING LIGHT)
a.

Remove the indicator assembly (rear seat belt warning light).

Click hereVehicle Interior>SEAT BELT>SEAT BELT WARNING LIGHT (for Rear Seat)>REMOVAL


b.

Inspect the indicator assembly (rear seat belt warning light).

Click hereVehicle Interior>SEAT BELT>SEAT BELT WARNING LIGHT (for Rear Seat)>INSPECTION


Result:
Proceed to
OK
NG



OK

32.CHECK HARNESS AND CONNECTOR (INDICATOR ASSEMBLY [REAR SEAT BELT WARNING LIGHT] - COMBINATION METER ASSEMBLY)

NG

REPLACE INDICATOR ASSEMBLY

Click hereVehicle Interior>SEAT BELT>SEAT BELT WARNING LIGHT (for Rear Seat)>REMOVAL


32.CHECK HARNESS AND CONNECTOR (INDICATOR ASSEMBLY [REAR SEAT BELT WARNING LIGHT] - COMBINATION METER ASSEMBLY)
a.

Disconnect the N30 indicator assembly (rear seat belt warning light) connector.


b.

Disconnect the N23 combination meter assembly connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
N30-9 (R2LM) - N23-9 (RLMT) Always Below 1 Ω
N30-13 (RC1D) - N23-25 (RCMT) Always Below 1 Ω
N30-11 (R2RI) - N23-8 (RRMT) Always Below 1 Ω
N30-8 (RRID) - N23-10 (R2RM) Always Below 1 Ω
N30-14 (L) - N23-11 (SW) Always Below 1 Ω
N30-6 (RLID) - N23-26 (R2LM) Always Below 1 Ω
N30-12 (LAIL) - N23-27 (B) Always Below 1 Ω
N30-9 (R2LM) or N23-9 (RLMT) - Body ground Always 10 kΩ or higher
N30-13 (RC1D) or N23-25 (RCMT) - Body ground Always 10 kΩ or higher
N30-11 (R2RI) or N23-8 (RRMT) - Body ground Always 10 kΩ or higher
N30-8 (RRID) or N23-10 (R2RM) - Body ground Always 10 kΩ or higher
N30-14 (L) or N23-11 (SW) - Body ground Always 10 kΩ or higher
N30-6 (RLID) or N23-26 (R2LM) - Body ground Always 10 kΩ or higher
N30-12 (LAIL) or N23-27 (B) - Body ground Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

REPLACE COMBINATION METER ASSEMBLY

Click hereVehicle Interior>METER / GAUGE / DISPLAY>COMBINATION METER>REMOVAL


NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

34.INSPECT NO. 1 SEAT CUSHION PAD LH
a.

Remove the No. 1 seat cushion pad LH (occupant detection sensor).

Click hereVehicle Interior>SEAT>OCCUPANT DETECTION SENSOR (for Manual Captain Seat)>REMOVAL


b.

Inspect the No. 1 seat cushion pad LH (occupant detection sensor).

Click hereVehicle Interior>SEAT>OCCUPANT DETECTION SENSOR (for Manual Captain Seat)>INSPECTION


Result:
Proceed to
OK
NG



OK

35.CHECK HARNESS AND CONNECTOR (NO. 1 SEAT CUSHION PAD LH - COMBINATION METER ASSEMBLY)

NG

REPLACE NO. 1 SEAT CUSHION PAD LH

Click hereVehicle Interior>SEAT>OCCUPANT DETECTION SENSOR (for Manual Captain Seat)>REMOVAL


35.CHECK HARNESS AND CONNECTOR (NO. 1 SEAT CUSHION PAD LH - COMBINATION METER ASSEMBLY)
a.

Disconnect the v24 No. 1 seat cushion pad LH (occupant detection sensor) connector.


b.

Disconnect the N23 combination meter assembly connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
v24-1 - N23-36 (RLSB) Always Below 1 Ω
v24-1 or N23-36 (RLSB) - Body ground Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

36.CHECK HARNESS AND CONNECTOR (REAR NO. 1 SEAT INNER BELT ASSEMBLY LH - NO. 1 SEAT CUSHION PAD LH AND BODY GROUND)

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

36.CHECK HARNESS AND CONNECTOR (REAR NO. 1 SEAT INNER BELT ASSEMBLY LH - NO. 1 SEAT CUSHION PAD LH AND BODY GROUND)
a.

Disconnect the v24 No. 1 seat cushion pad LH (occupant detection sensor) connector.


b.

Disconnect the v25 rear No. 1 seat inner belt assembly LH connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
v24-3 - v25-5 Always Below 1 Ω
v25-4 - Body ground Always Below 1 Ω
v24-3 or v25-5 - Body ground Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

REPLACE COMBINATION METER ASSEMBLY

Click hereVehicle Interior>METER / GAUGE / DISPLAY>COMBINATION METER>REMOVAL


NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

37.READ VALUE USING GTS
a.

Read the Data List according to the display on the GTS.

Click hereVehicle Interior>SEAT BELT>SEAT BELT WARNING SYSTEM>DATA LIST / ACTIVE TEST

Body Electrical > Combination Meter > Data List
Tester Display Measurement Item Range Normal Condition Diagnostic Note
Rear Left Seat Buckle / Occupant Detection Warning Switch Rear seat inner belt LH buckle and occupant detection sensor signal OFF or ON OFF: Rear LH seat belt fastened and occupied
ON: Rear LH seat belt not fastened and occupied 		-
Body Electrical > Combination Meter > Data List
Tester Display
Rear Left Seat Buckle / Occupant Detection Warning Switch
50003 409 31
OK:

The GTS display changes correctly in response to the rear seat belt condition.



Result:
Proceed to
OK
NG



OK

38.INSPECT INDICATOR ASSEMBLY (REAR SEAT BELT WARNING LIGHT)

NG

40.INSPECT REAR NO. 1 SEAT INNER BELT ASSEMBLY LH
38.INSPECT INDICATOR ASSEMBLY (REAR SEAT BELT WARNING LIGHT)
a.

Remove the indicator assembly (rear seat belt warning light).

Click hereVehicle Interior>SEAT BELT>SEAT BELT WARNING LIGHT (for Rear Seat)>REMOVAL


b.

Inspect the indicator assembly (rear seat belt warning light).

Click hereVehicle Interior>SEAT BELT>SEAT BELT WARNING LIGHT (for Rear Seat)>INSPECTION


Result:
Proceed to
OK
NG



OK

39.CHECK HARNESS AND CONNECTOR (INDICATOR ASSEMBLY [REAR SEAT BELT WARNING LIGHT] - COMBINATION METER ASSEMBLY)

NG

REPLACE INDICATOR ASSEMBLY

Click hereVehicle Interior>SEAT BELT>SEAT BELT WARNING LIGHT (for Rear Seat)>REMOVAL


39.CHECK HARNESS AND CONNECTOR (INDICATOR ASSEMBLY [REAR SEAT BELT WARNING LIGHT] - COMBINATION METER ASSEMBLY)
a.

Disconnect the N30 indicator assembly (rear seat belt warning light) connector.


b.

Disconnect the N23 combination meter assembly connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
N30-9 (R2LM) - N23-9 (RLMT) Always Below 1 Ω
N30-13 (RC1D) - N23-25 (RCMT) Always Below 1 Ω
N30-11 (R2RI) - N23-8 (RRMT) Always Below 1 Ω
N30-8 (RRID) - N23-10 (R2RM) Always Below 1 Ω
N30-14 (L) - N23-11 (SW) Always Below 1 Ω
N30-6 (RLID) - N23-26 (R2LM) Always Below 1 Ω
N30-12 (LAIL) - N23-27 (B) Always Below 1 Ω
N30-9 (R2LM) or N23-9 (RLMT) - Body ground Always 10 kΩ or higher
N30-13 (RC1D) or N23-25 (RCMT) - Body ground Always 10 kΩ or higher
N30-11 (R2RI) or N23-8 (RRMT) - Body ground Always 10 kΩ or higher
N30-8 (RRID) or N23-10 (R2RM) - Body ground Always 10 kΩ or higher
N30-14 (L) or N23-11 (SW) - Body ground Always 10 kΩ or higher
N30-6 (RLID) or N23-26 (R2LM) - Body ground Always 10 kΩ or higher
N30-12 (LAIL) or N23-27 (B) - Body ground Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

REPLACE COMBINATION METER ASSEMBLY

Click hereVehicle Interior>METER / GAUGE / DISPLAY>COMBINATION METER>REMOVAL


NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

41.INSPECT NO. 1 SEAT CUSHION PAD LH
a.

Remove the No. 1 seat cushion pad LH (occupant detection sensor).

Click hereVehicle Interior>SEAT>OCCUPANT DETECTION SENSOR (for Power Captain Seat)>REMOVAL


b.

Inspect the No. 1 seat cushion pad LH (occupant detection sensor).

Click hereVehicle Interior>SEAT>OCCUPANT DETECTION SENSOR (for Power Captain Seat)>INSPECTION


Result:
Proceed to
OK
NG



OK

42.CHECK HARNESS AND CONNECTOR (REAR NO. 1 SEAT INNER BELT ASSEMBLY LH - COMBINATION METER ASSEMBLY)

NG

REPLACE NO. 1 SEAT CUSHION PAD LH

Click hereVehicle Interior>SEAT>OCCUPANT DETECTION SENSOR (for Power Captain Seat)>REMOVAL


42.CHECK HARNESS AND CONNECTOR (REAR NO. 1 SEAT INNER BELT ASSEMBLY LH - COMBINATION METER ASSEMBLY)
a.

Disconnect the v8 rear No. 1 seat inner belt assembly LH connector.


b.

Disconnect the N23 combination meter assembly connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
v8-5 - N23-36 (RLSB) Always Below 1 Ω
v8-5 or N23-36 (RLSB) - Body ground Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

43.CHECK HARNESS AND CONNECTOR (NO. 1 SEAT CUSHION PAD LH - REAR NO. 1 SEAT INNER BELT ASSEMBLY LH AND BODY GROUND)

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

43.CHECK HARNESS AND CONNECTOR (NO. 1 SEAT CUSHION PAD LH - REAR NO. 1 SEAT INNER BELT ASSEMBLY LH AND BODY GROUND)
a.

Disconnect the v8 rear No. 1 seat inner belt assembly LH connector.


b.

Disconnect the v14 No. 1 seat cushion pad LH (occupant detection sensor) connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
v8-4 - v14-1 (ODS) Always Below 1 Ω
v14-3 (E) - Body ground Always Below 1 Ω
v8-4 or v14-1 (ODS) - Body ground Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

REPLACE COMBINATION METER ASSEMBLY

Click hereVehicle Interior>METER / GAUGE / DISPLAY>COMBINATION METER>REMOVAL


NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

44.CHECK VEHICLE TYPE
a.

Check vehicle condition.


Result:
Result Proceed to
for Manual Captain Seat A
for Power Captain Seat B



A

45.READ VALUE USING GTS

B

52.READ VALUE USING GTS
45.READ VALUE USING GTS
a.

Read the Data List according to the display on the GTS.

Click hereVehicle Interior>SEAT BELT>SEAT BELT WARNING SYSTEM>DATA LIST / ACTIVE TEST

Body Electrical > Combination Meter > Data List
Tester Display Measurement Item Range Normal Condition Diagnostic Note
Rear Right Seat Buckle / Occupant Detection Warning Switch Rear seat inner belt RH buckle and occupant detection sensor signal OFF or ON OFF: Rear RH seat belt fastened and occupied
ON: Rear RH seat belt not fastened and occupied 		-
Body Electrical > Combination Meter > Data List
Tester Display
Rear Right Seat Buckle / Occupant Detection Warning Switch
50003 409 30
OK:

The GTS display changes correctly in response to the rear seat belt condition.



Result:
Proceed to
OK
NG



OK

46.INSPECT INDICATOR ASSEMBLY (REAR SEAT BELT WARNING LIGHT)

NG

48.INSPECT REAR NO. 1 SEAT INNER BELT ASSEMBLY RH
46.INSPECT INDICATOR ASSEMBLY (REAR SEAT BELT WARNING LIGHT)
a.

Remove the indicator assembly (rear seat belt warning light).

Click hereVehicle Interior>SEAT BELT>SEAT BELT WARNING LIGHT (for Rear Seat)>REMOVAL


b.

Inspect the indicator assembly (rear seat belt warning light).

Click hereVehicle Interior>SEAT BELT>SEAT BELT WARNING LIGHT (for Rear Seat)>INSPECTION


Result:
Proceed to
OK
NG



OK

47.CHECK HARNESS AND CONNECTOR (INDICATOR ASSEMBLY [REAR SEAT BELT WARNING LIGHT] - COMBINATION METER ASSEMBLY)

NG

REPLACE INDICATOR ASSEMBLY

Click hereVehicle Interior>SEAT BELT>SEAT BELT WARNING LIGHT (for Rear Seat)>REMOVAL


47.CHECK HARNESS AND CONNECTOR (INDICATOR ASSEMBLY [REAR SEAT BELT WARNING LIGHT] - COMBINATION METER ASSEMBLY)
a.

Disconnect the N30 indicator assembly (rear seat belt warning light) connector.


b.

Disconnect the N23 combination meter assembly connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
N30-9 (R2LM) - N23-9 (RLMT) Always Below 1 Ω
N30-13 (RC1D) - N23-25 (RCMT) Always Below 1 Ω
N30-11 (R2RI) - N23-8 (RRMT) Always Below 1 Ω
N30-8 (RRID) - N23-10 (R2RM) Always Below 1 Ω
N30-14 (L) - N23-11 (SW) Always Below 1 Ω
N30-6 (RLID) - N23-26 (R2LM) Always Below 1 Ω
N30-12 (LAIL) - N23-27 (B) Always Below 1 Ω
N30-9 (R2LM) or N23-9 (RLMT) - Body ground Always 10 kΩ or higher
N30-13 (RC1D) or N23-25 (RCMT) - Body ground Always 10 kΩ or higher
N30-11 (R2RI) or N23-8 (RRMT) - Body ground Always 10 kΩ or higher
N30-8 (RRID) or N23-10 (R2RM) - Body ground Always 10 kΩ or higher
N30-14 (L) or N23-11 (SW) - Body ground Always 10 kΩ or higher
N30-6 (RLID) or N23-26 (R2LM) - Body ground Always 10 kΩ or higher
N30-12 (LAIL) or N23-27 (B) - Body ground Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

REPLACE COMBINATION METER ASSEMBLY

Click hereVehicle Interior>METER / GAUGE / DISPLAY>COMBINATION METER>REMOVAL


NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

49.INSPECT NO. 1 SEAT CUSHION PAD RH
a.

Remove the No. 1 seat cushion pad RH (occupant detection sensor).

Click hereVehicle Interior>SEAT>OCCUPANT DETECTION SENSOR (for Manual Captain Seat)>REMOVAL


b.

Inspect the No. 1 seat cushion pad RH (occupant detection sensor).

Click hereVehicle Interior>SEAT>OCCUPANT DETECTION SENSOR (for Manual Captain Seat)>INSPECTION


Result:
Proceed to
OK
NG



OK

50.CHECK HARNESS AND CONNECTOR (NO. 1 SEAT CUSHION PAD RH - COMBINATION METER ASSEMBLY)

NG

REPLACE NO. 1 SEAT CUSHION PAD RH

Click hereVehicle Interior>SEAT>OCCUPANT DETECTION SENSOR (for Manual Captain Seat)>REMOVAL


50.CHECK HARNESS AND CONNECTOR (NO. 1 SEAT CUSHION PAD RH - COMBINATION METER ASSEMBLY)
a.

Disconnect the v27 No. 1 seat cushion pad RH (occupant detection sensor) connector.


b.

Disconnect the N23 combination meter assembly connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
v27-1 - N23-35 (RRSB) Always Below 1 Ω
v27-1 or N23-35 (RRSB) - Body ground Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

51.CHECK HARNESS AND CONNECTOR (REAR NO. 1 SEAT INNER BELT ASSEMBLY RH - NO. 1 SEAT CUSHION PAD RH AND BODY GROUND)

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

51.CHECK HARNESS AND CONNECTOR (REAR NO. 1 SEAT INNER BELT ASSEMBLY RH - NO. 1 SEAT CUSHION PAD RH AND BODY GROUND)
a.

Disconnect the v27 No. 1 seat cushion pad LH (occupant detection sensor) connector.


b.

Disconnect the v28 rear No. 1 seat inner belt assembly LH connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
v27-3 - v28-5 Always Below 1 Ω
v28-4 - Body ground Always Below 1 Ω
v27-3 or v28-5 - Body ground Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

REPLACE COMBINATION METER ASSEMBLY

Click hereVehicle Interior>METER / GAUGE / DISPLAY>COMBINATION METER>REMOVAL


NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

52.READ VALUE USING GTS
a.

Read the Data List according to the display on the GTS.

Click hereVehicle Interior>SEAT BELT>SEAT BELT WARNING SYSTEM>DATA LIST / ACTIVE TEST

Body Electrical > Combination Meter > Data List
Tester Display Measurement Item Range Normal Condition Diagnostic Note
Rear Right Seat Buckle / Occupant Detection Warning Switch Rear seat inner belt RH buckle and occupant detection sensor signal OFF or ON OFF: Rear RH seat belt fastened and occupied
ON: Rear RH seat belt not fastened and occupied 		-
Body Electrical > Combination Meter > Data List
Tester Display
Rear Right Seat Buckle / Occupant Detection Warning Switch
50003 409 30
OK:

The GTS display changes correctly in response to the rear seat belt condition.



Result:
Proceed to
OK
NG



OK

53.INSPECT INDICATOR ASSEMBLY (REAR SEAT BELT WARNING LIGHT)

NG

55.INSPECT REAR NO. 1 SEAT INNER BELT ASSEMBLY RH
53.INSPECT INDICATOR ASSEMBLY (REAR SEAT BELT WARNING LIGHT)
a.

Remove the indicator assembly (rear seat belt warning light).

Click hereVehicle Interior>SEAT BELT>SEAT BELT WARNING LIGHT (for Rear Seat)>REMOVAL


b.

Inspect the indicator assembly (rear seat belt warning light).

Click hereVehicle Interior>SEAT BELT>SEAT BELT WARNING LIGHT (for Rear Seat)>INSPECTION


Result:
Proceed to
OK
NG



OK

54.CHECK HARNESS AND CONNECTOR (INDICATOR ASSEMBLY [REAR SEAT BELT WARNING LIGHT] - COMBINATION METER ASSEMBLY)

NG

REPLACE INDICATOR ASSEMBLY

Click hereVehicle Interior>SEAT BELT>SEAT BELT WARNING LIGHT (for Rear Seat)>REMOVAL


54.CHECK HARNESS AND CONNECTOR (INDICATOR ASSEMBLY [REAR SEAT BELT WARNING LIGHT] - COMBINATION METER ASSEMBLY)
a.

Disconnect the N30 indicator assembly (rear seat belt warning light) connector.


b.

Disconnect the N23 combination meter assembly connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
N30-9 (R2LM) - N23-9 (RLMT) Always Below 1 Ω
N30-13 (RC1D) - N23-25 (RCMT) Always Below 1 Ω
N30-11 (R2RI) - N23-8 (RRMT) Always Below 1 Ω
N30-8 (RRID) - N23-10 (R2RM) Always Below 1 Ω
N30-14 (L) - N23-11 (SW) Always Below 1 Ω
N30-6 (RLID) - N23-26 (R2LM) Always Below 1 Ω
N30-12 (LAIL) - N23-27 (B) Always Below 1 Ω
N30-9 (R2LM) or N23-9 (RLMT) - Body ground Always 10 kΩ or higher
N30-13 (RC1D) or N23-25 (RCMT) - Body ground Always 10 kΩ or higher
N30-11 (R2RI) or N23-8 (RRMT) - Body ground Always 10 kΩ or higher
N30-8 (RRID) or N23-10 (R2RM) - Body ground Always 10 kΩ or higher
N30-14 (L) or N23-11 (SW) - Body ground Always 10 kΩ or higher
N30-6 (RLID) or N23-26 (R2LM) - Body ground Always 10 kΩ or higher
N30-12 (LAIL) or N23-27 (B) - Body ground Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

REPLACE COMBINATION METER ASSEMBLY

Click hereVehicle Interior>METER / GAUGE / DISPLAY>COMBINATION METER>REMOVAL


NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

56.INSPECT NO. 1 SEAT CUSHION PAD RH
a.

Remove the No. 1 seat cushion pad RH (occupant detection sensor).

Click hereVehicle Interior>SEAT>OCCUPANT DETECTION SENSOR (for Power Captain Seat)>REMOVAL


b.

Inspect the No. 1 seat cushion pad RH (occupant detection sensor).

Click hereVehicle Interior>SEAT>OCCUPANT DETECTION SENSOR (for Power Captain Seat)>INSPECTION


Result:
Proceed to
OK
NG



OK

57.CHECK HARNESS AND CONNECTOR (REAR NO. 1 SEAT INNER BELT ASSEMBLY RH - COMBINATION METER ASSEMBLY)

NG

REPLACE NO. 1 SEAT CUSHION PAD RH

Click hereVehicle Interior>SEAT>OCCUPANT DETECTION SENSOR (for Power Captain Seat)>REMOVAL


57.CHECK HARNESS AND CONNECTOR (REAR NO. 1 SEAT INNER BELT ASSEMBLY RH - COMBINATION METER ASSEMBLY)
a.

Disconnect the v1 rear No. 1 seat inner belt assembly RH connector.


b.

Disconnect the N23 combination meter assembly connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
v1-5 - N23-35 (RRSB) Always Below 1 Ω
v1-5 or N23-35 (RRSB) - Body ground Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

58.CHECK HARNESS AND CONNECTOR (NO. 1 SEAT CUSHION PAD RH - REAR NO. 1 SEAT INNER BELT ASSEMBLY RH AND BODY GROUND)

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

58.CHECK HARNESS AND CONNECTOR (NO. 1 SEAT CUSHION PAD RH - REAR NO. 1 SEAT INNER BELT ASSEMBLY RH AND BODY GROUND)
a.

Disconnect the v1 rear No. 1 seat inner belt assembly RH connector.


b.

Disconnect the v7 No. 1 seat cushion pad RH (occupant detection sensor) connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
v1-4 - V7-1 (ODS) Always Below 1 Ω
v7-3 (E) - Body ground Always Below 1 Ω
v1-4 or V7-1 (ODS) - Body ground Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

REPLACE COMBINATION METER ASSEMBLY

Click hereVehicle Interior>METER / GAUGE / DISPLAY>COMBINATION METER>REMOVAL


NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

59.CHECK VEHICLE TYPE
a.

Check vehicle condition.


Result:
Result Proceed to
w/o Rear No. 3 Seat (for Manual Captain Seat) A
w/o Rear No. 3 Seat (for Power Captain Seat) B
w/ Rear No. 3 Seat C



A

60.READ VALUE USING GTS

B

67.READ VALUE USING GTS

C

74.READ VALUE USING GTS
60.READ VALUE USING GTS
a.

Read the Data List according to the display on the GTS.

Click hereVehicle Interior>SEAT BELT>SEAT BELT WARNING SYSTEM>DATA LIST / ACTIVE TEST

Body Electrical > Combination Meter > Data List
Tester Display Measurement Item Range Normal Condition Diagnostic Note
3rd Left Seat Buckle / Occupant Detection Warning Switch Rear No. 2 seat inner belt LH buckle and occupant detection sensor signal OFF or ON OFF: Rear No. 2 seat belt LH fastened and occupied
ON: Rear No. 2 seat belt LH not fastened and occupied 		-
Body Electrical > Combination Meter > Data List
Tester Display
3rd Left Seat Buckle / Occupant Detection Warning Switch
50003 409 34
OK:

The GTS display changes correctly in response to the rear seat belt condition.



Result:
Proceed to
OK
NG



OK

61.INSPECT INDICATOR ASSEMBLY (REAR SEAT BELT WARNING LIGHT)

NG

63.INSPECT REAR NO. 2 SEAT INNER BELT ASSEMBLY LH
61.INSPECT INDICATOR ASSEMBLY (REAR SEAT BELT WARNING LIGHT)
a.

Remove the indicator assembly (rear seat belt warning light).

Click hereVehicle Interior>SEAT BELT>SEAT BELT WARNING LIGHT (for Rear Seat)>REMOVAL


b.

Inspect the indicator assembly (rear seat belt warning light).

Click hereVehicle Interior>SEAT BELT>SEAT BELT WARNING LIGHT (for Rear Seat)>INSPECTION


Result:
Proceed to
OK
NG



OK

62.CHECK HARNESS AND CONNECTOR (INDICATOR ASSEMBLY [REAR SEAT BELT WARNING LIGHT] - COMBINATION METER ASSEMBLY)

NG

REPLACE INDICATOR ASSEMBLY

Click hereVehicle Interior>SEAT BELT>SEAT BELT WARNING LIGHT (for Rear Seat)>REMOVAL


62.CHECK HARNESS AND CONNECTOR (INDICATOR ASSEMBLY [REAR SEAT BELT WARNING LIGHT] - COMBINATION METER ASSEMBLY)
a.

Disconnect the N30 indicator assembly (rear seat belt warning light) connector.


b.

Disconnect the N23 combination meter assembly connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
N30-9 (R2LM) - N23-9 (RLMT) Always Below 1 Ω
N30-13 (RC1D) - N23-25 (RCMT) Always Below 1 Ω
N30-11 (R2RI) - N23-8 (RRMT) Always Below 1 Ω
N30-8 (RRID) - N23-10 (R2RM) Always Below 1 Ω
N30-14 (L) - N23-11 (SW) Always Below 1 Ω
N30-6 (RLID) - N23-26 (R2LM) Always Below 1 Ω
N30-12 (LAIL) - N23-27 (B) Always Below 1 Ω
N30-9 (R2LM) or N23-9 (RLMT) - Body ground Always 10 kΩ or higher
N30-13 (RC1D) or N23-25 (RCMT) - Body ground Always 10 kΩ or higher
N30-11 (R2RI) or N23-8 (RRMT) - Body ground Always 10 kΩ or higher
N30-8 (RRID) or N23-10 (R2RM) - Body ground Always 10 kΩ or higher
N30-14 (L) or N23-11 (SW) - Body ground Always 10 kΩ or higher
N30-6 (RLID) or N23-26 (R2LM) - Body ground Always 10 kΩ or higher
N30-12 (LAIL) or N23-27 (B) - Body ground Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

REPLACE COMBINATION METER ASSEMBLY

Click hereVehicle Interior>METER / GAUGE / DISPLAY>COMBINATION METER>REMOVAL


NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

64.INSPECT NO. 2 SEAT CUSHION PAD LH
a.

Remove the No. 2 seat cushion pad LH (occupant detection sensor).

Click hereVehicle Interior>SEAT>OCCUPANT DETECTION SENSOR (for Manual Captain Seat)>REMOVAL


b.

Inspect the No. 2 seat cushion pad LH (occupant detection sensor).

Click hereVehicle Interior>SEAT>OCCUPANT DETECTION SENSOR (for Manual Captain Seat)>INSPECTION


Result:
Proceed to
OK
NG



OK

65.CHECK HARNESS AND CONNECTOR (NO. 2 SEAT CUSHION PAD LH - COMBINATION METER ASSEMBLY)

NG

REPLACE NO. 2 SEAT CUSHION PAD LH

Click hereVehicle Interior>SEAT>OCCUPANT DETECTION SENSOR (for Manual Captain Seat)>REMOVAL


65.CHECK HARNESS AND CONNECTOR (NO. 2 SEAT CUSHION PAD LH - COMBINATION METER ASSEMBLY)
a.

Disconnect the v32 No. 2 seat cushion pad LH (occupant detection sensor) connector.


b.

Disconnect the N23 combination meter assembly connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
v32-1 - N23-37 (RDC) Always Below 1 Ω
v32-1 or N23-37 (RDC) - Body ground Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

66.CHECK HARNESS AND CONNECTOR (REAR NO. 2 SEAT INNER BELT ASSEMBLY LH - NO. 2 SEAT CUSHION PAD LH AND BODY GROUND)

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

66.CHECK HARNESS AND CONNECTOR (REAR NO. 2 SEAT INNER BELT ASSEMBLY LH - NO. 2 SEAT CUSHION PAD LH AND BODY GROUND)
a.

Disconnect the v32 No. 2 seat cushion pad LH (occupant detection sensor) connector.


b.

Disconnect the v33 rear No. 2 seat inner belt assembly LH connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
v32-3 - v33-5 Always Below 1 Ω
v33-4 - Body ground Always Below 1 Ω
v32-3 or v33-5 - Body ground Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

REPLACE COMBINATION METER ASSEMBLY

Click hereVehicle Interior>METER / GAUGE / DISPLAY>COMBINATION METER>REMOVAL


NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

67.READ VALUE USING GTS
a.

Read the Data List according to the display on the GTS.

Click hereVehicle Interior>SEAT BELT>SEAT BELT WARNING SYSTEM>DATA LIST / ACTIVE TEST

Body Electrical > Combination Meter > Data List
Tester Display Measurement Item Range Normal Condition Diagnostic Note
3rd Left Seat Buckle / Occupant Detection Warning Switch Rear No. 2 seat inner belt LH buckle and occupant detection sensor signal OFF or ON OFF: Rear No. 2 seat belt LH fastened and occupied
ON: Rear No. 2 seat belt LH not fastened and occupied 		-
Body Electrical > Combination Meter > Data List
Tester Display
3rd Left Seat Buckle / Occupant Detection Warning Switch
50003 409 34
OK:

The GTS display changes correctly in response to the rear seat belt condition.



Result:
Proceed to
OK
NG



OK

68.INSPECT INDICATOR ASSEMBLY (REAR SEAT BELT WARNING LIGHT)

NG

70.INSPECT REAR NO. 2 SEAT INNER BELT ASSEMBLY LH
68.INSPECT INDICATOR ASSEMBLY (REAR SEAT BELT WARNING LIGHT)
a.

Remove the indicator assembly (rear seat belt warning light).

Click hereVehicle Interior>SEAT BELT>SEAT BELT WARNING LIGHT (for Rear Seat)>REMOVAL


b.

Inspect the indicator assembly (rear seat belt warning light).

Click hereVehicle Interior>SEAT BELT>SEAT BELT WARNING LIGHT (for Rear Seat)>INSPECTION


Result:
Proceed to
OK
NG



OK

69.CHECK HARNESS AND CONNECTOR (INDICATOR ASSEMBLY [REAR SEAT BELT WARNING LIGHT] - COMBINATION METER ASSEMBLY)

NG

REPLACE INDICATOR ASSEMBLY

Click hereVehicle Interior>SEAT BELT>SEAT BELT WARNING LIGHT (for Rear Seat)>REMOVAL


69.CHECK HARNESS AND CONNECTOR (INDICATOR ASSEMBLY [REAR SEAT BELT WARNING LIGHT] - COMBINATION METER ASSEMBLY)
a.

Disconnect the N30 indicator assembly (rear seat belt warning light) connector.


b.

Disconnect the N23 combination meter assembly connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
N30-9 (R2LM) - N23-9 (RLMT) Always Below 1 Ω
N30-13 (RC1D) - N23-25 (RCMT) Always Below 1 Ω
N30-11 (R2RI) - N23-8 (RRMT) Always Below 1 Ω
N30-8 (RRID) - N23-10 (R2RM) Always Below 1 Ω
N30-14 (L) - N23-11 (SW) Always Below 1 Ω
N30-6 (RLID) - N23-26 (R2LM) Always Below 1 Ω
N30-12 (LAIL) - N23-27 (B) Always Below 1 Ω
N30-9 (R2LM) or N23-9 (RLMT) - Body ground Always 10 kΩ or higher
N30-13 (RC1D) or N23-25 (RCMT) - Body ground Always 10 kΩ or higher
N30-11 (R2RI) or N23-8 (RRMT) - Body ground Always 10 kΩ or higher
N30-8 (RRID) or N23-10 (R2RM) - Body ground Always 10 kΩ or higher
N30-14 (L) or N23-11 (SW) - Body ground Always 10 kΩ or higher
N30-6 (RLID) or N23-26 (R2LM) - Body ground Always 10 kΩ or higher
N30-12 (LAIL) or N23-27 (B) - Body ground Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

REPLACE COMBINATION METER ASSEMBLY

Click hereVehicle Interior>METER / GAUGE / DISPLAY>COMBINATION METER>REMOVAL


NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

71.INSPECT NO. 2 SEAT CUSHION PAD LH
a.

Remove the No. 2 seat cushion pad LH (occupant detection sensor).

Click hereVehicle Interior>SEAT>OCCUPANT DETECTION SENSOR (for Power Captain Seat)>REMOVAL


b.

Inspect the No. 2 seat cushion pad LH (occupant detection sensor).

Click hereVehicle Interior>SEAT>OCCUPANT DETECTION SENSOR (for Power Captain Seat)>INSPECTION


Result:
Proceed to
OK
NG



OK

72.CHECK HARNESS AND CONNECTOR (REAR NO. 2 SEAT INNER BELT ASSEMBLY LH - COMBINATION METER ASSEMBLY)

NG

REPLACE NO. 2 SEAT CUSHION PAD LH

Click hereVehicle Interior>SEAT>OCCUPANT DETECTION SENSOR (for Power Captain Seat)>REMOVAL


72.CHECK HARNESS AND CONNECTOR (REAR NO. 2 SEAT INNER BELT ASSEMBLY LH - COMBINATION METER ASSEMBLY)
a.

Disconnect the v39 rear No. 2 seat inner belt assembly LH connector.


b.

Disconnect the N23 combination meter assembly connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
v39-5 - N23-37 (RDC) Always Below 1 Ω
v39-5 or N23-37 (RDC) - Body ground Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

73.CHECK HARNESS AND CONNECTOR (NO. 2 SEAT CUSHION PAD LH - REAR NO. 2 SEAT INNER BELT ASSEMBLY LH AND BODY GROUND)

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

73.CHECK HARNESS AND CONNECTOR (NO. 2 SEAT CUSHION PAD LH - REAR NO. 2 SEAT INNER BELT ASSEMBLY LH AND BODY GROUND)
a.

Disconnect the v39 rear No. 2 seat inner belt assembly LH connector.


b.

Disconnect the y14 No. 2 seat cushion pad LH (occupant detection sensor) connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
v39-4 - y14-1 (ODS) Always Below 1 Ω
y14-3 (E) - Body ground Always Below 1 Ω
v39-4 or y14-1 (ODS) - Body ground Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

REPLACE COMBINATION METER ASSEMBLY

Click hereVehicle Interior>METER / GAUGE / DISPLAY>COMBINATION METER>REMOVAL


NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

74.READ VALUE USING GTS
a.

Read the Data List according to the display on the GTS.

Click hereVehicle Interior>SEAT BELT>SEAT BELT WARNING SYSTEM>DATA LIST / ACTIVE TEST

Body Electrical > Combination Meter > Data List
Tester Display Measurement Item Range Normal Condition Diagnostic Note
3rd Left Seat Buckle / Occupant Detection Warning Switch Rear No. 2 seat inner belt LH buckle and occupant detection sensor signal OFF or ON OFF: Rear No. 2 seat belt LH fastened and occupied
ON: Rear No. 2 seat belt LH not fastened and occupied 		-
Body Electrical > Combination Meter > Data List
Tester Display
3rd Left Seat Buckle / Occupant Detection Warning Switch
50003 409 34
OK:

The GTS display changes correctly in response to the rear seat belt condition.



Result:
Proceed to
OK
NG



OK

75.INSPECT INDICATOR ASSEMBLY (REAR SEAT BELT WARNING LIGHT)

NG

77.INSPECT REAR NO. 2 SEAT INNER BELT ASSEMBLY LH
75.INSPECT INDICATOR ASSEMBLY (REAR SEAT BELT WARNING LIGHT)
a.

Remove the indicator assembly (rear seat belt warning light).

Click hereVehicle Interior>SEAT BELT>SEAT BELT WARNING LIGHT (for Rear Seat)>REMOVAL


b.

Inspect the indicator assembly (rear seat belt warning light).

Click hereVehicle Interior>SEAT BELT>SEAT BELT WARNING LIGHT (for Rear Seat)>INSPECTION


Result:
Proceed to
OK
NG



OK

76.CHECK HARNESS AND CONNECTOR (INDICATOR ASSEMBLY [REAR SEAT BELT WARNING LIGHT] - COMBINATION METER ASSEMBLY)

NG

REPLACE INDICATOR ASSEMBLY

Click hereVehicle Interior>SEAT BELT>SEAT BELT WARNING LIGHT (for Rear Seat)>REMOVAL


76.CHECK HARNESS AND CONNECTOR (INDICATOR ASSEMBLY [REAR SEAT BELT WARNING LIGHT] - COMBINATION METER ASSEMBLY)
a.

Disconnect the N30 indicator assembly (rear seat belt warning light) connector.


b.

Disconnect the N23 combination meter assembly connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
N30-9 (R2LM) - N23-9 (RLMT) Always Below 1 Ω
N30-13 (RC1D) - N23-25 (RCMT) Always Below 1 Ω
N30-11 (R2RI) - N23-8 (RRMT) Always Below 1 Ω
N30-8 (RRID) - N23-10 (R2RM) Always Below 1 Ω
N30-14 (L) - N23-11 (SW) Always Below 1 Ω
N30-6 (RLID) - N23-26 (R2LM) Always Below 1 Ω
N30-12 (LAIL) - N23-27 (B) Always Below 1 Ω
N30-9 (R2LM) or N23-9 (RLMT) - Body ground Always 10 kΩ or higher
N30-13 (RC1D) or N23-25 (RCMT) - Body ground Always 10 kΩ or higher
N30-11 (R2RI) or N23-8 (RRMT) - Body ground Always 10 kΩ or higher
N30-8 (RRID) or N23-10 (R2RM) - Body ground Always 10 kΩ or higher
N30-14 (L) or N23-11 (SW) - Body ground Always 10 kΩ or higher
N30-6 (RLID) or N23-26 (R2LM) - Body ground Always 10 kΩ or higher
N30-12 (LAIL) or N23-27 (B) - Body ground Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

REPLACE COMBINATION METER ASSEMBLY

Click hereVehicle Interior>METER / GAUGE / DISPLAY>COMBINATION METER>REMOVAL


NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

77.INSPECT REAR NO. 2 SEAT INNER BELT ASSEMBLY LH
a.

Remove the rear No. 2 seat inner belt assembly LH.

for Manual Captain Seat:

Click hereVehicle Interior>SEAT BELT>REAR SEAT INNER BELT ASSEMBLY (for Manual Captain Seat)>REMOVAL

for Power Captain Seat:

Click hereVehicle Interior>SEAT BELT>REAR SEAT INNER BELT ASSEMBLY (for Power Captain Seat)>REMOVAL


b.

Inspect the rear No. 2 seat inner belt assembly LH.

for Manual Captain Seat:

Click hereVehicle Interior>SEAT BELT>REAR SEAT INNER BELT ASSEMBLY (for Manual Captain Seat)>INSPECTION

for Power Captain Seat:

Click hereVehicle Interior>SEAT BELT>REAR SEAT INNER BELT ASSEMBLY (for Power Captain Seat)>INSPECTION


Result:
Proceed to
OK
NG



OK

78.INSPECT NO. 2 SEAT CUSHION PAD LH

NG

REPLACE REAR NO. 2 SEAT INNER BELT ASSEMBLY LH

for Manual Captain Seat:

Click hereVehicle Interior>SEAT BELT>REAR SEAT INNER BELT ASSEMBLY (for Manual Captain Seat)>REMOVAL

for Power Captain Seat:

Click hereVehicle Interior>SEAT BELT>REAR SEAT INNER BELT ASSEMBLY (for Power Captain Seat)>REMOVAL


78.INSPECT NO. 2 SEAT CUSHION PAD LH
a.

Remove the No. 2 seat cushion pad LH (occupant detection sensor).

for Manual Captain Seat:

Click hereVehicle Interior>SEAT>OCCUPANT DETECTION SENSOR (for Manual Captain Seat)>REMOVAL

for Power Captain Seat:

Click hereVehicle Interior>SEAT>OCCUPANT DETECTION SENSOR (for Power Captain Seat)>REMOVAL


b.

Inspect the No. 2 seat cushion pad LH (occupant detection sensor).

for Manual Captain Seat:

Click hereVehicle Interior>SEAT>OCCUPANT DETECTION SENSOR (for Manual Captain Seat)>INSPECTION

for Power Captain Seat:

Click hereVehicle Interior>SEAT>OCCUPANT DETECTION SENSOR (for Power Captain Seat)>INSPECTION


Result:
Proceed to
OK
NG



OK

79.CHECK HARNESS AND CONNECTOR (REAR NO. 2 SEAT INNER BELT ASSEMBLY LH - COMBINATION METER ASSEMBLY AND BODY GROUND)

NG

REPLACE NO. 2 SEAT CUSHION PAD LH

for Manual Captain Seat:

Click hereVehicle Interior>SEAT>OCCUPANT DETECTION SENSOR (for Manual Captain Seat)>REMOVAL

for Power Captain Seat:

Click hereVehicle Interior>SEAT>OCCUPANT DETECTION SENSOR (for Power Captain Seat)>REMOVAL


79.CHECK HARNESS AND CONNECTOR (REAR NO. 2 SEAT INNER BELT ASSEMBLY LH - COMBINATION METER ASSEMBLY AND BODY GROUND)
a.

Disconnect the x3 rear No. 2 seat inner belt assembly LH connector.


b.

Disconnect the N23 combination meter assembly connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
x3-1 (+) - N23-37 (RDC) Always Below 1 Ω
x3-2 (E) - Body ground Always Below 1 Ω
x3-1 (+) or N23-37 (RDC) - Body ground Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

80.CHECK HARNESS AND CONNECTOR (NO. 2 SEAT CUSHION PAD LH - REAR NO. 2 SEAT INNER BELT ASSEMBLY LH)

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

80.CHECK HARNESS AND CONNECTOR (NO. 2 SEAT CUSHION PAD LH - REAR NO. 2 SEAT INNER BELT ASSEMBLY LH)
a.

Disconnect the v36 rear No. 2 seat inner belt assembly LH connector.


b.

Disconnect the v37 No. 2 seat cushion pad LH (occupant detection sensor) connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
v36-5 - v37-1 Always Below 1 Ω
v36-4 - v37-3 Always Below 1 Ω
v36-5 or v37-1 - Body ground Always 10 kΩ or higher
v36-4 or v37-3 - Body ground Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

REPLACE COMBINATION METER ASSEMBLY

Click hereVehicle Interior>METER / GAUGE / DISPLAY>COMBINATION METER>REMOVAL


NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

81.CHECK VEHICLE TYPE
a.

Check vehicle condition.


Result:
Result Proceed to
w/o Rear No. 3 Seat (for Manual Captain Seat) A
w/o Rear No. 3 Seat (for Power Captain Seat) B
w/ Rear No. 3 Seat C



A

82.READ VALUE USING GTS

B

89.READ VALUE USING GTS

C

96.READ VALUE USING GTS
82.READ VALUE USING GTS
a.

Read the Data List according to the display on the GTS.

Click hereVehicle Interior>SEAT BELT>SEAT BELT WARNING SYSTEM>DATA LIST / ACTIVE TEST

Body Electrical > Combination Meter > Data List
Tester Display Measurement Item Range Normal Condition Diagnostic Note
3rd Right Seat Buckle / Occupant Detection Warning Switch Rear No. 2 seat inner belt RH buckle and occupant detection sensor signal OFF or ON OFF: Rear No. 2 seat belt RH fastened and occupied
ON: Rear No. 2 seat belt RH not fastened and occupied 		-
Body Electrical > Combination Meter > Data List
Tester Display
3rd Right Seat Buckle / Occupant Detection Warning Switch
50003 409 33
OK:

The GTS display changes correctly in response to the rear seat belt condition.



Result:
Proceed to
OK
NG



OK

83.INSPECT INDICATOR ASSEMBLY (REAR SEAT BELT WARNING LIGHT)

NG

85.INSPECT REAR NO. 2 SEAT INNER BELT ASSEMBLY RH
83.INSPECT INDICATOR ASSEMBLY (REAR SEAT BELT WARNING LIGHT)
a.

Remove the indicator assembly (rear seat belt warning light).

Click hereVehicle Interior>SEAT BELT>SEAT BELT WARNING LIGHT (for Rear Seat)>REMOVAL


b.

Inspect the indicator assembly (rear seat belt warning light).

Click hereVehicle Interior>SEAT BELT>SEAT BELT WARNING LIGHT (for Rear Seat)>INSPECTION


Result:
Proceed to
OK
NG



OK

84.CHECK HARNESS AND CONNECTOR (INDICATOR ASSEMBLY [REAR SEAT BELT WARNING LIGHT] - COMBINATION METER ASSEMBLY)

NG

REPLACE INDICATOR ASSEMBLY

Click hereVehicle Interior>SEAT BELT>SEAT BELT WARNING LIGHT (for Rear Seat)>REMOVAL


84.CHECK HARNESS AND CONNECTOR (INDICATOR ASSEMBLY [REAR SEAT BELT WARNING LIGHT] - COMBINATION METER ASSEMBLY)
a.

Disconnect the N30 indicator assembly (rear seat belt warning light) connector.


b.

Disconnect the N23 combination meter assembly connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
N30-9 (R2LM) - N23-9 (RLMT) Always Below 1 Ω
N30-13 (RC1D) - N23-25 (RCMT) Always Below 1 Ω
N30-11 (R2RI) - N23-8 (RRMT) Always Below 1 Ω
N30-8 (RRID) - N23-10 (R2RM) Always Below 1 Ω
N30-14 (L) - N23-11 (SW) Always Below 1 Ω
N30-6 (RLID) - N23-26 (R2LM) Always Below 1 Ω
N30-12 (LAIL) - N23-27 (B) Always Below 1 Ω
N30-9 (R2LM) or N23-9 (RLMT) - Body ground Always 10 kΩ or higher
N30-13 (RC1D) or N23-25 (RCMT) - Body ground Always 10 kΩ or higher
N30-11 (R2RI) or N23-8 (RRMT) - Body ground Always 10 kΩ or higher
N30-8 (RRID) or N23-10 (R2RM) - Body ground Always 10 kΩ or higher
N30-14 (L) or N23-11 (SW) - Body ground Always 10 kΩ or higher
N30-6 (RLID) or N23-26 (R2LM) - Body ground Always 10 kΩ or higher
N30-12 (LAIL) or N23-27 (B) - Body ground Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

REPLACE COMBINATION METER ASSEMBLY

Click hereVehicle Interior>METER / GAUGE / DISPLAY>COMBINATION METER>REMOVAL


NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

86.INSPECT NO. 2 SEAT CUSHION PAD RH
a.

Remove the No. 2 seat cushion pad RH (occupant detection sensor).

Click hereVehicle Interior>SEAT>OCCUPANT DETECTION SENSOR (for Manual Captain Seat)>REMOVAL


b.

Inspect the No. 2 seat cushion pad RH (occupant detection sensor).

Click hereVehicle Interior>SEAT>OCCUPANT DETECTION SENSOR (for Manual Captain Seat)>INSPECTION


Result:
Proceed to
OK
NG



OK

87.CHECK HARNESS AND CONNECTOR (NO. 2 SEAT CUSHION PAD RH - COMBINATION METER ASSEMBLY)

NG

REPLACE NO. 2 SEAT CUSHION PAD RH

Click hereVehicle Interior>SEAT>OCCUPANT DETECTION SENSOR (for Manual Captain Seat)>REMOVAL


87.CHECK HARNESS AND CONNECTOR (NO. 2 SEAT CUSHION PAD RH - COMBINATION METER ASSEMBLY)
a.

Disconnect the v30 No. 2 seat cushion pad RH (occupant detection sensor) connector.


b.

Disconnect the N23 combination meter assembly connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
v30-1 - N23-21 (RDC) Always Below 1 Ω
v30-1 or N23-21 (RDC) - Body ground Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

88.CHECK HARNESS AND CONNECTOR (REAR NO. 2 SEAT INNER BELT ASSEMBLY RH - NO. 2 SEAT CUSHION PAD RH AND BODY GROUND)

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

88.CHECK HARNESS AND CONNECTOR (REAR NO. 2 SEAT INNER BELT ASSEMBLY RH - NO. 2 SEAT CUSHION PAD RH AND BODY GROUND)
a.

Disconnect the v30 No. 2 seat cushion pad RH (occupant detection sensor) connector.


b.

Disconnect the v31 rear No. 2 seat inner belt assembly RH connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
v30-3 - v31-5 Always Below 1 Ω
v31-4 - Body ground Always Below 1 Ω
v30-3 or v31-5 - Body ground Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

REPLACE COMBINATION METER ASSEMBLY

Click hereVehicle Interior>METER / GAUGE / DISPLAY>COMBINATION METER>REMOVAL


NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

89.READ VALUE USING GTS
a.

Read the Data List according to the display on the GTS.

Click hereVehicle Interior>SEAT BELT>SEAT BELT WARNING SYSTEM>DATA LIST / ACTIVE TEST

Body Electrical > Combination Meter > Data List
Tester Display Measurement Item Range Normal Condition Diagnostic Note
3rd Right Seat Buckle / Occupant Detection Warning Switch Rear No. 2 seat inner belt RH buckle and occupant detection sensor signal OFF or ON OFF: Rear No. 2 seat belt RH fastened and occupied
ON: Rear No. 2 seat belt RH not fastened and occupied 		-
Body Electrical > Combination Meter > Data List
Tester Display
3rd Right Seat Buckle / Occupant Detection Warning Switch
50003 409 33
OK:

The GTS display changes correctly in response to the rear seat belt condition.



Result:
Proceed to
OK
NG



OK

90.INSPECT INDICATOR ASSEMBLY (REAR SEAT BELT WARNING LIGHT)

NG

92.INSPECT REAR NO. 2 SEAT INNER BELT ASSEMBLY RH
90.INSPECT INDICATOR ASSEMBLY (REAR SEAT BELT WARNING LIGHT)
a.

Remove the indicator assembly (rear seat belt warning light).

Click hereVehicle Interior>SEAT BELT>SEAT BELT WARNING LIGHT (for Rear Seat)>REMOVAL


b.

Inspect the indicator assembly (rear seat belt warning light).

Click hereVehicle Interior>SEAT BELT>SEAT BELT WARNING LIGHT (for Rear Seat)>INSPECTION


Result:
Proceed to
OK
NG



OK

91.CHECK HARNESS AND CONNECTOR (INDICATOR ASSEMBLY [REAR SEAT BELT WARNING LIGHT] - COMBINATION METER ASSEMBLY)

NG

REPLACE INDICATOR ASSEMBLY

Click hereVehicle Interior>SEAT BELT>SEAT BELT WARNING LIGHT (for Rear Seat)>REMOVAL


91.CHECK HARNESS AND CONNECTOR (INDICATOR ASSEMBLY [REAR SEAT BELT WARNING LIGHT] - COMBINATION METER ASSEMBLY)
a.

Disconnect the N30 indicator assembly (rear seat belt warning light) connector.


b.

Disconnect the N23 combination meter assembly connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
N30-9 (R2LM) - N23-9 (RLMT) Always Below 1 Ω
N30-13 (RC1D) - N23-25 (RCMT) Always Below 1 Ω
N30-11 (R2RI) - N23-8 (RRMT) Always Below 1 Ω
N30-8 (RRID) - N23-10 (R2RM) Always Below 1 Ω
N30-14 (L) - N23-11 (SW) Always Below 1 Ω
N30-6 (RLID) - N23-26 (R2LM) Always Below 1 Ω
N30-12 (LAIL) - N23-27 (B) Always Below 1 Ω
N30-9 (R2LM) or N23-9 (RLMT) - Body ground Always 10 kΩ or higher
N30-13 (RC1D) or N23-25 (RCMT) - Body ground Always 10 kΩ or higher
N30-11 (R2RI) or N23-8 (RRMT) - Body ground Always 10 kΩ or higher
N30-8 (RRID) or N23-10 (R2RM) - Body ground Always 10 kΩ or higher
N30-14 (L) or N23-11 (SW) - Body ground Always 10 kΩ or higher
N30-6 (RLID) or N23-26 (R2LM) - Body ground Always 10 kΩ or higher
N30-12 (LAIL) or N23-27 (B) - Body ground Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

REPLACE COMBINATION METER ASSEMBLY

Click hereVehicle Interior>METER / GAUGE / DISPLAY>COMBINATION METER>REMOVAL


NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

93.INSPECT NO. 2 SEAT CUSHION PAD RH
a.

Remove the No. 2 seat cushion pad RH (occupant detection sensor).

Click hereVehicle Interior>SEAT>OCCUPANT DETECTION SENSOR (for Power Captain Seat)>REMOVAL


b.

Inspect the No. 2 seat cushion pad RH (occupant detection sensor).

Click hereVehicle Interior>SEAT>OCCUPANT DETECTION SENSOR (for Power Captain Seat)>INSPECTION


Result:
Proceed to
OK
NG



OK

94.CHECK HARNESS AND CONNECTOR (REAR NO. 2 SEAT INNER BELT ASSEMBLY RH - COMBINATION METER ASSEMBLY)

NG

REPLACE NO. 2 SEAT CUSHION PAD RH

Click hereVehicle Interior>SEAT>OCCUPANT DETECTION SENSOR (for Power Captain Seat)>REMOVAL


94.CHECK HARNESS AND CONNECTOR (REAR NO. 2 SEAT INNER BELT ASSEMBLY RH - COMBINATION METER ASSEMBLY)
a.

Disconnect the v38 rear No. 2 seat inner belt assembly RH connector.


b.

Disconnect the N23 combination meter assembly connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
v38-5 - N23-21 (RDC) Always Below 1 Ω
v38-5 or N23-21 (RDC) - Body ground Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

95.CHECK HARNESS AND CONNECTOR (NO. 2 SEAT CUSHION PAD RH - REAR NO. 2 SEAT INNER BELT ASSEMBLY RH AND BODY GROUND)

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

95.CHECK HARNESS AND CONNECTOR (NO. 2 SEAT CUSHION PAD RH - REAR NO. 2 SEAT INNER BELT ASSEMBLY RH AND BODY GROUND)
a.

Disconnect the v38 rear No. 2 seat inner belt assembly RH connector.


b.

Disconnect the y6 No. 2 seat cushion pad RH (occupant detection sensor) connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
v38-4 - y6-1 (ODS) Always Below 1 Ω
y6-3 (E) - Body ground Always Below 1 Ω
v38-4 or y6-1 (ODS) - Body ground Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

REPLACE COMBINATION METER ASSEMBLY

Click hereVehicle Interior>METER / GAUGE / DISPLAY>COMBINATION METER>REMOVAL


NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

96.READ VALUE USING GTS
a.

Read the Data List according to the display on the GTS.

Click hereVehicle Interior>SEAT BELT>SEAT BELT WARNING SYSTEM>DATA LIST / ACTIVE TEST

Body Electrical > Combination Meter > Data List
Tester Display Measurement Item Range Normal Condition Diagnostic Note
3rd Right Seat Buckle / Occupant Detection Warning Switch Rear No. 2 seat inner belt RH buckle and occupant detection sensor signal OFF or ON OFF: Rear No. 2 seat belt RH fastened and occupied
ON: Rear No. 2 seat belt RH not fastened and occupied 		-
Body Electrical > Combination Meter > Data List
Tester Display
3rd Right Seat Buckle / Occupant Detection Warning Switch
50003 409 33
OK:

The GTS display changes correctly in response to the rear seat belt condition.



Result:
Proceed to
OK
NG



OK

97.INSPECT INDICATOR ASSEMBLY (REAR SEAT BELT WARNING LIGHT)

NG

99.INSPECT REAR NO. 2 SEAT INNER BELT ASSEMBLY RH
97.INSPECT INDICATOR ASSEMBLY (REAR SEAT BELT WARNING LIGHT)
a.

Remove the indicator assembly (rear seat belt warning light).

Click hereVehicle Interior>SEAT BELT>SEAT BELT WARNING LIGHT (for Rear Seat)>REMOVAL


b.

Inspect the indicator assembly (rear seat belt warning light).

Click hereVehicle Interior>SEAT BELT>SEAT BELT WARNING LIGHT (for Rear Seat)>INSPECTION


Result:
Proceed to
OK
NG



OK

98.CHECK HARNESS AND CONNECTOR (INDICATOR ASSEMBLY [REAR SEAT BELT WARNING LIGHT] - COMBINATION METER ASSEMBLY)

NG

REPLACE INDICATOR ASSEMBLY

Click hereVehicle Interior>SEAT BELT>SEAT BELT WARNING LIGHT (for Rear Seat)>REMOVAL


98.CHECK HARNESS AND CONNECTOR (INDICATOR ASSEMBLY [REAR SEAT BELT WARNING LIGHT] - COMBINATION METER ASSEMBLY)
a.

Disconnect the N30 indicator assembly (rear seat belt warning light) connector.


b.

Disconnect the N23 combination meter assembly connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
N30-9 (R2LM) - N23-9 (RLMT) Always Below 1 Ω
N30-13 (RC1D) - N23-25 (RCMT) Always Below 1 Ω
N30-11 (R2RI) - N23-8 (RRMT) Always Below 1 Ω
N30-8 (RRID) - N23-10 (R2RM) Always Below 1 Ω
N30-14 (L) - N23-11 (SW) Always Below 1 Ω
N30-6 (RLID) - N23-26 (R2LM) Always Below 1 Ω
N30-12 (LAIL) - N23-27 (B) Always Below 1 Ω
N30-9 (R2LM) or N23-9 (RLMT) - Body ground Always 10 kΩ or higher
N30-13 (RC1D) or N23-25 (RCMT) - Body ground Always 10 kΩ or higher
N30-11 (R2RI) or N23-8 (RRMT) - Body ground Always 10 kΩ or higher
N30-8 (RRID) or N23-10 (R2RM) - Body ground Always 10 kΩ or higher
N30-14 (L) or N23-11 (SW) - Body ground Always 10 kΩ or higher
N30-6 (RLID) or N23-26 (R2LM) - Body ground Always 10 kΩ or higher
N30-12 (LAIL) or N23-27 (B) - Body ground Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

REPLACE COMBINATION METER ASSEMBLY

Click hereVehicle Interior>METER / GAUGE / DISPLAY>COMBINATION METER>REMOVAL


NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

99.INSPECT REAR NO. 2 SEAT INNER BELT ASSEMBLY RH
a.

Remove the rear No. 2 seat inner belt assembly RH.

for Manual Captain Seat:

Click hereVehicle Interior>SEAT BELT>REAR SEAT INNER BELT ASSEMBLY (for Manual Captain Seat)>REMOVAL

for Power Captain Seat:

Click hereVehicle Interior>SEAT BELT>REAR SEAT INNER BELT ASSEMBLY (for Power Captain Seat)>REMOVAL


b.

Inspect the rear No. 2 seat inner belt assembly RH.

for Manual Captain Seat:

Click hereVehicle Interior>SEAT BELT>REAR SEAT INNER BELT ASSEMBLY (for Manual Captain Seat)>INSPECTION

for Power Captain Seat:

Click hereVehicle Interior>SEAT BELT>REAR SEAT INNER BELT ASSEMBLY (for Power Captain Seat)>INSPECTION


Result:
Proceed to
OK
NG



OK

100.INSPECT NO. 2 SEAT CUSHION PAD RH

NG

REPLACE REAR NO. 2 SEAT INNER BELT ASSEMBLY RH

for Manual Captain Seat:

Click hereVehicle Interior>SEAT BELT>REAR SEAT INNER BELT ASSEMBLY (for Manual Captain Seat)>REMOVAL

for Power Captain Seat:

Click hereVehicle Interior>SEAT BELT>REAR SEAT INNER BELT ASSEMBLY (for Power Captain Seat)>REMOVAL


100.INSPECT NO. 2 SEAT CUSHION PAD RH
a.

Remove the No. 2 seat cushion pad RH (occupant detection sensor).

for Manual Captain Seat:

Click hereVehicle Interior>SEAT>OCCUPANT DETECTION SENSOR (for Manual Captain Seat)>REMOVAL

for Power Captain Seat:

Click hereVehicle Interior>SEAT>OCCUPANT DETECTION SENSOR (for Power Captain Seat)>REMOVAL


b.

Inspect the No. 2 seat cushion pad RH (occupant detection sensor).

for Manual Captain Seat:

Click hereVehicle Interior>SEAT>OCCUPANT DETECTION SENSOR (for Manual Captain Seat)>INSPECTION

for Power Captain Seat:

Click hereVehicle Interior>SEAT>OCCUPANT DETECTION SENSOR (for Power Captain Seat)>INSPECTION


Result:
Proceed to
OK
NG



OK

101.CHECK HARNESS AND CONNECTOR (NO. 2 SEAT CUSHION PAD RH - COMBINATION METER ASSEMBLY)

NG

REPLACE NO. 2 SEAT CUSHION PAD RH

for Manual Captain Seat:

Click hereVehicle Interior>SEAT>OCCUPANT DETECTION SENSOR (for Manual Captain Seat)>REMOVAL

for Power Captain Seat:

Click hereVehicle Interior>SEAT>OCCUPANT DETECTION SENSOR (for Power Captain Seat)>REMOVAL


101.CHECK HARNESS AND CONNECTOR (NO. 2 SEAT CUSHION PAD RH - COMBINATION METER ASSEMBLY)
a.

Disconnect the v34 No. 2 seat cushion pad RH (occupant detection sensor) connector.


b.

Disconnect the N23 combination meter assembly connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
v34-1 - N23-21 (RDC) Always Below 1 Ω
v34-1 or N23-21 (RDC) - Body ground Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

102.CHECK HARNESS AND CONNECTOR (REAR NO. 2 SEAT INNER BELT ASSEMBLY RH - NO. 2 SEAT CUSHION PAD RH AND BODY GROUND)

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

102.CHECK HARNESS AND CONNECTOR (REAR NO. 2 SEAT INNER BELT ASSEMBLY RH - NO. 2 SEAT CUSHION PAD RH AND BODY GROUND)
a.

Disconnect the v34 No. 2 seat cushion pad RH (occupant detection sensor) connector.


b.

Disconnect the v35 rear No. 2 seat inner belt assembly RH connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
v34-3 - v35-5 Always Below 1 Ω
v35-4 - Body ground Always Below 1 Ω
v34-3 or v35-5 - Body ground Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

REPLACE COMBINATION METER ASSEMBLY

Click hereVehicle Interior>METER / GAUGE / DISPLAY>COMBINATION METER>REMOVAL


NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

103.READ VALUE USING GTS
a.

Read the Data List according to the display on the GTS.

Click hereVehicle Interior>SEAT BELT>SEAT BELT WARNING SYSTEM>DATA LIST / ACTIVE TEST

Body Electrical > Combination Meter > Data List
Tester Display Measurement Item Range Normal Condition Diagnostic Note
4th Left Seat Buckle / Occupant Detection Warning Switch Rear No. 3 seat inner belt LH buckle and occupant detection sensor signal OFF or ON OFF: Rear No. 3 seat belt LH fastened and occupied
ON: Rear No. 3 seat belt LH not fastened and occupied 		-
Body Electrical > Combination Meter > Data List
Tester Display
4th Left Seat Buckle / Occupant Detection Warning Switch
50003 409 402
OK:

The GTS display changes correctly in response to the rear seat belt condition.



Result:
Proceed to
OK
NG



OK

104.INSPECT INDICATOR ASSEMBLY (REAR SEAT BELT WARNING LIGHT)

NG

106.INSPECT REAR NO. 3 SEAT INNER BELT ASSEMBLY LH
104.INSPECT INDICATOR ASSEMBLY (REAR SEAT BELT WARNING LIGHT)
a.

Remove the indicator assembly (rear seat belt warning light).

Click hereVehicle Interior>SEAT BELT>SEAT BELT WARNING LIGHT (for Rear Seat)>REMOVAL


b.

Inspect the indicator assembly (rear seat belt warning light).

Click hereVehicle Interior>SEAT BELT>SEAT BELT WARNING LIGHT (for Rear Seat)>INSPECTION


Result:
Proceed to
OK
NG



OK

105.CHECK HARNESS AND CONNECTOR (INDICATOR ASSEMBLY [REAR SEAT BELT WARNING LIGHT] - COMBINATION METER ASSEMBLY)

NG

REPLACE INDICATOR ASSEMBLY

Click hereVehicle Interior>SEAT BELT>SEAT BELT WARNING LIGHT (for Rear Seat)>REMOVAL


105.CHECK HARNESS AND CONNECTOR (INDICATOR ASSEMBLY [REAR SEAT BELT WARNING LIGHT] - COMBINATION METER ASSEMBLY)
a.

Disconnect the N30 indicator assembly (rear seat belt warning light) connector.


b.

Disconnect the N23 combination meter assembly connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
N30-9 (R2LM) - N23-9 (RLMT) Always Below 1 Ω
N30-13 (RC1D) - N23-25 (RCMT) Always Below 1 Ω
N30-11 (R2RI) - N23-8 (RRMT) Always Below 1 Ω
N30-8 (RRID) - N23-10 (R2RM) Always Below 1 Ω
N30-14 (L) - N23-11 (SW) Always Below 1 Ω
N30-6 (RLID) - N23-26 (R2LM) Always Below 1 Ω
N30-12 (LAIL) - N23-27 (B) Always Below 1 Ω
N30-9 (R2LM) or N23-9 (RLMT) - Body ground Always 10 kΩ or higher
N30-13 (RC1D) or N23-25 (RCMT) - Body ground Always 10 kΩ or higher
N30-11 (R2RI) or N23-8 (RRMT) - Body ground Always 10 kΩ or higher
N30-8 (RRID) or N23-10 (R2RM) - Body ground Always 10 kΩ or higher
N30-14 (L) or N23-11 (SW) - Body ground Always 10 kΩ or higher
N30-6 (RLID) or N23-26 (R2LM) - Body ground Always 10 kΩ or higher
N30-12 (LAIL) or N23-27 (B) - Body ground Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

REPLACE COMBINATION METER ASSEMBLY

Click hereVehicle Interior>METER / GAUGE / DISPLAY>COMBINATION METER>REMOVAL


NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

106.INSPECT REAR NO. 3 SEAT INNER BELT ASSEMBLY LH
a.

Remove the rear No. 3 seat inner belt assembly LH.

Click hereVehicle Interior>SEAT BELT>REAR SEAT INNER BELT ASSEMBLY (for 60/40 Split Seat Type 40 Side)>REMOVAL


b.

Inspect the rear No. 3 seat inner belt assembly LH.

Click hereVehicle Interior>SEAT BELT>REAR SEAT INNER BELT ASSEMBLY (for 60/40 Split Seat Type 40 Side)>INSPECTION


Result:
Proceed to
OK
NG



OK

107.INSPECT NO. 3 SEAT CUSHION PAD LH

NG

REPLACE REAR NO. 3 SEAT INNER BELT ASSEMBLY LH

Click hereVehicle Interior>SEAT BELT>REAR SEAT INNER BELT ASSEMBLY (for 60/40 Split Seat Type 40 Side)>REMOVAL


107.INSPECT NO. 3 SEAT CUSHION PAD LH
a.

Remove the No. 3 seat cushion pad LH (occupant detection sensor).

Click hereVehicle Interior>SEAT>OCCUPANT DETECTION SENSOR (for 60/40 Split Seat Type 40 Side)>REMOVAL


b.

Inspect the No. 3 seat cushion pad LH (occupant detection sensor).

Click hereVehicle Interior>SEAT>OCCUPANT DETECTION SENSOR (for 60/40 Split Seat Type 40 Side)>INSPECTION


Result:
Proceed to
OK
NG



OK

108.CHECK HARNESS AND CONNECTOR (NO. 3 SEAT CUSHION PAD LH - COMBINATION METER ASSEMBLY)

NG

REPLACE NO. 3 SEAT CUSHION PAD LH

Click hereVehicle Interior>SEAT>OCCUPANT DETECTION SENSOR (for 60/40 Split Seat Type 40 Side)>REMOVAL


108.CHECK HARNESS AND CONNECTOR (NO. 3 SEAT CUSHION PAD LH - COMBINATION METER ASSEMBLY)
a.

Disconnect the v23 No. 3 seat cushion pad LH connector.


b.

Disconnect the N23 combination meter assembly connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
v22-1 (ODS) - N23-38 (LBE-) Always Below 1 Ω
v22-1 (ODS) or N23-38 (LBE-) - Body ground Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

109.CHECK HARNESS AND CONNECTOR (REAR NO. 3 SEAT INNER BELT ASSEMBLY LH - NO. 3 SEAT CUSHION PAD LH AND BODY GROUND)

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

109.CHECK HARNESS AND CONNECTOR (REAR NO. 3 SEAT INNER BELT ASSEMBLY LH - NO. 3 SEAT CUSHION PAD LH AND BODY GROUND)
a.

Disconnect the v22 rear No. 3 seat inner belt assembly LH connector.


b.

Disconnect the v23 No. 3 seat cushion pad LH (occupant detection sensor) connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
v22-3 (E) - v23-1 Always Below 1 Ω
v23-2 - Body ground Always Below 1 Ω
v22-3 (E) or v23-1 - Body ground Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

REPLACE COMBINATION METER ASSEMBLY

Click hereVehicle Interior>METER / GAUGE / DISPLAY>COMBINATION METER>REMOVAL


NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

110.READ VALUE USING GTS
a.

Read the Data List according to the display on the GTS.

Click hereVehicle Interior>SEAT BELT>SEAT BELT WARNING SYSTEM>DATA LIST / ACTIVE TEST

Body Electrical > Combination Meter > Data List
Tester Display Measurement Item Range Normal Condition Diagnostic Note
4th Center Seat Buckle / Occupant Detection Warning Switch Rear No. 3 center seat inner belt buckle and occupant detection sensor signal OFF or ON OFF: Rear No. 3 center seat belt fastened and occupied
ON: Rear No. 3 center seat belt not fastened and occupied 		-
Body Electrical > Combination Meter > Data List
Tester Display
4th Center Seat Buckle / Occupant Detection Warning Switch
50003 409 403
OK:

The GTS display changes correctly in response to the rear seat belt condition.



Result:
Proceed to
OK
NG



OK

111.INSPECT INDICATOR ASSEMBLY (REAR SEAT BELT WARNING LIGHT)

NG

113.INSPECT REAR NO. 3 CENTER SEAT INNER BELT ASSEMBLY
111.INSPECT INDICATOR ASSEMBLY (REAR SEAT BELT WARNING LIGHT)
a.

Remove the indicator assembly (rear seat belt warning light).

Click hereVehicle Interior>SEAT BELT>SEAT BELT WARNING LIGHT (for Rear Seat)>REMOVAL


b.

Inspect the indicator assembly (rear seat belt warning light).

Click hereVehicle Interior>SEAT BELT>SEAT BELT WARNING LIGHT (for Rear Seat)>INSPECTION


Result:
Proceed to
OK
NG



OK

112.CHECK HARNESS AND CONNECTOR (INDICATOR ASSEMBLY [REAR SEAT BELT WARNING LIGHT] - COMBINATION METER ASSEMBLY)

NG

REPLACE INDICATOR ASSEMBLY

Click hereVehicle Interior>SEAT BELT>SEAT BELT WARNING LIGHT (for Rear Seat)>REMOVAL


112.CHECK HARNESS AND CONNECTOR (INDICATOR ASSEMBLY [REAR SEAT BELT WARNING LIGHT] - COMBINATION METER ASSEMBLY)
a.

Disconnect the N30 indicator assembly (rear seat belt warning light) connector.


b.

Disconnect the N23 combination meter assembly connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
N30-9 (R2LM) - N23-9 (RLMT) Always Below 1 Ω
N30-13 (RC1D) - N23-25 (RCMT) Always Below 1 Ω
N30-11 (R2RI) - N23-8 (RRMT) Always Below 1 Ω
N30-8 (RRID) - N23-10 (R2RM) Always Below 1 Ω
N30-14 (L) - N23-11 (SW) Always Below 1 Ω
N30-6 (RLID) - N23-26 (R2LM) Always Below 1 Ω
N30-12 (LAIL) - N23-27 (B) Always Below 1 Ω
N30-9 (R2LM) or N23-9 (RLMT) - Body ground Always 10 kΩ or higher
N30-13 (RC1D) or N23-25 (RCMT) - Body ground Always 10 kΩ or higher
N30-11 (R2RI) or N23-8 (RRMT) - Body ground Always 10 kΩ or higher
N30-8 (RRID) or N23-10 (R2RM) - Body ground Always 10 kΩ or higher
N30-14 (L) or N23-11 (SW) - Body ground Always 10 kΩ or higher
N30-6 (RLID) or N23-26 (R2LM) - Body ground Always 10 kΩ or higher
N30-12 (LAIL) or N23-27 (B) - Body ground Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

REPLACE COMBINATION METER ASSEMBLY

Click hereVehicle Interior>METER / GAUGE / DISPLAY>COMBINATION METER>REMOVAL


NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

113.INSPECT REAR NO. 3 CENTER SEAT INNER BELT ASSEMBLY
a.

Remove the rear No. 3 center seat inner belt assembly.

Click hereVehicle Interior>SEAT BELT>REAR SEAT INNER BELT ASSEMBLY (for 60/40 Split Seat Type 60 Side)>REMOVAL


b.

Inspect the rear No. 3 center seat inner belt assembly.

Click hereVehicle Interior>SEAT BELT>REAR SEAT INNER BELT ASSEMBLY (for 60/40 Split Seat Type 60 Side)>INSPECTION


Result:
Proceed to
OK
NG



OK

114.INSPECT REAR NO. 3 SEAT INNER BELT ASSEMBLY RH

NG

REPLACE REAR NO. 3 CENTER SEAT INNER BELT ASSEMBLY

Click hereVehicle Interior>SEAT BELT>REAR SEAT INNER BELT ASSEMBLY (for 60/40 Split Seat Type 60 Side)>REMOVAL


114.INSPECT REAR NO. 3 SEAT INNER BELT ASSEMBLY RH
a.

Remove the rear No. 3 seat inner belt assembly RH.

Click hereVehicle Interior>SEAT BELT>REAR SEAT INNER BELT ASSEMBLY (for 60/40 Split Seat Type 60 Side)>REMOVAL


b.

Inspect the rear No. 3 seat inner belt assembly RH.

Click hereVehicle Interior>SEAT BELT>REAR SEAT INNER BELT ASSEMBLY (for 60/40 Split Seat Type 60 Side)>INSPECTION


Result:
Proceed to
OK
NG



OK

115.INSPECT NO. 3 SEAT CUSHION PAD RH

NG

REPLACE REAR NO. 3 SEAT INNER BELT ASSEMBLY RH

Click hereVehicle Interior>SEAT BELT>REAR SEAT INNER BELT ASSEMBLY (for 60/40 Split Seat Type 60 Side)>REMOVAL


115.INSPECT NO. 3 SEAT CUSHION PAD RH
a.

Remove the No. 3 seat cushion pad RH (occupant detection sensor).

Click hereVehicle Interior>SEAT>OCCUPANT DETECTION SENSOR (for 60/40 Split Seat Type 60 Side)>REMOVAL


b.

Inspect the No. 3 seat cushion pad RH (occupant detection sensor).

Click hereVehicle Interior>SEAT>OCCUPANT DETECTION SENSOR (for 60/40 Split Seat Type 60 Side)>INSPECTION


Result:
Proceed to
OK
NG



OK

116.CHECK HARNESS AND CONNECTOR (REAR NO. 3 SEAT INNER BELT ASSEMBLY RH - COMBINATION METER ASSEMBLY AND BODY GROUND)

NG

REPLACE NO. 3 SEAT CUSHION PAD RH

Click hereVehicle Interior>SEAT>OCCUPANT DETECTION SENSOR (for 60/40 Split Seat Type 60 Side)>REMOVAL


116.CHECK HARNESS AND CONNECTOR (REAR NO. 3 SEAT INNER BELT ASSEMBLY RH - COMBINATION METER ASSEMBLY AND BODY GROUND)
a.

Disconnect the x2 rear No. 3 seat inner belt assembly RH connector.


b.

Disconnect the N23 combination meter assembly connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
x2-3 (+) - N23-19 (RCSB) Always Below 1 Ω
x2-4 (E) - Body ground Always Below 1 Ω
x2-3 (+) or N23-19 (RCSB) - Body ground Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

117.CHECK HARNESS AND CONNECTOR (NO. 3 SEAT CUSHION PAD RH - REAR NO. 3 SEAT INNER BELT ASSEMBLY RH)

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

117.CHECK HARNESS AND CONNECTOR (NO. 3 SEAT CUSHION PAD RH - REAR NO. 3 SEAT INNER BELT ASSEMBLY RH)
a.

Disconnect the v21 rear No. 3 seat inner belt assembly RH connector.


b.

Disconnect the v20 No. 3 seat cushion pad RH (occupant detection sensor) connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
v21-3 - v20-1 Always Below 1 Ω
v21-2 - v20-2 Always Below 1 Ω
v21-3 or v20-1 - Body ground Always 10 kΩ or higher
v21-2 or v20-2 - Body ground Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

REPLACE COMBINATION METER ASSEMBLY

Click hereVehicle Interior>METER / GAUGE / DISPLAY>COMBINATION METER>REMOVAL


NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

118.READ VALUE USING GTS
a.

Read the Data List according to the display on the GTS.

Click hereVehicle Interior>SEAT BELT>SEAT BELT WARNING SYSTEM>DATA LIST / ACTIVE TEST

Body Electrical > Combination Meter > Data List
Tester Display Measurement Item Range Normal Condition Diagnostic Note
4th Right Seat Buckle / Occupant Detection Warning Switch Rear No. 3 seat inner belt RH buckle and occupant detection sensor signal OFF or ON OFF: Rear No. 3 seat belt RH fastened and occupied
ON: Rear No. 3 seat belt RH not fastened and occupied 		-
Body Electrical > Combination Meter > Data List
Tester Display
4th Right Seat Buckle / Occupant Detection Warning Switch
50003 409 401
OK:

The GTS display changes correctly in response to the rear seat belt condition.



Result:
Proceed to
OK
NG



OK

119.INSPECT INDICATOR ASSEMBLY (REAR SEAT BELT WARNING LIGHT)

NG

121.INSPECT REAR NO. 3 SEAT INNER BELT ASSEMBLY RH
119.INSPECT INDICATOR ASSEMBLY (REAR SEAT BELT WARNING LIGHT)
a.

Remove the indicator assembly (rear seat belt warning light).

Click hereVehicle Interior>SEAT BELT>SEAT BELT WARNING LIGHT (for Rear Seat)>REMOVAL


b.

Inspect the indicator assembly (rear seat belt warning light).

Click hereVehicle Interior>SEAT BELT>SEAT BELT WARNING LIGHT (for Rear Seat)>INSPECTION


Result:
Proceed to
OK
NG



OK

120.CHECK HARNESS AND CONNECTOR (INDICATOR ASSEMBLY [REAR SEAT BELT WARNING LIGHT] - COMBINATION METER ASSEMBLY)

NG

REPLACE INDICATOR ASSEMBLY

Click hereVehicle Interior>SEAT BELT>SEAT BELT WARNING LIGHT (for Rear Seat)>REMOVAL


120.CHECK HARNESS AND CONNECTOR (INDICATOR ASSEMBLY [REAR SEAT BELT WARNING LIGHT] - COMBINATION METER ASSEMBLY)
a.

Disconnect the N30 indicator assembly (rear seat belt warning light) connector.


b.

Disconnect the N23 combination meter assembly connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
N30-9 (R2LM) - N23-9 (RLMT) Always Below 1 Ω
N30-13 (RC1D) - N23-25 (RCMT) Always Below 1 Ω
N30-11 (R2RI) - N23-8 (RRMT) Always Below 1 Ω
N30-8 (RRID) - N23-10 (R2RM) Always Below 1 Ω
N30-14 (L) - N23-11 (SW) Always Below 1 Ω
N30-6 (RLID) - N23-26 (R2LM) Always Below 1 Ω
N30-12 (LAIL) - N23-27 (B) Always Below 1 Ω
N30-9 (R2LM) or N23-9 (RLMT) - Body ground Always 10 kΩ or higher
N30-13 (RC1D) or N23-25 (RCMT) - Body ground Always 10 kΩ or higher
N30-11 (R2RI) or N23-8 (RRMT) - Body ground Always 10 kΩ or higher
N30-8 (RRID) or N23-10 (R2RM) - Body ground Always 10 kΩ or higher
N30-14 (L) or N23-11 (SW) - Body ground Always 10 kΩ or higher
N30-6 (RLID) or N23-26 (R2LM) - Body ground Always 10 kΩ or higher
N30-12 (LAIL) or N23-27 (B) - Body ground Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

REPLACE COMBINATION METER ASSEMBLY

Click hereVehicle Interior>METER / GAUGE / DISPLAY>COMBINATION METER>REMOVAL


NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

121.INSPECT REAR NO. 3 SEAT INNER BELT ASSEMBLY RH
a.

Remove the rear No. 3 seat inner belt assembly RH.

Click hereVehicle Interior>SEAT BELT>REAR SEAT INNER BELT ASSEMBLY (for 60/40 Split Seat Type 60 Side)>REMOVAL


b.

Inspect the rear No. 3 seat inner belt assembly RH.

Click hereVehicle Interior>SEAT BELT>REAR SEAT INNER BELT ASSEMBLY (for 60/40 Split Seat Type 60 Side)>INSPECTION


Result:
Proceed to
OK
NG



OK

122.INSPECT NO. 3 SEAT CUSHION PAD RH

NG

REPLACE REAR NO. 3 SEAT INNER BELT ASSEMBLY RH

Click hereVehicle Interior>SEAT BELT>REAR SEAT INNER BELT ASSEMBLY (for 60/40 Split Seat Type 60 Side)>REMOVAL


122.INSPECT NO. 3 SEAT CUSHION PAD RH
a.

Remove the No. 3 seat cushion pad RH (occupant detection sensor).

Click hereVehicle Interior>SEAT>OCCUPANT DETECTION SENSOR (for 60/40 Split Seat Type 60 Side)>REMOVAL


b.

Inspect the No. 3 seat cushion pad RH (occupant detection sensor).

Click hereVehicle Interior>SEAT>OCCUPANT DETECTION SENSOR (for 60/40 Split Seat Type 60 Side)>INSPECTION


Result:
Proceed to
OK
NG



OK

123.CHECK HARNESS AND CONNECTOR (REAR NO. 3 SEAT INNER BELT ASSEMBLY RH - COMBINATION METER ASSEMBLY AND BODY GROUND)

NG

REPLACE NO. 3 SEAT CUSHION PAD RH

Click hereVehicle Interior>SEAT>OCCUPANT DETECTION SENSOR (for 60/40 Split Seat Type 60 Side)>REMOVAL


123.CHECK HARNESS AND CONNECTOR (REAR NO. 3 SEAT INNER BELT ASSEMBLY RH - COMBINATION METER ASSEMBLY AND BODY GROUND)
a.

Disconnect the x2 rear No. 3 seat inner belt assembly RH connector.


b.

Disconnect the N23 combination meter assembly connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
x2-1 (+) - N23-22 (RBE+) Always Below 1 Ω
x2-2 (E) - Body ground Always Below 1 Ω
x2-1 (+) or N23-22 (RBE+) - Body ground Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

124.CHECK HARNESS AND CONNECTOR (NO. 3 SEAT CUSHION PAD RH - REAR NO. 3 SEAT INNER BELT ASSEMBLY RH)

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

124.CHECK HARNESS AND CONNECTOR (NO. 3 SEAT CUSHION PAD RH - REAR NO. 3 SEAT INNER BELT ASSEMBLY RH)
a.

Disconnect the v21 rear No. 3 seat inner belt assembly RH connector.


b.

Disconnect the v19 No. 3 seat cushion pad RH (occupant detection sensor) connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
v21-5 - v19-1 Always Below 1 Ω
v21-4 - v19-3 Always Below 1 Ω
v21-5 or v19-1 - Body ground Always 10 kΩ or higher
v21-4 or v19-3 - Body ground Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

REPLACE COMBINATION METER ASSEMBLY

Click hereVehicle Interior>METER / GAUGE / DISPLAY>COMBINATION METER>REMOVAL


NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
