RM35X0E _58 Vehicle Interior _078602 SEAT BELT _0389892 REAR SEAT INNER BELT ASSEMBLY(for Van) G

SEAT BELT  REAR SEAT INNER BELT ASSEMBLY(for Van)  INSPECTION


PROCEDURE

Hide 73380D 1.INSPECT REAR SEAT INNER BELT ASSEMBLY (for LH Side)

a.

Check the resistance.

i.

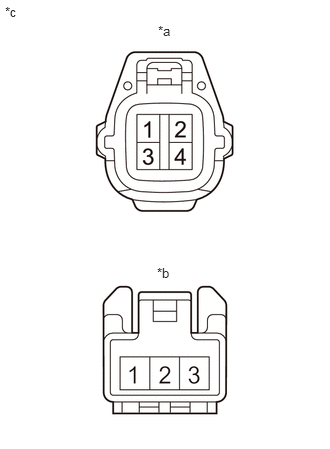

B541744C01
1.646,0.24 1.958,0.396 0.313,0.156 10 false *a 1.635,2.76 1.948,2.917 0.313,0.156 10 false *b 0.052,0.042 0.365,0.198 0.313,0.156 10 false *c
*a Connector A
*b Connector B
*c Component without harness connected
(Rear Seat Inner Belt Assembly)


Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition

If the result is not as specified, replace the rear seat inner belt assembly.

A-1 - B-3 Seat belt unfastened Below 1 Ω
Seat belt fastened 10 kΩ or higher
A-2 - B-1 Always Below 1 Ω




Hide 73380D 2.INSPECT REAR SEAT INNER BELT ASSEMBLY (for RH Side)

a.

Check the resistance.

i.
B541744C01
1.646,0.24 1.958,0.396 0.313,0.156 10 false *a 1.635,2.76 1.948,2.917 0.313,0.156 10 false *b 0.052,0.042 0.365,0.198 0.313,0.156 10 false *c
*a Connector A
*b Connector B
*c Component without harness connected
(Rear Seat Inner Belt Assembly)


Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition

If the result is not as specified, replace the rear seat inner belt assembly.

A-1 - B-3 Seat belt unfastened Below 1 Ω
Seat belt fastened 10 kΩ or higher
A-2 - B-1 Always Below 1 Ω




Hide 73380A 3.INSPECT REAR CENTER SEAT INNER BELT ASSEMBLY

a.

Check the resistance.

i.

Measure the resistance according to the value(s) in the table below.

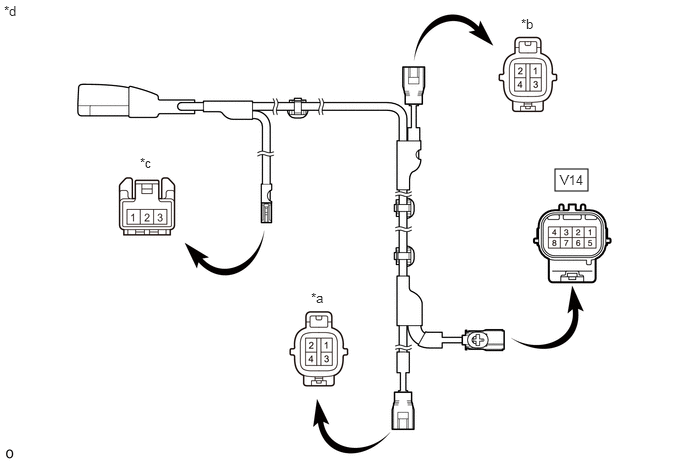

B541745C02
5.781,1.76 6.125,1.99 0.344,0.229 3.24,3.021 3.552,3.177 0.313,0.156 10 false *a 5.427,0.167 5.74,0.323 0.313,0.156 10 false *b 1.458,1.615 1.771,1.771 0.313,0.156 10 false *c 0.042,0.031 0.354,0.188 0.313,0.156 10 false *d 5.833,1.792 6.135,1.99 0.302,0.198 10 false V14
*a Connector A *b Connector B
*c Connector C *d Component without harness connected
(Rear Center Seat Inner Belt Assembly)


Standard Resistance:
Tester Connection Condition Specified Condition

If the result is not as specified, replace the rear center seat inner belt assembly.

V14-5 - C-3 Seat belt unfastened Below 1 Ω
Seat belt fastened 10 kΩ or higher
A-2 - B-1 Always Below 1 Ω
V14-6 - C-1
V14-1 - A-2
V14-3 - A-4
V14-7 - A-3
V14-2 - B-2
V14-4 - B-4
V14-8 - B-3
A-1 - B-1
