SEAT BELT REAR SEAT INNER BELT ASSEMBLY(for Van) REMOVAL

CAUTION / NOTICE / HINT

CAUTION:: ·

Wear protective gloves. Sharp areas on the parts may injure your hands.

·

There is risk of injury.

Hide Display 1.REMOVE REAR SEAT ASSEMBLY

Hide Display 72329G 2.REMOVE REAR NO. 2 SEAT ADJUSTER BOLT COVER

Hide Display 72329F 3.REMOVE REAR SEAT ADJUSTER BOLT COVER

HINT:: Use the same procedure described for the rear No. 2 seat adjuster bolt cover.

Hide Display 72526L 4.REMOVE RECLINING ADJUSTER RELEASE HANDLE LH

Hide Display 72525N 5.REMOVE NO. 1 SEAT RECLINING ADJUSTER RELEASE HANDLE RH

HINT:: Use the same procedure described for the reclining adjuster release handle LH.

Hide Display 71834J 6.REMOVE NO. 1 SEAT OUTER NO. 1 RECLINING COVER LH

Hide Display 71833K 7.REMOVE NO. 1 SEAT OUTER NO. 1 RECLINING COVER RH

Hide Display 73340 8.REMOVE REAR SEAT LAP TYPE BELT ASSEMBLY LH

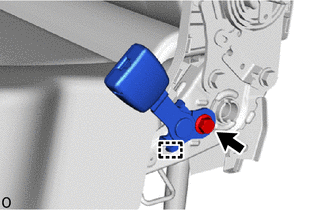

Remove the bolt.

Detach the guide and remove the rear seat lap type belt assembly LH.

Hide Display 73330 9.REMOVE REAR SEAT LAP TYPE BELT ASSEMBLY RH

Hide Display 10.REMOVE SEAT CUSHION COVER WITH PAD

Hide Display 73380D 11.REMOVE REAR SEAT INNER BELT ASSEMBLY (for LH Side)

w/ Seat Belt Warning System:

0,0 0,0 false

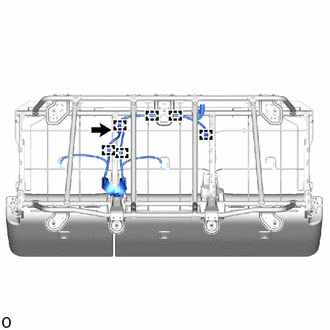

Disconnect the connector and detach the clamp.

Remove the bolt, anchor of the No. 1 seat 3 point type belt assembly LH and rear seat inner belt assembly.

Hide Display 73380A 12.REMOVE REAR CENTER SEAT INNER BELT ASSEMBLY

w/ Seat Belt Warning System:

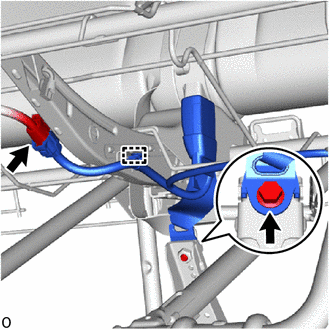

Disconnect the connector and detach the clamp.

Remove the bolt and rear center seat inner belt assembly.

Hide Display 73380D 13.REMOVE REAR SEAT INNER BELT ASSEMBLY (for RH Side)

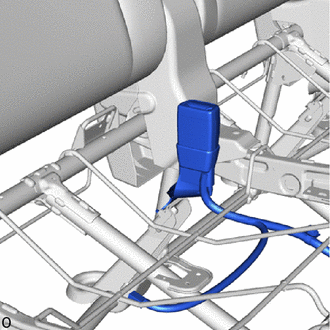

Remove the rear seat inner belt assembly.
