RM35X0E _58 Vehicle Interior _078601 SEAT _0389891 OCCUPANT DETECTION SENSOR(for Rear Seat) A

SEAT OCCUPANT DETECTION SENSOR(for Rear Seat) REMOVAL

CAUTION / NOTICE / HINT

CAUTION:: ·

Wear protective gloves. Sharp areas on the parts may injure your hands.

·

There is risk of injury.

Hide Display 1.REMOVE REAR SEAT ASSEMBLY

Hide Display 72329G 2.REMOVE REAR NO. 2 SEAT ADJUSTER BOLT COVER

Hide Display 72329F 3.REMOVE REAR SEAT ADJUSTER BOLT COVER

HINT:: Use the same procedure described for the rear No. 2 seat adjuster bolt cover.

Hide Display 72526L 4.REMOVE RECLINING ADJUSTER RELEASE HANDLE LH

Hide Display 72525N 5.REMOVE NO. 1 SEAT RECLINING ADJUSTER RELEASE HANDLE RH

HINT:: Use the same procedure described for the reclining adjuster release handle LH.

Hide Display 71834J 6.REMOVE NO. 1 SEAT OUTER NO. 1 RECLINING COVER LH

Hide Display 71833K 7.REMOVE NO. 1 SEAT OUTER NO. 1 RECLINING COVER RH

Hide Display 73340 8.REMOVE REAR SEAT LAP TYPE BELT ASSEMBLY LH

Hide Display 73330 9.REMOVE REAR SEAT LAP TYPE BELT ASSEMBLY RH

Hide Display 10.REMOVE SEAT CUSHION COVER WITH PAD

Hide Display 79135D 11.REMOVE NO. 1 SEAT CUSHION PAD (OCCUPANT DETECTION SENSOR)

Remove the 6 hog rings.

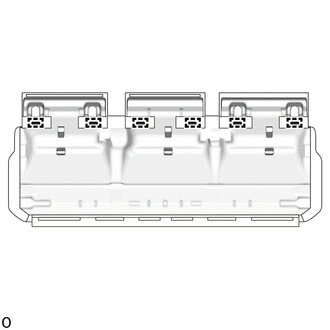

Remove the 28 hog rings and No. 1 seat cushion pad (occupant detection sensor).
