RM35X0E _58 Vehicle Interior _078602 SEAT BELT _0398435 REAR SEAT INNER BELT ASSEMBLY(for Manual Captain Seat) G

SEAT BELT  REAR SEAT INNER BELT ASSEMBLY(for Manual Captain Seat)  INSPECTION


CAUTION / NOTICE / HINT

HINT:
·

Use the same procedure for RHD and LHD vehicles.

·

The procedures listed below are for LHD vehicles.

·

Use the same procedure for the RH and LH sides.

·

The procedure listed below is for the LH side.



PROCEDURE

Hide 73380D 1.INSPECT REAR SEAT INNER BELT ASSEMBLY (for First Row)

a.
B560491C02
0.073,0.063 0.385,0.219 0.313,0.156 10 false *a
*a Component without harness connected
(Rear Seat Inner Belt Assembly)


Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
4 - 5 Seat belt unfastened Below 1 Ω
Seat belt fastened 10 kΩ or higher


If the result is not as specified, replace the rear seat inner belt assembly.


Hide 73380D 2.INSPECT REAR SEAT INNER BELT ASSEMBLY (for Second Row)

a.

w/o Power Supply Unit:

i.
B560491C02
0.073,0.063 0.385,0.219 0.313,0.156 10 false *a
*a Component without harness connected
(Rear Seat Inner Belt Assembly)


Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
4 - 5 Seat belt unfastened Below 1 Ω
Seat belt fastened 10 kΩ or higher


If the result is not as specified, replace the rear seat inner belt assembly.



b.

w/ Power Supply Unit:

i.

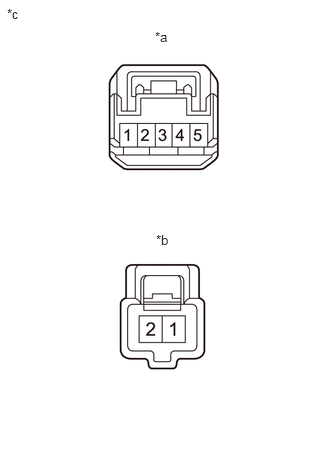

B560490C01
1.615,0.302 1.927,0.458 0.313,0.156 10 false *a 1.625,2.417 1.938,2.573 0.313,0.156 10 false *b 0.073,0.063 0.385,0.219 0.313,0.156 10 false *c
*a Connector A
*b Connector B
*c Component without harness connected
(Rear Seat Inner Belt Assembly)


Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
A-4 - B-2 Seat belt unfastened Below 1 Ω
Seat belt fastened 10 kΩ or higher
A-5 - B-1 Always Below 1 Ω


If the result is not as specified, replace the rear seat inner belt assembly.
