RM35X0E _58 Vehicle Interior _078602 SEAT BELT _0396042 REAR SEAT INNER BELT ASSEMBLY(for 60/40 Split Seat Type 40 Side) A

SEAT BELT REAR SEAT INNER BELT ASSEMBLY(for 60/40 Split Seat Type 40 Side) REMOVAL

CAUTION / NOTICE / HINT

CAUTION:: ·

Wear protective gloves. Sharp areas on the parts may injure your hands.

·

There is risk of injury.

HINT:: ·

Use the same procedure for RHD and LHD vehicles.

·

The procedure listed below is for LHD vehicles.

Hide Display 1.REMOVE NO. 3 SEAT ASSEMBLY LH

Hide Display 79076R 2.REMOVE NO. 3 SEAT NO. 2 INNER LEG COVER SUB-ASSEMBLY

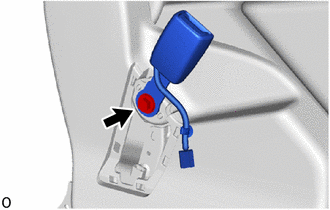

Hide Display 73390A 3.REMOVE REAR SEAT INNER BELT ASSEMBLY

Disconnect the connector.

Detach the clamp.

Remove the bolt and rear seat inner belt assembly.
