RM35X0E _58 Vehicle Interior _078337 METER / GAUGE / DISPLAY _0380006 COMBINATION METER A

METER / GAUGE / DISPLAY COMBINATION METER REMOVAL

CAUTION / NOTICE / HINT

NOTICE:: When replacing the combination meter assembly, always replace it with a new one. If a combination meter assembly which was installed to another vehicle is used, the information stored in it will not match the information from the vehicle and a DTC may be stored.

HINT:: ·

Use the same procedure for RHD and LHD vehicles.

·

The procedure listed below is for LHD vehicles.

Hide Display 55631A 1.REMOVE NO. 1 INSTRUMENT PANEL UNDER TRAY STOPPER

Hide Display 55011A 2.REMOVE NO. 1 INSTRUMENT PANEL GARNISH SUB-ASSEMBLY

Hide Display 55044C 3.REMOVE INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY

Hide Display 55404E 4.REMOVE UPPER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY

Hide Display 83100 5.REMOVE COMBINATION METER ASSEMBLY

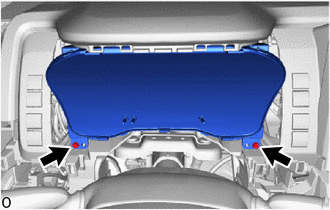

Remove the 2 screws.

0,0 0,0 false

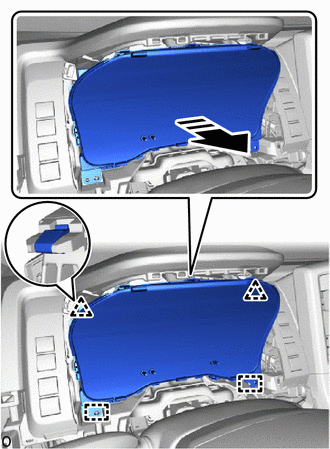

Remove in this Direction

Pull towards the rear of the vehicle to detach the clip and guide and remove the combination meter assembly.

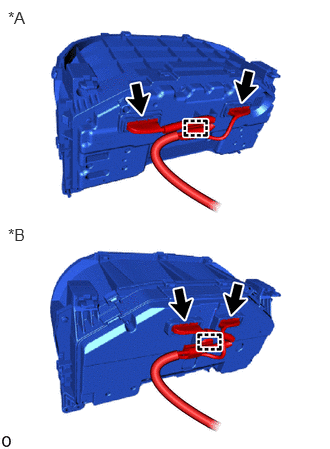

0.083,0.083 0.458,0.323 0.375,0.24 12 false *A 0.083,2.344 0.458,2.583 0.375,0.24 12 false *B

*A	for TFT Display Type
*B	for Segment Display Type

Detach the clamp and disconnect the 2 connectors.
