SEAT BELT  REAR SEAT INNER BELT ASSEMBLY(for 60/40 Split Seat Type 60 Side)  REMOVAL

1.REMOVE REAR NO. 3 SEAT ASSEMBLY RH

73315B 2.REMOVE REAR NO. 3 SEAT INNER BELT COVER RH

72345V 3.REMOVE NO. 4 SEAT STAND FRAME CAP RH

72057E 4.REMOVE REAR NO. 1 SEAT LOCK CONTROL LEVER SUB-ASSEMBLY RH

71848V 5.REMOVE NO. 3 SEAT ADJUSTER COVER CAP RH (w/ Center Headrest)

73350 6.REMOVE REAR CENTER SEAT LAP TYPE BELT ASSEMBLY (w/ Center Headrest)

71834P 7.REMOVE RH SEAT REAR NO. 3 SEAT RECLINING COVER

72525Q 8.REMOVE NO. 3 SEAT RECLINING ADJUSTER RELEASE HANDLE RH

72215C 9.REMOVE NO. 3 SEAT TRACK HANDLE CONTROL LEVER RH

79076P 10.REMOVE NO. 3 SEAT LEG COVER SUB-ASSEMBLY RH

71H75S 11.REMOVE RH SEAT RECLINING ADJUSTER INSIDE COVER

72620P 12.REMOVE NO. 3 SEAT SLIDE CABLE ASSEMBLY RH

13.REMOVE REAR SEAT CUSHION ASSEMBLY

71868T 14.REMOVE REAR NO. 1 SEAT INNER CUSHION SHIELD LH

71H67 15.REMOVE REAR NO. 1 SEAT INNER CUSHION SHIELD RH

71396L 16.REMOVE REAR NO. 3 SEAT CUSHION SUPPORT RH

79078B 17.REMOVE NO. 3 SEAT NO. 1 LEG COVER SUB-ASSEMBLY RH

71879G 18.REMOVE NO. 3 SEAT INNER RECLINING COVER LH

73380D 19.REMOVE REAR SEAT INNER BELT ASSEMBLY

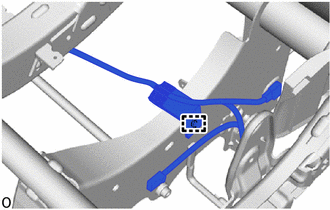

a.

1.031,1.115 1.271,0.646 true 0.854,0.979 1.073,1.167 0.219,0.188 10 true *A

*A	w/ Center Headrest

Detach the clamp.

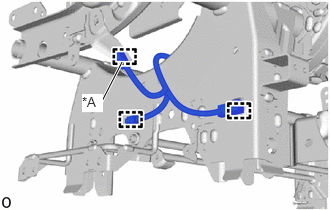

b.

Detach the clamp.

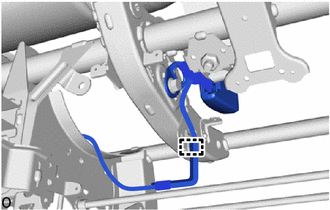

c.

Detach the clamp.

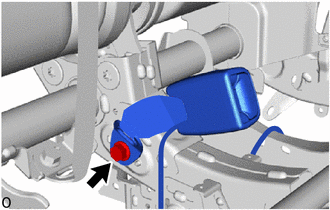

d.

Remave the bolt and rear seat inner belt assembly.
