SEAT BELT  SEAT BELT WARNING LIGHT(for Rear Seat)  INSPECTION

2.417,3.604 2.875,3.438 true 2.417,3.885 2.927,4.125 true 1.531,1.26 0.375,1.479 true 1.708,1.281 1.708,1.76 true 1.896,1.25 2.99,1.49 true 1.729,4.344 1.99,3.979 true 2.177,3.969 2.333,4.365 true 0.167,1.396 0.354,1.604 0.188,0.208 10 false *a 1.635,1.781 1.833,1.979 0.198,0.198 10 true *b 3.031,1.406 3.24,1.625 0.208,0.219 10 false *c 2.906,3.323 3.104,3.521 0.198,0.198 10 false IG 1.542,4.365 1.906,4.573 0.365,0.208 10 false R2RI 1.646,2.625 1.854,2.844 0.208,0.219 10 false *d 2.188,4.385 2.625,4.594 0.438,0.208 10 false R2CM 2.958,4.052 3.396,4.25 0.438,0.198 10 false R2LM

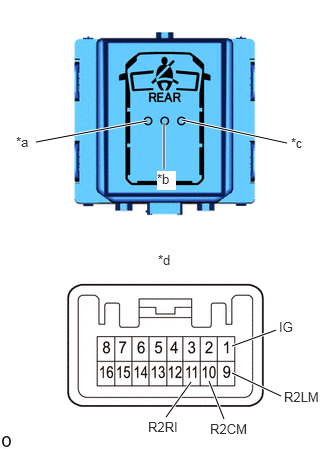

*a	Rear Seat Belt Indicator (for LH)
*b	Rear Seat Belt Indicator (for Center)
*c	Rear Seat Belt Indicator (for RH)
*d	Component without harness connected (Indicator Assembly)

Apply battery voltage to the connector and check that the indicator assembly indicator illuminates.

OK:

Measurement Condition	Specified Condition
If the result is not as specified, replace the indicator assembly.
1 (IG) - Battery positive (+) 9 (R2LM) - Battery negative (-)	Rear seat belt indicator (for LH) illuminates.
1 (IG) - Battery positive (+) 10 (R2CM) - Battery negative (-)	Rear seat belt indicator (for Center) illuminates.
1 (IG) - Battery positive (+) 11 (R2RI) - Battery negative (-)	Rear seat belt indicator (for RH) illuminates.

1.198,1.01 1.635,1.135 true 1.865,1.135 2.271,1.01 true 1.865,1.26 2.302,1.385 true 1.229,1.385 1.635,1.26 true 1.313,1.698 1.635,1.396 true 2.167,1.698 1.854,1.396 true 1.75,2.115 1.75,1.396 true 2.417,3.604 2.917,3.469 true 1.458,3.521 1.281,2.719 1.281,2.719 0.813,2.719 true 0.531,3.427 1.042,3.583 true 2.417,3.885 2.938,4.052 true 2.01,3.979 2.458,4.365 true 1.823,3.99 1.958,4.354 true 1.646,3.99 1.5,4.354 true 1.448,3.979 1.021,4.333 true 1.01,0.875 1.188,1.083 0.177,0.208 10 true *a 1.677,2.125 1.896,2.354 0.219,0.229 10 false *g 1.667,2.677 1.979,2.833 0.313,0.156 10 false *h 2.281,0.885 2.458,1.094 0.177,0.208 10 true *b 1.031,1.292 1.208,1.5 0.177,0.208 10 true *c 2.313,1.281 2.49,1.49 0.177,0.208 10 true *d 1.135,1.667 1.313,1.875 0.177,0.208 10 true *e 2.167,1.698 2.344,1.906 0.177,0.208 10 true *f 2.958,3.354 3.271,3.552 0.313,0.198 10 false IG 0.448,2.615 0.792,2.813 0.344,0.198 10 false RLID 0.167,3.302 0.51,3.5 0.344,0.198 10 false RRID 2.969,3.979 3.375,4.177 0.406,0.198 10 false R2LM 2.365,4.385 2.771,4.583 0.406,0.198 10 false R2RI 1.833,4.385 2.24,4.583 0.406,0.198 10 false LAPL 1.302,4.375 1.677,4.573 0.375,0.198 10 false RCID 0.865,4.313 1.021,4.51 0.156,0.198 10 false L

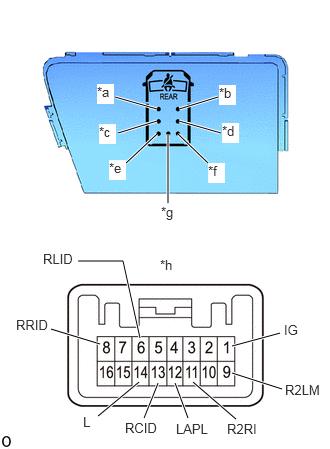

*a	Rear Seat Belt Indicator (for Rear No. 1 LH)
*b	Rear Seat Belt Indicator (for Rear No. 1 RH)
*c	Rear Seat Belt Indicator (for Rear No. 2 LH)
*d	Rear Seat Belt Indicator (for Rear No. 2 RH)
*e	Rear Seat Belt Indicator (for Rear No. 3 LH)
*f	Rear Seat Belt Indicator (for Rear No. 3 Center)
*g	Rear Seat Belt Indicator (for Rear No. 3 RH)
*h	Component without harness connected (Indicator Assembly)

Apply battery voltage to the connector and check that the indicator assembly indicator illuminates.

OK:

Measurement Condition	Specified Condition
If the result is not as specified, replace the indicator assembly.
1 (IG) - Battery positive (+) 6 (RLID) - Battery negative (-)	Rear seat belt indicator (for Rear No. 1 LH) illuminates.
1 (IG) - Battery positive (+) 8 (RRID) - Battery negative (-)	Rear seat belt indicator (for Rear No. 1 RH) illuminates.
1 (IG) - Battery positive (+) 9 (R2LM) - Battery negative (-)	Rear seat belt indicator (for Rear No. 2 LH) illuminates.
1 (IG) - Battery positive (+) 11 (R2RI) - Battery negative (-)	Rear seat belt indicator (for Rear No. 2 RH) illuminates.
1 (IG) - Battery positive (+) 14 (L) - Battery negative (-)	Rear seat belt indicator (for Rear No. 3 LH) illuminates.
1 (IG) - Battery positive (+) 13 (RCID) - Battery negative (-)	Rear seat belt indicator (for Rear No. 3 Center) illuminates.
1 (IG) - Battery positive (+) 12 (LAPL) - Battery negative (-)	Rear seat belt indicator (for Rear No. 3 RH) illuminates.
