SEAT BELT  SEAT BELT WARNING LIGHT(for Rear Seat)  REMOVAL

33622 1.DISCONNECT NO. 1 SHIFT LEVER KNOB COVER

33504F 2.REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY

35970F 3.REMOVE POSITION INDICATOR HOUSING ASSEMBLY

55900 4.REMOVE AIR CONDITIONING CONTROL ASSEMBLY

83150C 5.REMOVE INDICATOR ASSEMBLY (for Van)

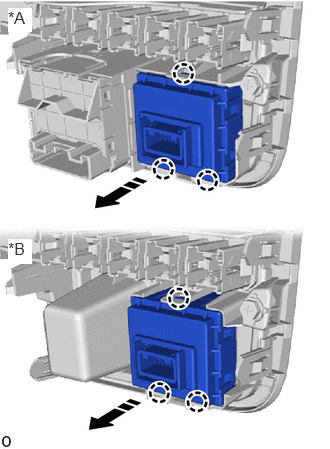

a.

0.083,0.083 0.333,0.333 0.25,0.25 12 true *A 0.083,2.49 0.333,2.75 0.25,0.26 12 true *B

*A	w/ Rear Air Conditioning System
*B	w/o Rear Air Conditioning System
	Remove in this Direction

Detach the claw and remove the indicator assembly as shown in the illustration.

55308D 6.REMOVE CENTER INSTRUMENT PANEL BOX SUB-ASSEMBLY (for Wagon)

a.

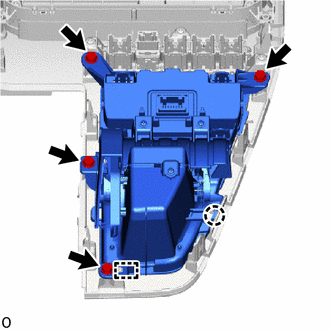

Remove the 4 screws.

b.

Detach the claw and guide and remove the center instrument panel box sub-assembly.

83150C 7.REMOVE INDICATOR ASSEMBLY (for Wagon)

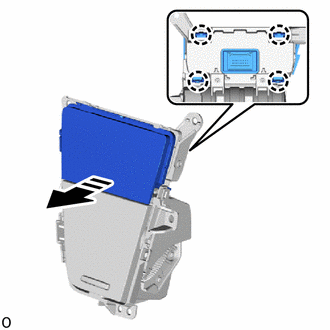

a.

0,0 0,0 false

Remove in this Direction

Detach the claw and remove the indicator assembly as shown in the illustration.
