INTERIOR PANELS / TRIM ROOF HEADLINING(for Semi-trim) INSTALLATION

CAUTION / NOTICE / HINT

HINT:: ·

Use the same procedure for RHD and LHD vehicles.

·

The procedure listed below is for LHD vehicles.

·

A bolt without a torque specification is shown in the standard bolt chart.

Click hereGeneral>SPECIFICATIONS>STANDARD BOLT>SPECIFIED TORQUE FOR STANDARD BOLTS201902,999999,_V1,_080617,_0393342,RM100000001HX78,

PROCEDURE

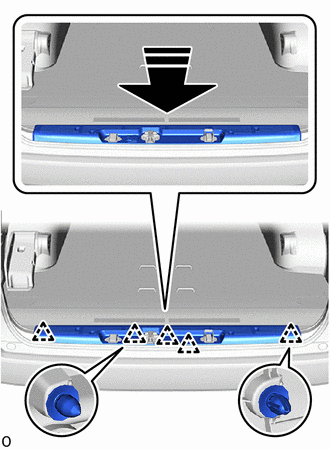

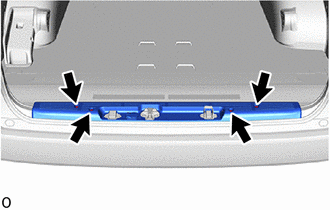

Hide Display 67935 1.INSTALL BACK DOOR SCUFF PLATE

except Double Swing Out Type:

0,0 0,0 false

Install in this Direction

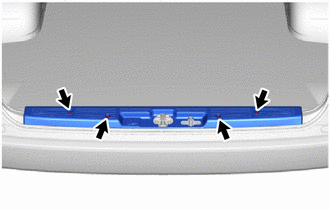

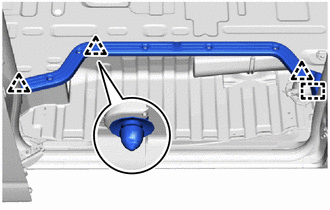

Attach the clip to install the back door scuff plate as shown in the illustration.

ii.

Install the 4 screws.

for Double Swing Out Type:

0,0 0,0 false

Install in this Direction

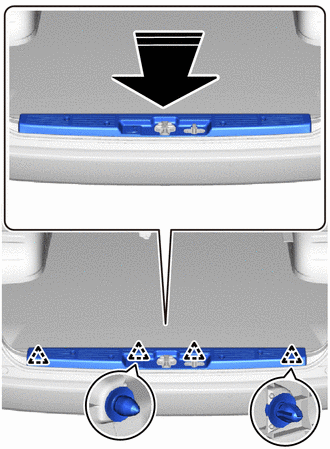

Attach the clip to install the back door scuff plate as shown in the illustration.

ii.

Install the 4 screws.

Hide Display 2.INSTALL ROOF HEADLINING ASSEMBLY (for Standard Roof)

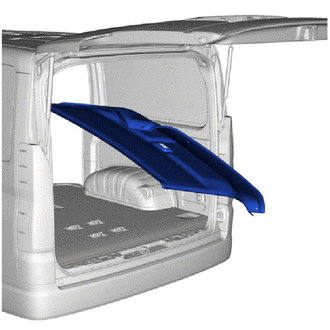

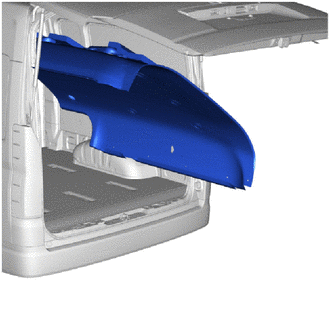

Tilt the roof headlining assembly vertically and carry it onto the vehicle through the back door.

NOTICE:: ·

Installation of the roof headlining assembly must be performed by multiple people to prevent deformation of the roof headlining assembly.

·

Check that the corners of the roof headlining are not folded, twisted or otherwise deformed and that none of the mounted parts have fallen off.

·

Make sure that the roof headlining does not get caught on anything as it may become bent or damaged.

·

Do not damage the roof headlining or vehicle interior.

Attach the claw to install the visor holder base.

HINT:: Use the same procedure for the opposite side.

w/o Rear Air Duct, for 4 Door:

Attach the fastener.

ii.

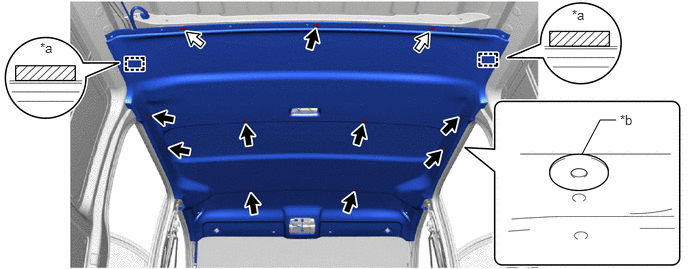

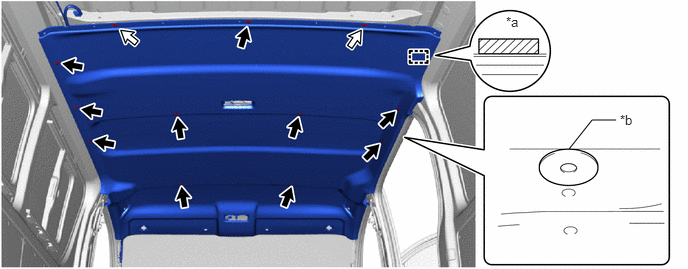

Install the roof headlining assembly with the 12 clips and 2 plates.

HINT:: When installing the clips indicated by the white arrow, make sure to install the plate between the roof headlining assembly.

5.927,1.552 6.167,1.25 6.167,1.25 6.417,1.25 false 6.458,1.167 6.771,1.365 0.313,0.198 10 false *b 5.271,0.146 5.583,0.344 0.313,0.198 10 false *a

*a	Fastener	*b	Plate
	w/ Plate	-	-

w/o Rear Air Duct, for 5 Door:

Attach the fastener.

ii.

Install the roof headlining assembly with the 11 clips and 2 plates.

HINT:: When installing the clips indicated by the white arrow, make sure to install the plate between the roof headlining assembly.

6.063,1.604 6.25,1.25 6.25,1.25 6.417,1.25 false 5.958,0.073 6.271,0.271 0.313,0.198 10 false *a 0.417,0.417 0.729,0.615 0.313,0.198 10 false *a 6.458,1.167 6.771,1.365 0.313,0.198 10 false *b

*a	Fastener	*b	Plate
	w/ Plate	-	-

w/ Rear Air Duct:

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>INSTALLATION202208,999999,_58,_078375,_0381233,RM1000000024I1A_01_0055,

for Rear Roof RH Side, w/ Digital Inner Mirror:

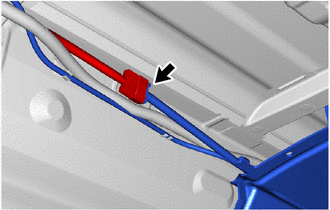

Attach the clamp and connect the connector.

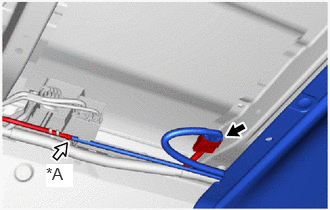

for Rear Roof LH Side:

0.479,1.708 0.76,1.948 0.281,0.24 12 true *A

*A	w/ Rear Wiper or w/ Digital Inner Mirror
	Connector
	Washer Hose

Connect the connector.

ii.

w/ Rear Wiper or w/ Digital Inner Mirror:

Connect the washer hose.

for Front Pillar LH Side:

w/ Curtain Shield Airbag:

Remove the protective cover installed to the front pillar LH.

ii.

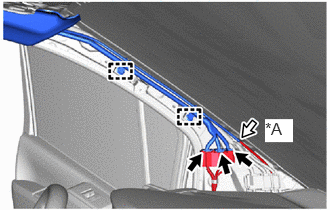

2.604,1.198 2.875,1.427 0.271,0.229 12 true *A

*A	w/ Rear Wiper or w/ Digital Inner Mirror
	Connector
	Washer Hose

w/ Rear Wiper or w/ Digital Inner Mirror:

Connect the washer hose.

iii.

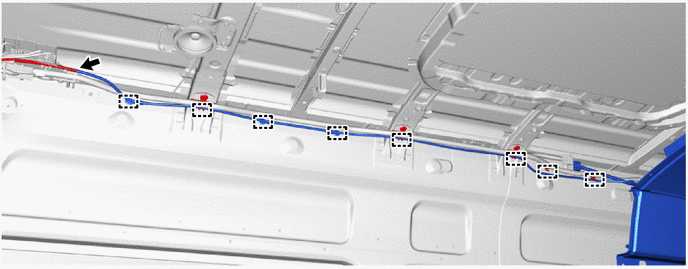

Attach the wire harness clamp.

iv.

Connect the 3 connectors.

w/ Curtain Shield Airbag:

Install the protective cover to the front pillar LH.

for Windshield Glass Side:

Connect each connector.

Hide Display 3.INSTALL ROOF HEADLINING ASSEMBLY (for High Roof)

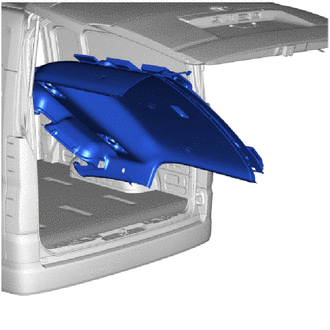

Tilt the roof headlining assembly vertically and carry it onto the vehicle through the back door.

NOTICE:: ·

Installation of the roof headlining assembly must be performed by multiple people to prevent deformation of the roof headlining assembly.

·

Check that the corners of the roof headlining are not folded, twisted or otherwise deformed and that none of the mounted parts have fallen off.

·

Make sure that the roof headlining does not get caught on anything as it may become bent or damaged.

·

Do not damage the roof headlining or vehicle interior.

w/o Rear Air Duct:

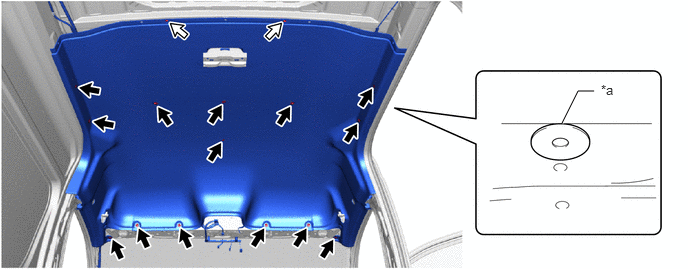

Install the roof headlining assembly with the 16 clips and 2 plates.

HINT:: When installing the clips indicated by the white arrow, make sure to install the plate between the roof headlining assembly.

5.854,1.281 6.021,0.948 6.021,0.948 6.188,0.948 true 6.26,0.854 6.573,1.052 0.313,0.198 10 false *a

*a	Plate	-	-
	w/ Plate	-	-

w/ Rear Air Duct:

Install the roof headlining assembly with the 14 clips and 2 plates.

HINT:: When installing the clips indicated by the white arrow, make sure to install the plate between the roof headlining assembly.

6,0.885 6.167,0.552 6.167,0.552 6.333,0.552 true 6.396,0.469 6.708,0.667 0.313,0.198 10 false *a

*a	Plate	-	-
	w/ Plate	-	-

ii.

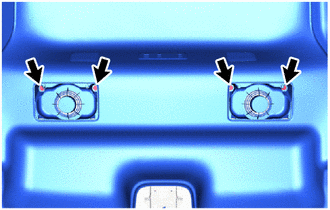

Install the 4 bolts.

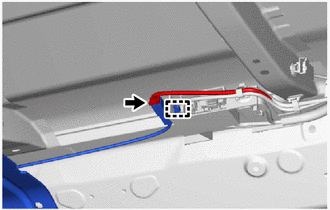

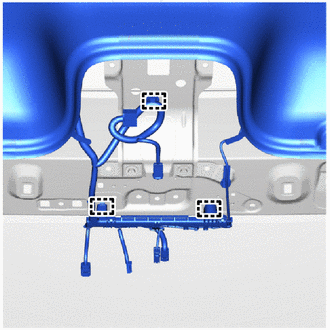

for Roof Headlining Front Side:

w/o Wire Harness Protector:

Attach the clamp.

ii.

w/ Wire Harness Protector:

Attach the clamp.

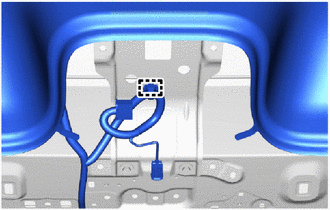

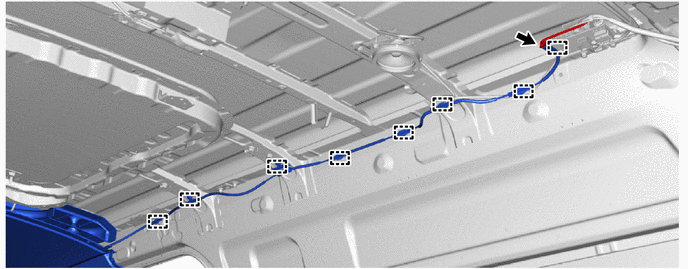

for Rear Roof RH Side, w/ Digital Inner Mirror:

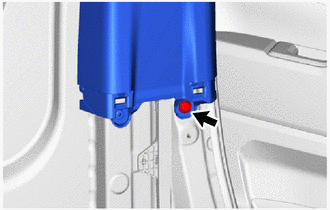

Attach the clamp and connect the connector.

for Rear Roof LH Side:

w/ Rear Wiper or w/ Digital Inner Mirror:

Attach the clamp and connect the washer hose.

ii.

Connect the connector.

for Front Pillar LH Side:

w/ Curtain Shield Airbag:

Remove the protective cover installed to the front pillar LH.

ii.

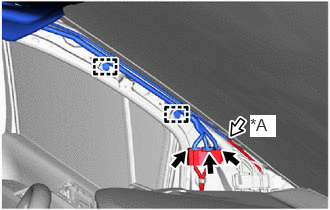

2.76,1.24 3.052,1.479 0.292,0.24 12 true *A

*A	w/ Rear Wiper or w/ Digital Inner Mirror
	Connector
	Washer Hose

w/ Rear Wiper or w/ Digital Inner Mirror:

Connect the washer hose.

iii.

Attach the wire harness clamp.

iv.

Connect the 3 connectors.

w/ Curtain Shield Airbag:

Install the protective cover to the front pillar LH.

for Windshield Glass Side:

Connect each connector.

Hide Display 65896J 4.INSTALL COVER TOP SET BOLT CAP (for Standard Roof, w/ Rear Air Duct)

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>INSTALLATION202208,999999,_58,_078375,_0381233,RM1000000024I1A_01_0048,

Hide Display 63413C 5.INSTALL FRONT INNER ROOF RACK BOARD (for High Roof)

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>INSTALLATION202208,999999,_58,_078375,_0381233,RM1000000024I1A_01_0024,

Hide Display 63439D 6.INSTALL NO. 2 INNER ROOF RACK COVER (for High Roof)

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>INSTALLATION202208,999999,_58,_078375,_0381233,RM1000000024I1A_01_0006,

Hide Display 63438F 7.INSTALL NO. 1 INNER ROOF RACK COVER (for High Roof)

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>INSTALLATION202208,999999,_58,_078375,_0381233,RM1000000024I1A_01_0037,

Hide Display 53989A 8.INSTALL AIR INTAKE NET (w/ Rear Air Duct)

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>INSTALLATION202208,999999,_58,_078375,_0381233,RM1000000024I1A_01_0052,

Hide Display 74348 9.INSTALL VISOR HOLDER

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>INSTALLATION202208,999999,_58,_078375,_0381233,RM1000000024I1A_01_0053,

Hide Display 74320 10.INSTALL VISOR ASSEMBLY LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>INSTALLATION202208,999999,_58,_078375,_0381233,RM1000000024I1A_01_0011,

Hide Display 74310 11.INSTALL VISOR ASSEMBLY RH

HINT:: Use the same procedure described for the LH side.

Hide Display 12.INSTALL ASSIST GRIP ASSEMBLY (w/ Assist Grip)

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>INSTALLATION202208,999999,_58,_078375,_0381233,RM1000000024I1A_01_0063,

Hide Display 86768 13.INSTALL ROOF ANTENNA COVER (w/ Digital Audio Broadcasting Antenna)

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>INSTALLATION202208,999999,_58,_078375,_0381233,RM1000000024I1A_01_0012,

Hide Display 86466D 14.INSTALL NO. 1 FORWARD RECOGNITION COVER (w/ Pre-collision System)

Click hereEngine / Hybrid System>CRUISE CONTROL>FRONT CAMERA>INSTALLATION201906,999999,_51,_078884,_0384728,RM100000001JAEF_01_0003,

Hide Display 81260A 15.INSTALL MAP LIGHT ASSEMBLY

Click hereVehicle Interior>LIGHTING (INT)>PERSONAL LIGHT>INSTALLATION201902,999999,_58,_078381,_0381235,RM100000001FZDY,

Hide Display 87834 16.INSTALL INNER REAR VIEW MIRROR STAY HOLDER COVER

w/ EC Mirror:

Click hereVehicle Interior>MIRROR (INT)>INNER REAR VIEW MIRROR (w/ EC Mirror)>INSTALLATION201902,999999,_58,_078376,_0380057,RM100000001FSCG_01_0004,

w/ Digital Inner Mirror:

Click hereVehicle Interior>MIRROR (INT)>DIGITAL INNER MIRROR>INSTALLATION201902,999999,_58,_078376,_0380056,RM100000001FSCQ_01_0004,

Hide Display 63320E 17.INSTALL REAR ROOF HEADLINING ASSEMBLY (for Standard Roof)

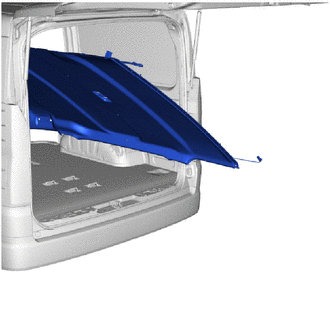

Tilt the rear roof headlining assembly vertically and carry it onto the vehicle through the back door.

NOTICE:: ·

Installation of the rear roof headlining assembly must be performed by multiple people to prevent deformation of the roof headlining assembly.

·

Check that the corners of the roof headlining are not folded, twisted or otherwise deformed and that none of the mounted parts have fallen off.

·

Make sure that the roof headlining does not get caught on anything as it may become bent or damaged.

·

Do not damage the roof headlining or vehicle interior.

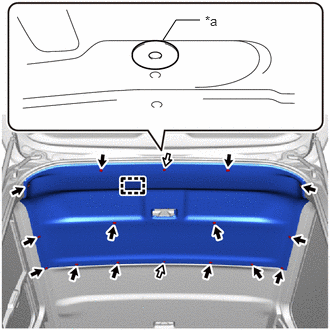

1.698,0.417 1.833,0.208 1.833,0.208 2.083,0.208 false 2.135,0.135 2.448,0.333 0.313,0.198 10 false *a

*a	Plate
	w/ Plate

Attach the guide.

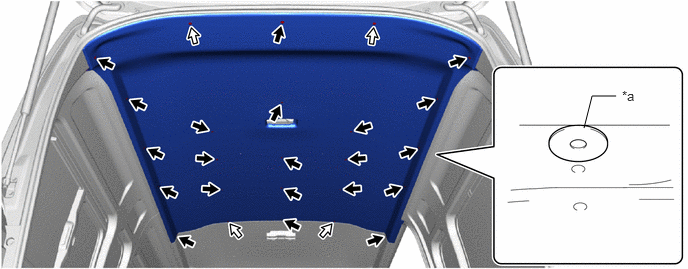

Install the rear roof headlining assembly with the 16 clips and 2 plates.

HINT:: When installing the clips indicated by the white arrow, make sure to install the plate between the rear roof headlining assembly.

Hide Display 18.INSTALL REAR ROOF HEADLINING ASSEMBLY (for High Roof)

Tilt the rear roof headlining assembly vertically and carry it onto the vehicle through the back door.

NOTICE:: ·

Installation of the rear roof headlining assembly must be performed by multiple people to prevent deformation of the roof headlining assembly.

·

Check that the corners of the roof headlining are not folded, twisted or otherwise deformed and that none of the mounted parts have fallen off.

·

Make sure that the roof headlining does not get caught on anything as it may become bent or damaged.

·

Do not damage the roof headlining or vehicle interior.

w/ Rear Air Duct:

w/ Roof Window Glass:

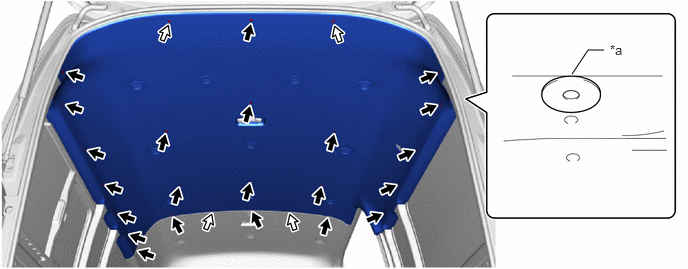

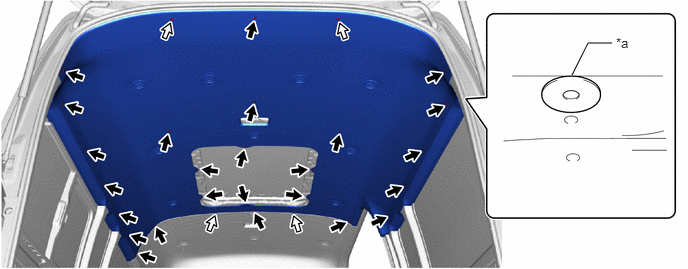

Install the rear roof headlining assembly with the 29 clips and 4 plates.

HINT:: When installing the clips indicated by the white arrow, make sure to install the plate between the rear roof headlining assembly.

5.958,0.781 6.125,0.448 6.125,0.448 6.375,0.448 false 6.417,0.365 6.729,0.563 0.313,0.198 10 false *a

*a	Plate	-	-
	w/ Plate	-	-

ii.

w/o Roof Window Glass:

Install the rear roof headlining assembly with the 26 clips and 4 plates.

HINT:: When installing the clips indicated by the white arrow, make sure to install the plate between the rear roof headlining assembly.

5.958,0.771 6.125,0.521 6.125,0.521 6.292,0.521 false 6.354,0.438 6.667,0.635 0.313,0.198 10 false *a

*a	Plate	-	-
	w/ Plate	-	-

w/o Rear Air Duct:

w/ Roof Window Glass:

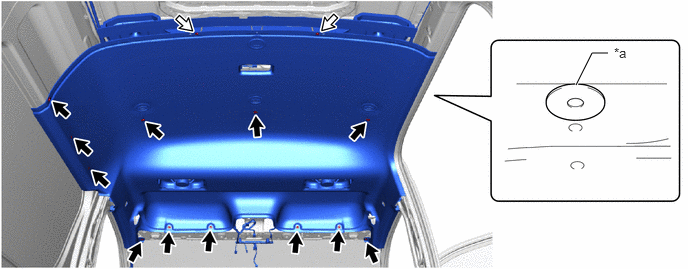

Install the rear roof headlining assembly with the 23 clips and 4 plates.

HINT:: When installing the clips indicated by the white arrow, make sure to install the plate between the rear roof headlining assembly.

6.063,1.302 6.229,0.938 6.229,0.938 6.479,0.938 false 6.521,0.865 6.833,1.063 0.313,0.198 10 false *a

*a	Plate	-	-
	w/ Plate	-	-

ii.

w/o Roof Window Glass:

Install the rear roof headlining assembly with the 25 clips and 4 plates.

HINT:: When installing the clips indicated by the white arrow, make sure to install the plate between the rear roof headlining assembly.

6.083,1.333 6.167,1 6.167,1 6.417,1 false 6.479,0.917 6.792,1.115 0.313,0.198 10 false *a

*a	Plate	-	-
	w/ Plate	-	-

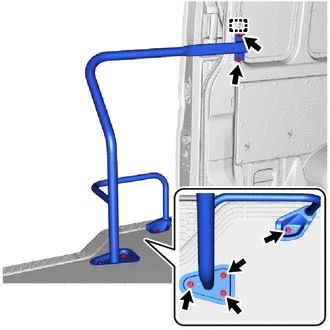

Hide Display 72681E 19.INSTALL REAR SEAT HOOK (for High Roof, w/ Seat Hook)

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>INSTALLATION202208,999999,_58,_078375,_0381233,RM1000000024I1A_01_0061,

Hide Display 69047 20.INSTALL BACK DOOR UPPER LOCK STRIKER SUB-ASSEMBLY (for Double Swing Out Type)

Click hereVehicle Exterior>DOOR / HATCH>BACK DOOR (for Double Swing Out Type)>REASSEMBLY202208,999999,_59,_078503,_0545662,RM1000000024I3V_01_0042,

Hide Display 63349A 21.INSTALL REAR ROOF HEADLINING GARNISH (w/ Roof Window Glass)

w/ Rear Air Duct:

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>INSTALLATION202208,999999,_58,_078375,_0381233,RM1000000024I1A_01_0059,

w/o Rear Air Duct:

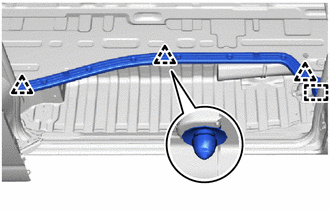

0,0 0,0 false

Install in this Direction

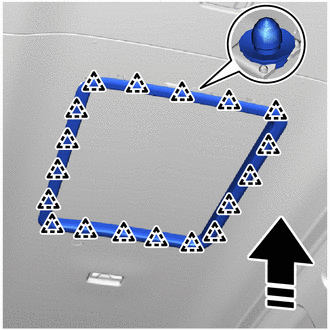

Attach the clip as shown in the illustration to install the rear roof headlining garnish.

Hide Display 81240 22.INSTALL NO. 1 ROOM LIGHT ASSEMBLY

Click hereVehicle Interior>LIGHTING (INT)>ROOM LIGHT>INSTALLATION201902,999999,_58,_078381,_0381237,RM100000001FZDQ,

Hide Display 81240D 23.INSTALL NO. 2 ROOM LIGHT ASSEMBLY (for High Roof, w/ No. 2 Room Light Assembly)

HINT:: Use the same procedure described for the No. 1 room light assembly.

Hide Display 73370E 24.INSTALL REAR SEAT OUTER BELT ASSEMBLY LH (for Van, w/ Seat Belt)

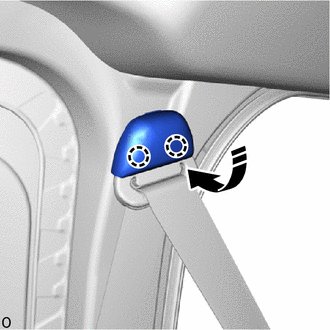

Install the bolt.

Torque:: 42 N*m (428 kgf*cm, 31 ft.*lbf)

0,0 0,0 false

Close in this Direction

Attach the claw and close the cover as shown in the illustration.

Hide Display 73360D 25.INSTALL REAR SEAT OUTER BELT ASSEMBLY RH (for Van, w/ Seat Belt)

HINT:: Use the same procedure described for the LH side.

Hide Display 62411 26.INSTALL CENTER PILLAR GARNISH RH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>INSTALLATION202208,999999,_58,_078375,_0381233,RM1000000024I1A_01_0031,

Hide Display 62412 27.INSTALL CENTER PILLAR GARNISH LH

for 4 Door, Standard Roof:

0,0 0,0 false

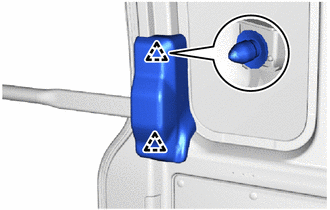

Install in this Direction

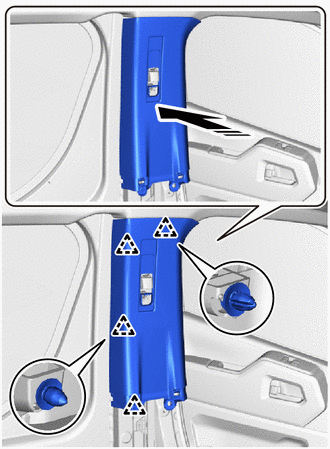

Attach the clip as shown in the illustration to install the center pillar garnish LH.

ii.

Install the clip.

for 4 Door, High Roof:

0,0 0,0 false

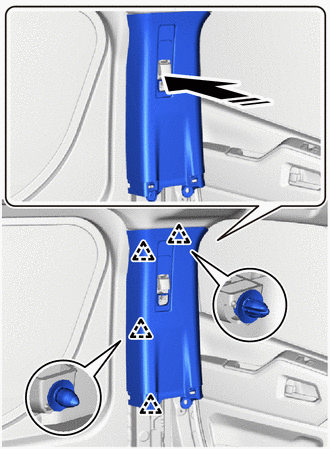

Install in this Direction

Attach the clip as shown in the illustration to install the center pillar garnish LH.

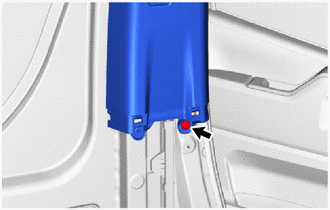

ii.

Install the clip.

for 5 Door:

HINT:: Use the same procedure described for the RH side.

Hide Display 62413A 28.INSTALL LOWER CENTER PILLAR GARNISH RH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>INSTALLATION202208,999999,_58,_078375,_0381233,RM1000000024I1A_01_0032,

Hide Display 62414A 29.INSTALL LOWER CENTER PILLAR GARNISH LH

HINT:: Use the same procedure described for the RH side.

Hide Display 67871E 30.INSTALL NO. 1 SLIDE DOOR WEATHERSTRIP RH

Click hereVehicle Exterior>DOOR / HATCH>REAR DOOR OPENING TRIM WEATHERSTRIP (except Wagon)>INSTALLATION201902,999999,_59,_078503,_0385653,RM100000001GNFP_02_0003,

Hide Display 67872A 31.INSTALL NO. 1 SLIDE DOOR WEATHERSTRIP LH (for 5 Door)

HINT:: Use the same procedure described for the RH side.; Click hereVehicle Exterior>DOOR / HATCH>REAR DOOR OPENING TRIM WEATHERSTRIP (except Wagon)>INSTALLATION201902,999999,_59,_078503,_0385653,RM100000001GNFP_02_0003,

Hide Display 67917C 32.INSTALL REAR DOOR SCUFF PLATE RH

for Standard Roof, Full Cover Type:

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>INSTALLATION202208,999999,_58,_078375,_0381233,RM1000000024I1A_01_0035,

for Standard Roof, except Full Cover Type:

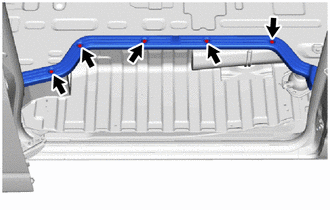

Attach the clip and guide to install the rear door scuff plate RH.

ii.

Install the 5 screws.

for High Roof, Full Cover Type:

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>INSTALLATION202208,999999,_58,_078375,_0381233,RM1000000024I1A_01_0035,

for High Roof, except Full Cover Type:

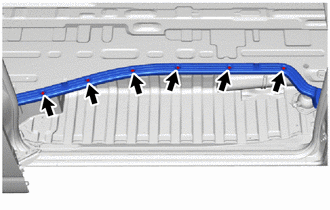

Attach the clip and guide to install the rear door scuff plate RH.

ii.

Install the 6 screws.

Hide Display 67918D 33.INSTALL REAR DOOR SCUFF PLATE LH (for 5 Door)

HINT:: Use the same procedure described for the RH side.

Hide Display 74707 34.INSTALL NO. 1 HAND GRIP FRAME SUB-ASSEMBLY (w/ Hand Rail)

Attach the guide.

Install the No. 1 hand grip frame sub-assembly with the 6 bolts.

Torque:: 27 N*m (275 kgf*cm, 20 ft.*lbf)

Hide Display 74733 35.INSTALL NO. 1 HAND GRIP COVER (w/ Hand Rail)

Attach the clip to install the No. 1 hand grip cover.

Hide Display 73220 36.INSTALL FRONT SEAT OUTER BELT ASSEMBLY LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>INSTALLATION202208,999999,_58,_078375,_0381233,RM1000000024I1A_01_0038,

Hide Display 73210 37.INSTALL FRONT SEAT OUTER BELT ASSEMBLY RH

HINT:: Use the same procedure described for the LH side.

Hide Display 73233D 38.INSTALL OUTER LAP BELT ANCHOR COVER

Click hereVehicle Interior>SEAT BELT>FRONT SEAT OUTER BELT ASSEMBLY (for Semi-trim)>INSTALLATION201902,999999,_58,_078602,_0387551,RM100000001GXXU_01_0122,

Hide Display 73178C 39.INSTALL SEAT BELT ANCHOR COVER CAP

Click hereVehicle Interior>SEAT BELT>FRONT SEAT OUTER BELT ASSEMBLY (for Semi-trim)>INSTALLATION201902,999999,_58,_078602,_0387551,RM100000001GXXU_01_0123,

Hide Display 74680 40.INSTALL PILLAR ASSIST GRIP ASSEMBLY B (w/ Assist Grip)

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>INSTALLATION202208,999999,_58,_078375,_0381233,RM1000000024I1A_01_0033,

Hide Display 74617A 41.INSTALL ASSIST GRIP PLUG (w/ Assist Grip)

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>INSTALLATION202208,999999,_58,_078375,_0381233,RM1000000024I1A_01_0034,

Hide Display 42.INSTALL REAR SEAT ASSEMBLY LH

for Van:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Van)>INSTALLATION201902,999999,_58,_078601,_0381331,RM100000001FZKZ,

for Commuter, 3-Passenger Seat with 2-Point Type Seat Belt and Headrest:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Commuter, 3-Passenger Seat with 2-Point Type Seat Belt and Headrest)>INSTALLATION201906,999999,_58,_078601,_0396036,RM100000001IFKI,

for Commuter, 3-Passenger Seat with 2-Point Type Seat Belt without Headrest:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Commuter, 3-Passenger Seat with 2-Point Type Seat Belt without Headrest)>INSTALLATION201906,999999,_58,_078601,_0398432,RM100000001IVYA,

for Commuter, 4-Passenger Seat:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Commuter, 4-Passenger Seat)>INSTALLATION201902,999999,_58,_078601,_0381333,RM100000001FZL9,

for Commuter, 2-Passenger Seat with 2-Point Type Seat Belt and Headrest:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Commuter, 2-Passenger Seat with 2-Point Type Seat Belt and Headrest)>INSTALLATION201902,999999,_58,_078601,_0387367,RM100000001HB50,

for Commuter, 2-Passenger Seat with 2-Point Type Seat Belt without Headrest:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Commuter, 2-Passenger Seat with 2-Point Type Seat Belt without Headrest)>INSTALLATION201902,999999,_58,_078601,_0387368,RM100000001HB55,

Hide Display 43.INSTALL REAR SEAT ASSEMBLY RH

for Commuter, Single-Passenger Seat with 2-Point Type Seat Belt:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Commuter, Single-Passenger Seat with 2-Point Type Seat Belt)>INSTALLATION201902,999999,_58,_078601,_0387386,RM100000001HB4V,

for Commuter, 2-Passenger Seat with 2-Point Type Seat Belt without Headrest:

HINT:: Use the same procedure described for the LH side.; Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Commuter, 2-Passenger Seat with 2-Point Type Seat Belt without Headrest)>INSTALLATION201902,999999,_58,_078601,_0387368,RM100000001HB55,

Hide Display 44.INSTALL FRONT SEAT ASSEMBLY

for Separate Seat Type:

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Separate Seat Type)>INSTALLATION201906,999999,_58,_078601,_0381328,RM100000001J8ZE,

for Fixed Bench Seat Type:

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Fixed Bench Seat Type)>INSTALLATION201902,999999,_58,_078601,_0381330,RM100000001FZKU,

for Sliding Bench Seat Type:

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Sliding Bench Seat Type)>INSTALLATION201906,999999,_58,_078601,_0381329,RM100000001ITAY,

Hide Display 62212 45.INSTALL FRONT PILLAR GARNISH LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>INSTALLATION202208,999999,_58,_078375,_0381233,RM1000000024I1A_01_0044,

Hide Display 62211 46.INSTALL FRONT PILLAR GARNISH RH

HINT:: Use the same procedure described for the LH side.

Hide Display 74680 47.INSTALL PILLAR ASSIST GRIP ASSEMBLY LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>INSTALLATION202208,999999,_58,_078375,_0381233,RM1000000024I1A_01_0046,

Hide Display 74680 48.INSTALL PILLAR ASSIST GRIP ASSEMBLY RH

HINT:: Use the same procedure described for the LH side.

Hide Display 62312B 49.INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP LH

Click hereVehicle Exterior>DOOR / HATCH>FRONT DOOR OPENING TRIM WEATHERSTRIP>INSTALLATION201902,999999,_59,_078503,_0385652,RM100000001GNFM_02_0001,

Hide Display 62311B 50.INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP RH

HINT:: Use the same procedure described for the LH side.

Hide Display 62112 51.INSTALL COWL SIDE TRIM BOARD LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>INSTALLATION201906,999999,_58,_078375,_0380058,RM100000001IHP7_02_0045,

Hide Display 62111C 52.INSTALL COWL SIDE TRIM BOARD RH

HINT:: Use the same procedure described for the LH side.

Hide Display 67914B 53.INSTALL FRONT DOOR SCUFF PLATE LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>INSTALLATION202208,999999,_58,_078375,_0381233,RM1000000024I1A_01_0049,

Hide Display 67912A 54.INSTALL FRONT DOOR OUTSIDE SCUFF PLATE LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>INSTALLATION202208,999999,_58,_078375,_0381233,RM1000000024I1A_01_0050,

Hide Display 67913B 55.INSTALL FRONT DOOR SCUFF PLATE RH

HINT:: Use the same procedure described for the LH side.

Hide Display 67911B 56.INSTALL FRONT DOOR OUTSIDE SCUFF PLATE RH

HINT:: Use the same procedure described for the LH side.

Hide Display 61890A 57.INSTALL BACK WINDOW GLASS HAMMER ASSEMBLY (w/ Hammer)

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ESCAPE HAMMER>INSTALLATION201902,999999,_58,_078375,_0387611,RM100000001GYFD,

Hide Display 58.CONNECT CABLE TO NEGATIVE BATTERY TERMINAL (w/ Airbag System)

for 7GR-FKS:

Click hereGeneral>MAINTENANCE>7GR-FKS BATTERY>INSTALLATION201902,999999,_V1,_078672,_0387105,RM100000001GV7O,

for 1GD-FTV:

Click hereGeneral>MAINTENANCE>1GD-FTV BATTERY>INSTALLATION201902,999999,_V1,_078672,_0387106,RM100000001H6FS,

Hide Display 59. INITIALIZATION AFTER RECONNECTING BATTERY TERMINAL (w/ Airbag System)

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>WORK PROCEDURE201906,999999,_V1,_081196,_0393338,RM100000001JBY9,

HINT:: When disconnecting and reconnecting the battery, there is an automatic learning function that completes learning when the respective system is used.; Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>AUTOMATIC LEARNING CHART201906,999999,_V1,_081196,_0393338,RM100000001IWEY,

Hide Display 60. PERFORM DIAGNOSTIC SYSTEM CHECK (w/ Airbag System)

for Type A:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type A)>DTC CHECK / CLEAR201902,999999,_58,_079257,_0387732,RM100000001H9LE,

for Type B:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type B)>DTC CHECK / CLEAR201902,999999,_58,_079257,_0385034,RM100000001GJPZ,

Hide Display 61.CHECK SRS WARNING LIGHT (w/ Airbag System)

for Type A:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type A)>OPERATION CHECK201906,999999,_58,_079257,_0387732,RM100000001IMNC,

for Type B:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type B)>OPERATION CHECK201902,999999,_58,_079257,_0385034,RM100000001GJPW,

Hide Display 62.INSPECT SEAT BELT WARNING SYSTEM (w/ Seat Belt Warning System)

Click hereVehicle Interior>SEAT BELT>SEAT BELT WARNING SYSTEM>OPERATION CHECK201906,999999,_58,_078602,_0385912,RM100000001IZZ0,

Hide Display 67005 63.ADJUST BACK DOOR PANEL SUB-ASSEMBLY (for Double Swing Out Type)

Click hereVehicle Exterior>DOOR / HATCH>BACK DOOR (for Double Swing Out Type)>ADJUSTMENT202208,999999,_59,_078503,_0545662,RM1000000024I3U,

Hide Display 69455A 64.INSTALL BACK DOOR UPPER LOCK STRIKER COVER (for Double Swing Out Type)

Click hereVehicle Exterior>DOOR / HATCH>BACK DOOR (for Double Swing Out Type)>REASSEMBLY202208,999999,_59,_078503,_0545662,RM1000000024I3V_01_0007,
