RM35X0E _58 Vehicle Interior _078601 SEAT _0387368 REAR SEAT ASSEMBLY(for Commuter, 2-Passenger Seat with 2-Point Type Seat Belt without Headrest) A

SEAT  REAR SEAT ASSEMBLY(for Commuter, 2-Passenger Seat with 2-Point Type Seat Belt without Headrest)  INSTALLATION


CAUTION / NOTICE / HINT

CAUTION:
·

Wear protective gloves. Sharp areas on the parts may injure your hands.

·

There is risk of injury.



HINT:
·

Use the same procedure for RHD and LHD vehicles.

·

The procedure listed below is for LHD vehicles.

·

Use the same procedure for the RH and LH sides.

·

The following procedure is for the LH side.

·

The procedure listed below is a representative example.

·

Use the same procedure for all rows, unless otherwise specified.



PROCEDURE

Hide 1.INSTALL REAR SEAT ASSEMBLY LH

a.

Place the rear seat assembly LH in the vehicle.

NOTICE:
·

2 or more people are required when carrying the rear seat assembly LH into the vehicle.

·

Be careful not to damage the rear seat assembly LH, body exterior or interior parts.




b.

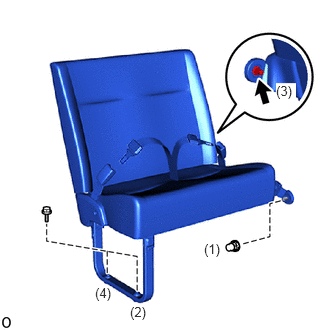

B541301C02
2.125,2.51 2.333,2.729 0.208,0.219 10 false (1) 1.354,3.167 1.563,3.385 0.208,0.219 10 false (2) 0.99,2.969 1.198,3.188 0.208,0.219 10 false (4) 2.875,0.865 3.083,1.083 0.208,0.219 10 true (3)
V100135

Nut


Temporarily install the rear seat assembly LH with the 2 bolts and 2 nuts.


c.

Tighten the 2 bolts and 2 nuts in the order shown in the illustration.

Torque:
39 N*m (398 kgf*cm, 29 ft.*lbf)
