RM35X0E _58 Vehicle Interior _078601 SEAT _0381329 FRONT SEAT ASSEMBLY(for Sliding Bench Seat Type) A

SEAT FRONT SEAT ASSEMBLY(for Sliding Bench Seat Type) INSTALLATION

CAUTION / NOTICE / HINT

CAUTION:: ·

Wear protective gloves. Sharp areas on the parts may injure your hands.

·

There is risk of injury.

HINT:: ·

Use the same procedure for RHD and LHD vehicles.

·

The procedure listed below is for LHD vehicles.

PROCEDURE

Hide Display 1.INSTALL FRONT SEAT ASSEMBLY RH

Place the front seat assembly RH in the vehicle.

NOTICE:: ·

2 or more people are required when reinstalling the front seat assembly RH into the vehicle.

·

Protect the front seat leg.

·

Be careful not to damage the front seat assembly RH, body exterior or body interior.

w/ Front Seat Side Airbag:

Connect the front seat airbag assembly connector under the front seat assembly RH.

NOTICE:: When connecting any airbag connector, take care not to damage the airbag wire harness.

HINT:: Refer to How to Connect or Disconnect Airbag Connector:; ·

for Type A:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type A)>HOW TO CONNECT OR DISCONNECT AIRBAG CONNECTOR201902,999999,_58,_079257,_0387732,RM100000001GZ7A,

·

for Type B:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type B)>HOW TO CONNECT OR DISCONNECT AIRBAG CONNECTOR201902,999999,_58,_079257,_0385034,RM100000001GNBX,

·

for Type C:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type C)>HOW TO CONNECT OR DISCONNECT AIRBAG CONNECTOR201906,999999,_58,_079257,_0396679,RM100000001IJ8B,

for Van, w/ Seat Belt Warning System:

Connect the connector under the front seat assembly RH.

for Wagon:

Connect the 2 connectors under the front seat assembly RH.

Temporarily install the front seat assembly RH with the 5 bolts.

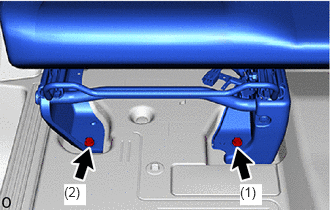

2.5,1.917 2.729,2.135 0.229,0.219 10 true (1) 0.667,1.917 0.896,2.135 0.229,0.219 10 true (2)

Tighten the 2 bolts in the order shown in the illustration.

Torque:: 39 N*m (398 kgf*cm, 29 ft.*lbf)

Operate the seat track adjusting handle RH and move the front seat assembly RH forward.

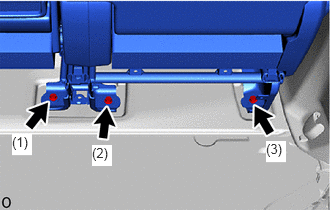

0.125,1.396 0.333,1.615 0.208,0.219 10 true (1) 0.958,1.51 1.167,1.729 0.208,0.219 10 true (2) 2.771,1.469 2.979,1.688 0.208,0.219 10 true (3)

Tighten the 3 bolts in the order shown in the illustration.

Torque:: 39 N*m (398 kgf*cm, 29 ft.*lbf)

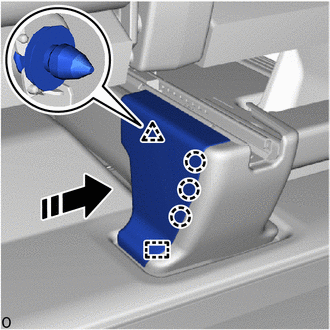

Hide Display 71139T 2.INSTALL FRONT SEAT REAR LEG COVER RH

0,0 0,0 false

Install in this Direction

Attach the guide and clip and install the front seat rear leg cover RH as shown in the illustration.

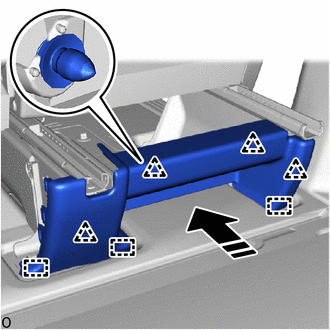

Hide Display 71149Z 3.INSTALL BENCH TYPE FRONT SEAT LEG COVER

0,0 0,0 false

Install in this Direction

Attach the clip, claw and guide and install the bench type front seat leg cover as shown in the illustration.

Operate the seat track adjusting handle RH and move the front seat assembly RH to the rearmost position.

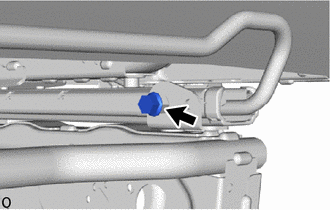

Install the bolt.

Torque:: 39 N*m (398 kgf*cm, 29 ft.*lbf)

Hide Display 71910E 4.INSTALL FRONT SEAT HEADREST ASSEMBLY RH

Install the 2 front seat headrest assemblies RH.

Hide Display 5.CONNECT CABLE TO NEGATIVE BATTERY TERMINAL (w/ Front Seat Side Airbag)

for 7GR-FKS:

Click hereGeneral>MAINTENANCE>7GR-FKS BATTERY>INSTALLATION201902,999999,_V1,_078672,_0387105,RM100000001GV7O,

for 1GD-FTV:

Click hereGeneral>MAINTENANCE>1GD-FTV BATTERY>INSTALLATION201902,999999,_V1,_078672,_0387106,RM100000001H6FS,

Hide Display 6. INITIALIZATION AFTER RECONNECTING BATTERY TERMINAL (w/ Front Seat Side Airbag)

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>WORK PROCEDURE201906,999999,_V1,_081196,_0393338,RM100000001JBY9,

HINT:: When disconnecting and reconnecting the battery, there is an automatic learning function that completes learning when the respective system is used.; Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>AUTOMATIC LEARNING CHART201906,999999,_V1,_081196,_0393338,RM100000001IWEY,

Hide Display 7. PERFORM DIAGNOSTIC SYSTEM CHECK (w/ Front Seat Side Airbag)

for Type A:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type A)>DTC CHECK / CLEAR201902,999999,_58,_079257,_0387732,RM100000001H9LE,

for Type B:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type B)>DTC CHECK / CLEAR201902,999999,_58,_079257,_0385034,RM100000001GJPZ,

for Type C:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type C)>DTC CHECK / CLEAR201906,999999,_58,_079257,_0396679,RM100000001IJ88,

Hide Display 8.CHECK SRS WARNING LIGHT (w/ Front Seat Side Airbag)

for Type A:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type A)>OPERATION CHECK201906,999999,_58,_079257,_0387732,RM100000001IMNC,

for Type B:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type B)>OPERATION CHECK201902,999999,_58,_079257,_0385034,RM100000001GJPW,

for Type C:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type C)>OPERATION CHECK201906,999999,_58,_079257,_0396679,RM100000001IJ85,

Hide Display 9.PERFORM SYSTEM INITIALIZATION AND CALIBRATION (w/ Front Seat Side Airbag)

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>FRONT SEAT SIDE AIRBAG ASSEMBLY (for Bench Seat Type)>REMOVAL201906,999999,_58,_079257,_0384941,RM100000001IW5J,

Hide Display 10.INSPECT SEAT BELT WARNING SYSTEM (w/ Seat Belt Warning System)

Click hereVehicle Interior>SEAT BELT>SEAT BELT WARNING SYSTEM>OPERATION CHECK201906,999999,_58,_078602,_0385912,RM100000001IZZ0,
