RM35X0E _58 Vehicle Interior _078601 SEAT _0381331 REAR SEAT ASSEMBLY(for Van) A

SEAT  REAR SEAT ASSEMBLY(for Van)  INSTALLATION


CAUTION / NOTICE / HINT

CAUTION:
·

Wear protective gloves. Sharp areas on the parts may injure your hands.

·

There is risk of injury.



PROCEDURE

Hide 1.INSTALL REAR SEAT ASSEMBLY

a.

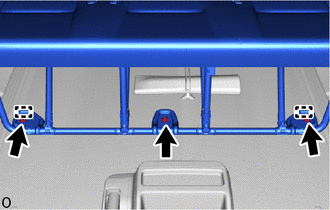

B541293

Attach the guide and install the rear seat assembly.

NOTICE:
·

2 or more people are required when carrying the rear seat assembly into the vehicle.

·

Be careful not to damage the rear seat assembly, body exterior or interior parts.




b.

Install the 3 bolts.

Torque:
39 N*m (398 kgf*cm, 29 ft.*lbf)


c.

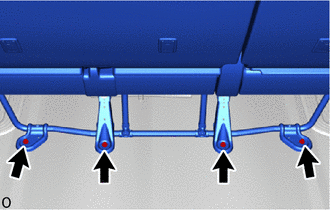

B541292

Install the 4 bolts.

Torque:
39 N*m (398 kgf*cm, 29 ft.*lbf)


d.

w/ Seat Belt Warning System:

i.

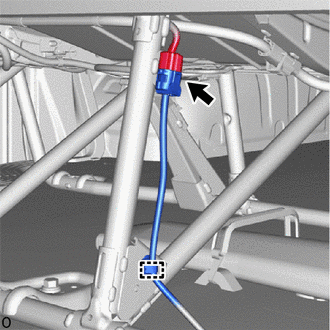

B541291

Connect the connector and attach the clamp.



e.

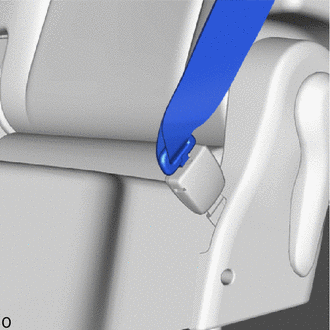

B541290

Connect the rear seat outer belt assembly LH.

HINT:

Use the same procedure for the RH side.



Hide 71910H 2.INSTALL REAR SEAT HEADREST ASSEMBLY

a.

Install the 3 rear seat headrest assemblies.
