RM35X0E _58 Vehicle Interior _078601 SEAT _0381333 REAR SEAT ASSEMBLY(for Commuter, 4-Passenger Seat) A

SEAT  REAR SEAT ASSEMBLY(for Commuter, 4-Passenger Seat)  INSTALLATION


CAUTION / NOTICE / HINT

CAUTION:
·

Wear protective gloves. Sharp areas on the parts may injure your hands.

·

There is risk of injury.



HINT:
·

Use the same procedure for RHD and LHD vehicles.

·

The procedure listed below is for LHD vehicles.



PROCEDURE

Hide 1.INSTALL REAR SEAT ASSEMBLY LH

NOTICE:
·

2 or more people are required when carrying the rear seat assembly LH into the vehicle.

·

Be careful not to damage the rear seat assembly LH, body exterior or body interior.



a.
B538098C02
3.125,2.458 3.354,2.667 0.229,0.208 10 false (1) 1,3.167 1.229,3.375 0.229,0.208 10 false (2) 1.906,2.938 2.135,3.146 0.229,0.208 10 false (3) 2.833,0.927 3.063,1.135 0.229,0.208 10 false (4) 1.25,2.667 1.479,2.875 0.229,0.208 10 false (5) 0.354,2.823 0.583,3.031 0.229,0.208 10 false (6)
V100135

Bolt
V100136

Nut

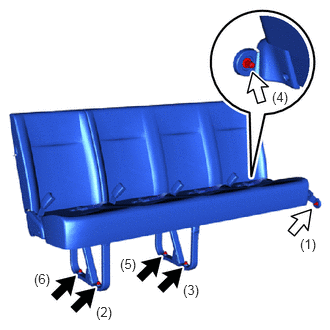

Temporarily install the rear seat assembly LH with the 4 bolts and 2 nuts.


b.

Tighten the 4 bolts and 2 nuts in the order shown in the illustration.

Torque:
39 N*m (398 kgf*cm, 29 ft.*lbf)
