RM35X0E _58 Vehicle Interior _078381 LIGHTING (INT) _0381237 ROOM LIGHT A

LIGHTING (INT)  ROOM LIGHT  INSTALLATION


PROCEDURE

Hide 81240D 1.INSTALL NO. 2 ROOM LIGHT ASSEMBLY (for LED Type)

a.

for Type A:

i.

Connect the connector.


ii.

Attach the claw to install the room light housing to the No. 2 room light assembly.


iii.

Attach the claw and guide to install the inner cover.


iv.

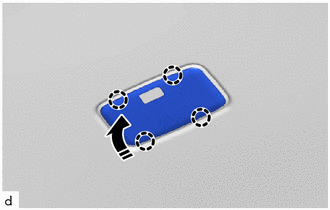

B478862C01
0,0 0,0 false
V113147

Install in this Direction


Attach the claw to install the room light lens as shown in the illustration.



b.

for Type B:

i.

Connect the connector.


ii.

Attach the claw to install the room light housing to the No. 2 room light assembly.


iii.

Attach the claw and guide to install the inner cover.


iv.

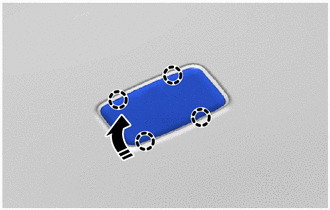

E409954C01
0,0 0,0 false
V113147

Install in this Direction


Attach the claw to install the room light lens as shown in the illustration.



Hide 81240 2.INSTALL NO. 1 ROOM LIGHT ASSEMBLY (for LED Type)

HINT:

Use the same procedure for all No. 1 room light assemblies.


a.

for Type A:

i.

Connect the connector.


ii.

Attach the claw to install the room light housing to the No. 1 room light assembly.


iii.

Attach the claw and guide to install the inner cover.


iv.
B478862C01
0,0 0,0 false
V113147

Install in this Direction


Attach the claw to install the room light lens as shown in the illustration.



b.

for Type B:

i.

Connect the connector.


ii.

Attach the claw to install the room light housing to the No. 1 room light assembly.


iii.

Attach the claw and guide to install the inner cover.


iv.
E409954C01
0,0 0,0 false
V113147

Install in this Direction


Attach the claw to install the room light lens as shown in the illustration.



Hide 81240B 3.INSTALL NO. 1 ROOM LIGHT BULB (for Bulb Type)

HINT:

Use the same procedure for all No. 1 room light assemblies.


a.

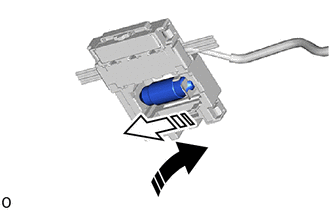

E357268C01
0,0 0,0 false
V113147

Install in this Direction (1)
V113148

Install in this Direction (2)


Install the No. 1 room light bulb as shown in the illustration.


Hide 81240 4.INSTALL NO. 1 ROOM LIGHT ASSEMBLY (for Bulb Type)

HINT:

Use the same procedure for all No. 1 room light assemblies.


a.

Attach the guide and claw to install the No. 1 room light housing to the No. 1 room light switch base.


b.

Attach the guide and claw to install the No. 1 room light housing to the roof headlining assembly.


c.

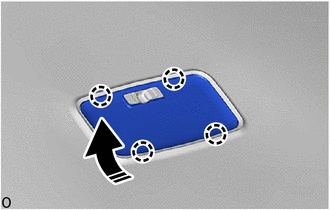

E357262C01
0,0 0,0 false
V113147

Install in this Direction


Attach the claw to install the No. 1 room light lens as shown in the illustration.
