RM35X0E _58 Vehicle Interior _078601 SEAT _0396036 REAR SEAT ASSEMBLY(for Commuter, 3-Passenger Seat with 2-Point Type Seat Belt and Headrest) A

SEAT REAR SEAT ASSEMBLY(for Commuter, 3-Passenger Seat with 2-Point Type Seat Belt and Headrest) INSTALLATION

CAUTION / NOTICE / HINT

CAUTION:: ·

Wear protective gloves. Sharp areas on the parts may injure your hands.

·

There is risk of injury.

HINT:: ·

Use the same procedure for RHD and LHD vehicles.

·

The procedure listed below is for LHD vehicles.

·

The procedure listed below is a representative example.

·

Use the same procedure for all rows, unless otherwise specified.

PROCEDURE

Hide Display 1.INSTALL REAR SEAT ASSEMBLY LH

NOTICE:: ·

2 or more people are required when carrying the rear seat assembly LH into the vehicle.

·

Be careful not to damage the rear seat assembly LH, body exterior or body interior.

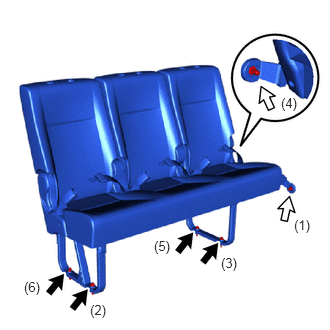

3.063,2.26 3.281,2.49 0.219,0.229 10 false (1) 1.604,2.479 1.823,2.708 0.219,0.229 10 false (5) 2.302,2.656 2.521,2.885 0.219,0.229 10 false (3) 0.25,2.906 0.469,3.135 0.219,0.229 10 false (6) 0.938,3.146 1.156,3.375 0.219,0.229 10 false (2) 2.927,0.99 3.146,1.219 0.219,0.229 10 false (4)

	Bolt
	Nut

Temporarily install the rear seat assembly LH with the 4 bolts and 2 nuts.

Tighten the 4 bolts and 2 nuts in the order shown in the illustration.

Torque:: 39 N*m (398 kgf*cm, 29 ft.*lbf)

Hide Display 71940M 2.INSTALL REAR SEAT HEADREST ASSEMBLY

Install the 3 rear seat headrest assemblies.
