RM35X0E _58 Vehicle Interior _078601 SEAT _0387386 REAR SEAT ASSEMBLY(for Commuter, Single-Passenger Seat with 2-Point Type Seat Belt) A

SEAT REAR SEAT ASSEMBLY(for Commuter, Single-Passenger Seat with 2-Point Type Seat Belt) INSTALLATION

CAUTION / NOTICE / HINT

CAUTION:: ·

Wear protective gloves. Sharp areas on the parts may injure your hands.

·

There is risk of injury.

HINT:: ·

Use the same procedure for RHD and LHD vehicles.

·

The procedure listed below is for LHD vehicles.

·

The procedure listed below is a representative example.

·

Use the same procedure for all rows, unless otherwise specified.

PROCEDURE

Hide Display 1.INSTALL REAR SEAT ASSEMBLY RH

Place the rear seat assembly RH in the vehicle.

NOTICE:: ·

2 or more people are required when carrying the rear seat assembly RH into the vehicle.

·

Do not damage the rear seat assembly RH, body exterior or interior parts.

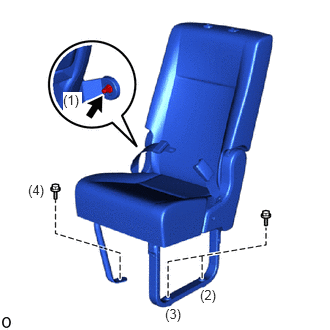

for Type A:

1.083,2.594 1.313,2.833 0.229,0.24 10 false (1) 1.729,3.229 1.948,3.427 0.219,0.198 10 false (2) 2.063,3.031 2.292,3.271 0.229,0.24 10 false (4) 0.677,0.927 0.885,1.135 0.208,0.208 10 true (3)

Temporarily install the rear seat assembly RH with the 2 nuts and 2 bolts.

ii.

Tighten the 2 nuts and 2 bolts in the order shown in the illustration.

Torque:: 39 N*m (398 kgf*cm, 29 ft.*lbf)

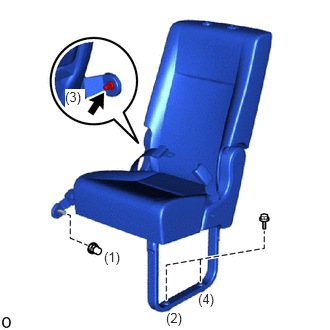

for Type B:

0.656,0.958 0.854,1.177 0.198,0.219 10 true (1) 2.083,2.99 2.302,3.198 0.219,0.208 10 false (2) 1.719,3.188 1.938,3.396 0.219,0.208 10 false (3) 0.292,1.896 0.51,2.104 0.219,0.208 10 false (4)

Temporarily install the rear seat assembly RH with the nut and 3 bolts.

ii.

Tighten the nut and 3 bolts in the order shown in the illustration.

Torque:: 39 N*m (398 kgf*cm, 29 ft.*lbf)

Hide Display 71940M 2.INSTALL REAR SEAT HEADREST ASSEMBLY

Install the rear seat headrest assembly.
