SEAT  FRONT SEAT ASSEMBLY(for Fixed Bench Seat Type)  INSTALLATION


CAUTION / NOTICE / HINT

CAUTION:
·

Wear protective gloves. Sharp areas on the parts may injure your hands.

·

There is risk of injury.



HINT:
·

Use the same procedure for RHD and LHD vehicles.

·

The procedure listed below is for LHD vehicles.



PROCEDURE

Hide 1.INSTALL FRONT SEAT ASSEMBLY RH

a.

Place the front seat assembly RH in the vehicle.

NOTICE:
·

2 or more people are required when reinstalling the front seat assembly RH in to the vehicle.

·

Protect the front seat leg.

·

Be careful not to damage the front seat assembly RH, body exterior or body interior.

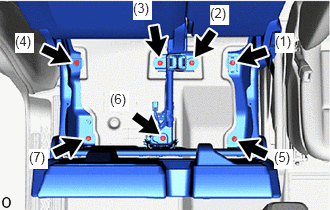

b.
B536586N01
1.385,0 1.583,0.208 0.198,0.208 10 true (3) 2.188,0.052 2.385,0.26 0.198,0.208 10 true (2) 2.865,0.344 3.063,0.552 0.198,0.208 10 true (1) 0.156,0.344 0.354,0.552 0.198,0.208 10 true (4) 2.854,1.552 3.052,1.76 0.198,0.208 10 true (5) 1.146,0.948 1.344,1.156 0.198,0.208 10 true (6) 0.302,1.552 0.5,1.76 0.198,0.208 10 true (7)

Temporarily install the front seat assembly RH with the 7 bolts.


c.

Tighten the 7 bolts in the order shown in the illustration.

Torque:
39 N*m (398 kgf*cm, 29 ft.*lbf)


d.

w/ Seat Belt Warning System:

i.
B536579

Connect the connector.



Hide 71139T 2.INSTALL FRONT SEAT REAR LEG COVER RH

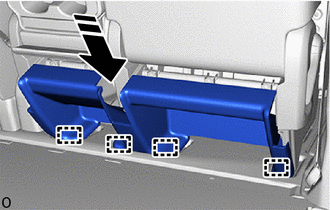

a.
B536585C01
0,0 0,0 false
V113147

Install in this Direction


Attach the guide as shown in the illustration.

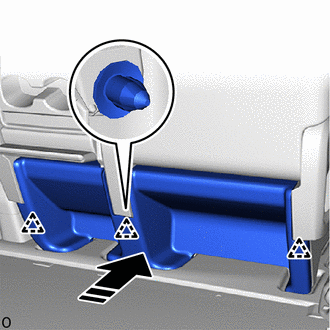

b.
B536583C01
0,0 0,0 false
V113147

Install in this Direction


Attach the clip as shown in the illustration.

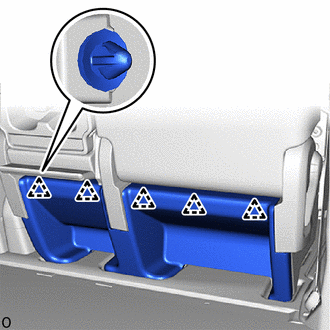

c.
B536581

Attach the clip and install the front seat rear leg cover RH.

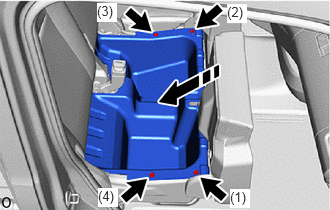

Hide 71753D 3.INSTALL FRONT SEAT UNDER TRAY

a.
B536578C01
2.396,1.969 2.604,2.167 0.208,0.198 10 true (1) 1.021,1.958 1.229,2.156 0.208,0.198 10 true (4) 1.01,0.031 1.219,0.229 0.208,0.198 10 true (3) 2.365,0.042 2.573,0.24 0.208,0.198 10 true (2)
V113147

Install in this Direction


Set the front seat under tray as shown in the illustration.


b.

Install the front seat under tray with the 4 clips in the order shown in the illustration.


Hide 71910E 4.INSTALL FRONT SEAT HEADREST ASSEMBLY RH

a.

Install the front seat headrest assembly RH.
