The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed, installed, or replaced during the air conditioner unit assembly removal/installation are shown below.
| Replacement part or procedure | Necessary procedures | Effect/Inoperative Function When Necessary Procedures are not Performed | Link |
|---|---|---|---|
| Disconnect cable from negative (-) battery terminal | Memorize steering angle neutral point | Parking assist monitor system | ( 201902,202310,_56,_079315,_0385736,RM100000001GNRA,)
|
| Panoramic view monitor system | ( 201902,202310,_56,_079315,_0385736,RM100000001GNRA,)
|
||
for Automatic Air Conditioning System:
·
No. 1 air conditioning radiator damper servo sub-assembly |
Servo motor initialization | DTCs are output | ( 201902,999999,_58,_079316,_0386651,RM100000001GSS4,)
|
When the cable is disconnected / reconnected to the battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.
Learning completes when vehicle is driven
| Effect/Inoperative Function When Necessary Procedures are not Performed | Necessary Procedures | Link |
|---|---|---|
| Lane control system | Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more. | ( 201902,999999,_58,_078886,_0382740,RM100000001G6XB,)
|
| Pre-collision system |
Learning completes when vehicle is operated normally
| Effect/Inoperative Function When Necessary Procedures are not Performed | Necessary Procedures | Link |
|---|---|---|
| Power slide door system | Fully close the slide door by hand.
|
( 201902,202310,_59,_078503,_0381017,RM100000001FWXM,)
|
| Air conditioning system | After the ignition switch is turned to ON, the servo motor standard position is recognized. | - |
1. PRECAUTION
Be sure to read Precaution thoroughly before servicing.
After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal.
2.DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.
If the airbag deploys for any reason, it may cause a serious accident.
3. RECOVER REFRIGERANT FROM REFRIGERATION SYSTEM (w/ Cooler System)
4.DRAIN ENGINE COOLANT (w/ Heater System)
5.REMOVE WINDSHIELD WIPER MOTOR AND LINK ASSEMBLY
47220D
6.DISCONNECT BRAKE MASTER CYLINDER RESERVOIR ASSEMBLY
55738D
7.REMOVE NO. 2 HEATER AIR DUCT SPLASH SHIELD SEAL
55701J
8.REMOVE OUTER COWL TOP PANEL SUB-ASSEMBLY
88717A

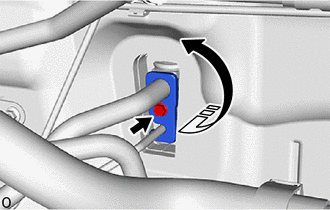

9.DISCONNECT COOLER REFRIGERANT SUCTION PIPE A (w/ Cooler System, w/o Sub-cool Accelerator)
|
Remove in this Direction |

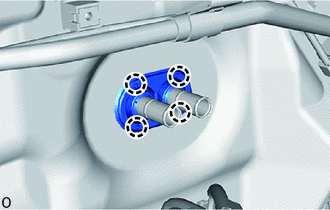

Remove the bolt and rotate the 1-point tightening plate as shown in the illustration.
Disconnect the cooler refrigerant suction pipe A.
Remove the O-ring from the cooler refrigerant suction pipe A.
Seal the openings of the disconnected parts using vinyl tape to prevent the entry of moisture and foreign matter.
88716A
10.DISCONNECT COOLER REFRIGERANT LIQUID PIPE A (w/ Cooler System, w/o Sub-cool Accelerator)
Disconnect the cooler refrigerant liquid pipe A.
Remove the O-ring from the cooler refrigerant liquid pipe A.
Seal the openings of the disconnected parts using vinyl tape to prevent the entry of moisture and foreign matter.
88710C

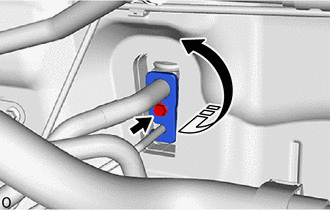

11.DISCONNECT AIR CONDITIONING TUBE ASSEMBLY (w/ Cooler System, Sub-cool Accelerator)
|
Remove in this Direction |
Remove the bolt and rotate the 1-point tightening as shown in the illustration.
Disconnect the air conditioning tube assembly.
Remove the O-ring from the air conditioning tube assembly.
Seal the openings of the disconnected parts using vinyl tape to prevent the entry of moisture and foreign matter.
87246A

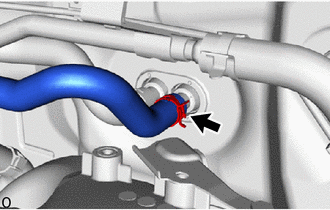

12.DISCONNECT HEATER WATER HOSE OUTLET A (w/ Heater System, for 1GD-FTV)

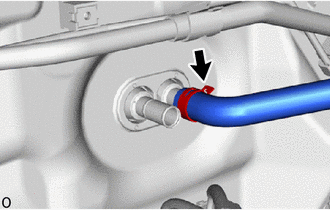

Using pliers, grip the claws of the clip and slide the clip to disconnect the heater water hose outlet A.
Do not apply excessive force to the water hose and heater water hose outlet A.
Prepare a drain pan or cloth in case the coolant leaks.
87245A

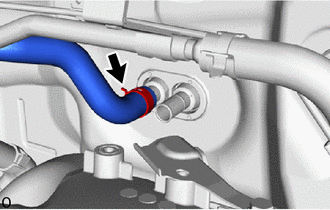

13.DISCONNECT HEATER WATER HOSE INLET A (w/ Heater System, for 1GD-FTV)

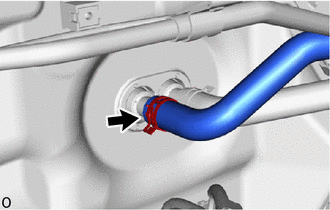

Using pliers, grip the claws of the clip and slide the clip to disconnect the heater water hose inlet A.
Do not apply excessive force to the water hose and heater water hose inlet A.
Prepare a drain pan or cloth in case the coolant leaks.
87245A
14.DISCONNECT HEATER WATER HOSE INLET A (w/ Heater System, for 7GR-FKS)
Using pliers, grip the claws of the clip and slide the clip to disconnect the heater water hose inlet A.
Do not apply excessive force to the water hose and heater water hose inlet A.
Prepare a drain pan or cloth in case the coolant leaks.
87246A
15.DISCONNECT HEATER WATER HOSE OUTLET A (w/ Heater System, for 7GR-FKS)
Using pliers, grip the claws of the clip and slide the clip to disconnect the heater water hose outlet A.
Do not apply excessive force to the water hose and heater water hose outlet A.
Prepare a drain pan or cloth in case the coolant leaks.
88897M
16.REMOVE HEATER PIPE GROMMET (w/ Heater System)
Detach the claw and remove the heater pipe grommet.
17.REMOVE FRONT SEAT ASSEMBLY
for Power Seat Type:
for Separate Seat Type:
for Fixed Bench Seat Type:
for Sliding Bench Seat Type:
55301
18.REMOVE INSTRUMENT PANEL SUB-ASSEMBLY
89661
19.REMOVE ECM
20.REMOVE INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY WITH MAIN BODY ECU
87211
21.REMOVE NO. 1 AIR DUCT
Remove the 2 bolts.
Detach the claw and remove the No. 1 air duct.
When removing, do not crack or deform the lower heater case of the air conditioning radiator assembly.
If the No. 1 air duct is reused, it may fall off or abnormal noise may occur. Therefore, make sure to replace with a new one.
87212G

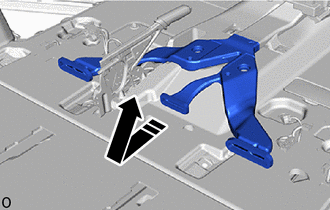

22.REMOVE REAR NO. 3 AIR DUCT (w/ Rear Foot Duct)
|
Remove in this Direction |
Remove the rear No. 3 air duct as shown in the illustration.
87212F

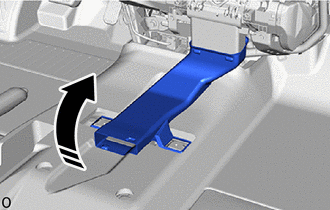

23.REMOVE REAR NO. 2 AIR DUCT (w/ Rear Foot Duct)
|
Remove in this Direction |
Remove the rear No. 2 air duct as shown in the illustration.
45250
24.REMOVE STEERING COLUMN ASSEMBLY
33530K
25.REMOVE SHIFT LEVER ASSEMBLY (for Manual Transmission)
26.REMOVE TRANSMISSION INSTRUMENT PANEL SHIFT ASSEMBLY (for Automatic Transmission)
27.REMOVE OUTER LAP BELT ANCHOR COVER
Use the same procedure for the other side.
73220
28.REMOVE FRONT SEAT OUTER BELT ASSEMBLY LH (FLOOR ANCHOR)
73210
29.REMOVE FRONT SEAT OUTER BELT ASSEMBLY RH (FLOOR ANCHOR)
Use the same procedure described for the LH side.
74733
30.REMOVE NO. 1 HAND GRIP COVER (for Semi-trim, w/ Hand Rail)
74707
31.REMOVE NO. 1 HAND GRIP FRAME SUB-ASSEMBLY (for Semi-trim, w/ Hand Rail)
67917C
32.REMOVE REAR DOOR SCUFF PLATE RH
74617A
33.REMOVE ASSIST GRIP PLUG (w/ Assist Grip)
74680
34.REMOVE PILLAR ASSIST GRIP ASSEMBLY B (w/ Assist Grip)
62413A
35.REMOVE LOWER CENTER PILLAR GARNISH RH
67918D
36.REMOVE REAR DOOR SCUFF PLATE LH (for 5 Door)
Use the same procedure described for the RH side.
62414A
37.REMOVE LOWER CENTER PILLAR GARNISH LH (for 5 Door)
Use the same procedure described for the RH side.
67935
38.REMOVE BACK DOOR SCUFF PLATE (for 4 Door)
73570B
39.REMOVE REAR SEAT OUTER BELT ASSEMBLY (FLOOR ANCHOR) (for 4 Door, w/ Seat Belt)
58777A
40.REMOVE TOOL BAG HOLDER (for 4 Door)
62640M
41.REMOVE REAR QUARTER TRIM BOARD ASSEMBLY LH (for 4 Door)
62620K
42.REMOVE SIDE TRIM BOARD ASSEMBLY LH (for High Roof)
62520B
43.REMOVE QUARTER TRIM PANEL ASSEMBLY LH (for 4 Door)
58510D

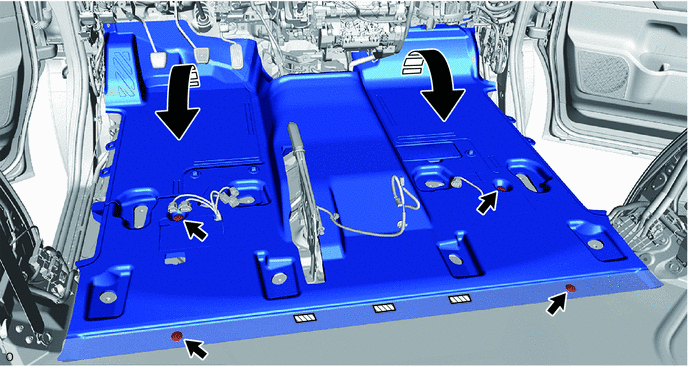

44.REMOVE FRONT FLOOR CARPET ASSEMBLY

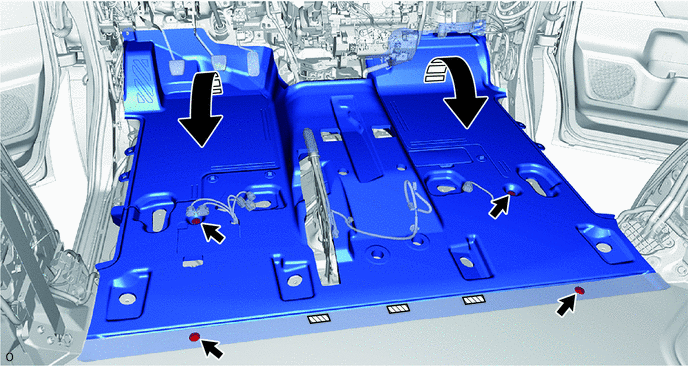

w/ Console Box:
Using a clip remover, remove the 4 clips.
|
Remove in this Direction |
|
Fastener |
Detach each fastener.
Fold back the front floor carpet assembly as shown in the illustration.
w/o Console Box:
Using a clip remover, remove the 4 clips.
|
Remove in this Direction |
|
Fastener |
Detach each fastener.
Fold back the front floor carpet assembly as shown in the illustration.
58193G
45.REMOVE NO. 3 FRONT FLOOR FOOTREST
Using a clip remover, detach the clip and remove the No. 3 front floor footrest.
82141

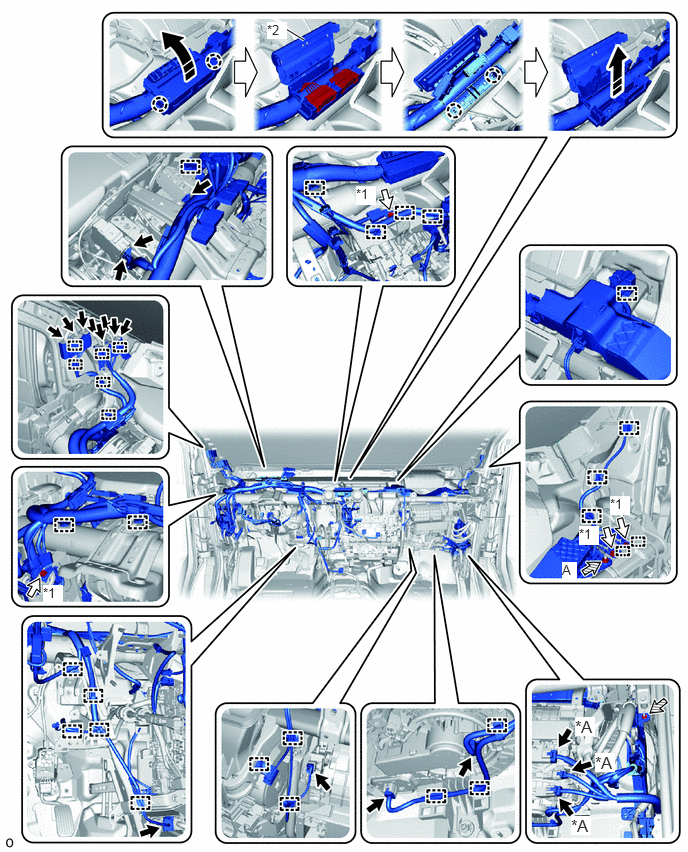

46.DISCONNECT INSTRUMENT PANEL WIRE
Remove each bolt and each ground wire.
| *A | w/ PTC Heater | - | - |
| *1 | Ground Wire | *2 | Protector Cover |
|
Connector |
|
Bolt |
|
Nut |
|
Remove in this Direction |
Disconnect each connector and detach each clamp.
Remove each nut and then disconnect the instrument panel wire.
55950G
47.REMOVE DEFROSTER NOZZLE ASSEMBLY
Detach the claw and remove the defroster nozzle assembly.
87201A
48.REMOVE AIR DUCT SUB-ASSEMBLY
Remove the 2 nuts and air duct sub-assembly.
55306A

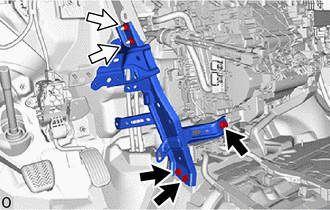

49.REMOVE NO. 1 INSTRUMENT PANEL BRACE SUB-ASSEMBLY
|
Bolt |
|
Nut |
Remove the 2 nuts.
Remove the 3 bolts and No. 1 instrument panel brace sub-assembly.
55307C

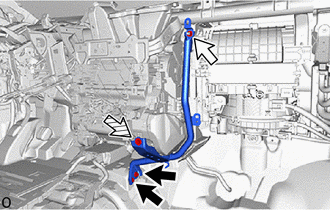

50.REMOVE NO. 2 INSTRUMENT PANEL BRACE SUB-ASSEMBLY
|
Bolt |
|
Nut |
|
Screw |
Remove the nut and screw.
Remove the 2 bolts and No. 2 instrument panel brace sub-assembly.
88650N
51.REMOVE AIR CONDITIONING AMPLIFIER ASSEMBLY
52.REMOVE INSTRUMENT PANEL REINFORCEMENT ASSEMBLY WITH AIR CONDITIONER UNIT ASSEMBLY
Be sure to support the air conditioning unit assembly when removing it because failure to do so may cause the bracket of the air conditioning unit assembly to break.
When disassembling the air conditioning unit assembly, eliminate static electricity by touching the vehicle body to prevent the components from being damaged.
Be careful not to damage the internal components of the instrument panel reinforcement assembly with air conditioning unit assembly on the glass etc. Only perform removal after first taking the appropriate actions.
Do not allow the instrument panel reinforcement assembly with air conditioning unit assembly to strike the airbag ECU assembly. Doing so may damage the heater case, causing water leaks.

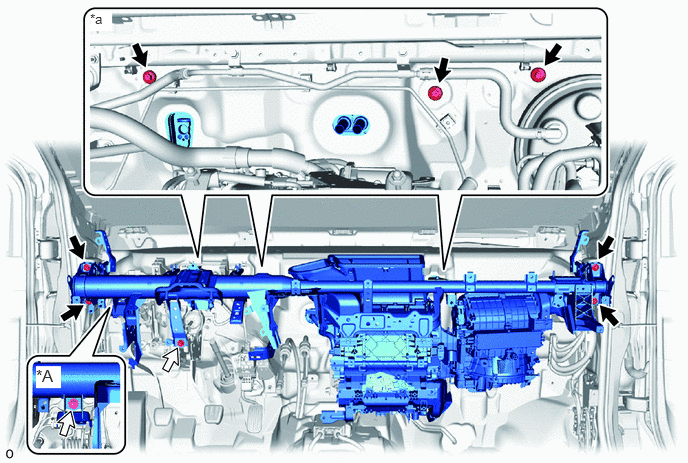

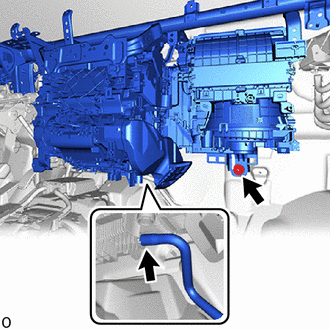

Disconnect the drain cooler hose.
Remove the nut.
for Automatic Transmission:
Remove the 8 bolts.
| *A | for Manual Transmission | - | - |
| *a | Engine Room Side | - | - |
|
Bolt A |
|
Bolt B |
for Manual Transmission:
Remove the 9 bolts.
Remove the instrument panel reinforcement assembly with air conditioner unit assembly.
Do not hold the air conditioning harness assembly. Otherwise, static electricity from the technician may damage the air conditioning harness assembly.
Do not hold the heater core or pipe of the heater radiator unit sub-assembly. Otherwise, the pipe may detach, the clamp may be damaged, or the crimped areas of the heater core and pipe of the heater radiator unit sub-assembly may be damaged, causing coolant to leak.
Do not hold the air conditioning radiator damper servo sub-assembly, blower damper servo sub-assembly or link. Otherwise, the servo motor may become misaligned, causing abnormal operation noise, temperature control defects, or air leaks due to sealing defects in the doors.
Do not hold the door. Doing so may cause air leaks due to closing defects resulting from excessive opening/closing. Also, keep the door free from oil and grease.
53.REMOVE AIR CONDITIONER UNIT ASSEMBLY
Be sure to support the air conditioning unit assembly when removing it because failure to do so may cause the bracket of the air conditioning unit assembly to break.
When disassembling the air conditioning unit assembly, eliminate static electricity by touching the vehicle body to prevent the components from being damaged.
Be careful not to damage the internal components of the instrument panel reinforcement assembly and air conditioning unit assembly on the glass etc. Only perform removal after first taking the appropriate actions.
Store the air conditioning unit assembly in a location free from sand and other foreign matter.
Remove the 4 bolts and air conditioner unit assembly from the instrument panel reinforcement assembly.
Do not hold the air conditioning harness assembly. Otherwise, static electricity from the technician may damage the air conditioning harness assembly.
Do not hold the heater core or pipe of the heater radiator unit sub-assembly. Otherwise, the pipe may detach, the clamp may be damaged, or the crimped areas of the heater core and pipe of the heater radiator unit sub-assembly may be damaged, causing coolant to leak.
Do not hold the air conditioning radiator damper servo sub-assembly, blower damper servo sub-assembly or link. Otherwise, the servo motor may become misaligned, causing abnormal operation noise, temperature control defects, or air leaks due to sealing defects in the doors.
Do not hold the door. Doing so may cause air leaks due to closing defects resulting from excessive opening/closing. Also, keep the door free from oil and grease.
51406A
54.REMOVE NO. 2 ENGINE UNDER COVER SUB-ASSEMBLY (w/ No. 2 Engine Under Cover Sub-assembly)
Perform this procedure only when replacement of the No. 1 cooler unit drain hose and No. 2 cooler unit drain hose is necessary.
52618
55.REMOVE LOWER FRONT BUMPER ABSORBER
Perform this procedure only when replacement of the No. 1 cooler unit drain hose and No. 2 cooler unit drain hose is necessary.
51405A
56.REMOVE NO. 1 ENGINE UNDER COVER SUB-ASSEMBLY
Perform this procedure only when replacement of the No. 1 cooler unit drain hose and No. 2 cooler unit drain hose is necessary.
88539

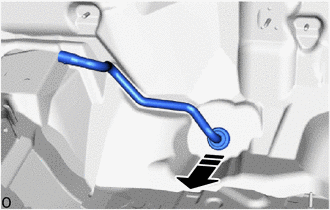

57.REMOVE NO. 1 COOLER UNIT DRAIN HOSE
Perform this procedure only when replacement of the No. 1 cooler unit drain hose is necessary.
Disconnect the No. 1 cooler unit drain hose from cooler unit drain pipe.
|
Remove in this Direction |
Remove the No. 1 cooler unit drain hose.
Install the No. 1 cooler unit drain hose with its paint mark facing upward.
88539C
58.REMOVE NO. 2 COOLER UNIT DRAIN HOSE
Perform this procedure only when replacement of the No. 2 cooler unit drain hose is necessary.
Remove the bolt and detach the clamp.
Remove the cooler unit drain pipe with No. 2 cooler unit drain hose.
Using pliers, grip the claws of the clip and slide the clip to disconnect the No. 2 cooler unit drain hose from cooler unit drain pipe.
88539D
59.REMOVE COOLER UNIT DRAIN PIPE
Perform this procedure only when replacement of the cooler unit drain pipe is necessary.
Remove the 2 screws and piping clamp.
