RM35X0E _58 Vehicle Interior _078601 SEAT _0381330 FRONT SEAT ASSEMBLY(for Fixed Bench Seat Type) A

SEAT  FRONT SEAT ASSEMBLY(for Fixed Bench Seat Type)  REMOVAL


CAUTION / NOTICE / HINT

CAUTION:
·

Wear protective gloves. Sharp areas on the parts may injure your hands.

·

There is risk of injury.



HINT:
·

Use the same procedure for RHD and LHD vehicles.

·

The procedure listed below is for LHD vehicles.



PROCEDURE

Hide 71910E 1.REMOVE FRONT SEAT HEADREST ASSEMBLY RH

a.

Remove the front seat headrest assembly RH.


Hide 71753D 2.REMOVE FRONT SEAT UNDER TRAY

a.

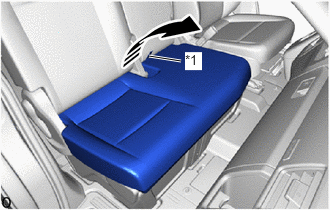

B541198C01
1.552,0.583 1.885,0.635 true 1.927,0.542 2.104,0.729 0.177,0.188 10 true *1
*1 Front Seat Cushion Lock Band Assembly RH
V113147

Lift in this Direction


Pull the seat lock band assembly and lift up the front seat cushion assembly as shown in the illustration.


b.

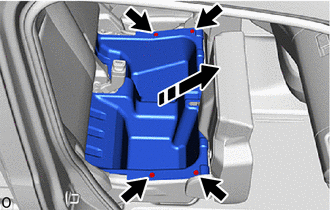

B536577C01
0,0 0,0 false
V113147

Remove in this Direction


Remove the 4 clips.


c.

Remove the front seat under tray as shown in the illustration.


Hide 71139T 3.REMOVE FRONT SEAT REAR LEG COVER RH

a.

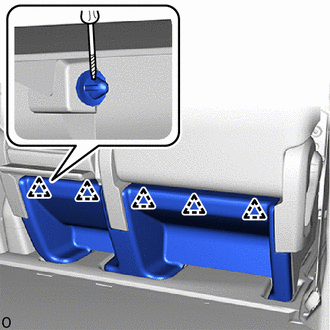

B536580C01
0,0 0,0 false
V100155

Protective Tape


Using a thin-bladed screwdriver, detach the clip.

HINT:

Tape the thin-bladed screwdriver tip before use.



b.

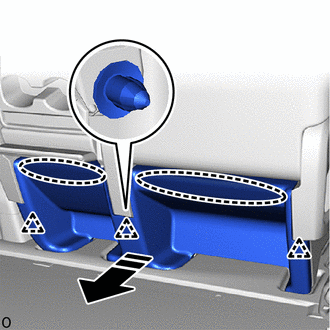

B536582C01
0,0 0,0 false
V113146

Place Hands Here
V113147

Remove in this Direction


Place your hands at the position shown in the illustration and pull in the removal direction and detach the clip as shown in the illustration.


c.

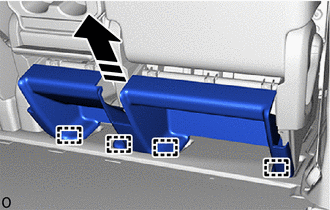

B536584C01
0,0 0,0 false
V113147

Remove in this Direction


Detach the guide and remove the front seat rear leg cover RH as shown in the illustration.


Hide 4.REMOVE FRONT SEAT ASSEMBLY RH

a.

w/ Seat Belt Warning System:

i.

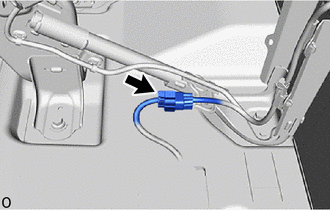

B536579

Disconnect the connector.



b.

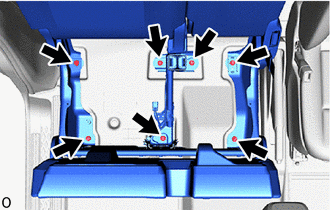

B536586

Remove the 7 bolts and front seat assembly RH.

NOTICE:
·

2 or more people are required when carrying the front seat assembly RH out of the vehicle.

·

Protect the front seat legs.

·

Be careful not to damage the front seat assembly RH, body exterior or interior parts.
