SEAT FRONT SEAT ASSEMBLY(for Power Seat) REMOVAL

CAUTION / NOTICE / HINT

CAUTION:: ·

Wear protective gloves. Sharp areas on the parts may injure your hands.

·

There is risk of injury.

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed, installed or replaced during the front seat assembly removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced
Replacement Part or Procedure	Necessary Procedures	Effect/Inoperative Function When Necessary Procedures not Performed	Link
Disconnect cable from negative (-) battery terminal	Memorize steering angle neutral point	Parking assist monitor system	(201902,999999,_56,_079315,_0385736,RM100000001GNRA,)
Disconnect cable from negative (-) battery terminal	Memorize steering angle neutral point	Panoramic view monitor system	(201906,999999,_56,_079315,_0396274,RM100000001IGR3,)

HINT:

When the cable is disconnected / reconnected to the battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the systems is used.

Learning completes when vehicle is driven

Effect/Inoperative Function When Necessary Procedures not Performed	Necessary Procedures	Link
Stop and start system	Drive the vehicle until stop and start control is permitted (approximately 5 to 60 minutes).	(201902,999999,_51,_078825,_0382334,RM100000001GBQ1,)
Lane control system	Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more.	(201902,999999,_58,_078886,_0382740,RM100000001G6XB,)
Pre-collision system		(201902,999999,_58,_078886,_0382740,RM100000001G6XB,)

Learning completes when vehicle is operated normally

Effect/Inoperative Function When Necessary Procedures not Performed	Necessary Procedures	Link
Power slide door system	Fully close the slide door by hand. HINT: Initialization is not necessary if the above procedures are performed while the slide door is closed.	(201902,999999,_59,_078503,_0381017,RM100000001FWXM,)
Air conditioning system	After the ignition switch is turned to ON, the servo motor standard position is recognized.	-

Use the same procedure for RHD and LHD vehicles.

The procedure listed below is for LHD vehicles.

PROCEDURE

Hide Display 1. PRECAUTION

CAUTION:: Be sure to read Precaution thoroughly before servicing.; ·

for Type A:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type A)>PRECAUTION201906,999999,_58,_079257,_0387732,RM100000001IMN3,

·

for Type C:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type C)>PRECAUTION201906,999999,_58,_079257,_0396679,RM100000001IJ80,

NOTICE:: ·

After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal.

Click hereGeneral>INTRODUCTION>REPAIR INSTRUCTION>PRECAUTION201902,999999,_V1,_078841,_0382392,RM100000001GTX7,

·

If the front seat airbag assembly was deployed, replace the front seat airbag assembly, front seatback frame sub-assembly, separate type front seatback pad and separate type front seatback cover with the necessary parts in accordance with the extent of the collision damage.

·

Replace any other damaged parts as necessary.

Hide Display 71910F 2.REMOVE FRONT SEAT HEADREST ASSEMBLY LH

Remove the front seat headrest assembly LH.

Hide Display 71139U 3.REMOVE FRONT SEAT REAR LEG COVER LH

0,0 0,0 false

	Place Hands Here
	Remove in this Direction

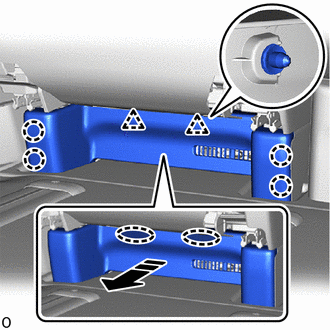

Place your hands at the position and pull in the removal direction shown in the illustration and detach the claw and clip and remove the front seat rear leg cover LH.

Hide Display 4.REMOVE FRONT SEAT ASSEMBLY LH

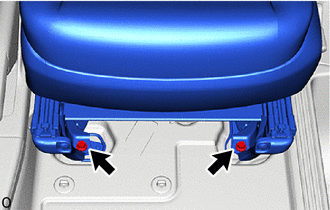

Remove the 2 bolts.

Operate the slide and vertical power seat switch knob and move the front seat assembly LH to the rearmost position.

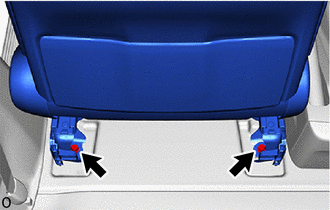

Remove the 2 bolts.

Operate the reclining power seat switch knob and move the seatback of the front seat assembly LH perpendicular.

Operate the slide and vertical power seat switch knob and move the front seat assembly LH to the center position.

Operate the slide and vertical power seat switch knob and move the front seat assembly LH to the uppermost position.

Disconnect the cable from the negative (-) battery terminal.

for 7GR-FKS:

Click hereGeneral>MAINTENANCE>7GR-FKS BATTERY>REMOVAL201906,999999,_V1,_078672,_0387105,RM100000001IWL9,

ii.

for 1GR-FTV:

Click hereGeneral>MAINTENANCE>1GD-FTV BATTERY>REMOVAL201906,999999,_V1,_078672,_0387106,RM100000001IWLA,

CAUTION:: ·

Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

·

If the airbag deploys for any reason, it may cause a serious accident.

Tilt the front seat assembly LH backward.

NOTICE:: Be careful not to damage the front seat assembly LH or interior parts.

w/ Front Seat Side Airbag:

Disconnect the front seat airbag assembly LH connector under the front seat assembly LH.

NOTICE:: When disconnecting any airbag connector, take care not to damage the airbag wire harness.

HINT:: ·

for Type A:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type A)>HOW TO CONNECT OR DISCONNECT AIRBAG CONNECTOR201902,999999,_58,_079257,_0387732,RM100000001GZ7A,

·

for Type C:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type C)>HOW TO CONNECT OR DISCONNECT AIRBAG CONNECTOR201906,999999,_58,_079257,_0396679,RM100000001IJ8B,

Disconnect the other 2 connectors under the front seat assembly LH.

Remove the front seat assembly LH.

NOTICE:: ·

2 or more people are required when carrying the front seat assembly LH out of the vehicle.

·

Protect the front seat legs.

·

Be careful not to damage the front seat assembly LH, body exterior or interior parts.
