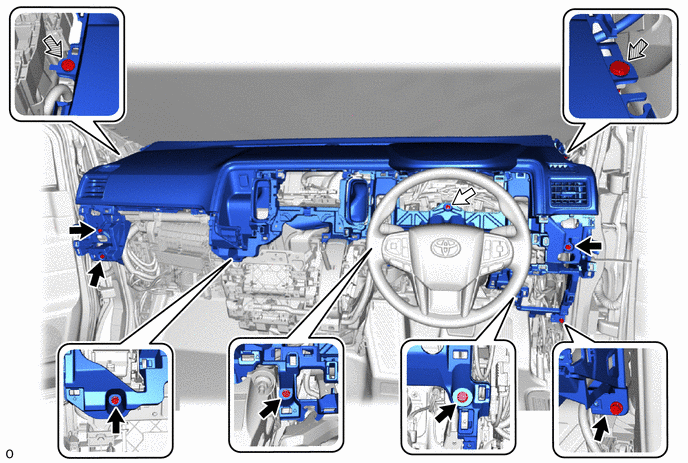

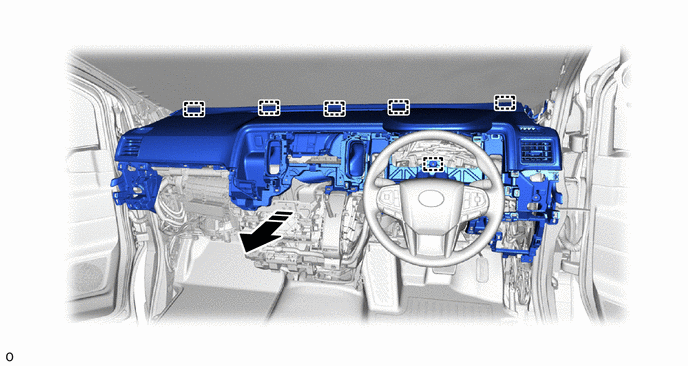

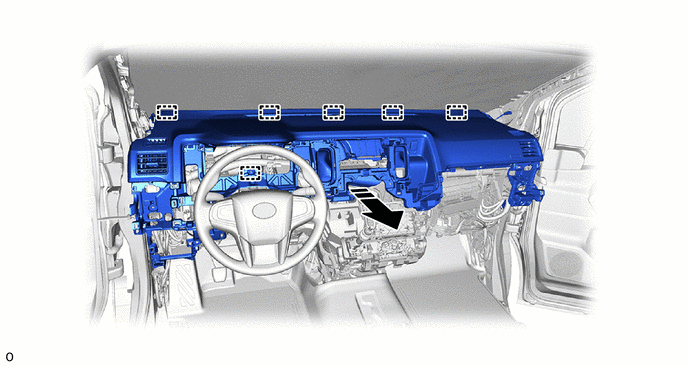

INTERIOR PANELS / TRIM INSTRUMENT PANEL SAFETY PAD REMOVAL

Necessary Procedure After Parts Removed/Installed/Replaced
Replacement Part or Procedure	Necessary Procedure	Effect/Inoperative Function when Necessary Procedures not Performed	Link
Disconnect cable from negative (-) battery terminal	Memorize steering angle neutral point	Parking assist monitor system	(201902,999999,_56,_079315,_0385736,RM100000001GNRA,)
Panoramic view monitor system	(201906,999999,_56,_079315,_0396274,RM100000001IGR3,)

Effect/Inoperative Function When Necessary Procedures not Performed	Necessary Procedures	Link
*: w/ Stop and start system
Stop and start system*	Drive the vehicle until stop and start control is permitted (approximately 5 to 60 minutes).	(201902,999999,_51,_078825,_0382334,RM100000001GBQ1,)
Lane control system	Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more.	(201902,999999,_58,_078886,_0382740,RM100000001G6XB,)
Pre-collision system

Effect/Inoperative Function When Necessary Procedures not Performed	Necessary Procedures	Link
Power slide door system	Fully close the slide door by hand. HINT: Initialization is not necessary if the above procedures are performed while the slide door is closed.	(201902,999999,_59,_078503,_0381017,RM100000001FWXM,)
Air conditioning system	After the ignition switch is turned to ON, the servo motor standard position is recognized.	-

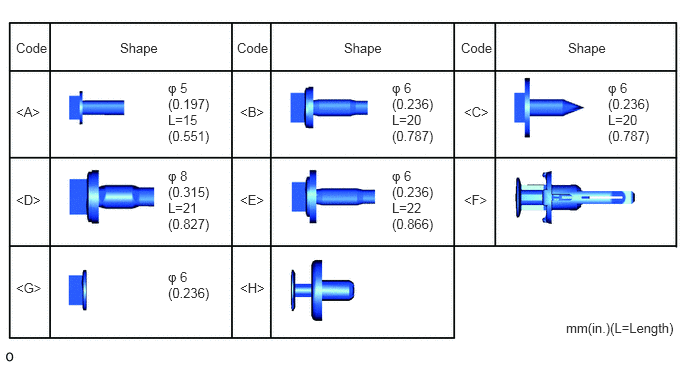

Hide Display 1. BOLTS, SCREWS AND NUTS TABLE

HINT:: All bolts, screws and clips relevant to installing and removing the instrument panel are shown along with their alphabetic code in the table below.

0.167,0.417 0.781,0.615 0.615,0.198 10 false Code 1.25,0.417 1.865,0.615 0.615,0.198 10 false Shape 2.469,0.417 3.083,0.615 0.615,0.198 10 false Code 3.583,0.417 4.198,0.615 0.615,0.198 10 false Shape 4.802,0.417 5.417,0.615 0.615,0.198 10 false Code 5.917,0.417 6.531,0.615 0.615,0.198 10 false Shape 0.167,1.083 0.781,1.281 0.615,0.198 10 false <A> 2.5,1.083 3.115,1.281 0.615,0.198 10 false 4.833,1.083 5.448,1.281 0.615,0.198 10 false <C> 0.167,2 0.781,2.198 0.615,0.198 10 false <D> 2.5,2 3.115,2.198 0.615,0.198 10 false <E> 4.833,2 5.448,2.198 0.615,0.198 10 false <F> 0.167,2.917 0.781,3.115 0.615,0.198 10 false <G> 2.5,2.917 3.115,3.115 0.615,0.198 10 false <H> 5.896,3.333 7.156,3.5 1.26,0.167 10 false mm(in.)(L=Length) 1.75,0.833 2.365,1.031 0.615,0.198 10 false φ 5 1.75,1 2.365,1.198 0.615,0.198 10 false (0.197) 1.75,1.167 2.365,1.365 0.615,0.198 10 false L=15 1.75,1.333 2.365,1.531 0.615,0.198 10 false (0.551) 4.083,0.833 4.698,1.031 0.615,0.198 10 false φ 6 4.083,1 4.698,1.198 0.615,0.198 10 false (0.236) 4.083,1.167 4.698,1.365 0.615,0.198 10 false L=20 4.083,1.333 4.698,1.531 0.615,0.198 10 false (0.787) 6.333,0.833 6.948,1.031 0.615,0.198 10 false φ 6 6.333,1 6.948,1.198 0.615,0.198 10 false (0.236) 6.333,1.167 6.948,1.365 0.615,0.198 10 false L=20 6.333,1.333 6.948,1.531 0.615,0.198 10 false (0.787) 1.75,1.75 2.365,1.948 0.615,0.198 10 false φ 8 1.75,1.917 2.365,2.115 0.615,0.198 10 false (0.315) 1.75,2.083 2.365,2.281 0.615,0.198 10 false L=21 1.75,2.25 2.365,2.448 0.615,0.198 10 false (0.827) 4.083,1.75 4.698,1.948 0.615,0.198 10 false φ 6 4.083,1.917 4.698,2.115 0.615,0.198 10 false (0.236) 4.083,2.083 4.698,2.281 0.615,0.198 10 false L=22 4.083,2.25 4.698,2.448 0.615,0.198 10 false (0.866) 1.75,2.802 2.365,3 0.615,0.198 10 false φ 6 1.75,2.969 2.365,3.167 0.615,0.198 10 false (0.236)

Hide Display 2. PRECAUTION

CAUTION:: Be sure to read Precaution thoroughly before servicing.; ·

for Type A:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type A)>PRECAUTION201906,999999,_58,_079257,_0387732,RM100000001IMN3,

·

for Type B:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type B)>PRECAUTION201902,999999,_58,_079257,_0385034,RM100000001GJPR,

·

for Type C:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type C)>PRECAUTION201906,999999,_58,_079257,_0396679,RM100000001IJ80,

NOTICE:: After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal.; Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>BEFORE DISCONNECTING BATTERY201902,999999,_V1,_081196,_0393338,RM100000001HX6Q,

Hide Display 3.DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

·

for 7GR-FKS:

Click hereGeneral>MAINTENANCE>7GR-FKS BATTERY>REMOVAL201906,999999,_V1,_078672,_0387105,RM100000001IWL9,

·

for 1GD-FTV:

Click hereGeneral>MAINTENANCE>1GD-FTV BATTERY>REMOVAL201906,999999,_V1,_078672,_0387106,RM100000001IWLA,

CAUTION:: ·

Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

·

If the airbag deploys for any reason, it may cause a serious accident.

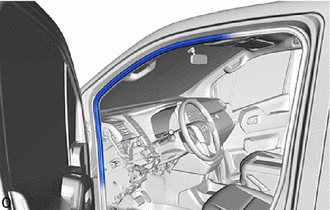

Hide Display 67912A 4.REMOVE FRONT DOOR OUTSIDE SCUFF PLATE LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>REMOVAL201906,202208,_58,_078375,_0381233,RM100000001IXV4_02_0046,202208,999999,_58,_078375,_0381233,RM1000000024I19_02_0046,

Hide Display 67914B 5.REMOVE FRONT DOOR SCUFF PLATE LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>REMOVAL201906,202208,_58,_078375,_0381233,RM100000001IXV4_02_0001,202208,999999,_58,_078375,_0381233,RM1000000024I19_02_0001,

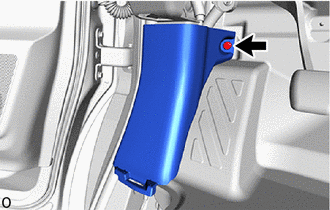

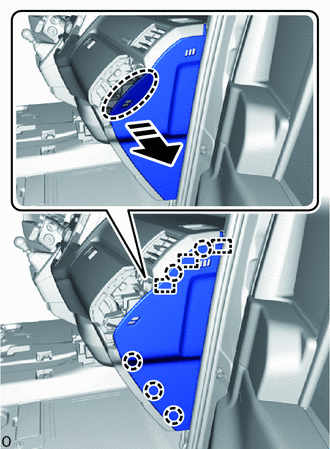

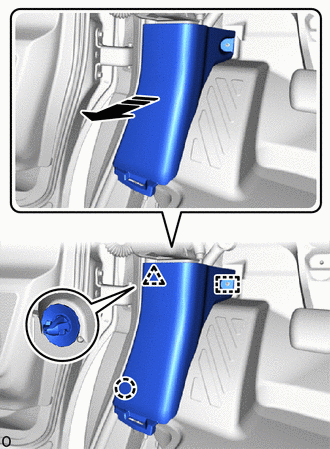

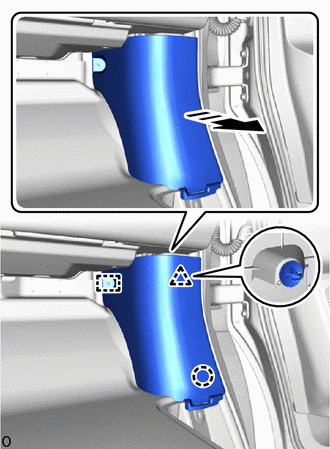

Hide Display 62112 6.REMOVE COWL SIDE TRIM BOARD LH

a.

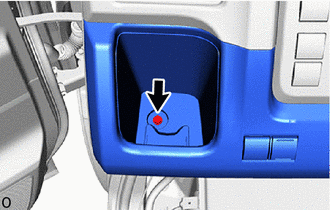

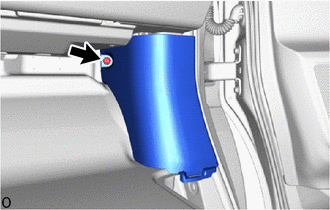

Remove the cap nut.

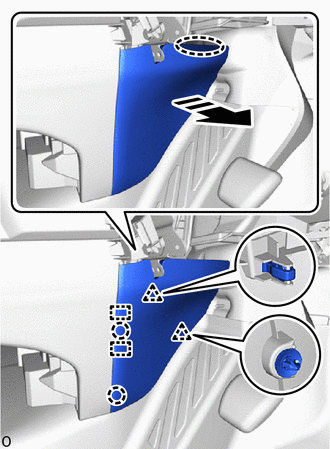

b.

0,0 0,0 false

Remove in this Direction

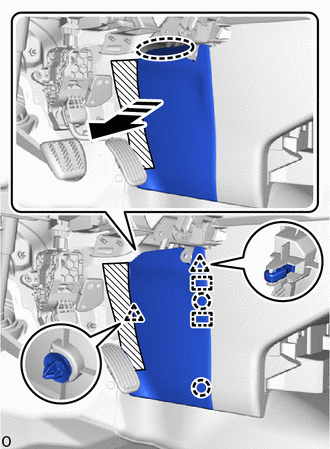

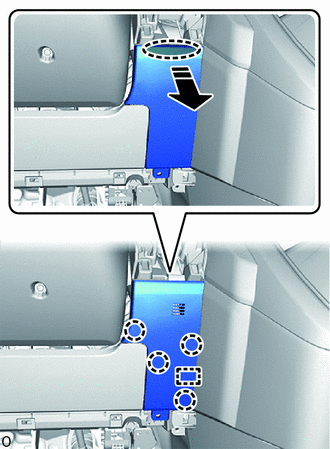

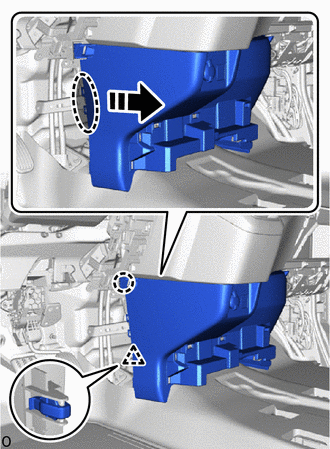

Detach the clip, claw and guide and remove the cowl side trim board LH.

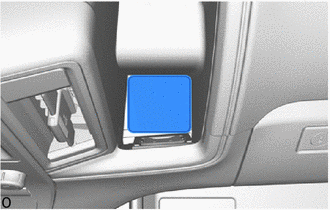

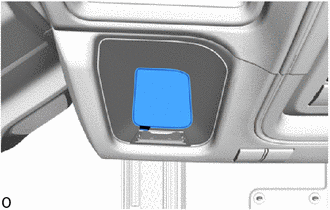

Hide Display 55631A 7.REMOVE NO. 1 INSTRUMENT PANEL UNDER TRAY STOPPER

a.

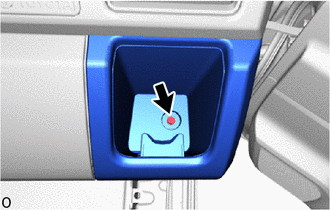

Remove the No. 1 instrument panel under tray stopper.

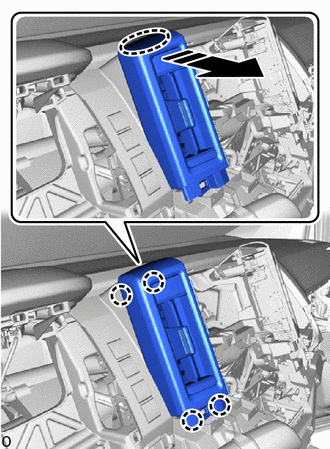

Hide Display 55011A 8.REMOVE NO. 1 INSTRUMENT PANEL GARNISH SUB-ASSEMBLY

a.

0,0 0,0 false

Screw <A>

Remove the screw <A>.

b.

0,0 0,0 false

	Place Hand Here
	Remove in this Direction

Place your hand at the position shown in the illustration and pull in the direction indicated by the arrow to detach the claw and guide.

c.

0,0 0,0 false

	Place Hand Here
	Remove in this Direction

Place your hand at the position shown in the illustration and pull in the direction indicated by the arrow to detach the claw and remove the No. 1 instrument panel garnish sub-assembly.

d.

w/ Power Slide Door:

i.

Disconnect each connector.

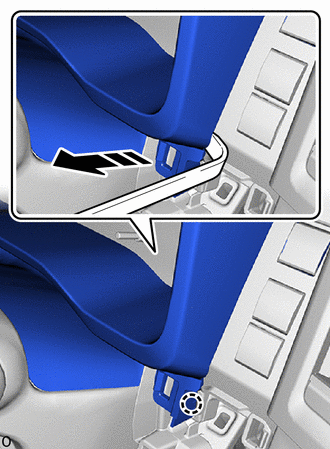

Hide Display 55318C 9.REMOVE INSTRUMENT SIDE PANEL LH

a.

except Wagon:

i.

0,0 0,0 false

	Place Hand Here
	Remove in this Direction

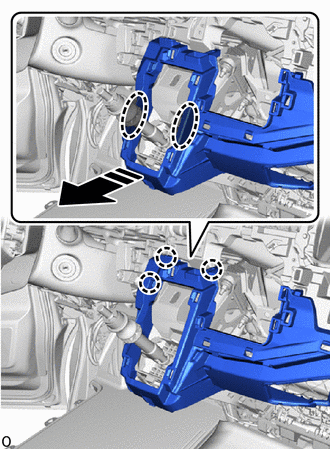

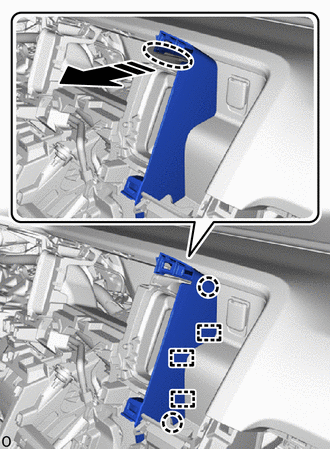

Place your hand at the position shown in the illustration and pull in the direction indicated by the arrow to detach the claw and guide.

ii.

0,0 0,0 false

Remove in this Direction

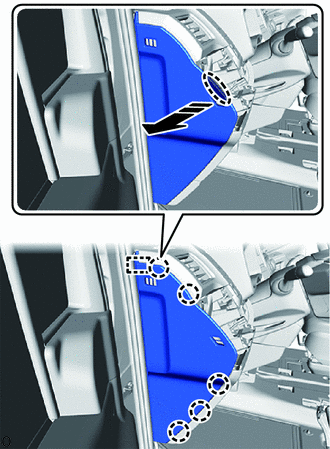

Pull in the direction indicated by the arrow shown in the illustration to detach the guide and remove the instrument side panel LH.

b.

for Wagon:

i.

0,0 0,0 false

	Place Hand Here
	Remove in this Direction

Place your hand at the position shown in the illustration and pull in the direction indicated by the arrow to detach the claw and guide.

ii.

0,0 0,0 false

Remove in this Direction

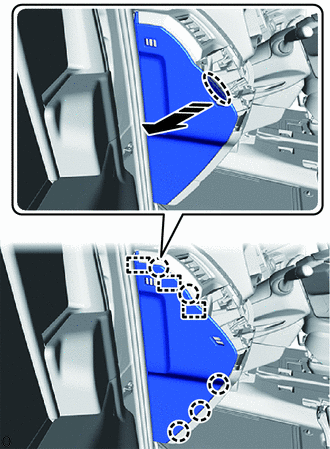

Pull in the direction indicated by the arrow shown in the illustration to detach the guide and remove the instrument side panel LH.

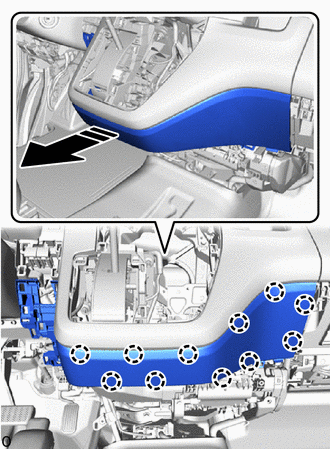

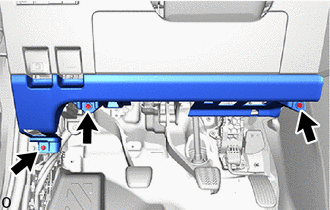

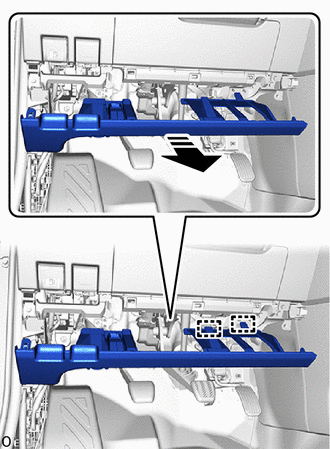

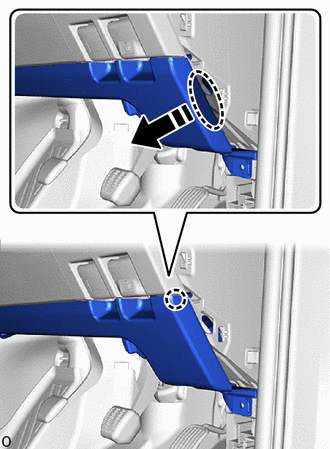

Hide Display 55641 10.REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER

a.

for LHD:

i.

0,0 0,0 false

Screw <A>

Remove the 3 screws <A>.

ii.

0,0 0,0 false

	Place Hand Here
	Remove in this Direction

Place your hand at the position shown in the illustration and pull in the direction indicated by the arrow to detach the claw.

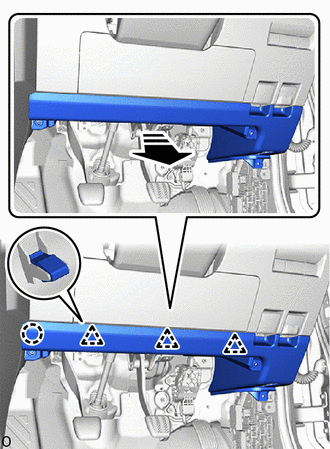

iii.

0,0 0,0 false

Remove in this Direction

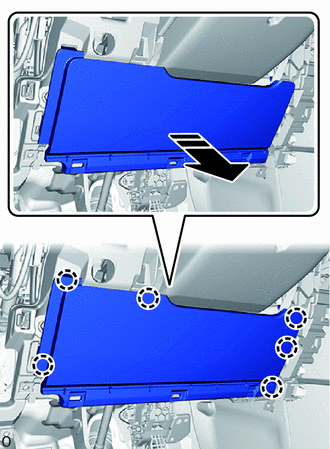

Pull in the direction indicated by the arrow shown in the illustration to detach the clip and claw.

iv.

0,0 0,0 false

Remove in this Direction

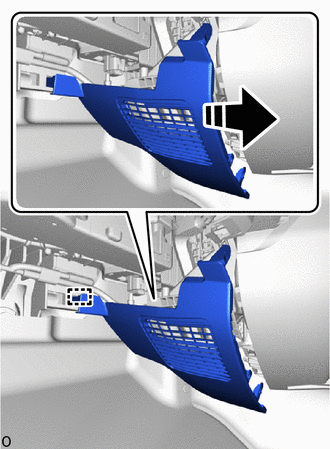

Pull in the direction indicated by the arrow to detach the guide and remove the No. 1 instrument panel under cover.

v.

w/ Tire Pressure Warning System:

Disconnect the connector.

b.

for RHD:

i.

0,0 0,0 false

Screw <A>

Remove the 3 screws <A>.

ii.

0,0 0,0 false

	Place Hand Here
	Remove in this Direction

Place your hand at the position shown in the illustration and pull in the direction indicated by the arrow to detach the claw.

iii.

0,0 0,0 false

Remove in this Direction

Pull in the direction indicated by the arrow shown in the illustration to detach the clip and claw.

iv.

0,0 0,0 false

Remove in this Direction

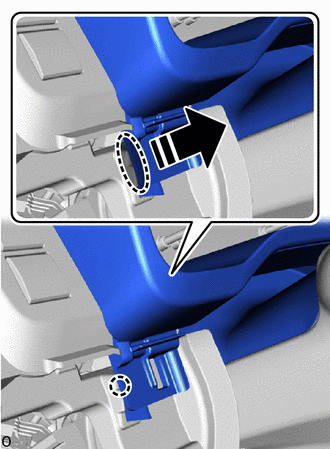

Pull in the direction indicated by the arrow to detach the guide and remove the No. 1 instrument panel under cover.

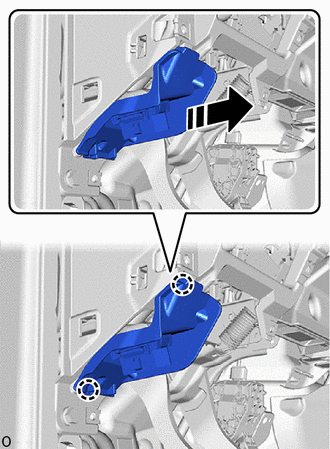

Hide Display 53601 11.REMOVE HOOD LOCK CONTROL LEVER SUB-ASSEMBLY

a.

0,0 0,0 false

	Remove in this Direction (1)
	Remove in this Direction (2)

Detach the claw in the direction (1) indicated by the arrow shown in the illustration.

b.

Detach the guide in the direction (2) indicated by the arrow shown in the illustration and remove the hood lock control lever sub-assembly.

Hide Display 77306 12.REMOVE FUEL LID LOCK OPEN LEVER SUB-ASSEMBLY

a.

0,0 0,0 false

	Remove in this Direction (1)
	Remove in this Direction (2)

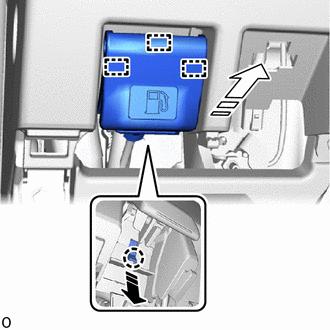

Detach the claw in the direction (1) indicated by the arrow shown in the illustration.

b.

Detach the guide in the direction (2) indicated by the arrow shown in the illustration and remove the fuel lid lock open lever sub-assembly.

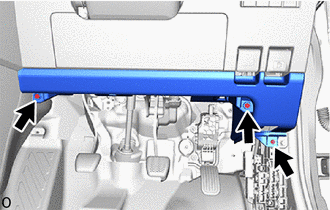

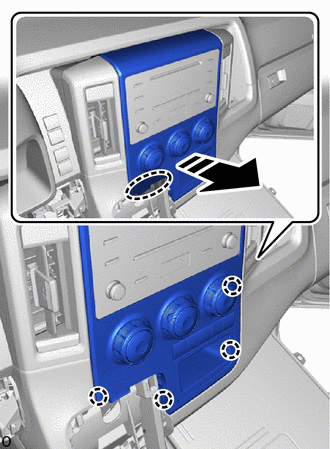

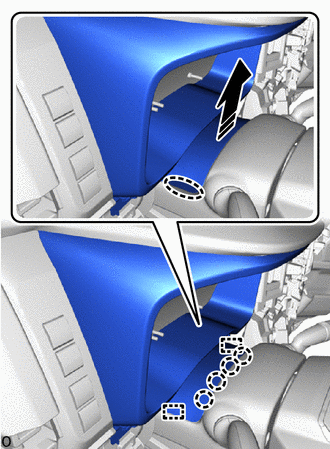

Hide Display 55432D 13.REMOVE LOWER NO. 1 INSTRUMENT PANEL FINISH PANEL

a.

0,0 0,0 false

Screw <A>

Remove the 2 screws <A>.

b.

0,0 0,0 false

	Place Hand Here
	Remove in this Direction

Place your hand at the position shown in the illustration and pull in the direction indicated by the arrow to detach the claw and remove the lower No. 1 instrument panel finish panel.

c.

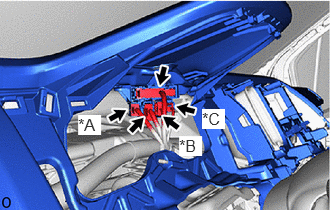

Disconnect each connector.

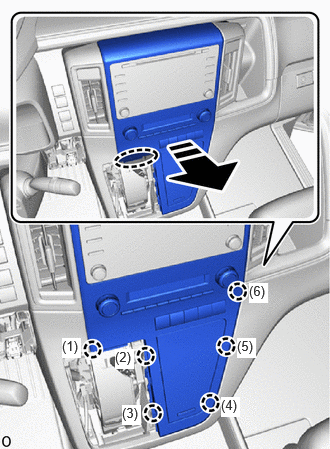

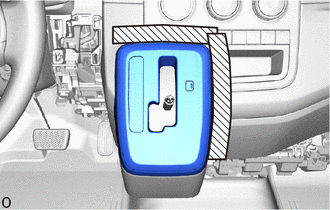

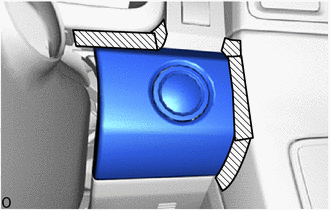

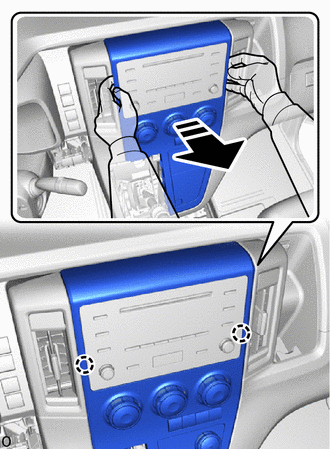

Hide Display 55044C 14.REMOVE INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY

a.

except Wagon:

i.

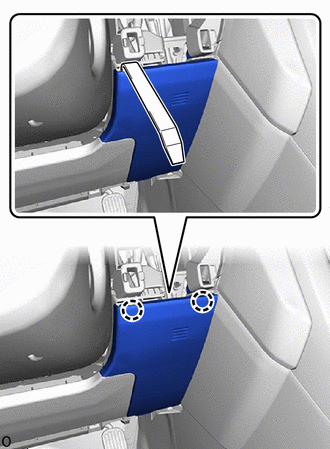

0,0 0,0 false

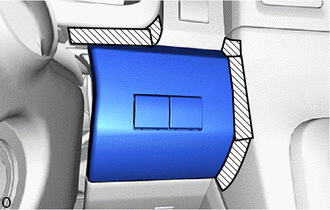

Protective Tape

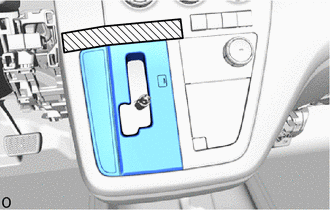

Apply protective tape as shown in the illustration.

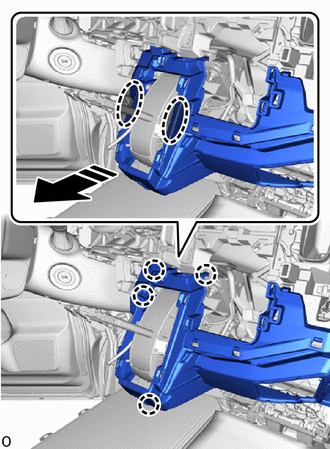

ii.

0,0 0,0 false

	Place Hand Here
	Remove in this Direction

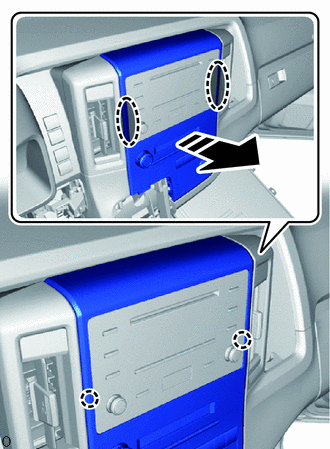

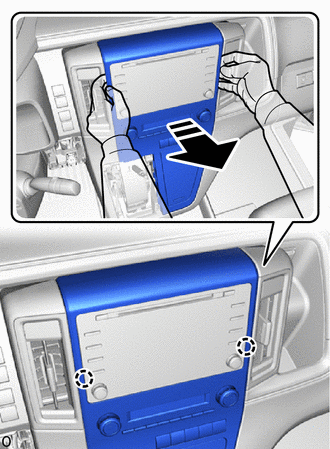

Place your hand at the position shown in the illustration and pull in the direction indicated by the arrow to detach the claw and remove the instrument panel finish panel sub-assembly.

b.

for Wagon:

i.

0,0 0,0 false

Protective Tape

Apply protective tape as shown in the illustration.

ii.

0,0 0,0 false

	Place Hand Here
	Remove in this Direction

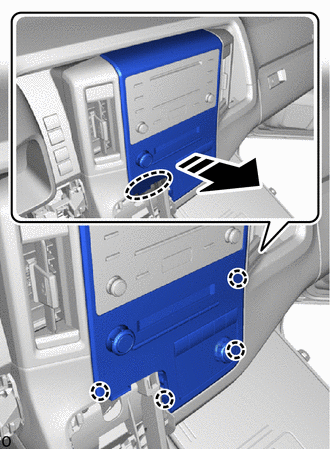

Place your hand at the position shown in the illustration and pull in the direction indicated by the arrow to detach the claw and remove the instrument panel finish panel sub-assembly.

iii.

Disconnect the connector.

Hide Display 55433B 15.REMOVE LOWER NO. 2 INSTRUMENT PANEL FINISH PANEL

a.

0,0 0,0 false

Screw <A>

Remove the screw <A>.

b.

Using moulding remover A, detach the claw.

c.

0,0 0,0 false

	Place Hand Here
	Remove in this Direction

Place your hand at the position shown in the illustration and pull in the direction indicated by the arrow to detach the claw and guide and remove the lower No. 2 instrument panel finish panel.

d.

0,0 0,0 false

	Connector
	Aspirator Hose

for Automatic Air Conditioning System:

i.

Disconnect the connector and aspirator hose.

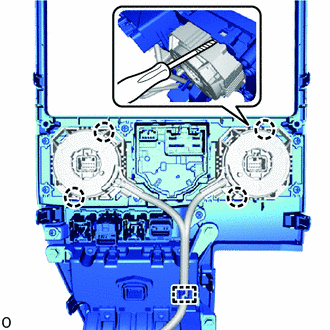

Hide Display 55445B 16.REMOVE INSTRUMENT PANEL FINISH PLATE (w/o Knee Airbag)

a.

0,0 0,0 false

Remove in this Direction

Pull in the direction indicated by the arrow to detach the claw and remove the instrument panel finish plate.

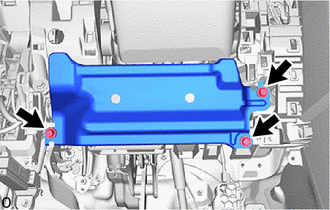

Hide Display 55313 17.REMOVE LOWER INSTRUMENT PANEL LH (w/o Knee Airbag)

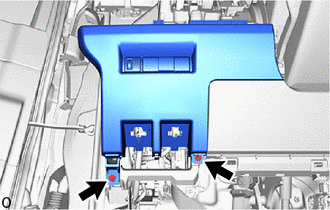

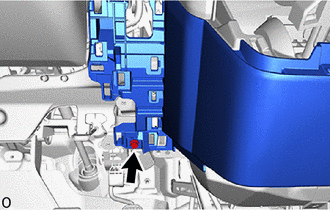

a.

0,0 0,0 false

Bolt <E>

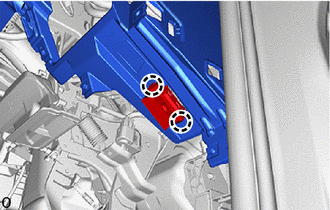

Remove the 3 bolts <E>.

b.

Detach the guide and remove the lower instrument panel LH.

Hide Display 73900 18.REMOVE LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY (w/ Knee Airbag)

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>KNEE AIRBAG ASSEMBLY>REMOVAL201906,999999,_58,_079257,_0384937,RM100000001IIAE_01_0172,

Hide Display 67911B 19.REMOVE FRONT DOOR OUTSIDE SCUFF PLATE RH

HINT:: Use the same procedure described for the LH side.; Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>REMOVAL201906,202208,_58,_078375,_0381233,RM100000001IXV4_02_0046,202208,999999,_58,_078375,_0381233,RM1000000024I19_02_0046,

Hide Display 67913B 20.REMOVE FRONT DOOR SCUFF PLATE RH

HINT:: Use the same procedure described for the LH side.; Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>REMOVAL201906,202208,_58,_078375,_0381233,RM100000001IXV4_02_0001,202208,999999,_58,_078375,_0381233,RM1000000024I19_02_0001,

Hide Display 62111C 21.REMOVE COWL SIDE TRIM BOARD RH

a.

Remove the cap nut.

b.

0,0 0,0 false

Remove in this Direction

Detach the clip, claw and guide and remove the cowl side trim board RH.

Hide Display 55632B 22.REMOVE NO. 2 INSTRUMENT PANEL UNDER TRAY SUPPORT

a.

Remove the No. 2 instrument panel under tray support.

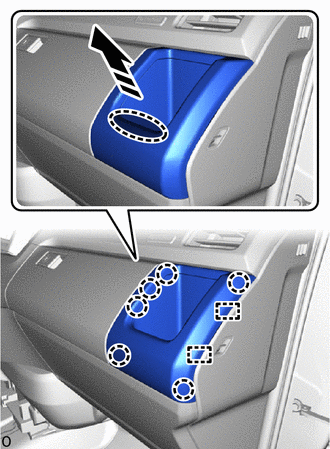

Hide Display 55012A 23.REMOVE NO. 2 INSTRUMENT PANEL GARNISH SUB-ASSEMBLY

a.

0,0 0,0 false

Screw <A>

Remove the screw <A>.

b.

0,0 0,0 false

	Place Hand Here
	Remove in this Direction

Place your hand at the position shown in the illustration and pull in the direction indicated by the arrow to detach the claw and guide and remove the No. 2 instrument panel garnish sub-assembly.

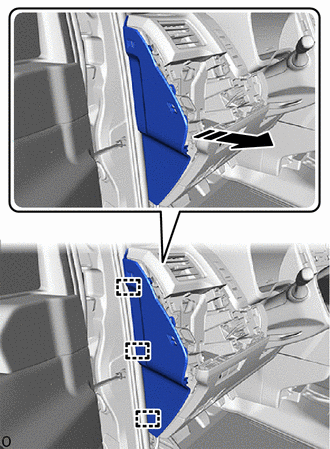

Hide Display 55317A 24.REMOVE INSTRUMENT SIDE PANEL RH

a.

except Wagon:

i.

0,0 0,0 false

	Place Hand Here
	Remove in this Direction

Place your hand at the position shown in the illustration and pull in the direction indicated by the arrow to detach the claw and guide.

ii.

0,0 0,0 false

Remove in this Direction

Pull in the direction indicated by the arrow shown in the illustration to detach the guide and remove the instrument side panel RH.

b.

for Wagon:

i.

0,0 0,0 false

	Place Hand Here
	Remove in this Direction

Place your hand at the position shown in the illustration and pull in the direction indicated by the arrow to detach the claw and guide.

ii.

0,0 0,0 false

Remove in this Direction

Pull in the direction indicated by the arrow shown in the illustration to detach the guide and remove the instrument side panel RH.

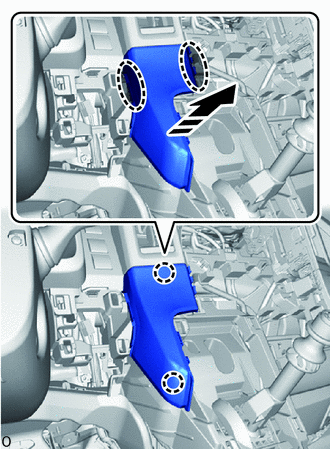

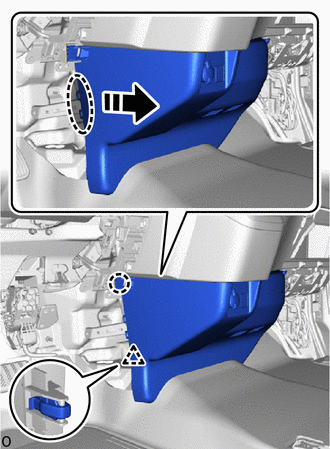

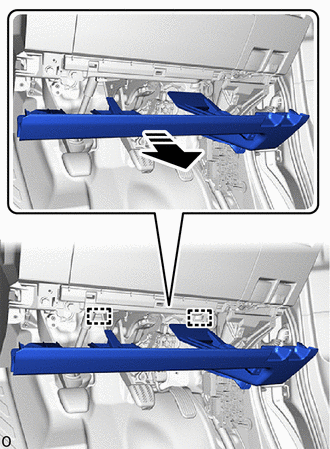

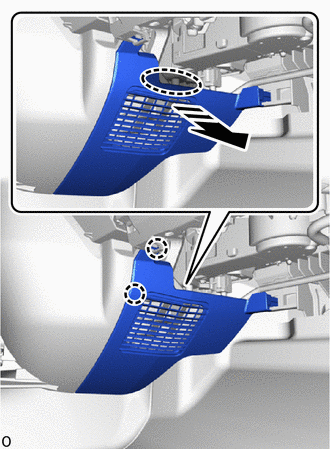

Hide Display 55642 25.REMOVE NO. 2 INSTRUMENT PANEL UNDER COVER

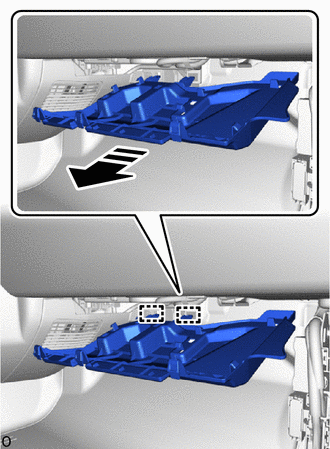

a.

0,0 0,0 false

Remove in this Direction

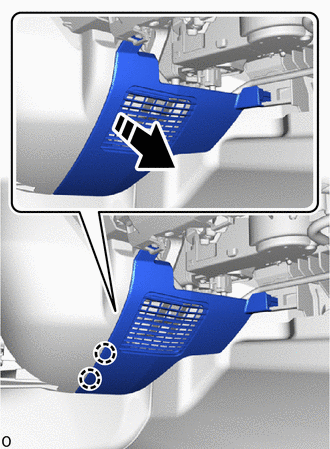

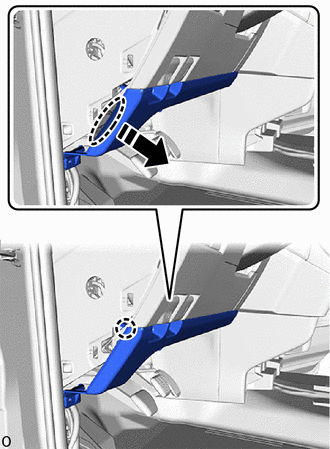

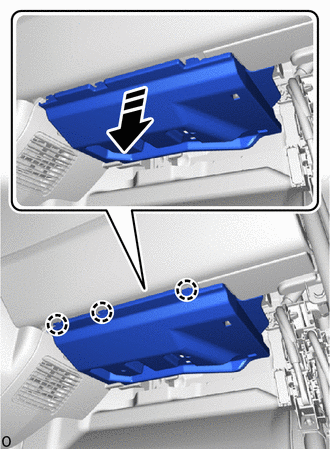

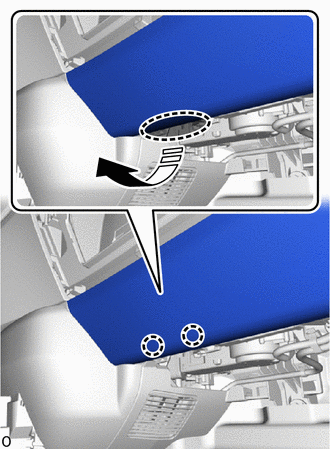

Detach the claw and lower the No. 2 instrument panel under cover in the direction of the arrow shown in the illustration.

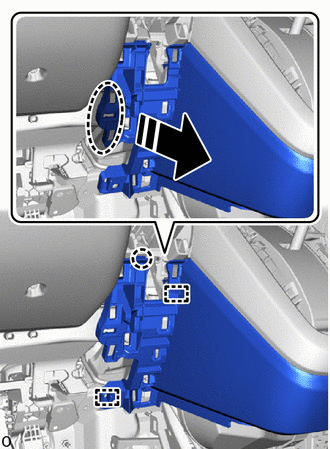

b.

0,0 0,0 false

Remove in this Direction

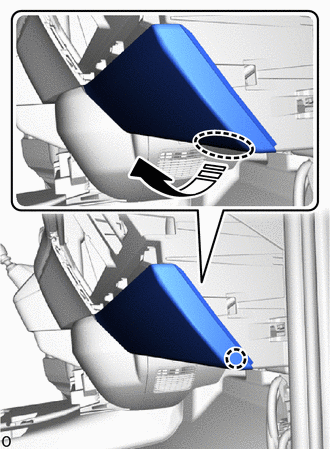

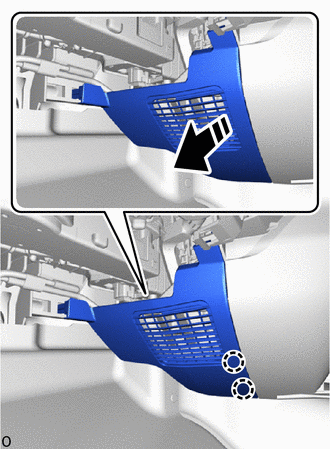

Pull in the direction of the arrow shown in the illustration to detach the guide and remove the No. 2 instrument panel under cover.

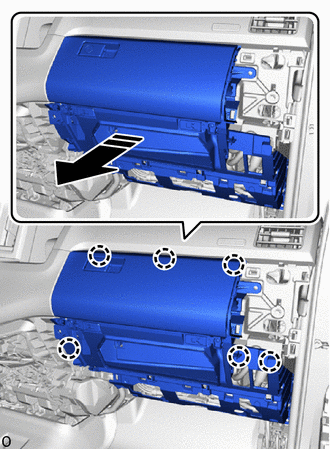

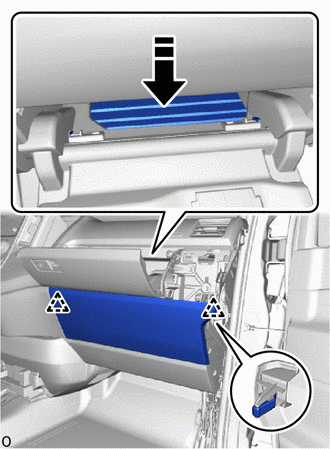

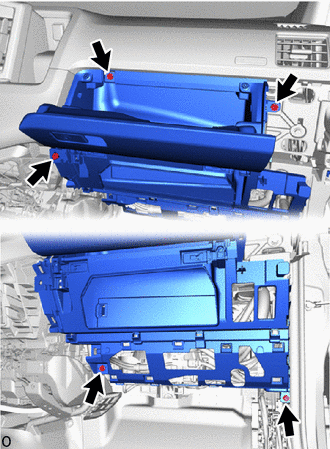

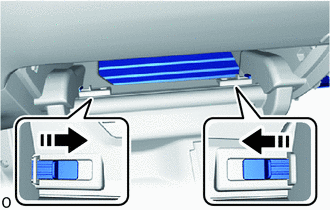

Hide Display 55312 26.REMOVE LOWER INSTRUMENT PANEL

a.

0,0 0,0 false

Slide in this Direction

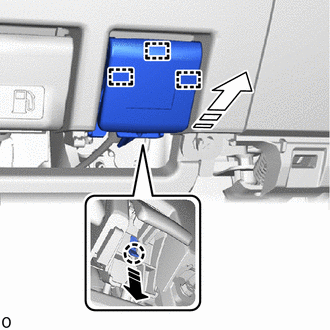

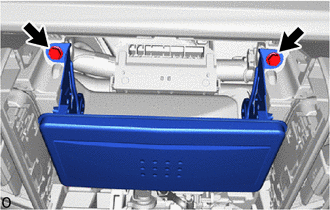

Open the glove compartment door and slide the instrument panel box lock knob in the direction of the arrow shown in the illustration.

b.

0,0 0,0 false

Remove in this Direction

Push in the direction of the arrow shown in the illustration to detach the clip.

c.

0,0 0,0 false

Remove in this Direction

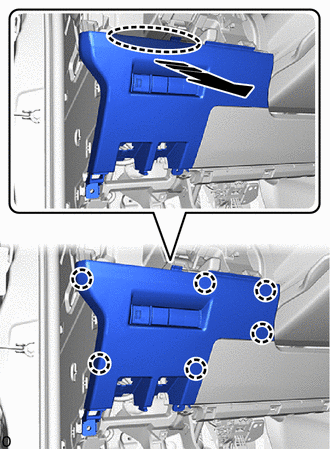

Pull in the direction of the arrow shown in the illustration to detach the guide and remove the lower instrument panel.

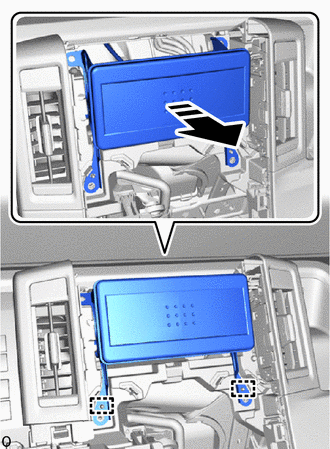

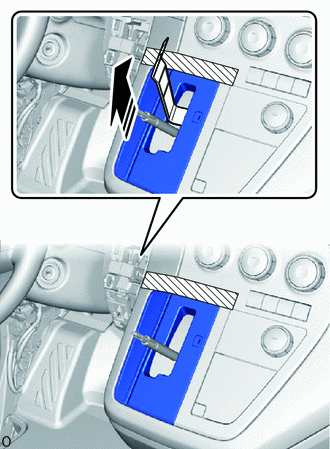

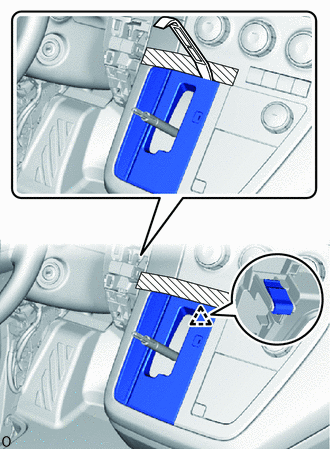

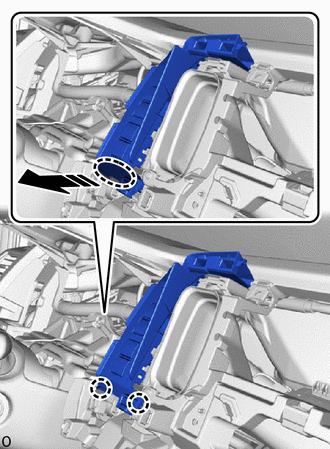

Hide Display 55438A 27.REMOVE NO. 2 INSTRUMENT PANEL FINISH PANEL RETAINER

a.

0,0 0,0 false

Protective Tape

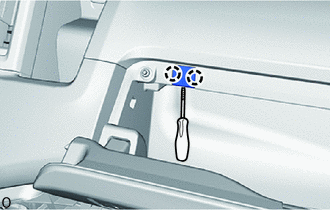

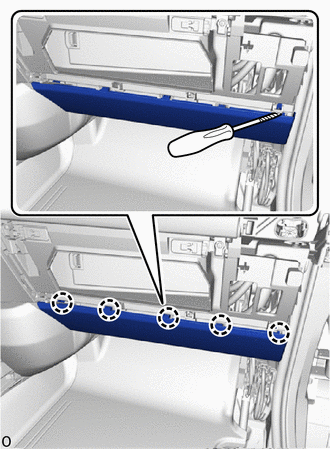

Using a thin-bladed screwdriver, detach the claw.

HINT:: Tape the thin-bladed screwdriver tip before use.

b.

0,0 0,0 false

	Place Hand Here
	Remove in this Direction

Place your hand at the position shown in the illustration and pull in the direction indicated by the arrow to detach the claw.

c.

0,0 0,0 false

	Place Hand Here
	Remove in this Direction

Place your hand at the position shown in the illustration, pull in the direction indicated by the arrow to detach the claw and remove the No. 2 instrument panel finish panel retainer.

Hide Display 28.REMOVE FRONT CONSOLE BOX (w/ Console Tray)

Click hereVehicle Interior>INTERIOR PANELS / TRIM>FRONT CONSOLE BOX>REMOVAL201906,999999,_58,_078375,_0380059,RM100000001IHPA,

Hide Display 58533C 29.REMOVE CENTER FLOOR CARPET COVER RH

a.

0,0 0,0 false

Protective Tape

for LHD:

i.

Apply protective tape as shown in the illustration.

ii.

0,0 0,0 false

	Place Hand Here
	Remove in this Direction

Place your hand at the position shown in the illustration, pull in the direction indicated by the arrow to detach the clip, claw and guide and remove the center floor carpet cover RH.

b.

for RHD:

i.

0,0 0,0 false

	Place Hand Here
	Remove in this Direction

Place your hand at the position shown in the illustration, pull in the direction indicated by the arrow to detach the clip, claw and guide and remove the center floor carpet cover RH.

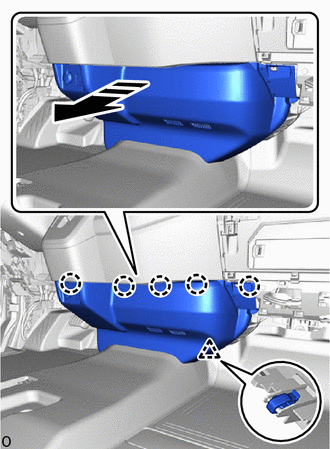

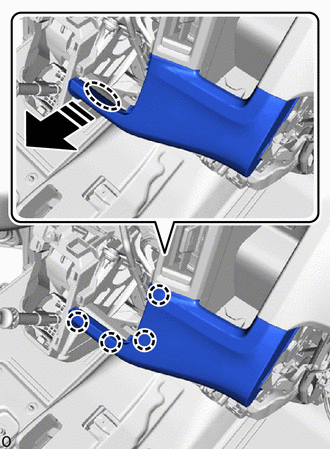

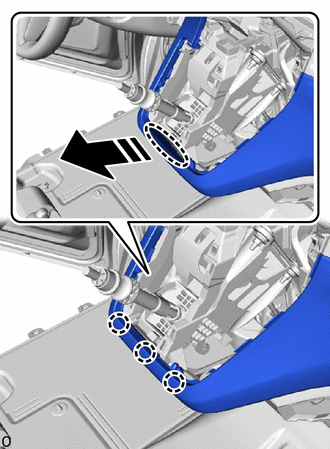

Hide Display 58534E 30.REMOVE CENTER FLOOR CARPET COVER LH

a.

for LHD:

i.

0,0 0,0 false

	Place Hand Here
	Remove in this Direction

Place your hand at the position shown in the illustration and pull in the direction indicated by the arrow to detach the claw.

ii.

0,0 0,0 false

Remove in this Direction

Pull in the direction indicated by the arrow shown in the illustration to detach the claw.

iii.

0,0 0,0 false

Remove in this Direction

Pull in the direction indicated by the arrow shown in the illustration to detach the guide and remove the center floor carpet cover LH.

b.

for RHD:

i.

0,0 0,0 false

	Place Hand Here
	Remove in this Direction

Place your hand at the position shown in the illustration and pull in the direction indicated by the arrow to detach the claw.

ii.

0,0 0,0 false

Remove in this Direction

Pull in the direction indicated by the arrow shown in the illustration to detach the claw.

iii.

0,0 0,0 false

Remove in this Direction

Pull in the direction indicated by the arrow shown in the illustration to detach the guide and remove the center floor carpet cover LH.

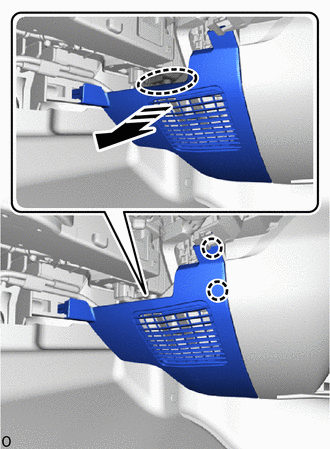

Hide Display 55646 31.REMOVE NO. 3 INSTRUMENT PANEL UNDER COVER

a.

w/o Console Tray:

i.

0,0 0,0 false

	Place Hand Here
	Remove in this Direction

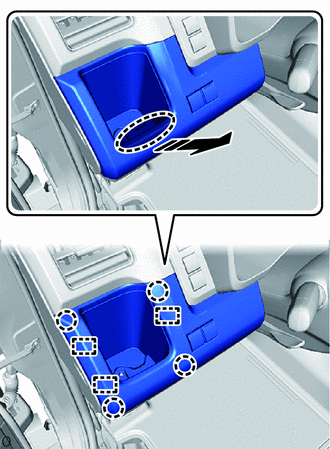

Place your hand at the position shown in the illustration and pull in the direction indicated by the arrow to detach the clip and claw.

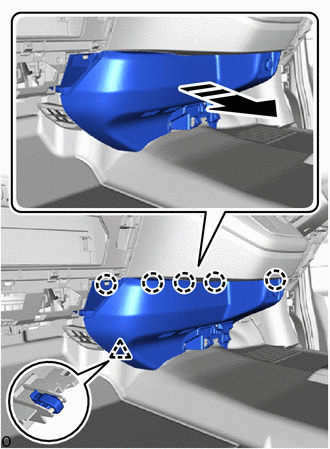

ii.

0,0 0,0 false

Remove in this Direction

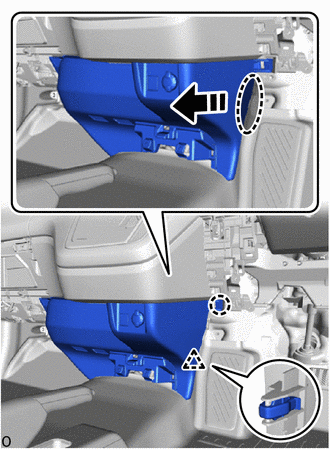

Detach the clip and claw and remove the No. 3 instrument panel under cover.

iii.

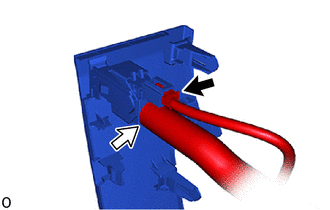

Disconnect each connector.

b.

w/ Console Tray:

i.

0,0 0,0 false

	Place Hand Here
	Remove in this Direction

Place your hand at the position shown in the illustration and pull in the direction indicated by the arrow to detach the clip and claw.

ii.

0,0 0,0 false

Remove in this Direction

Detach the clip and claw and remove the No. 3 instrument panel under cover.

iii.

Disconnect each connector.

c.

for Wagon, w/o Console Box:

i.

0,0 0,0 false

	Place Hand Here
	Remove in this Direction

Place your hand at the position shown in the illustration and pull in the direction indicated by the arrow to detach the clip and claw.

ii.

0,0 0,0 false

Remove in this Direction

Detach the clip and claw and remove the No. 3 instrument panel under cover.

iii.

Disconnect each connector.

Hide Display 55634 32.REMOVE NO. 3 INSTRUMENT PANEL UNDER TRAY SUPPORT (for Wagon)

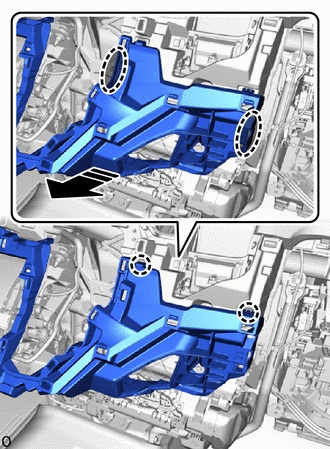

a.

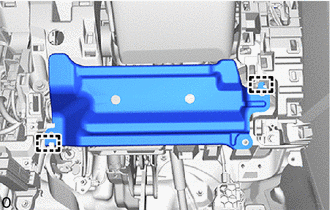

Remove the No. 3 instrument panel under tray support.

Hide Display 33504F 33.REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transmission)

a.

0,0 0,0 false

Remove in this Direction

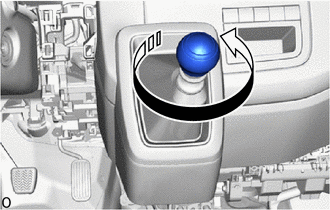

Twist the shift lever knob sub-assembly in the direction indicated by the arrow and remove it.

Hide Display 33622 34.DISCONNECT NO. 1 SHIFT LEVER KNOB COVER (for Automatic Transmission)

Click hereDrivetrain>AC60E (AUTOMATIC TRANSMISSION / TRANSAXLE)>SHIFT LEVER KNOB>REMOVAL201902,999999,_52,_078741,_0382080,RM100000001G8N4_01_0008,

Hide Display 33504F 35.REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (for Automatic Transmission)

Click hereDrivetrain>AC60E (AUTOMATIC TRANSMISSION / TRANSAXLE)>SHIFT LEVER KNOB>REMOVAL201902,999999,_52,_078741,_0382080,RM100000001G8N4_01_0004,

Hide Display 58840Q 36.REMOVE SHIFTING HOLE COVER ASSEMBLY (for Manual Transmission)

a.

for Semi-trim:

i.

0,0 0,0 false

	Place Hands Here
	Remove in this Direction

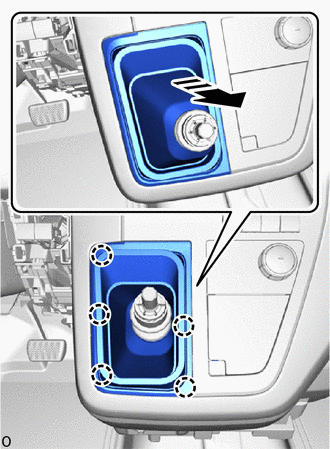

Place both hands at the position shown in the illustration and pull in the direction indicated by the arrow to detach the claw.

ii.

0,0 0,0 false

	Place Hands Here
	Remove in this Direction

Pull in the direction indicated by the arrow to detach the claw and remove the shifting hole cover assembly.

b.

for Full-trim:

i.

0,0 0,0 false

	Place Hand Here
	Remove in this Direction

Place your hand at the position shown in the illustration and pull in the direction indicated by the arrow to detach the claw.

ii.

0,0 0,0 false

Remove in this Direction

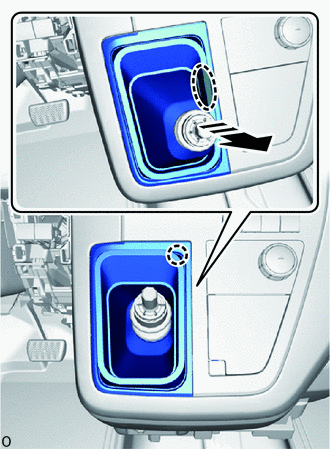

Pull in the direction indicated by the arrow to detach the claw and remove the shifting hole cover assembly.

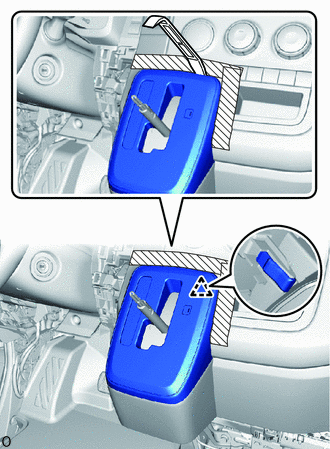

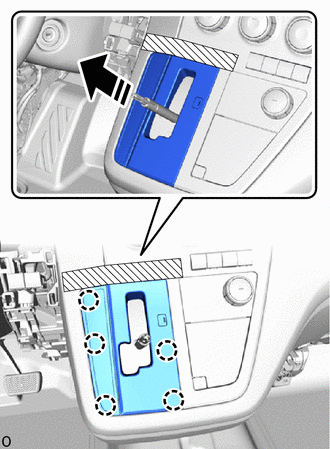

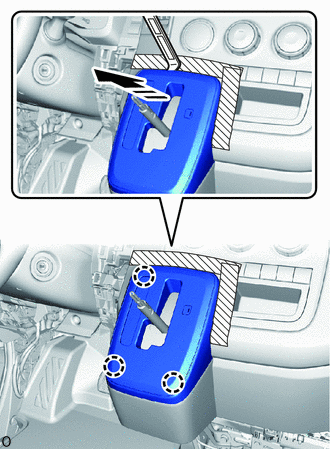

Hide Display 35970F 37.REMOVE POSITION INDICATOR HOUSING ASSEMBLY (for Automatic Transmission)

a.

for Semi-trim:

i.

0,0 0,0 false

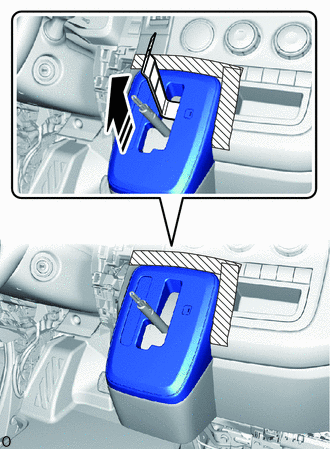

Protective Tape

Apply protective tape as shown in the illustration.

ii.

0,0 0,0 false

Remove in this Direction

Using moulding remover B, pull in the direction indicated by the arrow as shown in the illustration.

iii.

Using moulding remover A, insert in the gap as shown in the illustration to detach the clip.

iv.

0,0 0,0 false

Remove in this Direction

Using moulding remover A, pull in the direction indicated by the arrow to detach the claw and remove the position indicator housing assembly.

v.

Disconnect the connector.

b.

for Full-trim:

i.

0,0 0,0 false

Protective Tape

Apply protective tape as shown in the illustration.

ii.

0,0 0,0 false

Remove in this Direction

Using moulding remover B, pull in the direction indicated by the arrow as shown in the illustration.

iii.

Using moulding remover A, insert in the gap as shown in the illustration to detach the clip.

iv.

0,0 0,0 false

Remove in this Direction

Pull in the direction indicated by the arrow to detach the claw and remove the position indicator housing assembly.

v.

Disconnect the connector.

Hide Display 55405B 38.REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY (for Manual Air Conditioning System)

a.

for Semi-trim:

i.

0,0 0,0 false

	Place Hand Here
	Remove in this Direction

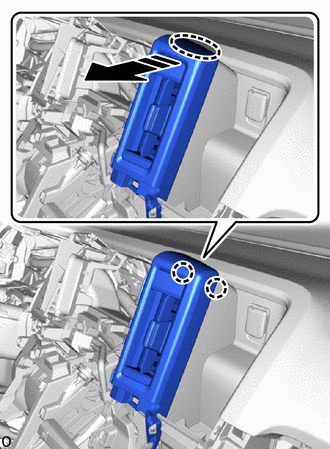

Place your hand at the position shown in the illustration and pull in the direction indicated by the arrow to detach the claw.

ii.

0,0 0,0 false

	Place Hand Here
	Remove in this Direction

Place your hand at the position shown in the illustration and pull in the direction indicated by the arrow to detach the claw.

iii.

0,0 0,0 false

	Place Hands Here
	Remove in this Direction

Place both hands at the position shown in the illustration and pull in the direction indicated by the arrow to detach the claw and remove the center instrument cluster finish panel sub-assembly.

iv.

Disconnect each connector.

v.

0,0 0,0 false

Protective Tape

Detach the guide.

vi.

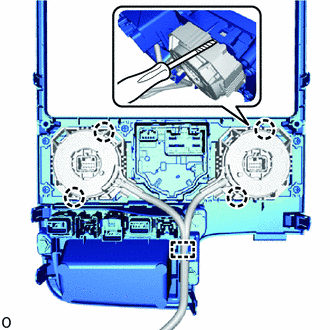

Using a thin-bladed screwdriver, detach the claw and remove the No. 2 heater control cable sub-assembly and air mix damper control cable sub-assembly.

HINT:: Tape the thin-bladed screwdriver tip before use.

b.

for Full-trim:

i.

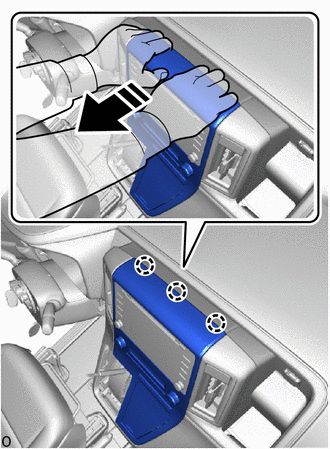

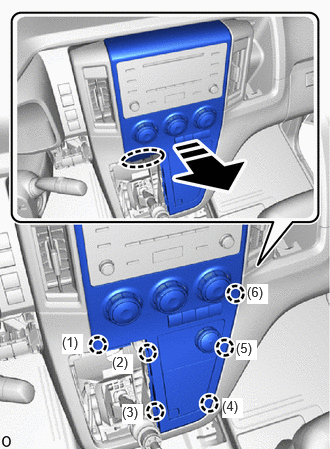

0.646,3.479 0.865,3.688 0.219,0.208 10 true (1) 1.167,3.688 1.385,3.896 0.219,0.208 10 true (2) 1.271,4.208 1.49,4.417 0.219,0.208 10 true (3) 2.313,4.146 2.531,4.354 0.219,0.208 10 true (4) 2.458,3.542 2.677,3.75 0.219,0.208 10 true (5) 2.573,2.958 2.792,3.167 0.219,0.208 10 true (6)

	Place Hand Here
	Remove in this Direction

Place your hand at the position shown in the illustration and pull in the direction indicated by the arrow to detach the claw in the order shown in the illustration.

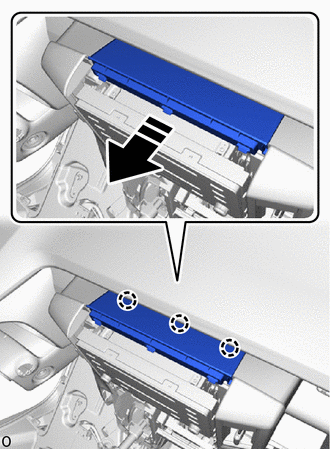

ii.

0,0 0,0 false

Remove in this Direction

Place your hand at the position shown in the illustration and pull in the direction indicated by the arrow to detach the claw.

NOTICE:: ·

When removing forcibly, do not pull excessively.

·

If excessive force is applied to the center instrument cluster finish panel sub-assembly, it may become damaged.

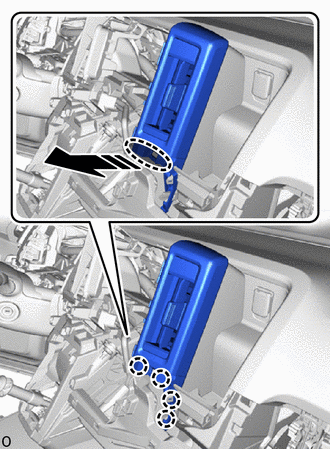

iii.

0,0 0,0 false

Remove in this Direction

Place your hand in the gap, pull in the direction indicated by the arrow shown in the illustration, detach the claw and remove the center instrument cluster finish panel sub-assembly.

iv.

Disconnect each connector.

v.

0,0 0,0 false

Protective Tape

Detach the guide.

vi.

Using a thin-bladed screwdriver, detach the claw and remove the No. 2 heater control cable sub-assembly and air mix damper control cable sub-assembly.

HINT:: Tape the thin-bladed screwdriver tip before use.

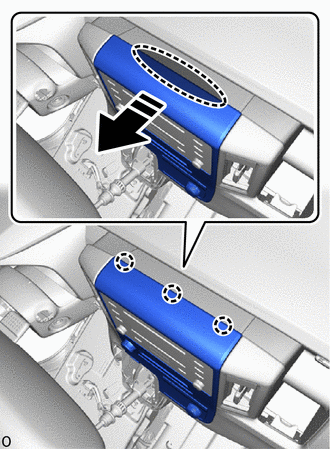

Hide Display 55900 39.REMOVE AIR CONDITIONING CONTROL ASSEMBLY (for Automatic Air Conditioning System)

a.

for Semi-trim:

i.

0,0 0,0 false

	Place Hand Here
	Remove in this Direction

Place your hand at the position shown in the illustration and pull in the direction indicated by the arrow to detach the claw.

ii.

0,0 0,0 false

	Place Hand Here
	Remove in this Direction

Place your hand at the position shown in the illustration and pull in the direction indicated by the arrow to detach the claw.

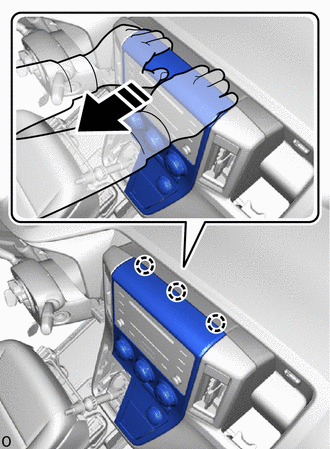

iii.

0,0 0,0 false

	Place Hands Here
	Remove in this Direction

Place both hands at the position shown in the illustration and pull in the direction indicated by the arrow to detach the claw and remove the air conditioning control assembly.

iv.

Disconnect each connector.

b.

for Full-trim:

i.

0.646,3.521 0.844,3.729 0.198,0.208 10 true (1) 1.198,3.635 1.396,3.844 0.198,0.208 10 true (2) 1.271,4.219 1.469,4.427 0.198,0.208 10 true (3) 2.302,4.135 2.5,4.344 0.198,0.208 10 true (4) 2.469,3.521 2.667,3.729 0.198,0.208 10 true (5) 2.594,2.948 2.792,3.156 0.198,0.208 10 true (6)

	Place Hand Here
	Remove in this Direction

Place your hand at the position shown in the illustration and pull in the direction indicated by the arrow to detach the claw in the order shown in the illustration.

ii.

0,0 0,0 false

Remove in this Direction

Place your hand at the position shown in the illustration and pull in the direction indicated by the arrow to detach the claw.

NOTICE:: ·

When removing forcibly, do not pull excessively.

·

If excessive force is applied to the air conditioning control assembly, it may become damaged.

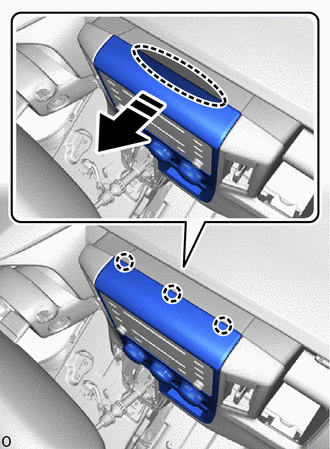

iii.

0,0 0,0 false

Remove in this Direction

Place your hand in the gap, pull in the direction indicated by the arrow shown in the illustration, detach the claw and remove the air conditioning control assembly.

iv.

Disconnect each connector.

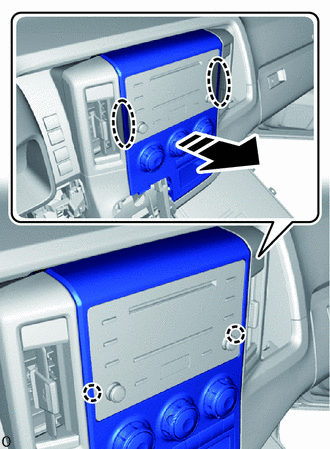

Hide Display 55410C 40.REMOVE INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY

a.

0,0 0,0 false

Remove in this Direction

Pull in the direction indicated by the arrow shown in the illustration to detach the claw and remove the instrument cluster finish panel assembly.

Hide Display 41.REMOVE RADIO RECEIVER ASSEMBLY WITH BRACKET (for Radio Receiver Type)

Click hereAudio / Visual / Telematics>AUDIO / VIDEO>RADIO RECEIVER>REMOVAL201902,202006,_56,_078377,_0380009,RM100000001FRAH_01_0010,202006,999999,_56,_078377,_0380009,RM100000001P9CA_01_0010,

Hide Display 42.REMOVE RADIO AND DISPLAY RECEIVER ASSEMBLY WITH BRACKET (for Radio and Display Type)

Click hereAudio / Visual / Telematics>AUDIO / VIDEO>RADIO RECEIVER>REMOVAL201902,202006,_56,_078377,_0380009,RM100000001FRAH_01_0011,202006,999999,_56,_078377,_0380009,RM100000001P9CA_01_0011,

Hide Display 43.REMOVE DISPLAY AND NAVIGATION ASSEMBLY WITH BRACKET (w/ Navigation System)

Click hereAudio / Visual / Telematics>NAVIGATION / MULTI INFO DISPLAY>NAVIGATION ECU>REMOVAL201906,202006,_56,_078379,_0380007,RM100000001IUOL_01_0001,202006,999999,_56,_078379,_0380007,RM100000001P9CW_01_0001,

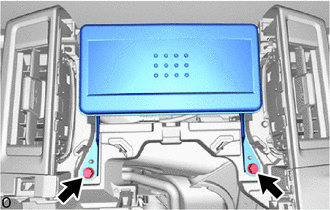

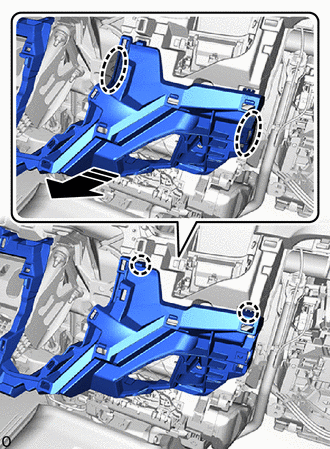

Hide Display 44.REMOVE RADIO TUNER OPENING COVER WITH BRACKET (w/ Radio Receiver Opening Cover)

a.

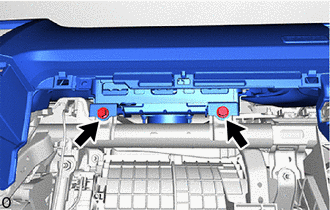

Remove the 2 bolts.

b.

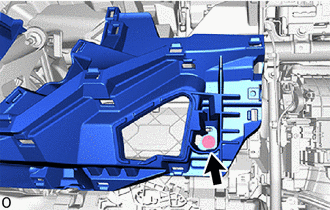

Remove the 2 bolts.

c.

0,0 0,0 false

Remove in this Direction

Detach the guide and remove the radio tuner opening cover with bracket.

Hide Display 55434B 45.REMOVE CENTER LOWER INSTRUMENT PANEL FINISH PANEL

a.

for Semi-trim:

i.

0,0 0,0 false

Bolt

Remove the bolt .

ii.

0,0 0,0 false

	Place Hand Here
	Remove in this Direction

Place your hand at the position shown in the illustration and pull in the direction indicated by the arrow to detach the claw and guide.

iii.

0,0 0,0 false

Remove in this Direction

Pull in the direction indicated by the arrow shown in the illustration to detach the claw.

iv.

0,0 0,0 false

	Place Hand Here
	Remove in this Direction

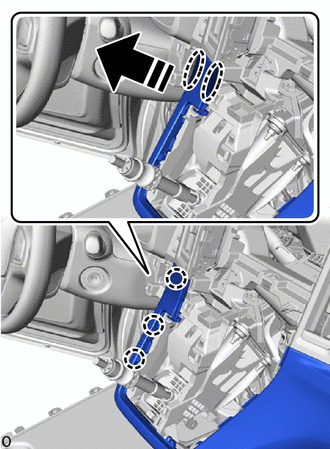

Place your hand at the position shown in the illustration, pull in the direction indicated by the arrow to detach the claw and remove the center lower instrument panel finish panel.

b.

for Full-trim:

i.

0,0 0,0 false

Bolt

Remove the bolt .

ii.

0,0 0,0 false

	Place Hand Here
	Remove in this Direction

Place your hand at the position shown in the illustration and pull in the direction indicated by the arrow to detach the claw and guide.

iii.

0,0 0,0 false

Remove in this Direction

Pull in the direction indicated by the arrow shown in the illustration to detach the claw and remove the center lower instrument panel finish panel.

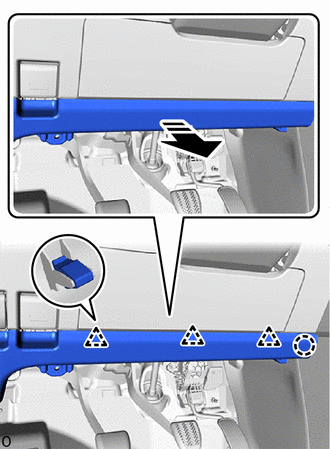

Hide Display 55320 46.REMOVE LOWER NO. 2 INSTRUMENT PANEL ASSEMBLY

a.

Open the glove compartment door assembly.

b.

0,0 0,0 false

Protective Tape

Using a thin-bladed screwdriver, detach the claw and remove the instrument panel box door knob.

HINT:: Tape the thin-bladed screwdriver tip before use.

c.

0,0 0,0 false

Bolt

Remove the 5 bolts .

d.

0,0 0,0 false

Remove in this Direction

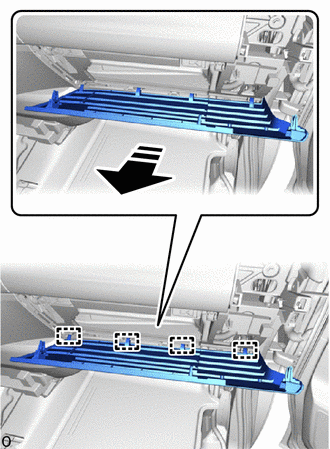

Pull in the direction indicated by the arrow shown in the illustration to detach the claw and remove the lower No. 2 instrument panel assembly.

e.

w/ Illumination:

i.

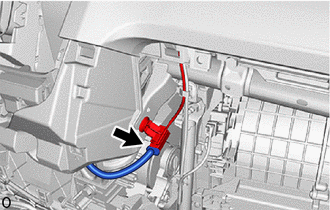

Disconnect the connector.

Hide Display 55414A 47.REMOVE INSTRUMENT CLUSTER FINISH PANEL END (for Semi-trim)

a.

0,0 0,0 false

	Place Hands Here
	Remove in this Direction

Place both hands at the position shown in the illustration, pull in the direction indicated by the arrow to detach the claw and remove the instrument cluster finish panel end.

Hide Display 55413D 48.REMOVE CENTER LOWER INSTRUMENT CLUSTER FINISH PANEL

a.

for Semi-trim:

i.

0,0 0,0 false

	Place Hand Here
0,0 0,0 false	Remove in this Direction

Place your hand at the position shown in the illustration and pull in the direction indicated by the arrow to detach the claw.

ii.

0,0 0,0 false

	Place Hand Here
	Remove in this Direction

Place your hand at the position shown in the illustration, pull in the direction indicated by the arrow to detach the claw and remove the center lower instrument cluster finish panel.

b.

for Full-trim:

i.

0,0 0,0 false

	Place Hands Here
	Remove in this Direction

Place both hands at the position shown in the illustration and pull in the direction indicated by the arrow to detach the claw.

ii.

0,0 0,0 false

	Place Hand Here
	Remove in this Direction

Place your hand at the position shown in the illustration and pull in the direction indicated by the arrow to detach the claw.

iii.

0,0 0,0 false

	Place Hands Here
	Remove in this Direction

Place both hands at the position shown in the illustration, pull in the direction indicated by the arrow to detach the claw and remove the center lower instrument cluster finish panel.

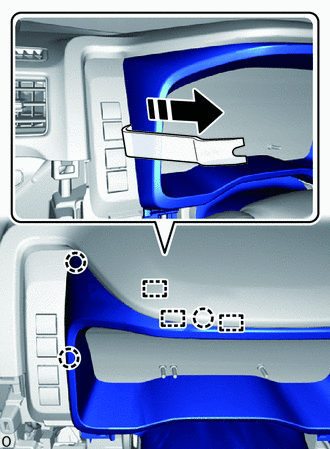

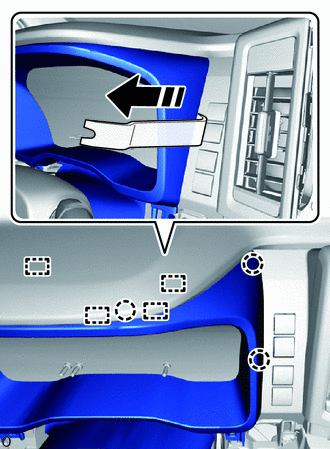

Hide Display 55404E 49.REMOVE UPPER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY

a.

0,0 0,0 false

Remove in this Direction

Using moulding remover A, pull in the direction indicated by the arrow shown in the illustration to detach the claw.

b.

0,0 0,0 false

	Place Hand Here
	Remove in this Direction

Place your hand at the position shown in the illustration and pull in the direction indicated by the arrow to detach the claw.

c.

0,0 0,0 false

Remove in this Direction

Using moulding remover B, detach the claw and guide.

d.

0,0 0,0 false

Remove in this Direction

Using moulding remover B, detach the claw and guide.

e.

0,0 0,0 false

	Place Hand Here
	Remove in this Direction

Place your hand at the position shown in the illustration, detach the claw and guide and remove the upper instrument cluster finish panel sub-assembly.

Hide Display 83100 50.REMOVE COMBINATION METER ASSEMBLY

Click hereVehicle Interior>METER / GAUGE / DISPLAY>COMBINATION METER>REMOVAL201906,999999,_58,_078337,_0380006,RM100000001IHHE_01_0004,

Hide Display 55670 51.REMOVE NO. 3 INSTRUMENT PANEL REGISTER ASSEMBLY

a.

0,0 0,0 false

	Place Hand Here
	Remove in this Direction

Place your hand at the position shown in the illustration, pull in the direction indicated by the arrow to detach the claw and remove the No. 3 instrument panel register assembly.

b.

Disconnect the connector.

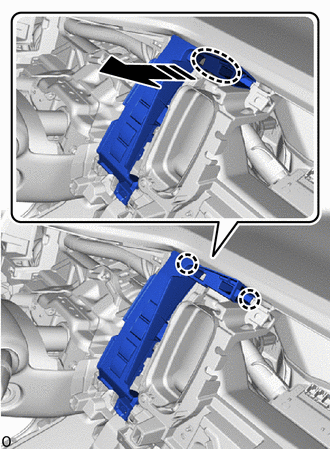

Hide Display 55680A 52.REMOVE NO. 4 INSTRUMENT PANEL REGISTER ASSEMBLY

a.

0,0 0,0 false

	Place Hand Here
	Remove in this Direction

Place your hand at the position shown in the illustration and pull in the direction indicated by the arrow to detach the claw.

b.

0,0 0,0 false

	Place Hand Here
	Remove in this Direction

Place your hand at the position shown in the illustration, pull in the direction indicated by the arrow to detach the claw and remove the No. 4 instrument panel register assembly.

Hide Display 55446A 53.REMOVE NO. 1 SWITCH HOLE BASE

a.

0,0 0,0 false

	Place Hand Here
	Remove in this Direction

Place your hand at the position shown in the illustration, pull in the direction indicated by the arrow to detach the claw and remove the No. 1 switch hole base.

Hide Display 55447C 54.REMOVE NO. 2 SWITCH HOLE BASE

a.

0,0 0,0 false

	Place Hand Here
	Remove in this Direction

Place your hand at the position shown in the illustration and pull in the direction indicated by the arrow to detach the claw.

b.

0,0 0,0 false

	Place Hand Here
	Remove in this Direction

Place your hand at the position shown in the illustration, pull in the direction indicated by the arrow to detach the claw and remove the No. 2 switch hole base.

c.

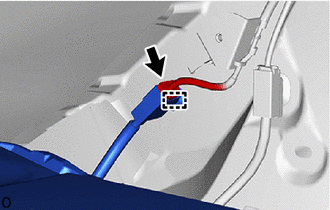

Disconnect each connector.

Hide Display 55476A 55.REMOVE NO. 3 INSTRUMENT CLUSTER FINISH PANEL GARNISH

a.

0,0 0,0 false

	Place Hand Here
	Remove in this Direction

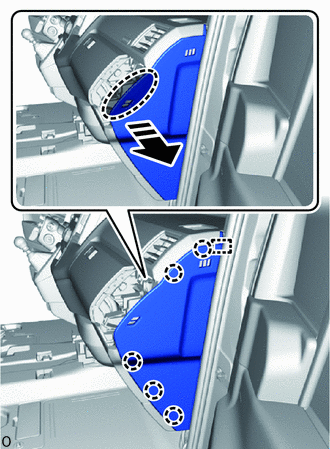

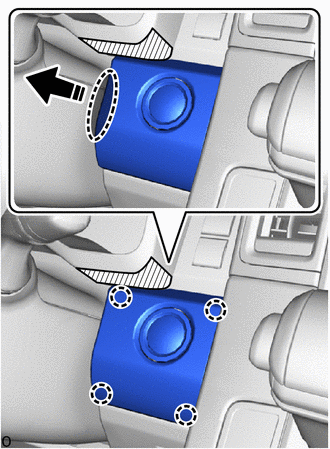

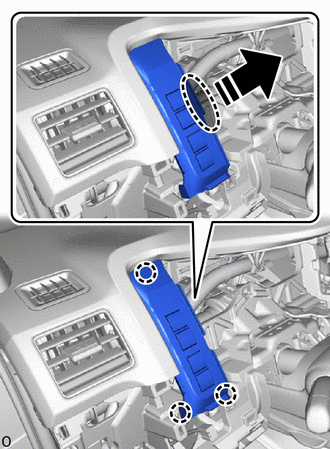

Place your hand at the position shown in the illustration, pull in the direction indicated by the arrow to detach the claw and guide and remove the No. 3 instrument cluster finish panel garnish.

Hide Display 55314A 56.REMOVE CENTER LOWER INSTRUMENT PANEL (for Semi-trim)

a.

0,0 0,0 false

Screw <C>

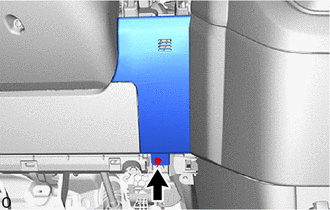

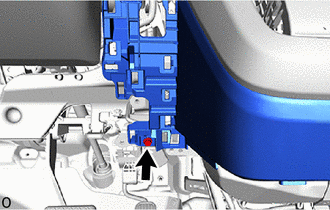

Remove the screw <C>.

b.

for Automatic Transmission:

i.

0,0 0,0 false

	Place Hands Here
	Remove in this Direction

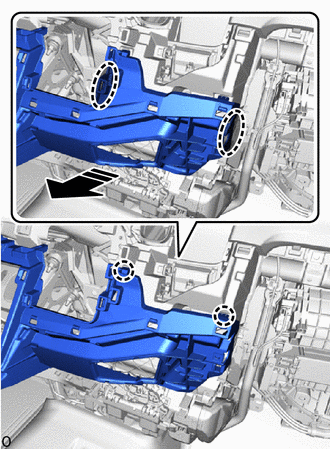

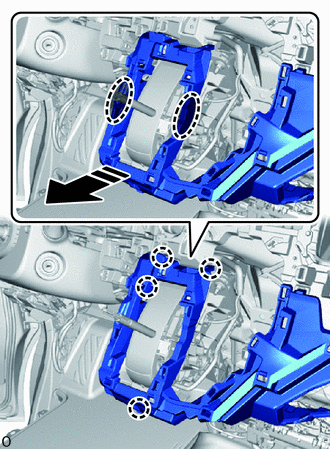

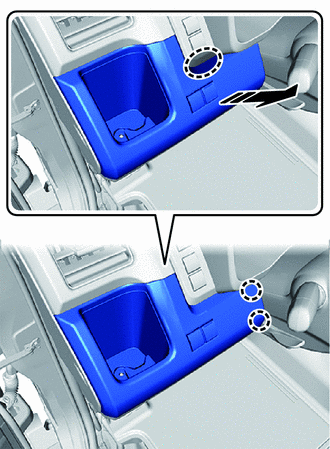

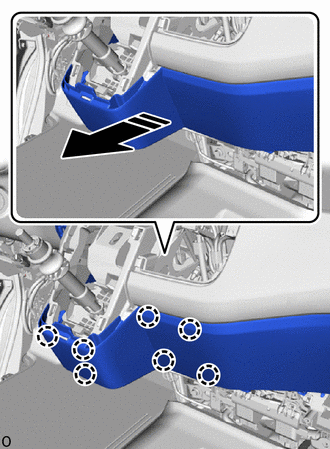

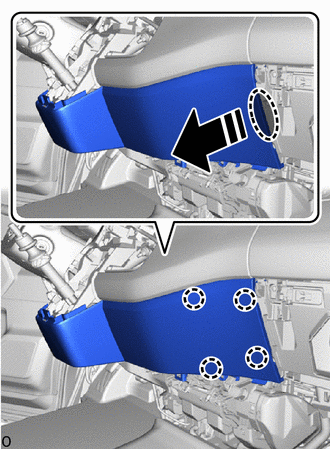

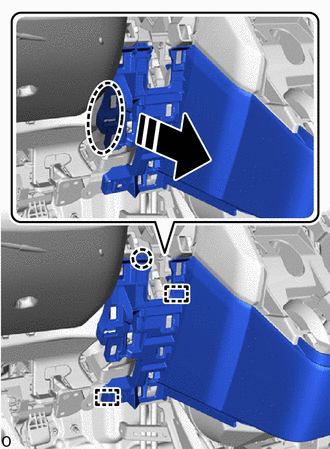

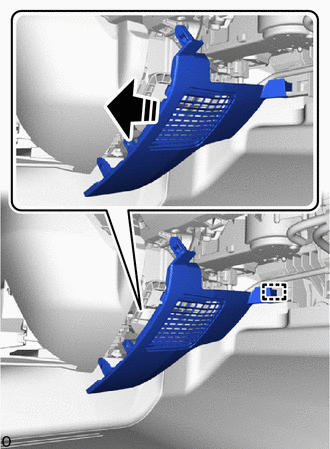

Place both hands at the position shown in the illustration and pull in the direction indicated by the arrow to detach the claw.

ii.

0,0 0,0 false

	Place Hands Here
	Remove in this Direction

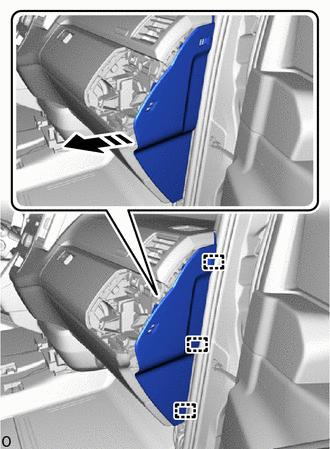

Place both hands at the position shown in the illustration, pull in the direction indicated by the arrow to detach the claw and remove the center lower instrument panel.

c.

for Manual Transmission:

i.

0,0 0,0 false

	Place Hands Here
	Remove in this Direction

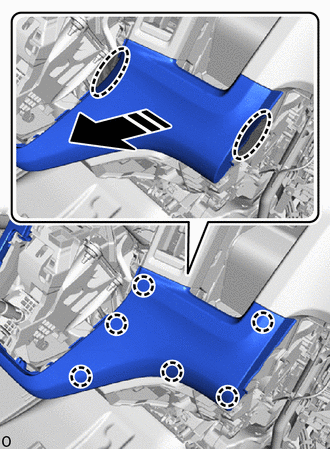

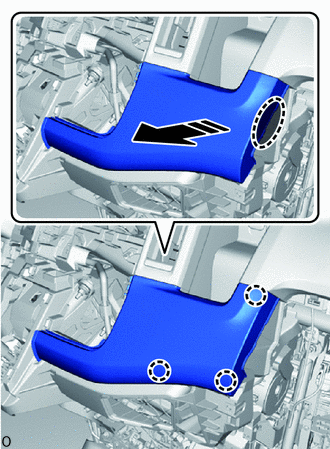

Place both hands at the position shown in the illustration and pull in the direction indicated by the arrow to detach the claw.

ii.

0,0 0,0 false

	Place Hands Here
	Remove in this Direction

Place both hands at the position shown in the illustration, pull in the direction indicated by the arrow to detach the claw and remove the center lower instrument panel.

Hide Display 55314A 57.REMOVE CENTER LOWER INSTRUMENT PANEL (for Full-trim)

a.

0,0 0,0 false

Screw <C>

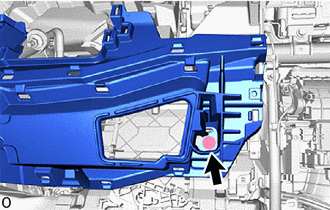

Remove the screw <C>.

b.

for Automatic Transmission:

i.

0,0 0,0 false

	Place Hands Here
	Remove in this Direction

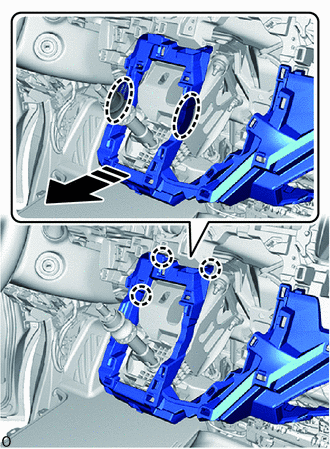

Place both hands at the position shown in the illustration and pull in the direction indicated by the arrow to detach the claw.

ii.

0,0 0,0 false

	Place Hands Here
	Remove in this Direction

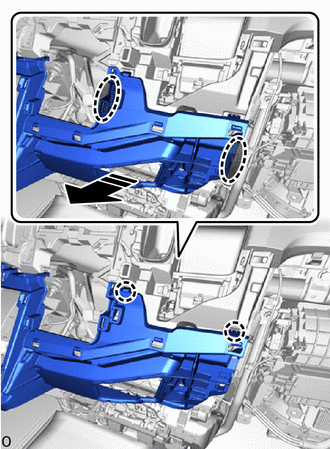

Place both hands at the position shown in the illustration, pull in the direction indicated by the arrow to detach the claw and remove the center lower instrument panel.

c.

for Manual Transmission:

i.

0,0 0,0 false

	Place Hands Here
	Remove in this Direction

Place both hands at the position shown in the illustration and pull in the direction indicated by the arrow to detach the claw.

ii.

0,0 0,0 false

	Place Hands Here
	Remove in this Direction

Place both hands at the position shown in the illustration, pull in the direction indicated by the arrow to detach the claw and remove the center lower instrument panel.

Hide Display 62312B 58.REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP LH

a.

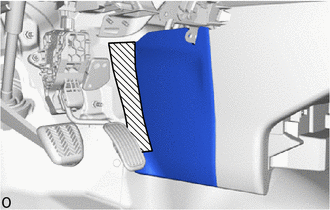

Remove the front door opening trim weatherstrip LH from the area shown in the illustration.

Hide Display 62311B 59.REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP RH

HINT:: Use the same procedure described for the LH side.

Hide Display 74680 60.REMOVE PILLAR ASSIST GRIP ASSEMBLY LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>REMOVAL201906,202208,_58,_078375,_0381233,RM100000001IXV4_02_0003,202208,999999,_58,_078375,_0381233,RM1000000024I19_02_0004,

Hide Display 74680 61.REMOVE PILLAR ASSIST GRIP ASSEMBLY RH

HINT:: Use the same procedure described for the LH side.

Hide Display 62212 62.REMOVE FRONT PILLAR GARNISH LH

a.

except Wagon:

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>REMOVAL201906,202208,_58,_078375,_0381233,RM100000001IXV4_02_0005,202208,999999,_58,_078375,_0381233,RM1000000024I19_02_0005,

b.

for Wagon:

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Wagon)>REMOVAL201906,999999,_58,_078375,_0396474,RM100000001IHQ5_02_0013,

Hide Display 62211 63.REMOVE FRONT PILLAR GARNISH RH

HINT:: Use the same procedure described for the LH side.

Hide Display 64.REMOVE TRANSMISSION INSTRUMENT PANEL SHIFT ASSEMBLY (for Automatic Transmission)

Click hereDrivetrain>AC60E (AUTOMATIC TRANSMISSION / TRANSAXLE)>SHIFT LEVER>REMOVAL201902,999999,_52,_078741,_0382079,RM100000001G8MU_01_0005,

Hide Display 55301 65.REMOVE INSTRUMENT PANEL SUB-ASSEMBLY (except Wagon)

a.

for LHD:

i.

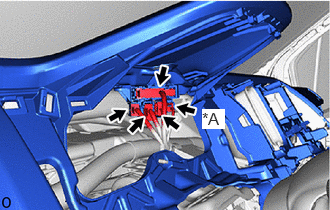

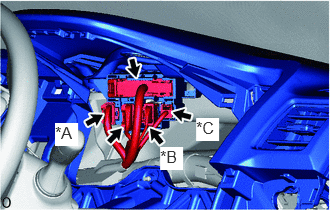

2.104,1.135 2.344,1.344 0.24,0.208 12 true *C 0.813,1.198 1.052,1.406 0.24,0.208 12 true *A 1.865,1.417 2.104,1.625 0.24,0.208 12 true *B

*A	w/ Solar Sensor
*B	w/ Front Passenger Airbag
*C	w/ Parking Assist Monitor System

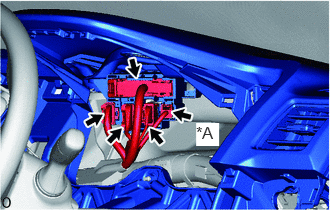

Disconnect each connector.

ii.

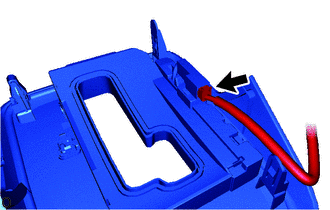

Disconnect the connector and detach the clamp.

iii.

w/ Telematics Transceiver:

Disconnect the connector.

iv.

0,0 0,0 false

Remove in this Direction

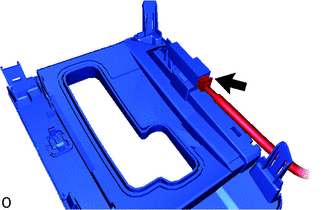

Detach the claw and remove the connector holder.

v.

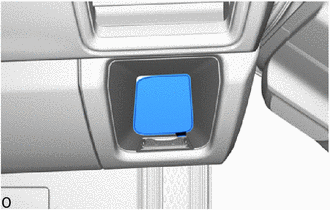

Detach the claw and remove the DLC3.

vi.

0,0 0,0 false

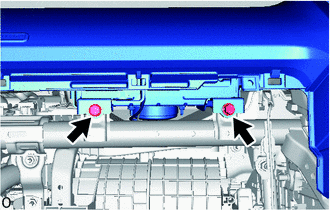

Bolt <D>

Remove the 2 bolts <D>.

vii.

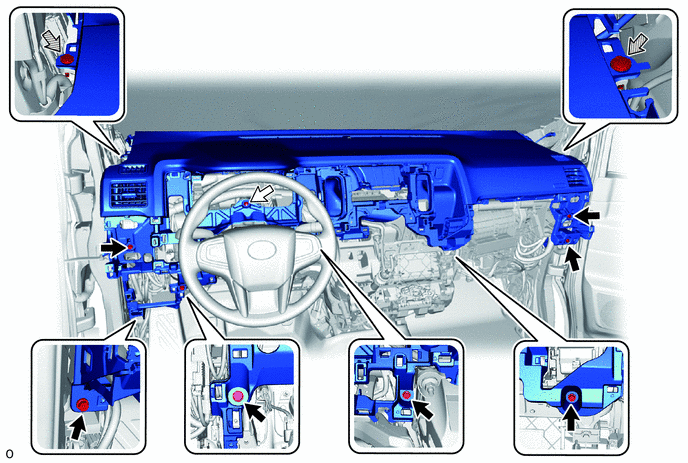

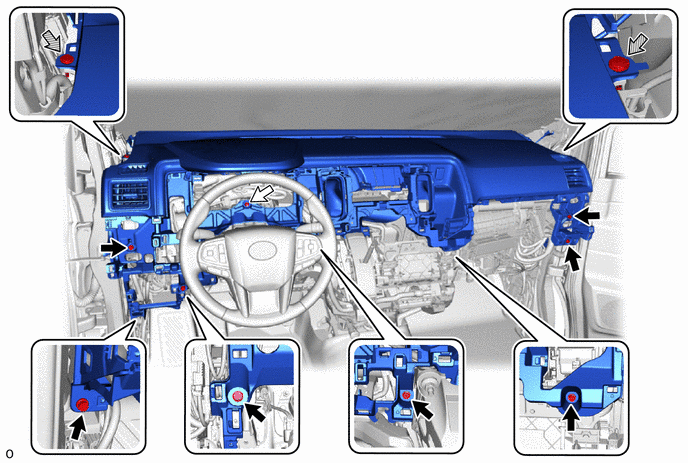

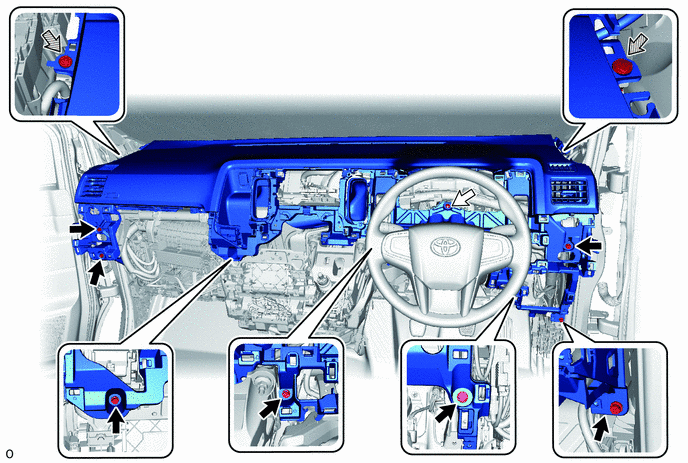

Remove the 7 bolts , nut <G> and 2 clips <F>.

0,0 0,0 false

	Bolt <B>		Nut <G>
	Clip <F>	-	-

viii.

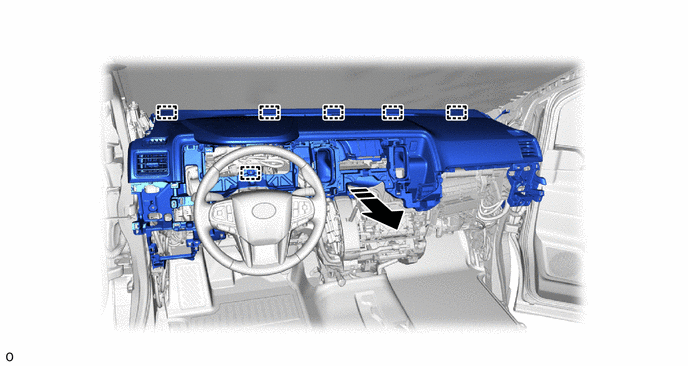

Pull in the direction indicated by the arrow shown in the illustration, detach the guide and remove the instrument panel sub-assembly.

0,0 0,0 false

Remove in this Direction

-

ix.

0,0 0,0 false

Remove in this Direction

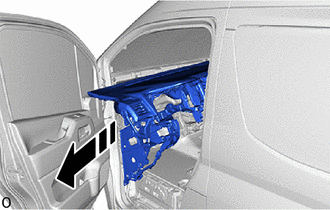

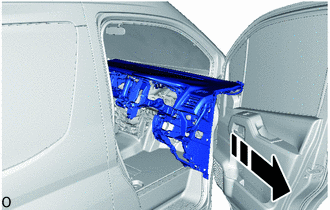

Remove the instrument panel sub-assembly from the front door as shown in the illustration.

b.

for RHD:

i.

0.573,1.281 0.813,1.521 0.24,0.24 12 true *A 1.667,1.531 1.906,1.771 0.24,0.24 12 true *B 2.042,1.229 2.281,1.469 0.24,0.24 12 true *C

*A	w/ Solar Sensor or w/ Blind Spot Monitor System
*B	w/ Front Passenger Airbag
*C	w/ Parking Assist Monitor System

Disconnect each connector.

ii.

Disconnect the connector and detach the clamp.

iii.

Detach the claw and remove the DLC3.

iv.

0,0 0,0 false

Bolt <D>

Remove the 2 bolts <D>.

v.

Remove the 7 bolts , nut <G> and 2 clips <F>.

0,0 0,0 false

	Bolt <B>		Nut <G>
	Clip <F>	-	-

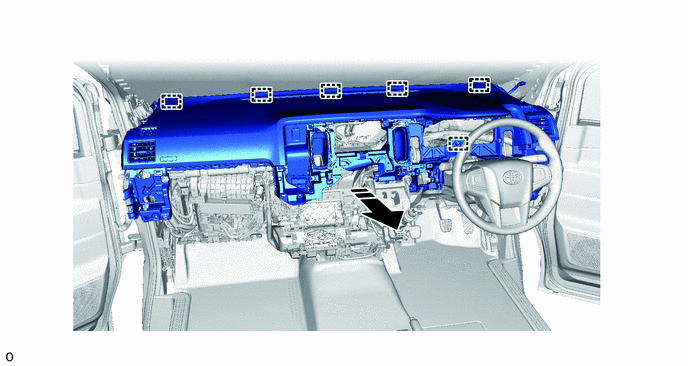

vi.

Pull in the direction indicated by the arrow shown in the illustration, detach the guide and remove the instrument panel sub-assembly.

0,0 0,0 false

Remove in this Direction

-

vii.

0,0 0,0 false

Remove in this Direction

Remove the instrument panel sub-assembly from the front door as shown in the illustration.

Hide Display 55301 66.REMOVE INSTRUMENT PANEL SUB-ASSEMBLY (for Wagon)

a.

for LHD:

i.

2.104,1.135 2.344,1.344 0.24,0.208 12 true *A

*A	w/ Parking Assist Monitor System

Disconnect each connector.

ii.

Disconnect the connector and detach the clamp.

iii.

w/ Telematics Transceiver:

Disconnect the connector.

iv.

0,0 0,0 false

Remove in this Direction

Detach the claw and remove the connector holder.

v.

Detach the claw and remove the DLC3.

vi.

0,0 0,0 false

Bolt <D>

Remove the 2 bolts <D>.

vii.

Remove the 7 bolts , nut <G> and 2 clips <F>.

0,0 0,0 false

	Bolt <B>		Nut <G>
	Clip <F>	-	-

viii.

Pull in the direction indicated by the arrow shown in the illustration, detach the guide and remove the instrument panel sub-assembly.

0,0 0,0 false

Remove in this Direction

-

ix.

0,0 0,0 false

Remove in this Direction

Remove the instrument panel sub-assembly from the front door as shown in the illustration.

b.

for RHD:

i.

2.042,1.281 2.281,1.521 0.24,0.24 12 true *A

*A	w/ Parking Assist Monitor System

Disconnect each connector.

ii.

Disconnect the connector and detach the clamp.

iii.

Detach the claw and remove the DLC3.

iv.

0,0 0,0 false

Bolt <D>

Remove the 2 bolts <D>.

v.

Remove the 7 bolts , nut <G> and 2 clips <F>.

0,0 0,0 false

	Bolt <B>		Nut <G>
	Clip <F>	-	-

vi.

Pull in the direction indicated by the arrow shown in the illustration, detach the guide and remove the instrument panel sub-assembly.

0,0 0,0 false

Remove in this Direction

-

vii.

0,0 0,0 false

Remove in this Direction

Remove the instrument panel sub-assembly from the front door as shown in the illustration.

INTERIOR PANELS / TRIM INSTRUMENT PANEL SAFETY PAD REMOVAL

CAUTION / NOTICE / HINT

PROCEDURE
