AC60E AUTOMATIC TRANSMISSION / TRANSAXLE SHIFT LEVER REMOVAL

CAUTION / NOTICE / HINT

HINT:: ·

Use the same procedure for RHD and LHD vehicles.

·

The procedure listed below is for LHD vehicles.

Hide Display 1.SECURE VEHICLE

Fully apply the parking brake and chock a wheel.

CAUTION:: ·

Make sure to apply the parking brake and chock a wheel before performing this procedure.

·

If the vehicle is not secure and the shift lever is moved to N, the vehicle may suddenly move, possibly resulting in an accident or serious injury.

Hide Display 55314A 2.REMOVE CENTER LOWER INSTRUMENT PANEL

Hide Display 87211 3.REMOVE NO. 1 AIR DUCT (for LHD)

Hide Display 87211 4.REMOVE NO. 1 AIR DUCT (for RHD)

Hide Display 33820B 5.DISCONNECT TRANSMISSION CONTROL CABLE ASSEMBLY

Hide Display 6.REMOVE TRANSMISSION INSTRUMENT PANEL SHIFT ASSEMBLY

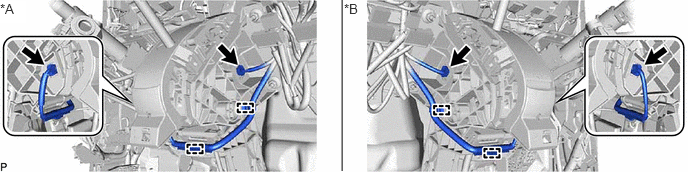

Disconnect the 2 connectors from the transmission instrument panel shift assembly.

3.563,1.781 3.563,0 false 0,0.01 0.271,0.24 0.271,0.229 10 true *A 3.583,0.01 3.896,0.167 0.313,0.156 10 false *B

for LHD

for RHD

Detach the 2 wire harness clamps and disconnect the wire harness from the transmission instrument panel shift assembly.

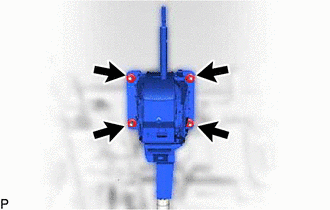

Remove the 4 nuts and transmission instrument panel shift assembly from the vehicle body.
