HEATING / AIR CONDITIONING  AIR CONDITIONING AMPLIFIER  REMOVAL


CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed, installed, or replaced during the front air conditioning amplifier removal/installation are shown below.

Necessary Procedure After Parts Removed/Installed/Replaced
Replacement part or procedure Necessary procedures Effect/Inoperative Function When Necessary Procedures are not Performed Link
Disconnect cable from negative (-) battery terminal Memorize steering angle neutral point Parking assist monitor system (Click here)
Panoramic view monitor system (Click here)
w/ Stop and Start System:

Air conditioning amplifier assembly


·

Reset air conditioning information

·

Learning air conditioning information


Stop and start system (Click here)
for Automatic Air Conditioning System:

Air conditioning amplifier assembly


Servo motor initialization DTCs are output (Click here)

HINT:
·

When the cable is disconnected / reconnected to the battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

-

Learning completes when vehicle is driven

Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link

*: w/ Stop and start system

Stop and start system* Drive the vehicle until stop and start control is permitted (approximately 5 to 60 minutes). (Click here)
Lane control system Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more. (Click here)
Pre-collision system

-

Learning completes when vehicle is operated normally

Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link
Power slide door system Fully close the slide door by hand.
HINT:

Initialization is not necessary if the above procedures are performed while the slide door is closed.


(Click here)
Air conditioning system After the ignition switch is turned to ON, the servo motor standard position is recognized. -


·

Use the same procedure for RHD and LHD vehicles.

·

The procedure listed below is for LHD vehicles.



PROCEDURE

Hide 2.DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL


CAUTION:
B422343

·

Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

·

If the airbag deploys for any reason, it may cause a serious accident.



Hide 88650N 8.REMOVE AIR CONDITIONING AMPLIFIER ASSEMBLY (for LHD)

a.

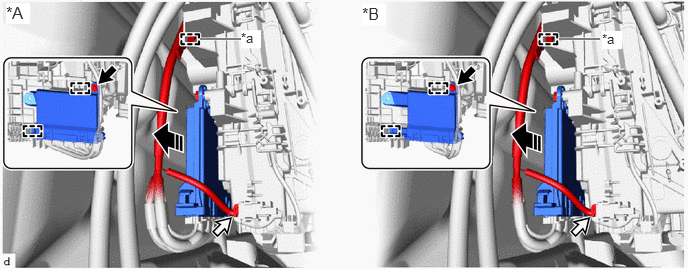

Remove the screw.

E415416C01
2.083,0.406 2.51,0.406 true 5.823,0.406 6.25,0.406 true 0.063,0.031 0.313,0.25 0.25,0.219 12 true *A 3.771,0.042 4.021,0.26 0.25,0.219 12 true *B 2.51,0.313 2.719,0.5 0.208,0.188 10 true *a 6.271,0.323 6.479,0.51 0.208,0.188 10 true *a
*A for Automatic Air Conditioning System *B for Manual Air Conditioning System
*a Clamp - -
V100135

Screw
V100136

Connector
V113147

Remove in this Direction - -



b.

Detach the clamp.


c.

Disconnect the connector.


d.

Detach the guide and remove the air conditioning amplifier assembly as shown in the illustration.


e.

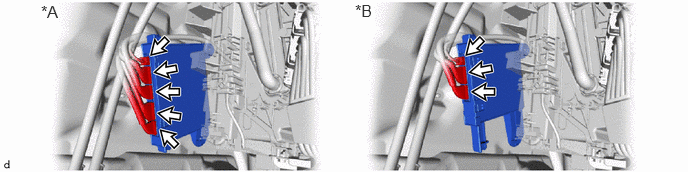

Disconnect each connector and remove the air conditioning amplifier assembly.

E415417C01
0.427,0.021 0.688,0.208 0.26,0.188 12 false *A 3.698,0.01 3.979,0.198 0.281,0.188 12 false *B
*A for Automatic Air Conditioning System *B for Manual Air Conditioning System



Hide 62111C 11.REMOVE COWL SIDE TRIM BOARD RH (for RHD)

Hide 88650N 14.REMOVE AIR CONDITIONING AMPLIFIER ASSEMBLY (for RHD)

a.

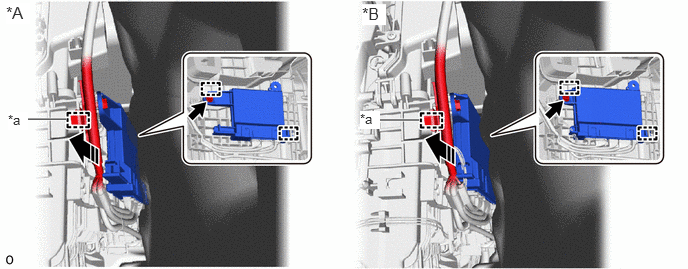

Remove the screw.

E421716C01
0.26,1.24 0.688,1.24 true 3.938,1.25 4.365,1.25 true 0.063,0.031 0.313,0.25 0.25,0.219 12 true *A 3.771,0.042 4.021,0.26 0.25,0.219 12 true *B 0.083,1.167 0.292,1.354 0.208,0.188 10 true *a 3.75,1.156 3.958,1.344 0.208,0.188 10 true *a
*A for Manual Air Conditioning System *B for Automatic Air Conditioning System
*a Clamp - -
V113147

Remove in this Direction - -



b.

Detach the clamp.


c.

Detach the guide to remove the air conditioning amplifier assembly as shown in the illustration.


d.

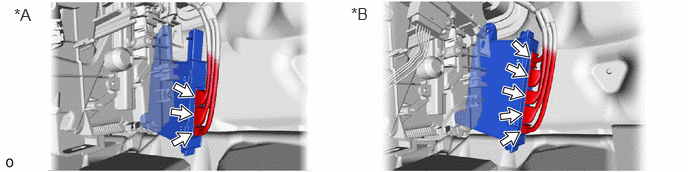

Disconnect each connector and remove the air conditioning amplifier assembly.

E421717C01
0.146,0.052 0.521,0.292 0.375,0.24 12 false *A 3.656,0.042 4.031,0.281 0.375,0.24 12 false *B
*A for Manual Air Conditioning System *B for Automatic Air Conditioning System
