MAINTENANCE 7GR-FKS BATTERY REMOVAL
CAUTION / NOTICE / HINT
The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed, installed, or replaced during the battery removal/installation are shown below.
| Replaced Part or Performed Procedure | Necessary Procedure | Effect/Inoperative Function when Necessary Procedure not Performed | Link |
|---|---|---|---|
| Battery terminal is disconnected/reconnected | Memorize steering angle neutral point | Parking assist monitor system | ( 201902,999999,_56,_079315,_0385736,RM100000001GNRA,)
|
| Panoramic view monitor system | (201906,999999,_56,_079315,_0396274,RM100000001IGR3,)
|
- HINT:
-
When the cable is disconnected / reconnected to the battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.
- ·
Learning completes when vehicle is driven
Effect/Inoperative when not Performed Necessary Procedures Link Lane control system Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more. ( 201902,999999,_58,_078886,_0382740,RM100000001G6XB,)
Pre-collision system
·Learning completes when vehicle is operated normally
Effect/Inoperative when not Performed Necessary Procedures Link Power slide door system Fully close the slide door by hand.
- HINT:
-
Initialization is not necessary if the above procedures are performed while the slide door is closed.
( 201902,999999,_59,_078503,_0381017,RM100000001FWXM,)
Air conditioning system After the ignition switch is turned to ON, the servo motor standard position is recognized. -
CAUTION / NOTICE / HINT
PROCEDURE
1. PRECAUTION
- NOTICE:
- ·
After turning the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) battery terminal.
·When replacing the battery, use a new battery of the same dimensions with a capacity of 70 Ah or more at a 20-hour rate.
67925D
2.REMOVE DOOR SCUFF PLATE COVER
|
Remove in this Direction |

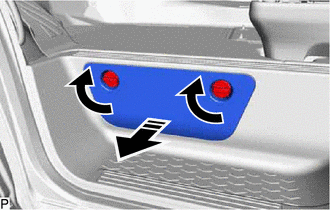

Turn the 2 knobs right to release the lock and remove the door scuff plate cover.
58207E
3.REMOVE FRONT BATTERY SERVICE HOLE COVER SUB-ASSEMBLY LH
|
|
Remove in this Direction |

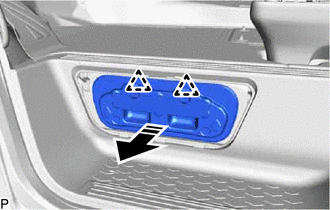

Place your hands as shown and pull toward the outer side to remove the front battery service hole cover sub-assembly LH.
4.DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
- CAUTION:
-
- ·
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.
·If the airbag deploys for any reason, it may cause a serious accident.

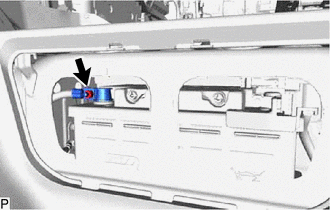

Loosen the nut, and disconnect the cable from the negative (-) battery terminal.
67912A
5.REMOVE OUTSIDE DOOR SCUFF PLATE

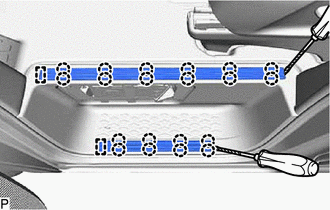

Insert a screwdriver into the gap, detach the claw and remove the 2 outside door scuff plates.
67914B
6.REMOVE FRONT DOOR SCUFF PLATE LH

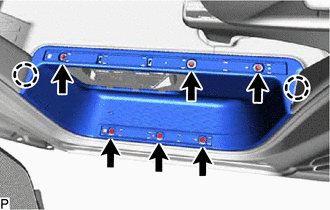

Remove the 6 bolts.
Detach the 2 claws and remove the front door scuff plate LH.
58408F
7.REMOVE BATTERY SERVICE HOLE COVER SUB-ASSEMBLY LH

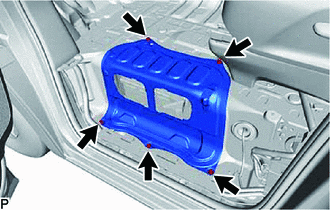

Remove the 5 bolts.
|
|
Remove in this Direction |

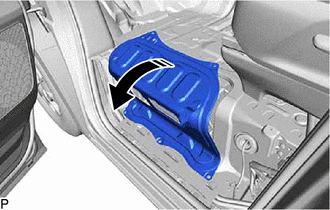

Hold the top part of the battery service hole cover sub-assembly LH and tilt it toward the outer side.
|
|
Remove in this Direction |

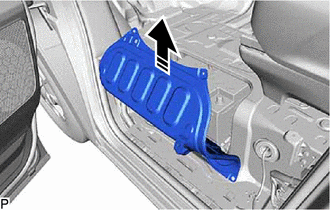

Lift it further up and remove the battery service hole cover sub-assembly LH.
28800
8.REMOVE BATTERY

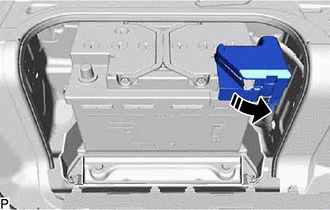

Open the connector cover.

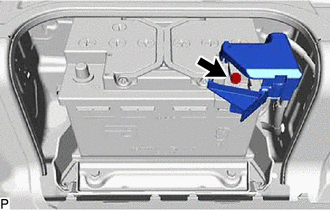

Loosen the nut and disconnect the cable from the positive (+) battery terminal.

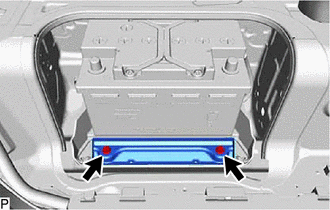

Remove the 2 bolts and battery clamp.
|
|
Remove in this Direction |

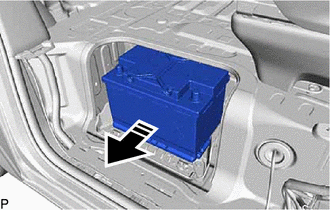

Slide the battery to the outer side.
|
|
Remove in this Direction |

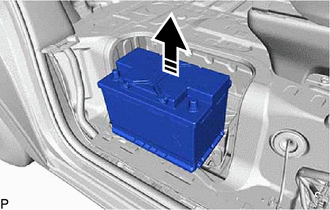

Lift the battery and remove it from the vehicle.
