RM35X0E _58 Vehicle Interior _078601 SEAT _0396334 SEAT RAIL A

SEAT SEAT RAIL INSTALLATION

CAUTION / NOTICE / HINT

CAUTION:: ·

Wear protective gloves. Sharp areas on the parts may injure your hands.

·

There is risk of injury.

HINT:: ·

Use the same procedure for RHD and LHD vehicles.

·

The procedures listed below are for LHD vehicles.

·

The procedure listed below is a representative example.

PROCEDURE

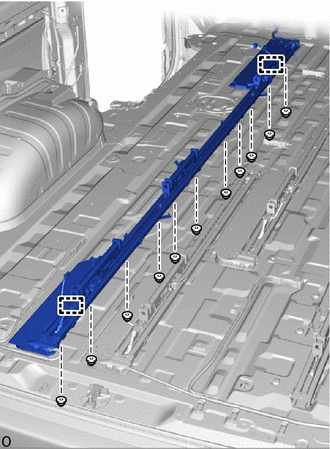

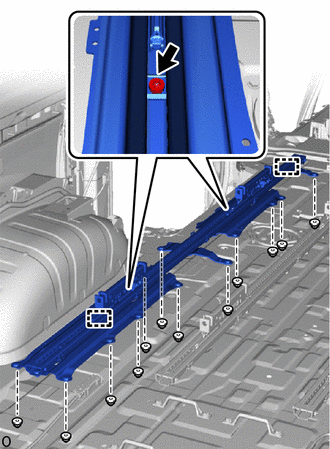

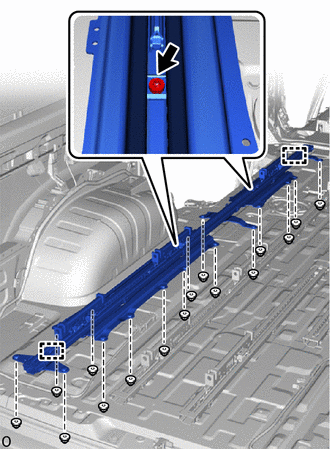

Hide Display 72170A 1.INSTALL REAR OUTER SEAT TRACK ASSEMBLY LH

for Folding Seat Type:

Attach the guide.

ii.

Using a T50 "TORX" socket wrench, tighten the 2 "TORX" bolts.

Torque:: 39 N*m (398 kgf*cm, 29 ft.*lbf)

iii.

Install the rear outer seat track assembly LH by installing the 12 nuts to the bottom of the vehicle.

Torque:: 72 N*m (734 kgf*cm, 53 ft.*lbf)

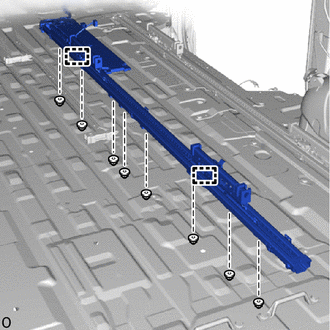

except Folding Seat Type:

Attach the guide.

ii.

Using a T50 "TORX" socket wrench, tighten the 2 "TORX" bolts.

Torque:: 39 N*m (398 kgf*cm, 29 ft.*lbf)

iii.

Install the rear outer seat track assembly LH by installing the 16 nuts to the bottom of the vehicle.

Torque:: 72 N*m (734 kgf*cm, 53 ft.*lbf)

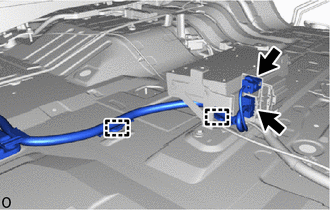

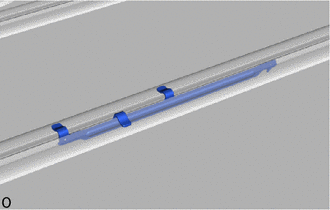

Hide Display 82807 2.INSTALL WIRING HARNESS PROTECTOR SET (w/ Power Supply Unit)

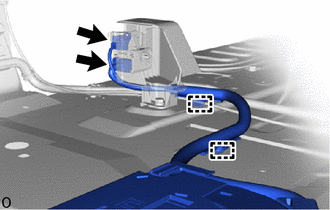

Attach the clamp and install the wiring harness protector set with the 2 nuts.

Connect the connector.

Attach the clamp.

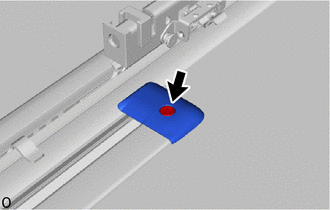

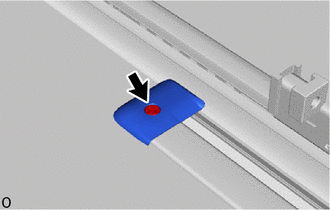

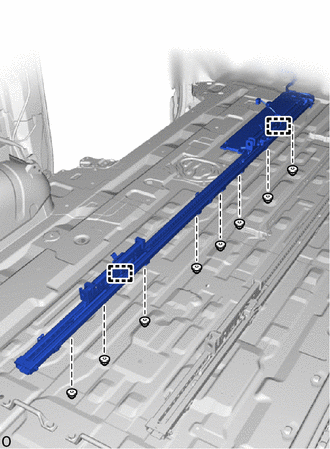

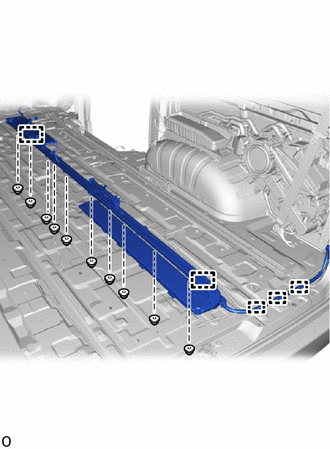

Hide Display 72190E 3.INSTALL REAR INNER SEAT TRACK ASSEMBLY LH

for Folding Seat Type:

Attach the guide.

ii.

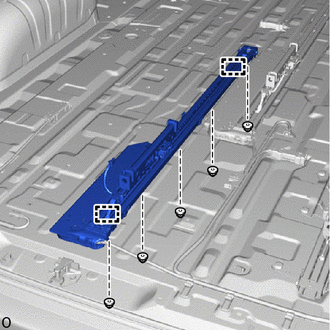

Install the rear inner seat track assembly LH by installing the 8 nuts to the bottom of the vehicle.

Torque:: 72 N*m (734 kgf*cm, 53 ft.*lbf)

except Folding Seat Type:

Attach the guide.

ii.

Install the rear inner seat track assembly LH by installing the 11 nuts to the bottom of the vehicle.

Torque:: 72 N*m (734 kgf*cm, 53 ft.*lbf)

iii.

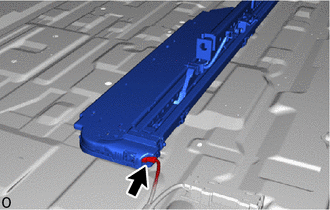

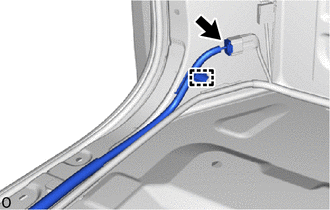

w/ Power Supply Unit:

Connect the connector.

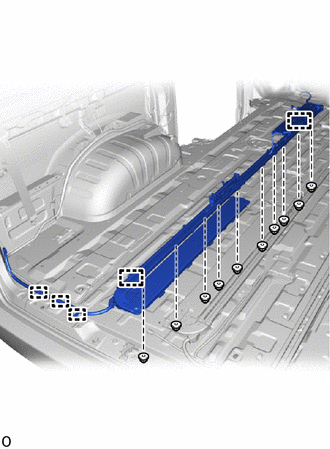

w/o Rear No. 3 Seat:

Attach the guide.

ii.

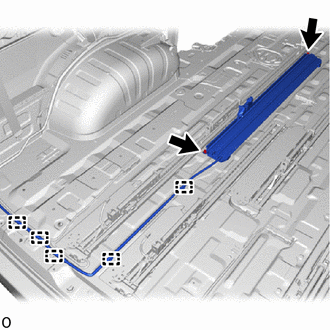

Attach the clamp and install the rear inner seat track assembly LH by installing the 10 nuts to the bottom of the vehicle.

Torque:: 72 N*m (734 kgf*cm, 53 ft.*lbf)

iii.

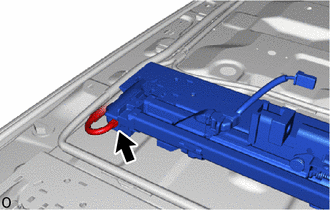

Connect the connector.

iv.

Attach the clamp.

Connect the 2 connectors.

Attach the clamp.

0,0 0,0 false

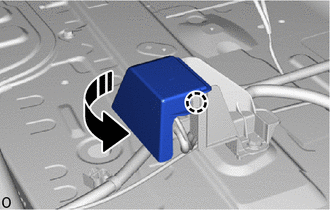

Close in this Direction

Attach the claw and close the cover.

Return the floor carpet to its original position.

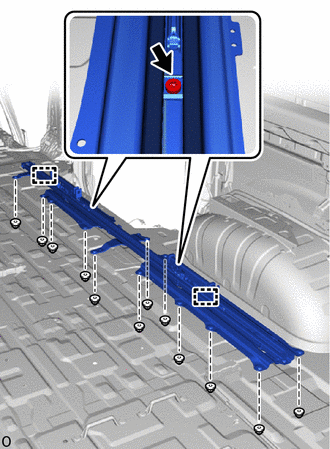

Hide Display 72180F 4.INSTALL REAR INNER SEAT TRACK ASSEMBLY RH

for Folding Seat Type:

Attach the guide.

ii.

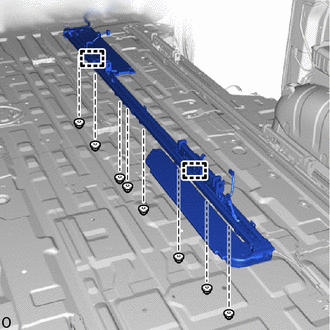

Install the rear inner seat track assembly RH by installing the 8 nuts to the bottom of the vehicle.

Torque:: 72 N*m (734 kgf*cm, 53 ft.*lbf)

except Folding Seat Type:

Attach the guide.

ii.

Install the rear inner seat track assembly RH by installing the 8 nuts to the bottom of the vehicle.

Torque:: 72 N*m (734 kgf*cm, 53 ft.*lbf)

iii.

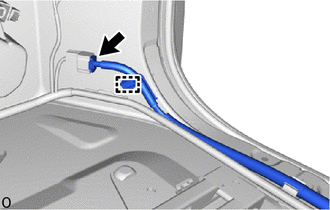

w/ Power Supply Unit:

Connect the connector.

w/o Rear No. 3 Seat:

Attach the guide.

ii.

Attach the clamp and install the rear inner seat track assembly RH by installing the 10 nuts to the bottom of the vehicle.

Torque:: 72 N*m (734 kgf*cm, 53 ft.*lbf)

iii.

Connect the connector.

iv.

Attach the clamp.

Connect the 2 connectors.

Attach the clamp.

Return the floor carpet to its original position.

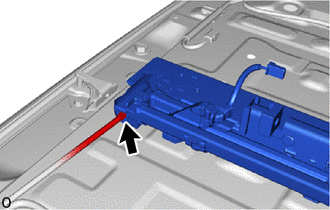

Hide Display 72180G 5.INSTALL REAR INNER REAR SEAT TRACK ASSEMBLY RH

Attach the guide.

Install the rear inner rear seat track assembly RH by installing the 5 nuts to the bottom of the vehicle

Torque:: 72 N*m (734 kgf*cm, 53 ft.*lbf)

w/ Power Supply Unit:

Connect the connector.

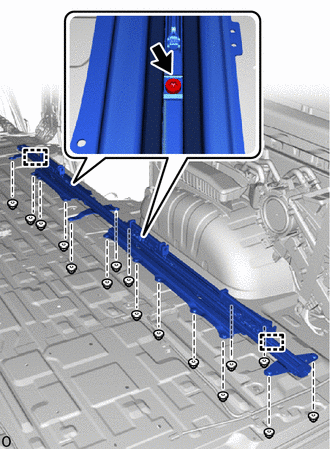

Hide Display 72160H 6.INSTALL REAR OUTER SEAT TRACK ASSEMBLY RH

for Folding Seat Type:

Attach the guide.

ii.

Using a T50 "TORX" socket wrench, tighten the 2 "TORX" bolts.

Torque:: 39 N*m (398 kgf*cm, 29 ft.*lbf)

iii.

Install the rear outer seat track assembly RH by installing the 12 nuts to the bottom of the vehicle

Torque:: 72 N*m (734 kgf*cm, 53 ft.*lbf)

except Folding Seat Type:

Attach the guide.

ii.

Using a T50 "TORX" socket wrench, tighten the 2 "TORX" bolts.

Torque:: 39 N*m (398 kgf*cm, 29 ft.*lbf)

iii.

Install the rear outer seat track assembly RH by installing the 16 nuts to the bottom of the vehicle

Torque:: 72 N*m (734 kgf*cm, 53 ft.*lbf)

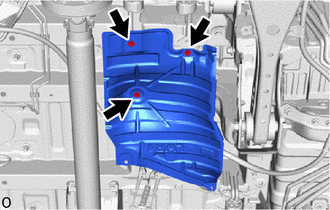

Hide Display 58323C 7.INSTALL REAR NO. 3 FLOOR HEAT INSULATOR

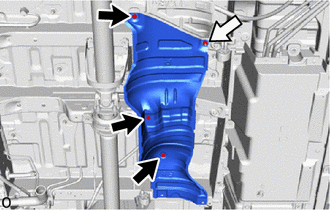

Install the rear No. 3 floor heat insulator with the 3 bolts.

Torque:: 5.5 N*m (56 kgf*cm, 49 in.*lbf)

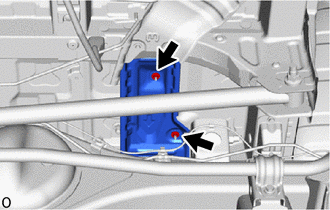

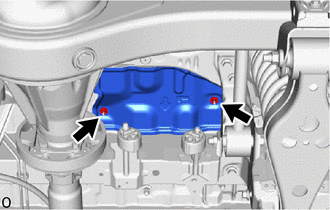

Hide Display 58322B 8.INSTALL REAR NO. 2 FLOOR HEAT INSULATOR

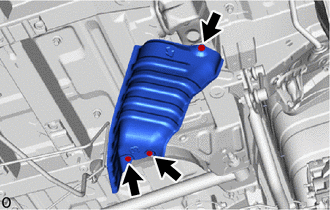

Install the rear No. 2 floor heat insulator with the 2 nuts.

Torque:: 5.5 N*m (56 kgf*cm, 49 in.*lbf)

Hide Display 58321B 9.INSTALL REAR NO. 1 FLOOR HEAT INSULATOR

Install the rear No. 1 floor heat insulator with the 2 nuts.

Torque:: 5.5 N*m (56 kgf*cm, 49 in.*lbf)

Hide Display 58328B 10.INSTALL LOWER MAIN MUFFLER HEAT INSULATOR

Install the lower main muffler heat insulator with the 3 bolts.

Torque:: 5.5 N*m (56 kgf*cm, 49 in.*lbf)

Hide Display 58045 11.INSTALL REAR FLOOR HEAT INSULATOR SUB-ASSEMBLY

0,0 0,0 false

	Bolt
	Nut

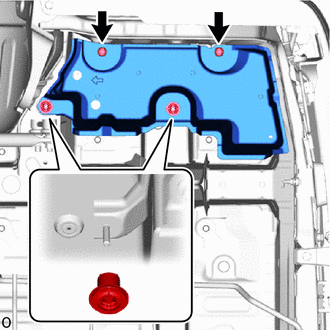

Install the rear floor heat insulator sub-assembly with the 3 bolts and nut.

Torque:: 5.5 N*m (56 kgf*cm, 49 in.*lbf)

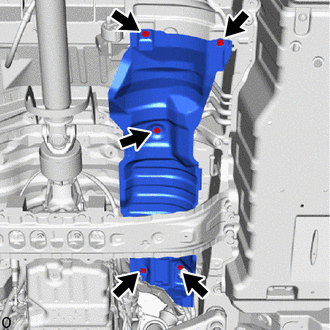

Hide Display 58155 12.INSTALL FRONT NO. 3 FLOOR HEAT INSULATOR

Install the front No. 3 floor heat insulator with the 5 bolts.

Torque:: 5.5 N*m (56 kgf*cm, 49 in.*lbf)

Hide Display 58398R 13.INSTALL LOWER BODY BACK COVER LH

Install the 2 clips.

Press the clip on to the vehicle stud portion, and Install the lower body back cover LH.

Hide Display 14.INSTALL SPARE TIRE

Hide Display 58399D 15.INSTALL NO. 2 FLOOR UNDER COVER

Click hereVehicle Exterior>LIGHTING (EXT)>HEIGHT CONTROL SENSOR>INSTALLATION201906,999999,_59,_079256,_0396169,RM100000001IFRY_01_0036,

Hide Display 16.INSTALL EXHAUST PIPE ASSEMBLY

for 7GR-FKS:

Click hereEngine / Hybrid System>7GR-FKS (INTAKE / EXHAUST)>EXHAUST PIPE>INSTALLATION201902,999999,_51,_079308,_0385728,RM100000001GNO0,

for 1GD-FTV:

Click hereEngine / Hybrid System>1GD-FTV (INTAKE / EXHAUST)>EXHAUST PIPE>INSTALLATION201906,999999,_51,_079307,_0385723,RM100000001M38Y,

Hide Display 77100 17.INSTALL FUEL TANK ASSEMBLY

for 7GR-FKS:

Click hereEngine / Hybrid System>1GD-FTV (FUEL)>FUEL TANK>INSTALLATION201902,999999,_51,_079306,_0385717,RM100000001GNMX,

for 1GD-FTV:

Click hereEngine / Hybrid System>7GR-FKS (FUEL)>FUEL TANK>INSTALLATION201902,999999,_51,_079024,_0383267,RM100000001G9X2,

Hide Display 65638A 18.INSTALL REAR WHEEL HOUSE LINER LH

HINT:: Use the same procedure described for the RH side.; Click hereVehicle Interior>HEATING / AIR CONDITIONING>REAR AIR CONDITIONING UNIT>INSTALLATION201906,999999,_58,_079316,_0396511,RM100000001IHUF_01_0031,

Hide Display 65637B 19.INSTALL REAR WHEEL HOUSE LINER RH

Click hereVehicle Interior>HEATING / AIR CONDITIONING>REAR AIR CONDITIONING UNIT>INSTALLATION201906,999999,_58,_079316,_0396511,RM100000001IHUF_01_0031,

Hide Display 76908 20.INSTALL QUARTER PANEL MUDGUARD SUB-ASSEMBLY LH

Click hereVehicle Exterior>EXTERIOR PANELS / TRIM>SIDE MUDGUARD (for Wagon)>INSTALLATION201906,999999,_59,_079322,_0398615,RM100000001IX0M_02_0001,

Hide Display 76907 21.INSTALL QUARTER PANEL MUDGUARD SUB-ASSEMBLY RH

HINT:: Use the same procedure described for the LH side.

Hide Display 65632D 22.INSTALL REAR FRONT WHEEL HOUSE PLATE LH

Click hereVehicle Exterior>EXTERIOR PANELS / TRIM>REAR WHEEL HOUSE PLATE>INSTALLATION201902,999999,_59,_079322,_0385760,RM100000001GNVB_01_0002,

Hide Display 65631D 23.INSTALL REAR FRONT WHEEL HOUSE PLATE RH

HINT:: Use the same procedure described for the LH side.

Hide Display 24.INSTALL WHEEL ASSEMBLY (Rear LH)

Click hereGeneral>MAINTENANCE>TIRE AND WHEEL>INSTALLATION201902,999999,_V1,_078672,_0387313,RM100000001GWDL,

Hide Display 25.INSTALL WHEEL ASSEMBLY (Rear RH)

HINT:: Use the same procedure described for the LH side.

Hide Display 26.INSTALL REAR FLOOR SILENCER

Install each rear floor silencer.

Hide Display 27.INSTALL REAR FLOOR CARPET ASSEMBLY

Install the rear floor carpet assembly.

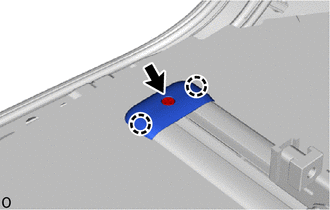

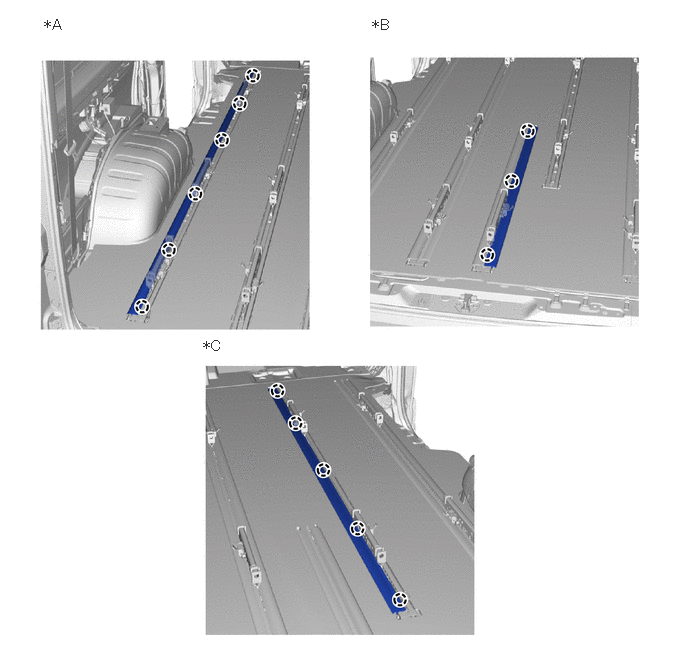

Hide Display 28.INSTALL SEAT TRACK RAIL PROTECTOR

Attach the claw and install all seat track rail protectors.

HINT:: The procedure is a representative example.

0.448,0.167 0.76,0.354 0.313,0.188 12 false *A 3.865,0.167 4.208,0.406 0.344,0.24 12 false *B 2.104,3.51 2.51,3.698 0.406,0.188 12 false *C

*A	for Type A	*B	for Type B
*C	for Type C	-	-

Hide Display 29.INSTALL NO. 3 FLOOR NO. 1 CARPET MOULDING

Attach the claw and clip and install each No. 3 floor No. 1 carpet moulding.

Hide Display 30.INSTALL NO. 3 FLOOR NO. 2 CARPET MOULDING

Attach the claw and clip and install each No. 3 floor No. 2 carpet moulding.

Hide Display 31.INSTALL NO. 3 FLOOR NO. 3 CARPET MOULDING (w/ Power Supply Unit)

Attach the clip and install the No. 3 floor No. 3 carpet moulding.

Hide Display 32.INSTALL NO. 3 FLOOR NO. 4 CARPET MOULDING (w/ Power Supply Unit)

Attach the clip and install the No. 3 floor No. 4 carpet moulding.

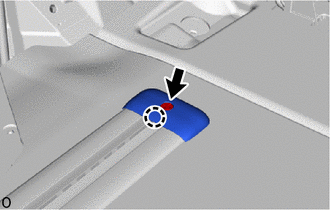

Hide Display 33.INSTALL REAR SEAT TRACK SLIDE STOPPER

Install each rear seat track slide stopper.

Hide Display 62520B 34.INSTALL QUARTER TRIM PANEL ASSEMBLY LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Wagon)>INSTALLATION201906,999999,_58,_078375,_0396474,RM100000001IHQ6_01_0021,

Hide Display 62510M 35.INSTALL QUARTER TRIM PANEL ASSEMBLY RH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Wagon)>INSTALLATION201906,999999,_58,_078375,_0396474,RM100000001IHQ6_01_0019,

Hide Display 67872A 36.INSTALL NO. 1 SLIDE DOOR WEATHERSTRIP LH

HINT:: Use the same procedure described for the RH side.; Click hereVehicle Exterior>DOOR / HATCH>REAR DOOR OPENING TRIM WEATHERSTRIP (for Wagon)>INSTALLATION201906,999999,_59,_078503,_0397541,RM100000001IPZ5_02_0003,

Hide Display 67871E 37.INSTALL NO. 1 SLIDE DOOR WEATHERSTRIP RH

Click hereVehicle Exterior>DOOR / HATCH>REAR DOOR OPENING TRIM WEATHERSTRIP (for Wagon)>INSTALLATION201906,999999,_59,_078503,_0397541,RM100000001IPZ5_02_0003,

Hide Display 73570A 38.INSTALL NO. 3 SEAT OUTER BELT ASSEMBLY LH (FLOOR ANCHOR) (w/ Seat Belt)

Click hereVehicle Interior>SEAT BELT>REAR SEAT OUTER BELT ASSEMBLY (for Wagon)>INSTALLATION201906,999999,_58,_078602,_0398109,RM100000001IT6F_06_0005,

Hide Display 73560A 39.INSTALL NO. 3 SEAT BELT ASSEMBLY OUTER RH (FLOOR ANCHOR) (w/ Seat Belt)

HINT:: Use the same procedure described for the RH side.

Hide Display 67935 40.INSTALL BACK DOOR SCUFF PLATE

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>INSTALLATION201906,202208,_58,_078375,_0381233,RM100000001IXV5_01_0010,202208,999999,_58,_078375,_0381233,RM1000000024I1A_01_0010,

Hide Display 62414A 41.INSTALL LOWER CENTER PILLAR GARNISH LH

HINT:: Use the same procedure described for the RH side.; Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>INSTALLATION201906,202208,_58,_078375,_0381233,RM100000001IXV5_01_0032,202208,999999,_58,_078375,_0381233,RM1000000024I1A_01_0032,

Hide Display 62413A 42.INSTALL LOWER CENTER PILLAR GARNISH RH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>INSTALLATION201906,202208,_58,_078375,_0381233,RM100000001IXV5_01_0032,202208,999999,_58,_078375,_0381233,RM1000000024I1A_01_0032,

Hide Display 74680 43.INSTALL PILLAR ASSIST GRIP ASSEMBLY B

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Wagon)>INSTALLATION201906,999999,_58,_078375,_0396474,RM100000001IHQ6_01_0003,

Hide Display 74617A 44.INSTALL ASSIST GRIP PLUG

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Wagon)>INSTALLATION201906,999999,_58,_078375,_0396474,RM100000001IHQ6_01_0004,

Hide Display 67872A 45.INSTALL NO. 1 SLIDE DOOR WEATHERSTRIP LH

HINT:: Use the same procedure described for the RH side.; Click hereVehicle Exterior>DOOR / HATCH>REAR DOOR OPENING TRIM WEATHERSTRIP (for Wagon)>INSTALLATION201906,999999,_59,_078503,_0397541,RM100000001IPZ5_02_0003,

Hide Display 67871E 46.INSTALL NO. 1 SLIDE DOOR WEATHERSTRIP RH

Click hereVehicle Exterior>DOOR / HATCH>REAR DOOR OPENING TRIM WEATHERSTRIP (for Wagon)>INSTALLATION201906,999999,_59,_078503,_0397541,RM100000001IPZ5_02_0003,

Hide Display 67918D 47.INSTALL REAR DOOR SCUFF PLATE LH

HINT:: Use the same procedure described for the RH side.; Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>INSTALLATION201906,202208,_58,_078375,_0381233,RM100000001IXV5_01_0035,202208,999999,_58,_078375,_0381233,RM1000000024I1A_01_0035,

Hide Display 67917C 48.INSTALL REAR DOOR SCUFF PLATE RH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>INSTALLATION201906,202208,_58,_078375,_0381233,RM100000001IXV5_01_0035,202208,999999,_58,_078375,_0381233,RM1000000024I1A_01_0035,

Hide Display 73220 49.INSTALL FRONT SEAT OUTER BELT ASSEMBLY LH (FLOOR ANCHOR)

Click hereVehicle Interior>SEAT BELT>FRONT SEAT OUTER BELT ASSEMBLY (for Wagon)>INSTALLATION201906,999999,_58,_078602,_0398106,RM100000001IT6A_01_0120,

Hide Display 73210 50.INSTALL FRONT SEAT OUTER BELT ASSEMBLY RH (FLOOR ANCHOR)

HINT:: Use the same procedure described for the LH side.

Hide Display 73233 51.INSTALL OUTER LAP BELT ANCHOR COVER (w/ Seat Belt)

Click hereVehicle Interior>SEAT BELT>FRONT SEAT OUTER BELT ASSEMBLY (for Wagon)>INSTALLATION201906,999999,_58,_078602,_0398106,RM100000001IT6A_01_0122,

Hide Display 52.INSTALL FRONT SEAT ASSEMBLY LH

for Power Seat:

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Power Seat)>INSTALLATION201906,999999,_58,_078601,_0396271,RM100000001IGPO,

for Separate Seat Type:

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Separate Seat Type)>INSTALLATION201906,999999,_58,_078601,_0381328,RM100000001J8ZE,

for Sliding Bench Seat Type:

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Sliding Bench Seat Type)>INSTALLATION201906,999999,_58,_078601,_0381329,RM100000001ITAY,

Hide Display 53.INSTALL REAR SEAT ASSEMBLY

for Manual Captain Seat:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Manual Captain Seat)>INSTALLATION201906,999999,_58,_078601,_0396327,RM100000001IY38,

for Power Captain Seat:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Power Captain Seat)>INSTALLATION201906,999999,_58,_078601,_0396328,RM100000001IGZK,

for 60/40 Split Seat Type 40 Side:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for 60/40 Split Seat Type 40 Side)>INSTALLATION201906,999999,_58,_078601,_0396039,RM100000001IFKV,

for 60/40 Split Seat Type 60 Side:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for 60/40 Split Seat Type 60 Side)>INSTALLATION201906,999999,_58,_078601,_0396040,RM100000001IFL0,

Folding Type:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Folding Type)>INSTALLATION201902,999999,_58,_078601,_0382458,RM100000001G55V,

Hide Display 62312B 54.INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP LH

Click hereVehicle Exterior>DOOR / HATCH>FRONT DOOR OPENING TRIM WEATHERSTRIP>INSTALLATION201902,999999,_59,_078503,_0385652,RM100000001GNFM_02_0001,

Hide Display 62311B 55.INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP RH

HINT:: Use the same procedure described for the LH side.

Hide Display 67914B 56.INSTALL FRONT DOOR SCUFF PLATE LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>INSTALLATION201906,202208,_58,_078375,_0381233,RM100000001IXV5_01_0049,202208,999999,_58,_078375,_0381233,RM1000000024I1A_01_0049,

Hide Display 67912A 57.INSTALL FRONT DOOR OUTSIDE SCUFF PLATE LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>INSTALLATION201906,202208,_58,_078375,_0381233,RM100000001IXV5_01_0050,202208,999999,_58,_078375,_0381233,RM1000000024I1A_01_0050,

Hide Display 67913B 58.INSTALL FRONT DOOR SCUFF PLATE RH

HINT:: Use the same procedure described for the LH side.

Hide Display 67911B 59.INSTALL FRONT DOOR OUTSIDE SCUFF PLATE RH

HINT:: Use the same procedure described for the LH side.

Hide Display 60.CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

for 7GR-FKS:

Click hereGeneral>MAINTENANCE>7GR-FKS BATTERY>INSTALLATION201902,999999,_V1,_078672,_0387105,RM100000001GV7O,

for 1GD-FTV:

Click hereGeneral>MAINTENANCE>1GD-FTV BATTERY>INSTALLATION201902,999999,_V1,_078672,_0387106,RM100000001H6FS,

Hide Display 61. INITIALIZATION AFTER RECONNECTING BATTERY TERMINAL

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>WORK PROCEDURE201906,999999,_V1,_081196,_0393338,RM100000001JBY9,

HINT:: When disconnecting and reconnecting the battery, there is an automatic learning function that completes learning when the respective system is used.; Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>AUTOMATIC LEARNING CHART201906,999999,_V1,_081196,_0393338,RM100000001IWEY,

Hide Display 62. PERFORM DIAGNOSTIC SYSTEM CHECK

for Type A:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type A)>DTC CHECK / CLEAR201902,999999,_58,_079257,_0387732,RM100000001H9LE,

for Type C:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type C)>DTC CHECK / CLEAR201906,999999,_58,_079257,_0396679,RM100000001IJ88,

Hide Display 63.CHECK SRS WARNING LIGHT

for Type A:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type A)>OPERATION CHECK201906,999999,_58,_079257,_0387732,RM100000001IMNC,

for Type C:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type C)>OPERATION CHECK201906,999999,_58,_079257,_0396679,RM100000001IJ85,

Hide Display 64.INSPECT SEAT BELT WARNING SYSTEM

Click hereVehicle Interior>SEAT BELT>SEAT BELT WARNING SYSTEM>OPERATION CHECK201906,999999,_58,_078602,_0385912,RM100000001IZZ0,

Hide Display 65.INSPECT REAR SEAT ASSEMBLY

Click hereVehicle Interior>SEAT>REAR POWER SEAT CONTROL SYSTEM>OPERATION CHECK201906,999999,_58,_078601,_0396767,RM100000001IJY3,

Hide Display 66.INSPECT SEAT HEATER SYSTEM (w/ Seat Heater System)

Click hereVehicle Interior>SEAT>SEAT HEATER SYSTEM>OPERATION CHECK201906,999999,_58,_078601,_0396768,RM100000001IJYA,
