RM35X0E _58 Vehicle Interior _078601 SEAT _0396767 REAR POWER SEAT CONTROL SYSTEM D

SEAT REAR POWER SEAT CONTROL SYSTEM OPERATION CHECK

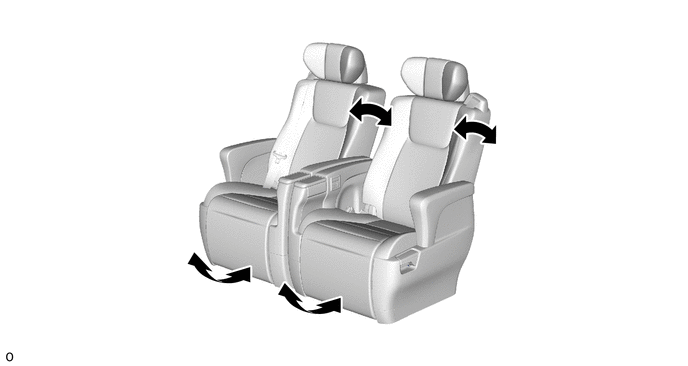

CHECK REAR POWER SEAT FUNCTION (for Rear No. 1 Seat)

3.698,1.083 3.979,0.49 3.979,0.49 4.146,0.49 true 5.167,1.385 5.448,0.792 5.448,0.792 5.615,0.792 true 1.896,2.76 1.729,3.177 1.729,3.177 1.563,3.177 true 3.177,3.198 3.01,3.615 3.01,3.615 2.844,3.615 true 1.375,3.094 1.688,3.25 0.313,0.156 10 false *b 2.635,3.531 2.948,3.688 0.313,0.156 10 false *b 4.229,0.417 4.542,0.573 0.313,0.156 10 false *a 5.719,0.74 6.031,0.896 0.313,0.156 10 false *a

Reclining Function

Ottoman Function

Check the basic functions.

Operate the rear power seat switch (rear No. 1 LH) or (rear No. 1 RH) and check that the following seat functions operate properly:

Reclining function

Ottoman function

CHECK REAR POWER SEAT MOTOR (RECLINING AND OTTOMAN FUNCTIONS) (for Rear No. 1 Seat)

Check the PTC operation inside the rear power seat motor.

NOTICE:: ·

The inspection should be performed with the seat installed to the vehicle.

·

Perform the 4 steps below to check the full range of motion for each power seat function.

HINT:: The resistance of the PTC thermistor increases when a switch of the rear power seat switch (rear No. 1 LH) or (rear No. 1 RH) is held down even after the seat has been moved to the farthest possible position in one direction. If the resistance increases beyond a specified level, the current is shut off to prevent a short circuit.

Choose a power seat function. Operate a switch of the rear power seat switch (rear No. 1 LH) or (rear No. 1 RH) and move the seat to the farthest possible position in one direction. Keep the seat in that position for approximately 60 seconds.

ii.

Operate the switch of the rear power seat switch (rear No. 1 LH) or (rear No. 1 RH) again and continue to try to move the seat in the same direction as in the previous step. Measure the time until the current is shut off (motor operation sound stops).

Standard:: 4 to 90 seconds

iii.

After the current is shut off, release the switch of the rear power seat switch (rear No. 1 LH) or (rear No. 1 RH) and wait for approximately 60 seconds.

iv.

Operate a switch of the rear power seat switch (rear No. 1 LH) or (rear No. 1 RH) and move the seat in the opposite direction. Check that the motor operates.

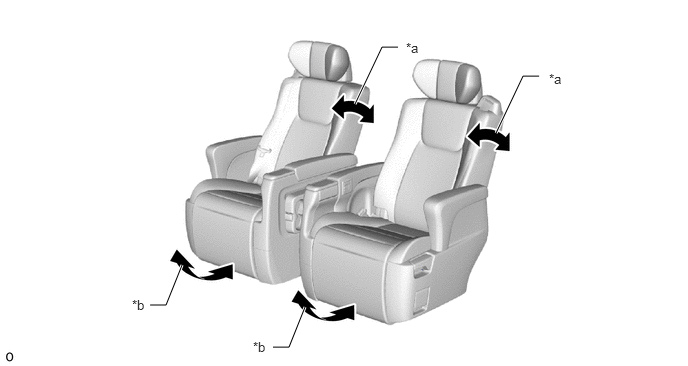

CHECK REAR POWER SEAT FUNCTION (for Rear No. 2 Seat [w/ Rear No. 2 Power Seat])

3.885,1.094 4.177,0.354 4.177,0.354 4.385,0.354 true 5.01,1.313 5.354,0.719 5.354,0.719 5.531,0.719 true 2.083,2.792 1.917,3.208 1.917,3.208 1.75,3.208 true 3.021,3.146 2.854,3.563 2.854,3.563 2.688,3.563 true 1.542,3.135 1.854,3.292 0.313,0.156 10 false *b 2.49,3.479 2.802,3.635 0.313,0.156 10 false *b 4.458,0.281 4.771,0.438 0.313,0.156 10 false *a 5.615,0.656 5.927,0.813 0.313,0.156 10 false *a

Reclining Function

Ottoman Function

Check the basic functions.

Operate the rear power seat switch (rear No. 2 LH) or (rear No. 2 RH) and check that the following seat functions operate properly:

Reclining function

Ottoman function

CHECK REAR POWER SEAT MOTOR (RECLINING AND OTTOMAN FUNCTIONS) (for Rear No. 2 Seat [w/ Rear No. 2 Power Seat])

Check the PTC operation inside the rear power seat motor.

NOTICE:: ·

The inspection should be performed with the seat installed to the vehicle.

·

Perform the 4 steps below to check the full range of motion for each power seat function.

HINT:: The resistance of the PTC thermistor increases when a switch of the rear power seat switch (rear No. 2 LH) or (rear No. 2 RH) is held down even after the seat has been moved to the farthest possible position in one direction. If the resistance increases beyond a specified level, the current is shut off to prevent a short circuit.

Choose a power seat function. Operate a switch of the rear power seat switch (rear No. 2 LH) or (rear No. 2 RH) and move the seat to the farthest possible position in one direction. Keep the seat in that position for approximately 60 seconds.

ii.

Operate the switch of the rear power seat switch (rear No. 2 LH) or (rear No. 2 RH) again and continue to try to move the seat in the same direction as in the previous step. Measure the time until the current is shut off (motor operation sound stops).

Standard:: 4 to 90 seconds

iii.

After the current is shut off, release the switch of the rear power seat switch (rear No. 2 LH) or (rear No. 2 RH) and wait for approximately 60 seconds.

iv.

Operate a switch of the rear power seat switch (rear No. 2 LH) or (rear No. 2 RH) and move the seat in the opposite direction. Check that the motor operates.
