RM35X0E _58 Vehicle Interior _078601 SEAT _0396039 REAR SEAT ASSEMBLY(for 60/40 Split Seat Type 40 Side) A

SEAT  REAR SEAT ASSEMBLY(for 60/40 Split Seat Type 40 Side)  INSTALLATION


CAUTION / NOTICE / HINT

CAUTION:
·

Wear protective gloves. Sharp areas on the parts may injure your hands.

·

There is risk of injury.



HINT:
·

Use the same procedure for RHD and LHD vehicles.

·

The procedure listed below is for LHD vehicles.



PROCEDURE

Hide 1.INSTALL REAR NO. 3 SEAT ASSEMBLY LH

a.

Place the rear No. 3 seat assembly LH in the cabin.

NOTICE:
·

2 or more people are required when carrying the rear No. 3 seat assembly LH into the vehicle.

·

Do not damage the rear No. 3 seat assembly LH, body exterior or interior parts.




b.

Temporarily install the rear No. 3 seat assembly LH with the 4 bolts.


c.

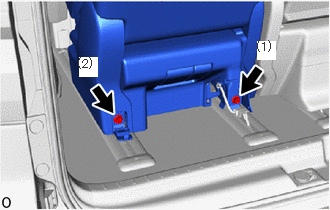

B546947N01
0.813,0.594 1.01,0.802 0.198,0.208 10 true (2) 2.677,0.417 2.875,0.625 0.198,0.208 10 true (1)

Tighten the 2 bolts in the order indicated in the illustration.

Torque:
63.6 N*m (649 kgf*cm, 47 ft.*lbf)


d.

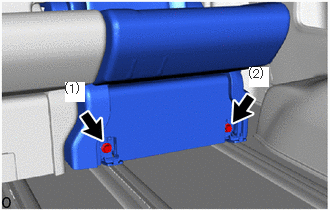

B546942N01
2.594,0.698 2.802,0.906 0.208,0.208 10 true (2) 0.677,0.854 0.885,1.063 0.208,0.208 10 true (1)

Tighten the 2 bolts in the order indicated in the illustration.

Torque:
63.6 N*m (649 kgf*cm, 47 ft.*lbf)


e.
B546948

w/ Power Supply Unit:

i.

Connect the connector.



f.

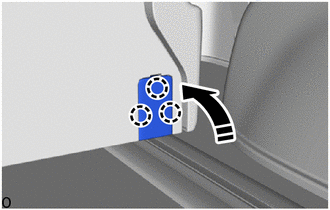

B546950C01
0,0 0,0 false
V113147

Close in this Direction


Attach the claw and close the cover.


g.

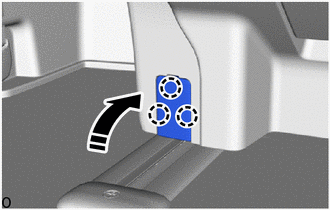

B546946

Attach the claw and close the cover.

HINT:

Use the same procedure for the RH side.



Hide 79246J 2.INSTALL NO. 3 SEAT LEG COVER LH

a.
B546944C01
0,0 0,0 false
V113147

Install in this Direction


Attach the claw and install the No. 3 seat leg cover LH.


Hide 71940L 3.INSTALL NO. 3 SEAT HEADREST ASSEMBLY LH

a.

Install the No. 3 seat headrest assembly LH.
