RM35X0E _58 Vehicle Interior _078601 SEAT _0396768 SEAT HEATER SYSTEM D

SEAT  SEAT HEATER SYSTEM  OPERATION CHECK


CHECK REAR SEAT HEATER (for Rear No. 1 Seat)


HINT:

When the seat heater is set to (HI), both the seat heater indicator lights (HI) and (LO) are illuminated. When the seat heater is set to (LO), only the seat heater indicator light (LO) is illuminated.

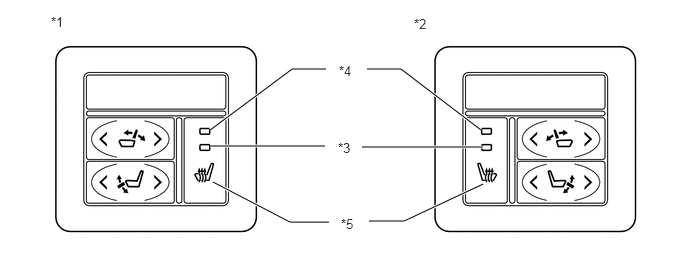

E419300C01
2.219,1.896 3.021,2.313 3.021,2.313 3.427,2.313 true 5.031,1.917 4.208,2.302 4.208,2.302 3.844,2.302 true 2.188,1.354 3.042,0.719 3.042,0.719 3.396,0.719 true 5.01,1.354 4.177,0.719 4.177,0.719 3.823,0.719 true 2.188,1.521 3.385,1.521 true 3.771,1.531 5.021,1.531 true 0.531,0.146 0.906,0.385 0.375,0.24 10 false *1 4.313,0.167 4.688,0.406 0.375,0.24 10 false *2 3.531,0.656 3.719,0.813 0.188,0.156 10 false *4 3.521,1.458 3.729,1.635 0.208,0.177 10 false *3 3.552,2.25 3.76,2.448 0.208,0.198 10 false *5
*1 Rear Power Seat Switch (Rear No. 1 LH) *2 Rear Power Seat Switch (Rear No. 1 RH)
*3 Seat Heater Indicator Light (LO) *4 Seat Heater Indicator Light (HI)
*5 Seat Heater Switch - -


a.

Turn the engine switch on (IG).


b.

With the seat heater switch on, check that the seat heater indicator light illuminates and that the rear No. 1 seat surface warms up.


c.

Check that the heat of the rear No. 1 seat surface switches between HI → LO → OFF in accordance with the HI → LO → OFF operation of the seat heater switch.



CHECK REAR SEAT HEATER (for Rear No. 2 Seat [w/ Rear No. 2 Power Seat])


HINT:

When the seat heater is set to (HI), both the seat heater indicator lights (HI) and (LO) are illuminated. When the seat heater is set to (LO), only the seat heater indicator light (LO) is illuminated.


E419300C01
2.219,1.896 3.021,2.313 3.021,2.313 3.427,2.313 true 5.031,1.917 4.208,2.302 4.208,2.302 3.844,2.302 true 2.188,1.354 3.042,0.719 3.042,0.719 3.396,0.719 true 5.01,1.354 4.177,0.719 4.177,0.719 3.823,0.719 true 2.188,1.521 3.385,1.521 true 3.771,1.531 5.021,1.531 true 0.531,0.146 0.906,0.385 0.375,0.24 10 false *1 4.313,0.167 4.688,0.406 0.375,0.24 10 false *2 3.531,0.656 3.719,0.813 0.188,0.156 10 false *4 3.521,1.458 3.729,1.635 0.208,0.177 10 false *3 3.552,2.25 3.76,2.448 0.208,0.198 10 false *5
*1 Rear Power Seat Switch (Rear No. 2 LH) *2 Rear Power Seat Switch (Rear No. 2 RH)
*3 Seat Heater Indicator Light (LO) *4 Seat Heater Indicator Light (HI)
*5 Seat Heater Switch - -


a.

Turn the engine switch on (IG).


b.

With the seat heater switch on, check that the seat heater indicator light illuminates and that the rear No. 2 seat surface warms up.


c.

Check that the heat of the rear No. 2 seat surface switches between HI → LO → OFF in accordance with the HI → LO → OFF operation of the seat heater switch.
