RM35X0E _58 Vehicle Interior _078601 SEAT _0396271 FRONT SEAT ASSEMBLY(for Power Seat) A

SEAT  FRONT SEAT ASSEMBLY(for Power Seat)  INSTALLATION


CAUTION / NOTICE / HINT

CAUTION:
·

Wear protective gloves. Sharp areas on the parts may injure your hands.

·

There is risk of injury.



HINT:
·

Use the same procedure for RHD and LHD vehicles.

·

The procedure listed below is for LHD vehicles.



PROCEDURE

Hide 1.INSTALL FRONT SEAT ASSEMBLY LH

a.

Place the front seat assembly LH in the vehicle.

NOTICE:
·

2 or more people are required when reinstalling the front seat assembly LH to the vehicle.

·

Protect the front seat legs.

·

Do not damage the front seat assembly LH, body exterior or interior parts.




b.

Tilt the front seat assembly LH backward.

NOTICE:

Be careful not to damage the front seat assembly LH or interior parts.



c.

w/ Front Seat Side Airbag:

i.

Connect the front seat airbag assembly LH connector under the front seat assembly LH.

NOTICE:

When connecting any airbag connector, take care not to damage the airbag wire harness.


HINT:

Refer to How to Connect or Disconnect Airbag Connector:

·

for Type A:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type A)>HOW TO CONNECT OR DISCONNECT AIRBAG CONNECTOR

·

for Type C:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type C)>HOW TO CONNECT OR DISCONNECT AIRBAG CONNECTOR





d.

Connect the other 2 connectors under the front seat assembly LH.


e.

Temporarily install the front seat assembly LH with the 4 bolts.


f.

Connect the cable to the negative (-) battery terminal.

i.

for 7GR-FKS:

Click hereGeneral>MAINTENANCE>7GR-FKS BATTERY>INSTALLATION


ii.

for 1GD-FTV:

Click hereGeneral>MAINTENANCE>1GD-FTV BATTERY>INSTALLATION



g.

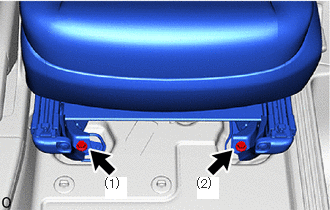

B546866N01
1.094,1.844 1.313,2.063 0.219,0.219 10 true (1) 2.052,1.844 2.281,2.063 0.229,0.219 10 true (2)

Operate the slide and vertical power seat switch knob and move the front seat assembly LH to the rearmost position.


h.

Tighten the 2 bolts in the order shown in the illustration.

Torque:
39 N*m (398 kgf*cm, 29 ft.*lbf)


i.

Operate the slide and vertical power seat switch knob and move the front seat assembly LH to the frontmost position.


j.

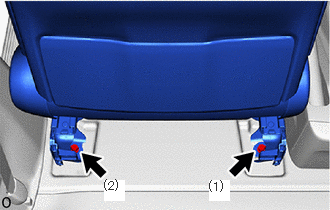

B546867N01
2.177,1.875 2.396,2.094 0.219,0.219 10 true (1) 1.083,1.865 1.302,2.083 0.219,0.219 10 true (2)

Tighten the 2 bolts in the order shown in the illustration.

Torque:
39 N*m (398 kgf*cm, 29 ft.*lbf)


Hide 71139U 2.INSTALL FRONT SEAT REAR LEG COVER LH

a.
B546865C01
0,0 0,0 false
V113147

Install in this Direction


Attach the claw and clip and install the front seat rear leg cover LH.


Hide 71910F 3.INSTALL FRONT SEAT HEADREST ASSEMBLY LH

a.

Install the front seat headrest assembly LH.


Hide 4. INITIALIZATION AFTER RECONNECTING BATTERY TERMINAL

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>WORK PROCEDURE

HINT:

When disconnecting and reconnecting the battery, there is an automatic learning function that completes learning when the respective system is used.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>AUTOMATIC LEARNING CHART
