RM35X0E _58 Vehicle Interior _078601 SEAT _0382458 REAR SEAT ASSEMBLY(for Folding Type) A

SEAT  REAR SEAT ASSEMBLY(for Folding Type)  INSTALLATION


CAUTION / NOTICE / HINT

CAUTION:
·

Wear protective gloves. Sharp areas on the parts may injure your hands.

·

There is risk of injury.



HINT:
·

Use the same procedure for the RH and LH sides.

·

The following procedure is for the LH side.



PROCEDURE

Hide 72613H 1.INSTALL REAR SEAT LOCK STRIKER

HINT:

Use the same procedure for the other side.


a.
B541140

Install the rear seat lock striker with the 2 bolts.

Torque:
39 N*m (398 kgf*cm, 29 ft.*lbf)


Hide 72681E 2.INSTALL REAR SEAT HOOK (w/ Under Cover)

HINT:

Use the same procedure for the other side.


a.
B541139

Attach the guide.


b.

Install the rear seat hook with the screw.


Hide 3.INSTALL REAR SEAT ASSEMBLY LH

a.

Place the rear seat assembly LH in the vehicle.

NOTICE:
·

2 or more people are required when reinstalling the rear seat assembly LH into the vehicle.

·

Be careful not to damage the rear seat assembly LH, body exterior or interior parts.




b.

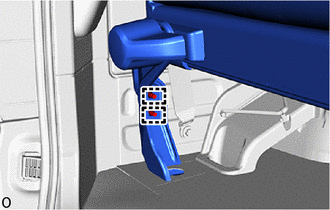

B541138

Insert the rear seat rear leg bracket LH hole into the stud bolt.


c.

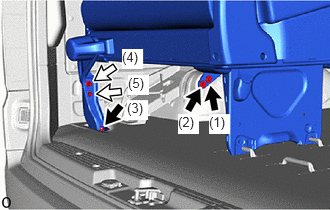

B536598C02
2.177,1.188 2.396,1.396 0.219,0.208 10 true (1) 1.854,1.188 2.073,1.396 0.219,0.208 10 true (2) 1.323,1.042 1.542,1.25 0.219,0.208 10 true (3) 1.271,0.51 1.49,0.719 0.219,0.208 10 true (4) 1.333,0.781 1.552,0.99 0.219,0.208 10 true (5)
V100135

Bolt
V100136

Nut


Lock the inner leg to the rear seat lock striker.


d.

Temporarily install the rear seat assembly with the 3 bolts and 2 nuts.


e.

Tighten the 3 bolts and 2 nuts in the order shown in the illustration.

Torque:
39 N*m (398 kgf*cm, 29 ft.*lbf)


Hide 71940M 4.INSTALL REAR SEAT HEADREST ASSEMBLY (w/ Headrest)

a.

Install the 2 rear seat headrest assemblies.
