RM35X0E _58 Vehicle Interior _078601 SEAT _0396040 REAR SEAT ASSEMBLY(for 60/40 Split Seat Type 60 Side) A

SEAT  REAR SEAT ASSEMBLY(for 60/40 Split Seat Type 60 Side)  INSTALLATION


CAUTION / NOTICE / HINT

CAUTION:
·

Wear protective gloves. Sharp areas on the parts may injure your hands.

·

There is risk of injury.



HINT:
·

Use the same procedure for RHD and LHD vehicles.

·

The procedure listed below is for LHD vehicles.



PROCEDURE

Hide 1.INSTALL REAR NO. 3 SEAT ASSEMBLY RH

a.

Place the rear No. 3 seat assembly RH in the cabin.

NOTICE:
·

2 or more people are required when carrying the rear No. 3 seat assembly RH into the vehicle.

·

Do not damage the rear seat assembly LH, body exterior or interior parts.




b.

Temporarily install the rear No. 3 seat assembly RH with the 4 bolts.


c.

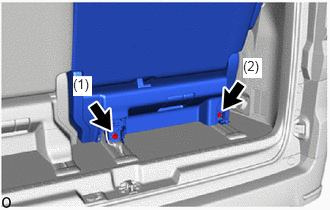

B546951N01
0.76,0.792 0.958,1 0.198,0.208 10 true (1) 2.531,0.604 2.729,0.813 0.198,0.208 10 true (2)

Tighten the 2 bolts in the order indicated in the illustration.

Torque:
63.6 N*m (649 kgf*cm, 47 ft.*lbf)


d.

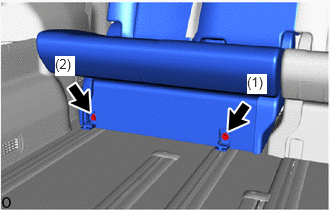

B547386N01
2.573,0.771 2.781,0.979 0.208,0.208 10 true (1) 0.573,0.583 0.781,0.792 0.208,0.208 10 true (2)

Tighten the 2 bolts in the order indicated in the illustration.

Torque:
63.6 N*m (649 kgf*cm, 47 ft.*lbf)


e.

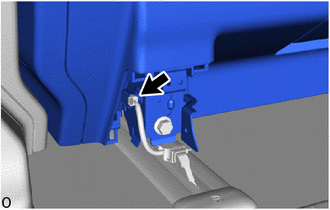

B547387

w/ Power Supply Unit:

i.

Connect the connector.



f.

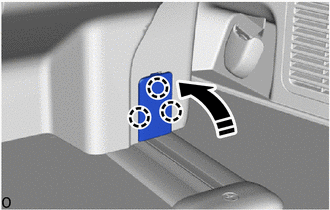

B547391C01
0,0 0,0 false
V113147

Close in this Direction


Attach the claw and close the cover as shown in the illustration.


g.

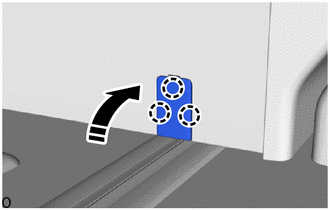

B546953C01
0,0 0,0 false
V113147

Close in this Direction


Attach the claw and close the cover as shown in the illustration.

HINT:

Use the same procedure for the RH side.



Hide 79236H 2.INSTALL NO. 3 SEAT LEG COVER RH

a.
B547389C01
0,0 0,0 false
V113147

Install in this Direction


Attach the claw and install the No. 3 seat leg cover RH as shown in the illustration.


Hide 71960E 3.INSTALL NO. 3 SEAT CENTER HEADREST ASSEMBLY (w/ Center Headrest)

a.

Install the No. 3 seat center headrest assembly.


Hide 71940K 4.INSTALL NO. 3 SEAT HEADREST ASSEMBLY RH

a.

Install the No. 3 seat headrest assembly RH.
