RM35X0E _58 Vehicle Interior _078601 SEAT _0396327 REAR SEAT ASSEMBLY(for Manual Captain Seat) A

SEAT  REAR SEAT ASSEMBLY(for Manual Captain Seat)  INSTALLATION


CAUTION / NOTICE / HINT

CAUTION:
·

Wear protective gloves. Sharp areas on the parts may injure your hands.

·

There is risk of injury.



HINT:
·

Use the same procedure for RHD and LHD vehicles.

·

The procedures listed below are for LHD vehicles.

·

Use the same procedure for the RH and LH sides.

·

The procedure listed below is for the LH side.

·

The procedure listed below is a representative example.

·

Use the same procedure for first row and second row, unless otherwise specified.



PROCEDURE

Hide 71397H 1.INSTALL REAR SEAT STOPPER LH (for First Row)

a.
B552098C01
0,0 0,0 false
V113147

Install in this Direction


Attach the guide and install the rear seat stopper LH as shown in the illustration.


Hide 2.INSTALL REAR SEAT ASSEMBLY LH

a.

Place the rear seat assembly LH on the vehicle.

NOTICE:
·

2 or more people are required when carrying the rear seat assembly LH into the vehicle.

·

Do not damage the rear seat assembly LH, seat rial, body exterior or interior parts.




b.

Temporarily install the rear seat assembly LH with the 4 bolts.


c.

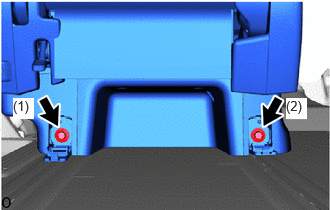

B548241N01
0.135,1.021 0.354,1.24 0.219,0.219 10 true (1) 2.979,1.021 3.198,1.24 0.219,0.219 10 true (2)

Tighten the 2 bolts in the order shown in the illustration.

Torque:
63.6 N*m (649 kgf*cm, 47 ft.*lbf)


d.

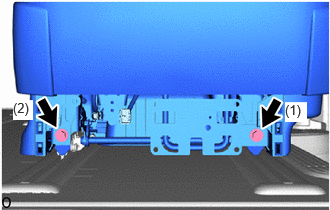

B548240N01
2.969,1.063 3.198,1.271 0.229,0.208 10 true (1) 0.135,1.042 0.344,1.25 0.208,0.208 10 true (2)

Tighten the 2 bolts in the order shown in the illustration.

Torque:
63.6 N*m (649 kgf*cm, 47 ft.*lbf)


e.

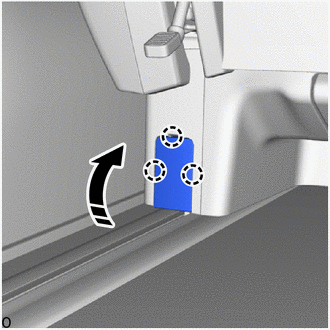

B548239C01
0,0 0,0 false
V113147

Install in this Direction


Close the cover and attach the claw as shown in the illustration.

HINT:

Use the same procedure for all covers.



f.

for First Row:

i.
B548236

Connect the 2 connectors.

NOTICE:

When connecting any airbag connector, take care not to damage the airbag wire harness.


HINT:

Refer to How to Connect or Disconnect Airbag Connector:

·

for Type A:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type A)>HOW TO CONNECT OR DISCONNECT AIRBAG CONNECTOR

·

for Type C:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type C)>HOW TO CONNECT OR DISCONNECT AIRBAG CONNECTOR





g.

for Second Row, w/o Power Supply Unit:

i.
B553615

Connect the connector.



h.

for Second Row, w/ Power Supply Unit:

i.
B548237

Install the bolt.


ii.

Connect the connector and attach the clamp.



Hide 71H74 3.INSTALL REAR SEAT LOWER CUSHION SHIELD LH (for First Row)

a.

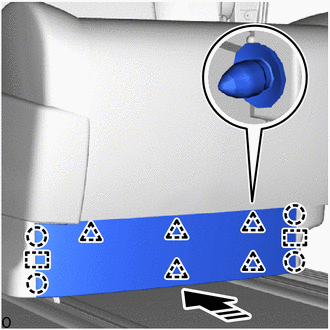

B548231C01
0,0 0,0 false
V113147

Install in this Direction


Attach the clip, claw and guide and install the rear seat lower cushion shield LH as shown in the illustration.


Hide 79246H 4.INSTALL NO. 2 SEAT LEG COVER LH (for Second Row, w/ Power Supply Unit)

a.

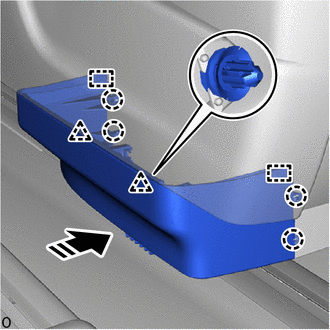

B562778C01
0,0 0,0 false
V113147

Install in this Direction


Attach the clip, claw and guide and install the No. 2 seat leg cover LH as shown in the illustration.


Hide 79246J 5.INSTALL NO. 3 SEAT LEG COVER LH (for Second Row)

a.

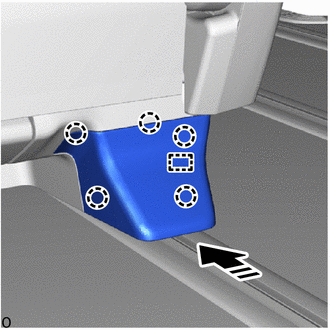

B548233C01
0,0 0,0 false
V113147

Install in this Direction


Attach the claw and guide and install the No. 3 seat leg cover LH as shown in the illustration.


Hide 71940G 6.INSTALL NO. 1 SEAT HEADREST ASSEMBLY LH

a.

Install the No. 1 seat headrest assembly LH.


Hide 8. INITIALIZATION AFTER RECONNECTING BATTERY TERMINAL (for First Row)

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>WORK PROCEDURE

HINT:

When disconnecting and reconnecting the battery, there is an automatic learning function that completes learning when the respective system is used.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>AUTOMATIC LEARNING CHART
