INTERIOR PANELS / TRIM ROOF HEADLINING(for Semi-trim) REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed, installed or replaced during the roof headlining assembly removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced
Replacement Part or Procedure	Necessary Procedures	Effect/Inoperative Function When Necessary Procedures not Performed	Link
Disconnect cable from negative (-) battery terminal	Memorize steering angle neutral point	Parking assist monitor system	(201902,999999,_56,_079315,_0385736,RM100000001GNRA,)

HINT:

When the cable is disconnected / reconnected to the battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the systems is used.

Learning completes when vehicle is driven

Effect/Inoperative Function When Necessary Procedures not Performed	Necessary Procedures	Link
*: w/ Stop and start system
Stop and start system*	Drive the vehicle until stop and start control is permitted (approximately 5 to 60 minutes).	(201902,999999,_51,_078825,_0382334,RM100000001GBQ1,)
Lane control system	Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more.	(201902,999999,_58,_078886,_0382740,RM100000001G6XB,)
Pre-collision system		(201902,999999,_58,_078886,_0382740,RM100000001G6XB,)

Learning completes when vehicle is operated normally

Effect/Inoperative Function When Necessary Procedures not Performed	Necessary Procedures	Link
Power slide door system	Fully close the slide door by hand. HINT: Initialization is not necessary if the above procedures are performed while the slide door is closed.	(201902,999999,_59,_078503,_0381017,RM100000001FWXM,)
Air conditioning system	After the ignition switch is turned to ON, the servo motor standard position is recognized.	-

Use the same procedure for RHD and LHD vehicles.

The procedure listed below is for LHD vehicles.

PROCEDURE

Hide Display 1. PRECAUTION (w/ Airbag System)

CAUTION:: Be sure to read Precaution thoroughly before servicing.; ·

for Type A:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type A)>PRECAUTION201906,999999,_58,_079257,_0387732,RM100000001IMN3,

·

for Type B:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type B)>PRECAUTION201902,999999,_58,_079257,_0385034,RM100000001GJPR,

NOTICE:: After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal.; Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>BEFORE DISCONNECTING BATTERY201902,999999,_V1,_081196,_0393338,RM100000001HX6Q,

Hide Display 2.DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL (w/ Airbag System)

for 7GR-FKS:

Click hereGeneral>MAINTENANCE>7GR-FKS BATTERY>REMOVAL201906,999999,_V1,_078672,_0387105,RM100000001IWL9,

for 1GD-FTV:

Click hereGeneral>MAINTENANCE>1GD-FTV BATTERY>REMOVAL201906,999999,_V1,_078672,_0387106,RM100000001IWLA,

CAUTION:: ·

Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

·

If the airbag deploys for any reason, it may cause a serious accident.

Hide Display 61890A 3.REMOVE BACK WINDOW GLASS HAMMER ASSEMBLY (w/ Hammer)

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ESCAPE HAMMER>REMOVAL201902,999999,_58,_078375,_0387611,RM100000001GYFC,

Hide Display 67912A 4.REMOVE FRONT DOOR OUTSIDE SCUFF PLATE LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>REMOVAL202208,999999,_58,_078375,_0381233,RM1000000024I19_02_0046,

Hide Display 67914B 5.REMOVE FRONT DOOR SCUFF PLATE LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>REMOVAL202208,999999,_58,_078375,_0381233,RM1000000024I19_02_0001,

Hide Display 67911B 6.REMOVE FRONT DOOR OUTSIDE SCUFF PLATE RH

HINT:: Use the same procedure described for the LH side.

Hide Display 67913B 7.REMOVE FRONT DOOR SCUFF PLATE RH

HINT:: Use the same procedure described for the LH side.

Hide Display 62112 8.REMOVE COWL SIDE TRIM BOARD LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>REMOVAL201906,999999,_58,_078375,_0380058,RM100000001IHOZ_02_0041,

Hide Display 62111C 9.REMOVE COWL SIDE TRIM BOARD RH

HINT:: Use the same procedure described for the LH side.

Hide Display 62312B 10.REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP LH

Click hereVehicle Exterior>DOOR / HATCH>FRONT DOOR OPENING TRIM WEATHERSTRIP>REMOVAL201902,999999,_59,_078503,_0385652,RM100000001GNFL_02_0003,

Hide Display 62311B 11.REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP RH

HINT:: Use the same procedure described for the LH side.

Hide Display 74680 12.REMOVE PILLAR ASSIST GRIP ASSEMBLY LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>REMOVAL202208,999999,_58,_078375,_0381233,RM1000000024I19_02_0003,

Hide Display 74680 13.REMOVE PILLAR ASSIST GRIP ASSEMBLY RH

HINT:: Use the same procedure described for the LH side.

Hide Display 62212 14.REMOVE FRONT PILLAR GARNISH LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>REMOVAL202208,999999,_58,_078375,_0381233,RM1000000024I19_02_0005,

Hide Display 62211 15.REMOVE FRONT PILLAR GARNISH RH

HINT:: Use the same procedure described for the LH side.

Hide Display 16.REMOVE FRONT SEAT ASSEMBLY

for Separate Seat Type:

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Separate Seat Type)>REMOVAL201906,999999,_58,_078601,_0381328,RM100000001J8ZD,

for Fixed Bench Seat Type:

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Fixed Bench Seat Type)>REMOVAL201902,999999,_58,_078601,_0381330,RM100000001FZKR,

for Sliding Bench Seat Type:

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Sliding Bench Seat Type)>REMOVAL201906,999999,_58,_078601,_0381329,RM100000001ITAH,

Hide Display 17.REMOVE REAR SEAT ASSEMBLY LH

for Van:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Van)>REMOVAL201902,999999,_58,_078601,_0381331,RM100000001FZKW,

for Commuter, 3-Passenger Seat with 2-Point Type Seat Belt and Headrest:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Commuter, 3-Passenger Seat with 2-Point Type Seat Belt and Headrest)>REMOVAL201906,999999,_58,_078601,_0396036,RM100000001IFKF,

for Commuter, 3-Passenger Seat with 2-Point Type Seat Belt without Headrest:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Commuter, 3-Passenger Seat with 2-Point Type Seat Belt without Headrest)>REMOVAL201906,999999,_58,_078601,_0398432,RM100000001IVY7,

for Commuter, 4-Passenger Seat:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Commuter, 4-Passenger Seat)>REMOVAL201902,999999,_58,_078601,_0381333,RM100000001FZL6,

for Commuter, 2-Passenger Seat with 2-Point Type Seat Belt and Headrest:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Commuter, 2-Passenger Seat with 2-Point Type Seat Belt and Headrest)>REMOVAL201902,999999,_58,_078601,_0387367,RM100000001HB4X,

for Commuter, 2-Passenger Seat with 2-Point Type Seat Belt without Headrest:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Commuter, 2-Passenger Seat with 2-Point Type Seat Belt without Headrest)>REMOVAL201902,999999,_58,_078601,_0387368,RM100000001HB52,

Hide Display 18.REMOVE REAR SEAT ASSEMBLY RH

for Commuter, Single-Passenger Seat with 2-Point Type Seat Belt:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Commuter, Single-Passenger Seat with 2-Point Type Seat Belt)>REMOVAL201902,999999,_58,_078601,_0387386,RM100000001HB4S,

for Commuter, 2-Passenger Seat with 2-Point Type Seat Belt without Headrest:

HINT:: Use the same procedure described for the LH side.; Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Commuter, 2-Passenger Seat with 2-Point Type Seat Belt without Headrest)>REMOVAL201902,999999,_58,_078601,_0387368,RM100000001HB52,

Hide Display 74617A 19.REMOVE ASSIST GRIP PLUG (w/ Assist Grip)

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>REMOVAL202208,999999,_58,_078375,_0381233,RM1000000024I19_02_0050,

Hide Display 74680 20.REMOVE PILLAR ASSIST GRIP ASSEMBLY B (w/ Assist Grip)

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>REMOVAL202208,999999,_58,_078375,_0381233,RM1000000024I19_02_0049,

Hide Display 73178C 21.REMOVE SEAT BELT ANCHOR COVER CAP

Click hereVehicle Interior>SEAT BELT>FRONT SEAT OUTER BELT ASSEMBLY (for Semi-trim)>REMOVAL201902,999999,_58,_078602,_0387551,RM100000001GXXS_02_0119,

Hide Display 73233 22.REMOVE OUTER LAP BELT ANCHOR COVER

Click hereVehicle Interior>SEAT BELT>FRONT SEAT OUTER BELT ASSEMBLY (for Semi-trim)>REMOVAL201902,999999,_58,_078602,_0387551,RM100000001GXXS_02_0120,

Hide Display 73220 23.REMOVE FRONT SEAT OUTER BELT ASSEMBLY LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>REMOVAL202208,999999,_58,_078375,_0381233,RM1000000024I19_02_0012,

Hide Display 73210 24.REMOVE FRONT SEAT OUTER BELT ASSEMBLY RH

HINT:: Use the same procedure described for the LH side.

Hide Display 74733 25.REMOVE NO. 1 HAND GRIP COVER (w/ Hand Rail)

Detach the clip and remove the No. 1 hand grip cover.

Hide Display 74707 26.REMOVE NO. 1 HAND GRIP FRAME SUB-ASSEMBLY (w/ Hand Rail)

Remove the 6 bolts.

Detach the guide and remove the No. 1 hand grip frame sub-assembly.

Hide Display 67917C 27.REMOVE REAR DOOR SCUFF PLATE RH

for Standard Roof, Full Cover Type:

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>REMOVAL202208,999999,_58,_078375,_0381233,RM1000000024I19_02_0014,

for Standard Roof, except Full Cover Type:

Remove the 5 screws.

ii.

Detach the clip and guide and remove the rear door scuff plate RH.

for High Roof, Full Cover Type:

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>REMOVAL202208,999999,_58,_078375,_0381233,RM1000000024I19_02_0014,

for High Roof, except Full Cover Type:

Remove the 6 screws.

ii.

Detach the clip and guide and remove the rear door scuff plate RH.

Hide Display 67918D 28.REMOVE REAR DOOR SCUFF PLATE LH (for 5 Door)

HINT:: Use the same procedure described for the RH side.

Hide Display 67871E 29.REMOVE NO. 1 SLIDE DOOR WEATHERSTRIP RH

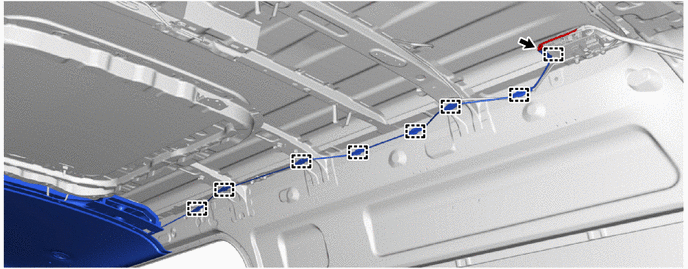

HINT:: Pull back the No. 1 slide door weatherstrip RH so that the lower center pillar garnish RH and center pillar garnish RH can be removed.; Click hereVehicle Exterior>DOOR / HATCH>REAR DOOR OPENING TRIM WEATHERSTRIP (except Wagon)>REMOVAL201906,999999,_59,_078503,_0385653,RM100000001JGPJ_02_0010,

Hide Display 67872A 30.REMOVE NO. 1 SLIDE DOOR WEATHERSTRIP LH (for 5 Door)

HINT:: ·

Pull back the No. 1 slide weatherstrip LH so that the lower center pillar garnish LH and center pillar garnish LH can be removed.

·

Use the same procedure described for the RH side.

Click hereVehicle Exterior>DOOR / HATCH>REAR DOOR OPENING TRIM WEATHERSTRIP (except Wagon)>REMOVAL201906,999999,_59,_078503,_0385653,RM100000001JGPJ_02_0010,

Hide Display 62413A 31.REMOVE LOWER CENTER PILLAR GARNISH RH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>REMOVAL202208,999999,_58,_078375,_0381233,RM1000000024I19_02_0017,

Hide Display 62414A 32.REMOVE LOWER CENTER PILLAR GARNISH LH

HINT:: Use the same procedure described for the RH side.

Hide Display 62411 33.REMOVE CENTER PILLAR GARNISH RH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>REMOVAL202208,999999,_58,_078375,_0381233,RM1000000024I19_02_0020,

Hide Display 62412 34.REMOVE CENTER PILLAR GARNISH LH

for 4 Door, Standard Roof:

Remove the clip.

ii.

Detach the clip.

iii.

0,0 0,0 false

	Place Hands Here
	Remove in this Direction

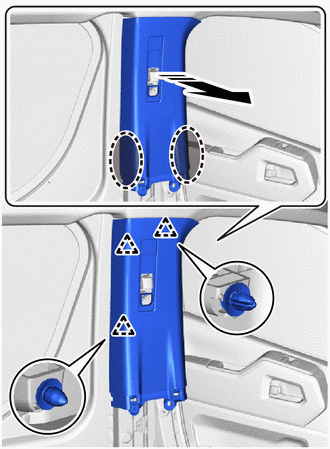

Place both hands at the position shown in the illustration, pull in the direction indicated by the arrow to detach the clip and remove the center pillar garnish LH.

for 4 Door, High Roof:

Remove the clip.

ii.

Detach the clip.

iii.

0,0 0,0 false

	Place Hands Here
	Remove in this Direction

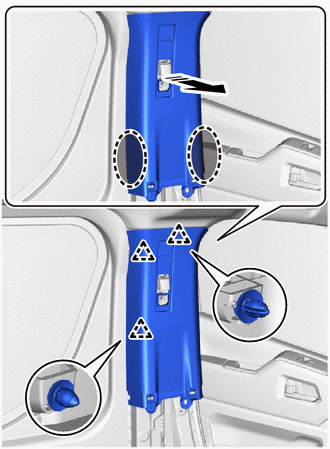

Place both hands at the position shown in the illustration, pull in the direction indicated by the arrow to detach the clip and remove the center pillar garnish LH.

for 5 Door:

HINT:: Use the same procedure described for the RH side.

Hide Display 73370E 35.REMOVE REAR SEAT OUTER BELT ASSEMBLY LH (for Van, w/ Seat Belt)

0,0 0,0 false

Open in this Direction

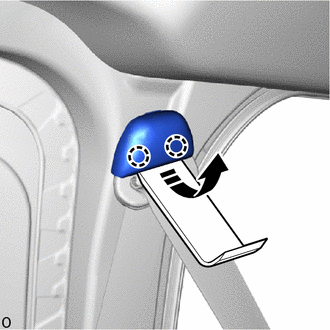

Using moulding remover D, detach the claw and open the cover as shown in the illustration.

Remove the bolt.

Hide Display 73360D 36.REMOVE REAR SEAT OUTER BELT ASSEMBLY RH (for Van, w/ Seat Belt)

HINT:: Use the same procedure described for the LH side.

Hide Display 81240 37.REMOVE NO. 1 ROOM LIGHT ASSEMBLY

Click hereVehicle Interior>LIGHTING (INT)>ROOM LIGHT>REMOVAL201902,999999,_58,_078381,_0381237,RM100000001FZDP,

Hide Display 81240D 38.REMOVE NO. 2 ROOM LIGHT ASSEMBLY (for High Roof, w/ No. 2 Room Light Assembly)

HINT:: Use the same procedure described for the No. 1 room light assembly.

Hide Display 63349A 39.REMOVE REAR ROOF HEADLINING GARNISH (w/ Roof Window Glass)

w/ Rear Air Duct:

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>REMOVAL202208,999999,_58,_078375,_0381233,RM1000000024I19_02_0062,

w/o Rear Air Duct:

0,0 0,0 false

Pull in this Direction

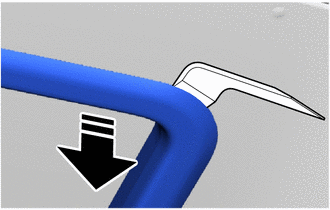

Insert moulding remover D at the position shown in the illustration.

ii.

0,0 0,0 false

	Place Hand Here
	Remove in this Direction

Place your hand into the gap and pull as shown to detach the clip.

0,0 0,0 false

	Place Hand Here
	Remove in this Direction

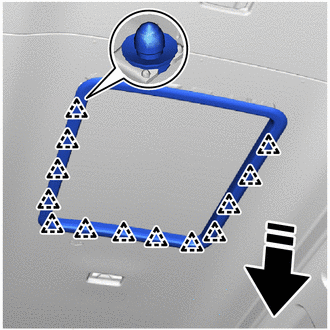

Place your hand at the position shown in the illustration and pull in the direction indicated by the arrow to detach the clip.

0,0 0,0 false

Remove in this Direction

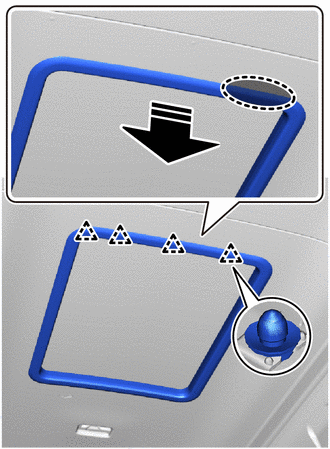

Pull in the direction of the arrow shown in the illustration to detach the clip and remove the rear roof headlining garnish.

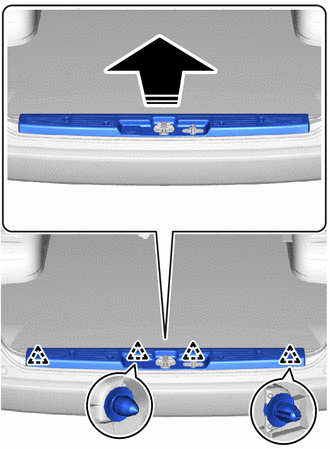

Hide Display 69455A 40.REMOVE BACK DOOR UPPER LOCK STRIKER COVER (for Double Swing Out Type)

Click hereVehicle Exterior>DOOR / HATCH>BACK DOOR (for Double Swing Out Type)>DISASSEMBLY202208,999999,_59,_078503,_0545662,RM1000000024I3T_01_0052,

Hide Display 69047 41.REMOVE BACK DOOR UPPER LOCK STRIKER SUB-ASSEMBLY (for Double Swing Out Type)

Click hereVehicle Exterior>DOOR / HATCH>BACK DOOR (for Double Swing Out Type)>DISASSEMBLY202208,999999,_59,_078503,_0545662,RM1000000024I3T_01_0053,

Hide Display 72681E 42.REMOVE REAR SEAT HOOK (for High Roof, w/ Seat Hook)

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>REMOVAL202208,999999,_58,_078375,_0381233,RM1000000024I19_02_0024,

Hide Display 63320E 43.REMOVE REAR ROOF HEADLINING ASSEMBLY (for Standard Roof)

1.698,0.417 1.833,0.208 1.833,0.208 2.083,0.208 false 2.135,0.135 2.448,0.333 0.313,0.198 10 false *a

*a	Plate
	w/ Plate

Remove the 16 clips and 2 plates.

HINT:: The clips indicated by the white arrow have plates between the rear roof headlining assembly and body. Be careful not to let them fall.

Detach the guide and remove the rear roof headlining assembly.

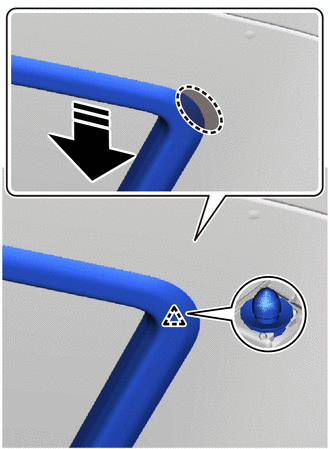

Turn the rear roof headlining assembly diagonally and bend slightly to remove it from the back door.

NOTICE:: ·

Make sure that wrinkles do not form in the rear roof headlining assembly during removal.

·

Make sure that the rear roof headlining assembly does not get caught on anything as it may become bent or damaged.

·

Do not damage the rear roof headlining assembly or vehicle interior.

·

2 or more people are required when carrying the rear roof headlining assembly out of the vehicle, as it may become deformed.

Hide Display 44.REMOVE REAR ROOF HEADLINING ASSEMBLY (for High Roof)

w/o Rear Air Duct:

w/ Roof Window Glass:

Remove the 23 clips, 4 plates and rear roof headlining assembly.

HINT:: The clips indicated by the white arrow have plates between the rear roof headlining assembly and body. Be careful not to let them fall.

6.063,1.302 6.229,0.938 6.229,0.938 6.479,0.938 false 6.521,0.865 6.833,1.063 0.313,0.198 10 false *a

*a	Plate	-	-
	w/ Plate	-	-

ii.

w/o Roof Window Glass:

Remove the 25 clips, 4 plates and rear roof headlining assembly.

HINT:: The clips indicated by the white arrow have plates between the rear roof headlining assembly and body. Be careful not to let them fall.

6.083,1.333 6.167,1 6.167,1 6.417,1 false 6.479,0.917 6.792,1.115 0.313,0.198 10 false *a

*a	Plate	-	-
	w/ Plate	-	-

w/ Rear Air Duct:

w/ Roof Window Glass:

Remove the 29 clips, 4 plates and rear roof headlining assembly.

HINT:: The clips indicated by the white arrow have plates between the rear roof headlining assembly and body. Be careful not to let them fall.

5.958,0.781 6.125,0.448 6.125,0.448 6.375,0.448 false 6.417,0.365 6.729,0.563 0.313,0.198 10 false *a

*a	Plate	-	-
	w/ Plate	-	-

ii.

w/o Roof Window Glass:

Remove the 26 clips, 4 plates and rear roof headlining assembly.

HINT:: The clips indicated by the white arrow have plates between the rear roof headlining assembly and body. Be careful not to let them fall.

5.958,0.771 6.125,0.521 6.125,0.521 6.292,0.521 false 6.354,0.438 6.667,0.635 0.313,0.198 10 false *a

*a	Plate	-	-
	w/ Plate	-	-

Turn the rear roof headlining assembly diagonally and bend slightly to remove it from the back door.

NOTICE:: ·

Make sure that wrinkles do not form in the rear roof headlining assembly during removal.

·

Make sure that the rear roof headlining assembly does not get caught on anything as it may become bent or damaged.

·

Do not damage the rear roof headlining assembly or vehicle interior.

·

2 or more people are required when carrying the rear roof headlining assembly out of the vehicle, as it may become deformed.

Hide Display 87834 45.REMOVE INNER REAR VIEW MIRROR STAY HOLDER COVER

w/ EC Mirror:

Click hereVehicle Interior>MIRROR (INT)>INNER REAR VIEW MIRROR (w/ EC Mirror)>REMOVAL201902,999999,_58,_078376,_0380057,RM100000001FSCE_01_0001,

w/ Digital Inner Mirror:

Click hereVehicle Interior>MIRROR (INT)>DIGITAL INNER MIRROR>REMOVAL201902,999999,_58,_078376,_0380056,RM100000001FSCO_01_0004,

Hide Display 81260A 46.REMOVE MAP LIGHT ASSEMBLY

Click hereVehicle Interior>LIGHTING (INT)>PERSONAL LIGHT>REMOVAL201902,999999,_58,_078381,_0381235,RM100000001FZDX,

Hide Display 86466D 47.REMOVE NO. 1 FORWARD RECOGNITION COVER (w/ Pre-collision System)

Click hereEngine / Hybrid System>CRUISE CONTROL>FRONT CAMERA>REMOVAL201906,999999,_51,_078884,_0384728,RM100000001JAEE_02_0002,

Hide Display 86768 48.REMOVE ROOF ANTENNA COVER (w/ Digital Audio Broadcasting Antenna)

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>REMOVAL202208,999999,_58,_078375,_0381233,RM1000000024I19_02_0043,

Hide Display 49.REMOVE ASSIST GRIP ASSEMBLY (w/ Assist Grip)

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>REMOVAL202208,999999,_58,_078375,_0381233,RM1000000024I19_02_0045,

Hide Display 74320 50.REMOVE VISOR ASSEMBLY LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>REMOVAL202208,999999,_58,_078375,_0381233,RM1000000024I19_02_0038,

Hide Display 74310 51.REMOVE VISOR ASSEMBLY RH

HINT:: Use the same procedure described for the LH side.

Hide Display 74348 52.REMOVE VISOR HOLDER

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>REMOVAL202208,999999,_58,_078375,_0381233,RM1000000024I19_02_0061,

Hide Display 53989A 53.REMOVE AIR INTAKE NET (w/ Rear Air Duct)

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>REMOVAL202208,999999,_58,_078375,_0381233,RM1000000024I19_02_0044,

Hide Display 65896J 54.REMOVE COVER TOP SET BOLT CAP (for Standard Roof, w/ Rear Air Duct)

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>REMOVAL202208,999999,_58,_078375,_0381233,RM1000000024I19_02_0090,

Hide Display 63438F 55.REMOVE NO. 1 INNER ROOF RACK COVER (for High Roof)

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>REMOVAL202208,999999,_58,_078375,_0381233,RM1000000024I19_02_0063,

Hide Display 63439D 56.REMOVE NO. 2 INNER ROOF RACK COVER (for High Roof)

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>REMOVAL202208,999999,_58,_078375,_0381233,RM1000000024I19_02_0064,

Hide Display 63413C 57.REMOVE FRONT INNER ROOF RACK BOARD (for High Roof)

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>REMOVAL202208,999999,_58,_078375,_0381233,RM1000000024I19_02_0065,

Hide Display 58.REMOVE ROOF HEADLINING ASSEMBLY (for Standard Roof)

for Windshield Glass Side:

Disconnect each connector.

for Front Pillar LH Side:

w/ Curtain Shield Airbag:

Remove the protective cover installed to the front pillar LH.

ii.

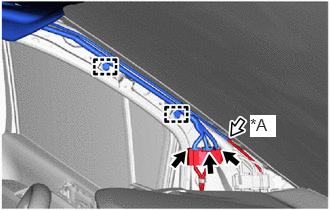

2.604,1.198 2.875,1.427 0.271,0.229 12 true *A

*A	w/ Rear Wiper or w/ Digital Inner Mirror
	Connector
	Washer Hose

Disconnect the 3 connectors.

iii.

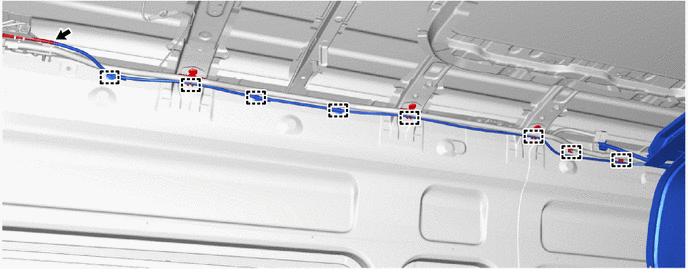

Using a clip remover, detach the wire harness clamp.

iv.

w/ Rear Wiper or w/ Digital Inner Mirror:

Disconnect the washer hose.

w/ Curtain Shield Airbag:

Install the protective cover to the front pillar LH.

for Rear Roof LH Side:

0.479,1.708 0.76,1.948 0.281,0.24 12 true *A

*A	w/ Rear Wiper or w/ Digital Inner Mirror
	Connector
	Washer Hose

Disconnect the connector.

ii.

w/ Rear Wiper or w/ Digital Inner Mirror:

Disconnect the washer hose.

for Rear Roof RH Side, w/ Digital Inner Mirror:

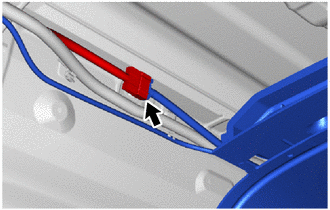

Detach the clamp and disconnect the connector.

w/o Rear Air Duct, for 4 Door:

Remove the 12 clips and 2 plates.

HINT:: The clips indicated by the white arrow have plates between the roof headlining assembly and body. Be careful not to let them fall.

ii.

Detach the fastener and remove the roof headlining assembly.

5.927,1.552 6.167,1.25 6.167,1.25 6.417,1.25 false 6.458,1.167 6.771,1.365 0.313,0.198 10 false *b 5.271,0.146 5.583,0.344 0.313,0.198 10 false *a

*a	Fastener	*b	Plate
	w/ Plate	-	-

w/o Rear Air Duct, for 5 Door:

Remove the 11 clips and 2 plates.

HINT:: The clips indicated by the white arrow have plates between the roof headlining assembly and body. Be careful not to let them fall.

ii.

Detach the fastener and remove the roof headlining assembly.

6.063,1.604 6.25,1.25 6.25,1.25 6.417,1.25 false 5.958,0.073 6.271,0.271 0.313,0.198 10 false *a 0.417,0.417 0.729,0.615 0.313,0.198 10 false *a 6.458,1.167 6.771,1.365 0.313,0.198 10 false *b

*a	Fastener	*b	Plate
	w/ Plate	-	-

w/ Rear Air Duct:

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>REMOVAL202208,999999,_58,_078375,_0381233,RM1000000024I19_02_0066,

Turn the front roof headlining assembly diagonally and bend slightly to remove it from the back door.

NOTICE:: ·

Make sure that wrinkles do not form in the roof headlining assembly during removal.

·

Make sure that the roof headlining assembly does not get caught on anything as it may become bent or damaged.

·

Do not damage the roof headlining assembly or vehicle interior.

·

2 or more people are required when carrying the roof headlining assembly out of the vehicle, as it may become deformed.

Hide Display 59.REMOVE ROOF HEADLINING ASSEMBLY (for High Roof)

for Windshield Glass Side:

Disconnect each connector.

for Front Pillar LH Side:

w/ Curtain Shield Airbag:

Remove the protective cover installed to the front pillar LH.

ii.

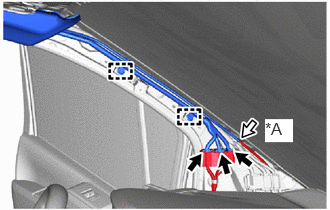

2.76,1.24 3.052,1.479 0.292,0.24 12 true *A

*A	w/ Rear Wiper or w/ Digital Inner Mirror
	Connector
	Washer Hose

Disconnect the 3 connectors.

iii.

Using a clip remover, detach the wire harness clamp.

iv.

w/ Rear Wiper or w/ Digital Inner Mirror:

Disconnect the washer hose.

w/ Curtain Shield Airbag:

Install the protective cover to the front pillar LH.

for Rear Roof LH Side:

Disconnect the connector.

ii.

w/ Rear Wiper or w/ Digital Inner Mirror:

Detach the clamp and disconnect the washer hose.

for Rear Roof RH Side, w/ Digital Inner Mirror:

Detach the clamp and disconnect the connector.

for Roof Headlining Front Side:

w/o Wire Harness Protector:

Detach the clamp.

ii.

w/ Wire Harness Protector:

Detach the clamp.

w/ Rear Air Duct:

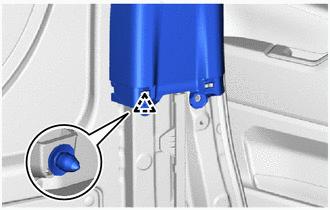

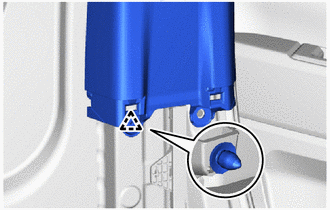

Remove the 4 bolts.

ii.

Remove the 14 clips, 2 plates and roof headlining assembly.

HINT:: The clips indicated by the white arrow have plates between the roof headlining assembly and body. Be careful not to let them fall.

6,0.885 6.167,0.552 6.167,0.552 6.333,0.552 true 6.396,0.469 6.708,0.667 0.313,0.198 10 false *a

*a	Plate	-	-
	w/ Plate	-	-

w/o Rear Air Duct:

Remove the 16 clips, 2 plates and roof headlining assembly.

HINT:: The clips indicated by the white arrow have plates between the roof headlining assembly and body. Be careful not to let them fall.

5.854,1.281 6.021,0.948 6.021,0.948 6.188,0.948 true 6.26,0.854 6.573,1.052 0.313,0.198 10 false *a

*a	Plate	-	-
	w/ Plate	-	-

Turn the front roof headlining assembly diagonally and bend slightly to remove it from the back door.

NOTICE:: ·

Make sure that wrinkles do not form in the roof headlining assembly during removal.

·

Make sure that the roof headlining assembly does not get caught on anything as it may become bent or damaged.

·

Do not damage the roof headlining assembly or vehicle interior.

·

2 or more people are required when carrying the roof headlining assembly out of the vehicle, as it may become deformed.

Hide Display 67935 60.REMOVE BACK DOOR SCUFF PLATE

HINT:: Perform this procedure only when replacing the back door scuff plate.

except Double Swing Out Type:

Remove the 4 screws.

ii.

0,0 0,0 false

Remove in this Direction

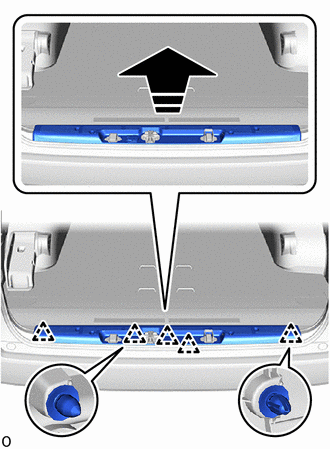

Detach the clip and remove the back door scuff plate as shown illustration.

for Double Swing Out Type:

Remove the 4 screws.

ii.

0,0 0,0 false

Remove in this Direction

Detach the clip and remove the back door scuff plate as shown illustration.
