RM35X0E _58 Vehicle Interior _078381 LIGHTING (INT) _0381235 PERSONAL LIGHT A

LIGHTING (INT)  PERSONAL LIGHT  REMOVAL


PROCEDURE

Hide 81260A 1.REMOVE MAP LIGHT ASSEMBLY (w/o Overhead Console)

a.

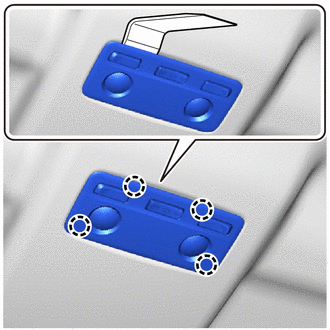

B539579

Using moulding remover D, detach the claw as shown in the illustration.


b.

Disconnect the connector and remove the map light assembly.


Hide 81260A 2.REMOVE MAP LIGHT ASSEMBLY (w/ Overhead Console, for Standard Roof)

a.

for Bulb Type:

i.

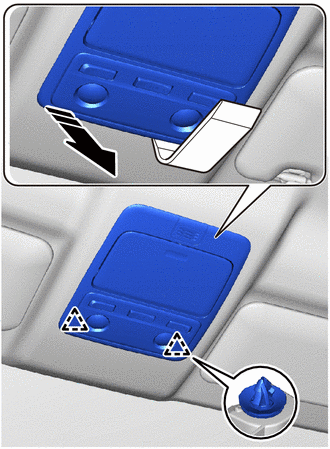

B539580C01
0,0 0,0 false
V113147

Remove in this Direction


Using moulding remover D, detach the clip as shown in the illustration.


ii.

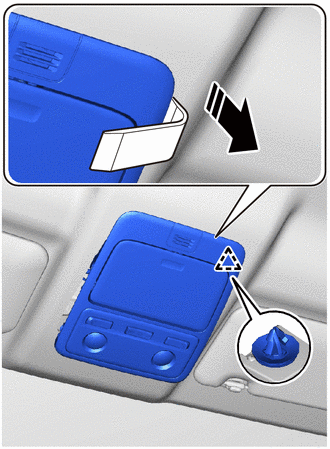

B539582C01
0,0 0,0 false
V113147

Remove in this Direction


Using moulding remover D, detach the clip as shown in the illustration.


iii.

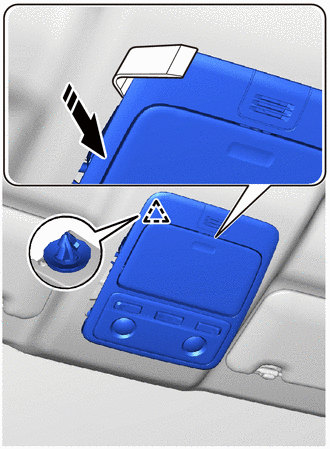

B539584C01
0,0 0,0 false
V113147

Remove in this Direction


Using moulding remover D, detach the clip as shown in the illustration.


iv.

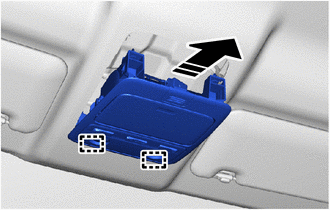

E409979C01
0,0 0,0 false
V113147

Remove in this Direction


Detach the guide and remove the map light assembly as shown in the illustration.


v.

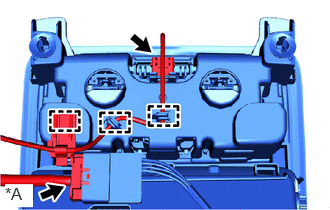

E409984C01
0.052,1.917 0.344,2.156 0.292,0.24 12 true *A
*A w/ Microphone


Detach the clamp and disconnect the connector.


vi.

w/ Microphone:

Disconnect the connector.



b.

for LED Type:

i.
E409980C01

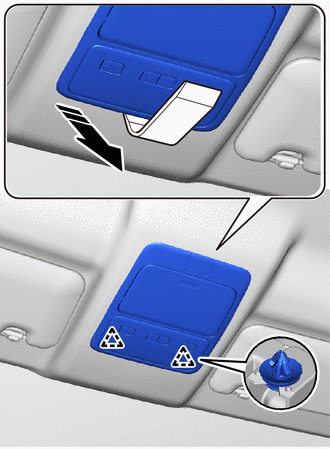

0,0 0,0 false
V113147

Remove in this Direction


Using moulding remover D, detach the clip as shown in the illustration.


ii.
E409981C01
0,0 0,0 false
V113147

Remove in this Direction


Using moulding remover D, detach the clip as shown in the illustration.


iii.

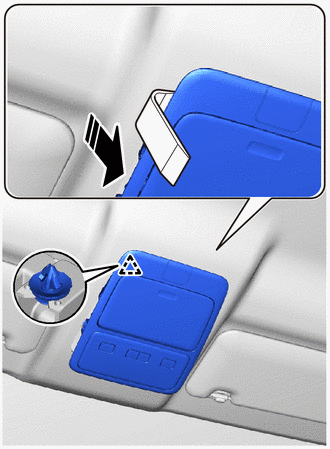

E409982C01
0,0 0,0 false
V113147

Remove in this Direction


Using moulding remover D, detach the clip as shown in the illustration.


iv.

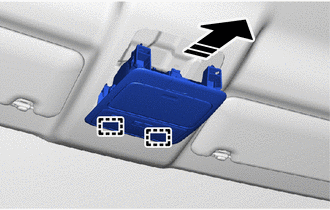

E409983C01
0,0 0,0 false
V113147

Remove in this Direction


Detach the guide and remove the map light assembly as shown in the illustration.


v.

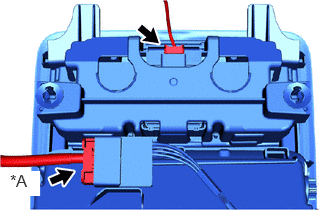

E409985C01
0.104,1.781 0.417,2.042 0.313,0.26 12 true *A
*A w/ Microphone


Disconnect the connector.


vi.

w/ Microphone:

Disconnect the connector.



Hide 81260A 3.REMOVE MAP LIGHT ASSEMBLY (w/ Overhead Console, for High Roof)

a.

for Bulb Type:

i.

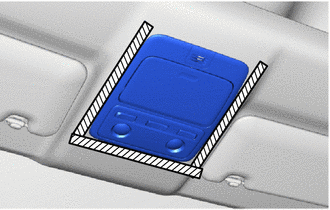

E409993C01
0,0 0,0 false
V100155

Protective Tape


Apply protective tape at the position shown in the illustration.


ii.

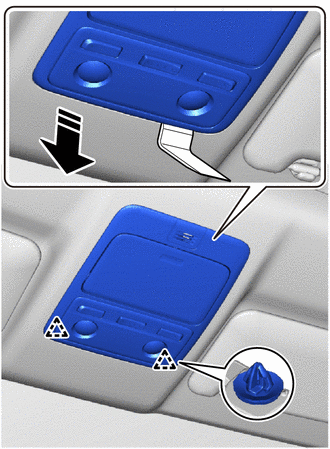

E409994C01
0,0 0,0 false
V113147

Remove in this Direction


Using moulding remover D, detach the clip as shown in the illustration.


iii.
E409995C01

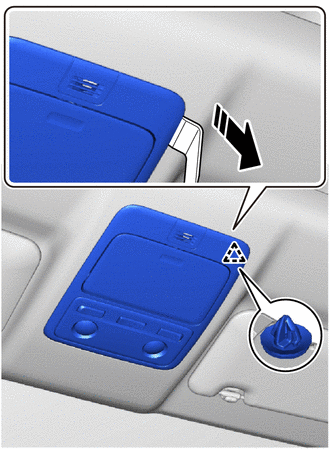

0,0 0,0 false
V113147

Remove in this Direction


Using moulding remover D, detach the clip as shown in the illustration.


iv.

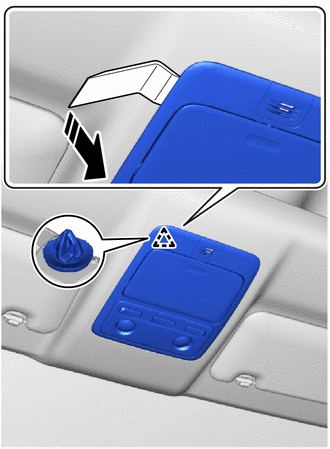

E409996C01
0,0 0,0 false
V113147

Remove in this Direction


Using moulding remover D, detach the clip as shown in the illustration.


v.

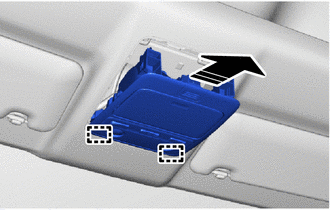

E409998C01
0,0 0,0 false
V113147

Remove in this Direction


Detach the guide and remove the map light assembly as shown in the illustration.


vi.

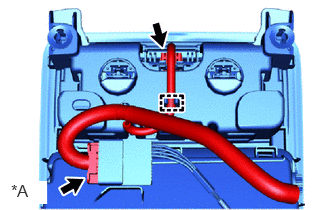

E409999C02
0.115,1.885 0.49,2.125 0.375,0.24 12 true *A
*A w/ Microphone


Detach the clamp and disconnect the connector.


vii.

w/ Microphone:

Disconnect the connector.



b.

for LED Type:

i.
B539577C01
0,0 0,0 false
V100155

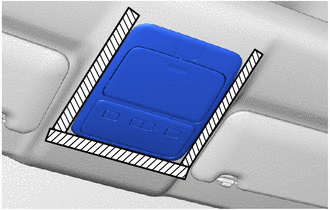

Protective Tape


Apply protective tape at the position shown in the illustration.


ii.

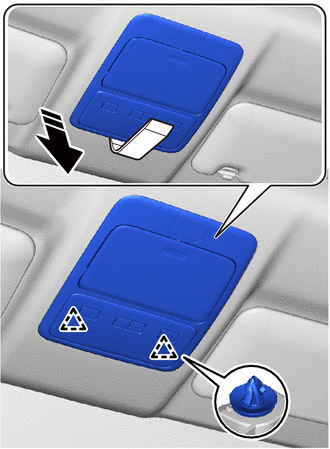

B539578C01
0,0 0,0 false
V113147

Remove in this Direction


Using moulding remover D, detach the clip as shown in the illustration.


iii.

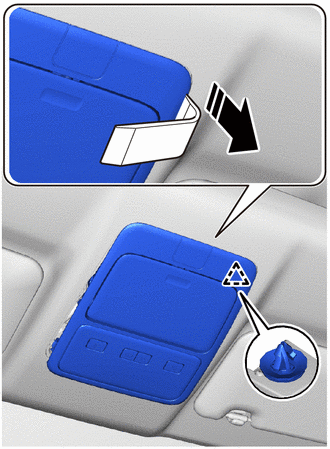

B539581C01
0,0 0,0 false
V113147

Remove in this Direction


Using moulding remover D, detach the clip as shown in the illustration.


iv.

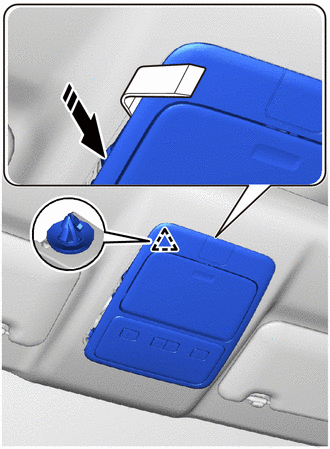

B539583C01
0,0 0,0 false
V113147

Remove in this Direction


Using moulding remover D, detach the clip as shown in the illustration.


v.

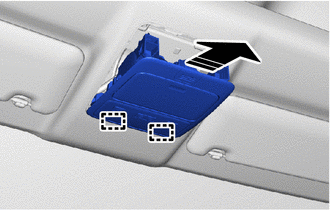

E409997C01
0,0 0,0 false
V113147

Remove in this Direction


Detach the guide and remove the map light assembly as shown in the illustration.


vi.

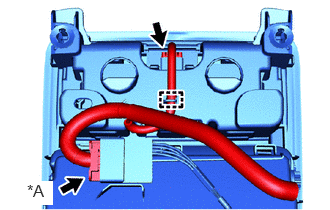

E410000C01
0.281,1.885 0.552,2.135 0.271,0.25 12 true *A
*A w/ Microphone


Detach the clamp and disconnect the connector.


vii.

w/ Microphone:

Disconnect the connector.
