RM35X0E _58 Vehicle Interior _078601 SEAT _0387367 REAR SEAT ASSEMBLY(for Commuter, 2-Passenger Seat with 2-Point Type Seat Belt and Headrest) A

SEAT  REAR SEAT ASSEMBLY(for Commuter, 2-Passenger Seat with 2-Point Type Seat Belt and Headrest)  REMOVAL


CAUTION / NOTICE / HINT

CAUTION:
·

Wear protective gloves. Sharp areas on the parts may injure your hands.

·

There is risk of injury.



HINT:
·

Use the same procedure for RHD and LHD vehicles.

·

The procedure listed below is for LHD vehicles.

·

The procedure listed below is a representative example.

·

Use the same procedure for all rows, unless otherwise specified.



PROCEDURE

Hide 71940M 1.REMOVE REAR SEAT HEADREST ASSEMBLY

a.

Remove the 2 rear seat headrest assemblies.


Hide 2.REMOVE REAR SEAT ASSEMBLY LH

a.

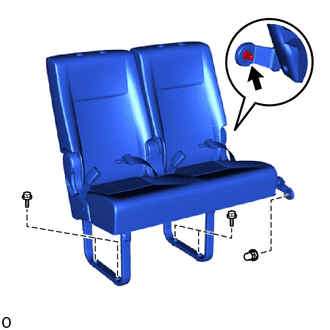

B541302C01
0,0 0,0 false
V100135

Nut


Remove the 2 nuts and 4 bolts.


b.

Remove the rear seat assembly LH from the vehicle.

NOTICE:
·

2 or more people are required when carrying the rear seat assembly LH out of the vehicle.

·

Do not damage the rear seat assembly LH, body exterior or interior parts.
