SEAT  REAR SEAT ASSEMBLY(for Commuter, 3-Passenger Seat with 2-Point Type Seat Belt without Headrest)  REMOVAL


CAUTION / NOTICE / HINT

CAUTION:
·

Wear protective gloves. Sharp areas on the parts may injure your hands.

·

There is risk of injury.



HINT:
·

Use the same procedure for RHD and LHD vehicles.

·

The procedure listed below is for LHD vehicles.

·

The procedure listed below is a representative example.

·

Use the same procedure for all rows, unless otherwise specified.



PROCEDURE

Hide 1.REMOVE REAR SEAT ASSEMBLY LH

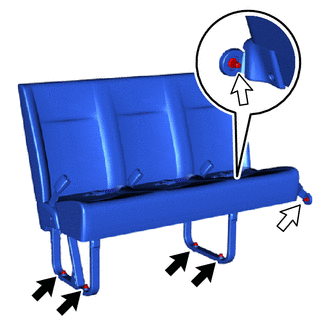

a.
B538097C01
0,0 0,0 false
V100135

Bolt
V100136

Nut


Remove the 4 bolts, 2 nuts and rear seat assembly LH.


b.

Remove the rear seat assembly LH from the vehicle.

NOTICE:
·

2 or more people are required when carrying the rear seat assembly LH out of the vehicle.

·

Be careful not to damage the rear seat assembly LH, body exterior or body interior.
