RM35X0E _58 Vehicle Interior _078601 SEAT _0381333 REAR SEAT ASSEMBLY(for Commuter, 4-Passenger Seat) A

SEAT  REAR SEAT ASSEMBLY(for Commuter, 4-Passenger Seat)  REMOVAL


CAUTION / NOTICE / HINT

CAUTION:
·

Wear protective gloves. Sharp areas on the parts may injure your hands.

·

There is risk of injury.



HINT:
·

Use the same procedure for RHD and LHD vehicles.

·

The procedure listed below is for LHD vehicles.



PROCEDURE

Hide 1.REMOVE REAR SEAT ASSEMBLY LH

a.
B538098C01
0,0 0,0 false
V100135

Bolt
V100136

Nut

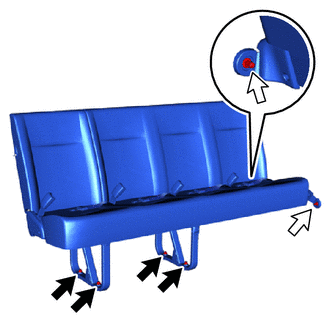

Remove the 4 bolts, 2 nuts and rear seat assembly LH.


b.

Remove the rear seat assembly LH from the vehicle.

NOTICE:
·

2 or more people are required when carrying the rear seat assembly LH out of the vehicle.

·

Be careful not to damage the rear seat assembly LH, body exterior or body interior.
