RM35X0E _58 Vehicle Interior _078601 SEAT _0381331 REAR SEAT ASSEMBLY(for Van) A

SEAT  REAR SEAT ASSEMBLY(for Van)  REMOVAL


CAUTION / NOTICE / HINT

CAUTION:
·

Wear protective gloves. Sharp areas on the parts may injure your hands.

·

There is risk of injury.



PROCEDURE

Hide 71910H 1.REMOVE REAR SEAT HEADREST ASSEMBLY

a.

Remove the 3 rear seat headrest assemblies.


Hide 2.REMOVE REAR SEAT ASSEMBLY

a.

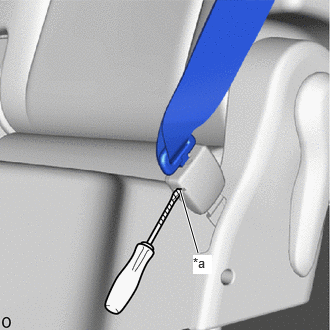

B541289C01
2.063,2.635 1.875,1.979 true 2.01,2.656 2.208,2.854 0.198,0.198 10 true *a
*a Buckle Button
V100155

Protective Tape


Using a thin-bladed screwdriver, push the buckle button to release the lock and disconnect the rear seat outer belt assembly LH.

HINT:
·

Tape the thin-bladed screwdriver tip before use.

·

Use the same procedure for the RH side.




b.

w/ Seat Belt Warning System:

i.
B541291

Detach the clamp and disconnect the connector.



c.
B541292

Remove the 4 bolts.


d.
B541293

Remove the 3 bolts.


e.

Detach the guide and remove the rear seat assembly.

NOTICE:
·

2 or more people are required when carrying the rear seat assembly out of the vehicle.

·

Be careful not to damage the rear seat assembly, body exterior or interior parts.
