RM35X0E _58 Vehicle Interior _078375 INTERIOR PANELS / TRIM _0387611 ESCAPE HAMMER A

INTERIOR PANELS / TRIM  ESCAPE HAMMER  REMOVAL


PROCEDURE

Hide 61890A 1.REMOVE BACK WINDOW GLASS HAMMER ASSEMBLY

HINT:

Use the same procedure for both back window glass hammer assemblies.


a.

for Standard Roof:

i.

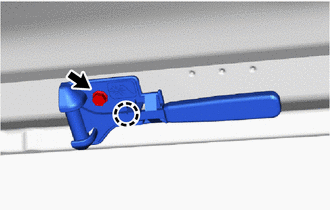

B529152

Remove the bolt.


ii.

Detach the claw and remove the back window glass hammer assembly.



b.

for High Roof, Standard Type:

i.

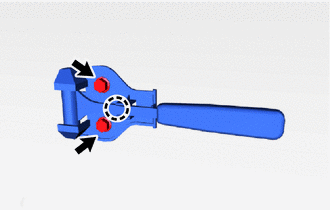

B529153

Remove the 2 bolts.


ii.

Detach the claw and remove the back window glass hammer assembly.



c.

for High Roof, w/ Rear Air Duct:

i.

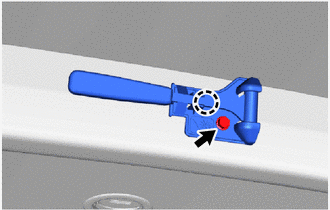

B529155

Remove the bolt.


ii.

Detach the claw and remove the back window glass hammer assembly.



d.

for High Roof, w/o Rear Air Duct:

i.

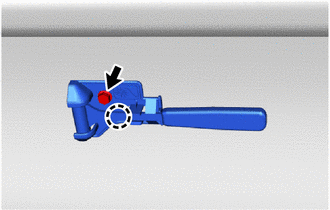

B529154

Remove the bolt.


ii.

Detach the claw and remove the back window glass hammer assembly.
