METER / GAUGE / DISPLAY  METER / GAUGE SYSTEM  B150819  Turn Signal/Hazard Flasher Circuit Current Above Threshold


DESCRIPTION

DTC No. Detection Item DTC Detection Condition Trouble Area
B150819 Turn Signal/Hazard Flasher Circuit Current Above Threshold
Diagnosis Condition:

Battery voltage is 10 V or more


Malfunction Status:
·

Short in front turn signal light circuit

·

Short in side turn signal light circuit

·

Short in rear turn signal light circuit


w/ Headlight ECU:
·

Front turn signal light socket

·

Front turn signal light bulb

·

Headlight unit assembly

·

Headlight ECU sub-assembly

·

Side turn signal light assembly

·

Outer rear View mirror assembly (w/ Panoramic View Monitor System)

·

Outer mirror retractor (w/o Panoramic View Monitor System)

·

Rear combination light socket and wire sub-assembly

·

Combination meter assembly

·

Harness or connector


w/o Headlight ECU, for TAW Made:
·

Headlight assembly

·

w/ Front Fender Type Side Turn Signal Light:

Side turn signal light socket and wire

·

w/ Outer Rear View Mirror Type Side Turn Signal Light:

Side turn signal light assembly

Outer rear view mirror assembly (Outer mirror retractor)

·

Rear combination light assembly

·

Combination meter assembly

·

Harness or connector


w/o Headlight ECU, except TAW Made:
·

Front turn signal light socket

·

w/ Front Fender Type Side Turn Signal Light:

Side turn signal light socket and wire

·

w/ Outer Rear View Mirror Type Side Turn Signal Light:

Side turn signal light assembly

Outer rear view mirror assembly (Outer mirror retractor)

·

Rear combination light socket and wire sub-assembly

·

Combination meter assembly

·

Harness or connector



WIRING DIAGRAM

w/ Headlight ECU:

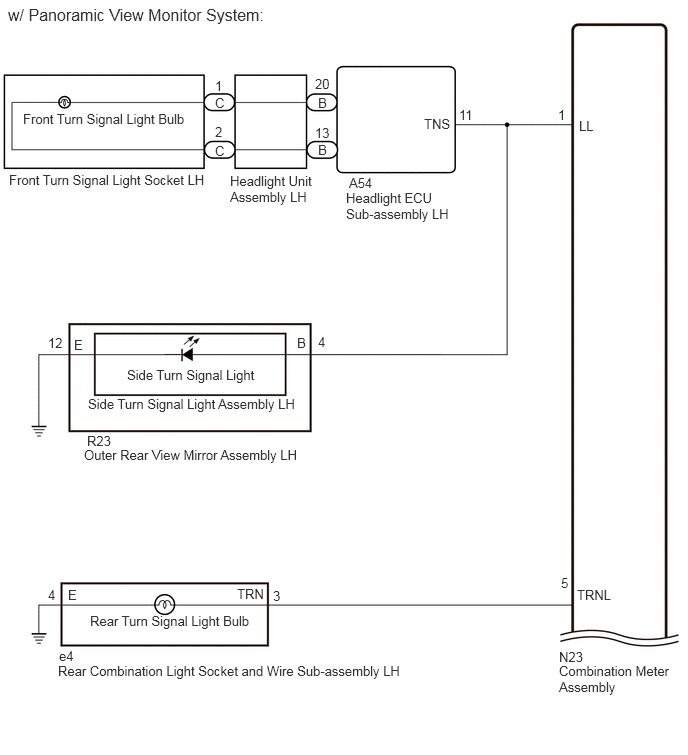

B555904E05
0.083,0.052 4.667,0.25 4.583,0.198 12 false w/ Panoramic View Monitor System: 0.917,4.125 5.5,4.323 4.583,0.198 10 false Side Turn Signal Light Assembly LH 0.875,4.656 5.458,4.854 4.583,0.198 10 false Outer Rear View Mirror Assembly LH 3.094,3.49 6.75,3.719 3.656,0.229 10 false B 0.771,3.51 4.927,3.74 4.156,0.229 10 false E 3.313,3.479 5.781,3.74 2.469,0.26 10 false 4 0.5,3.49 2.969,3.75 2.469,0.26 10 false 12 5.813,1.115 6.667,1.406 0.854,0.292 10 false 1 6.031,1.229 6.885,1.521 0.854,0.292 10 false LL 0.604,6.906 5.188,7.104 4.583,0.198 10 false Rear Combination Light Socket and Wire Sub-assembly LH 0.615,6.75 5.198,6.948 4.583,0.198 10 false e4 2.469,6.104 4.635,6.292 2.167,0.188 10 false TRN 0.708,6.115 5.292,6.313 4.583,0.198 10 false E 0.5,6.115 2.969,6.375 2.469,0.26 10 false 4 2.844,6.125 5.344,6.302 2.5,0.177 10 false 3 6.01,6.115 6.531,6.323 0.521,0.208 10 false TRNL 5.844,5.99 6.365,6.198 0.521,0.208 10 false 5 5.823,6.906 7.063,7.375 1.24,0.469 10 false Combination Meter Assembly 5.823,6.76 6.344,6.969 0.521,0.208 10 false N23 0.906,4.51 2.417,4.844 1.51,0.333 10 false R23 0.24,1.156 2.677,1.521 2.438,0.365 10 false Front Turn Signal Light Bulb 0.094,1.792 2.531,2.156 2.438,0.365 10 false Front Turn Signal Light Socket LH 0.938,6.385 3.375,6.75 2.438,0.365 10 false Rear Turn Signal Light Bulb 3.604,1.979 4.74,2.417 1.135,0.438 10 false Headlight ECU Sub-assembly LH 3.635,1.823 4.49,2.115 0.854,0.292 10 false A54 4.417,1.208 5.271,1.5 0.854,0.292 10 false TNS 2.396,1.802 3.354,2.313 0.958,0.51 10 false Headlight Unit Assembly LH 4.781,1.115 5.635,1.406 0.854,0.292 10 false 11 1.323,3.823 5.906,4.021 4.583,0.198 10 false Side Turn Signal Light 2.24,0.99 3.094,1.281 0.854,0.292 10 false C 2.24,1.49 3.094,1.781 0.854,0.292 10 false C 3.313,0.99 4.167,1.281 0.854,0.292 10 false B 3.313,1.479 4.167,1.771 0.854,0.292 10 false B 3.281,0.792 4.135,1.083 0.854,0.292 10 false 20 3.281,1.302 4.135,1.594 0.854,0.292 10 false 13 2.24,0.813 3.094,1.104 0.854,0.292 10 false 1 2.24,1.292 3.094,1.583 0.854,0.292 10 false 2

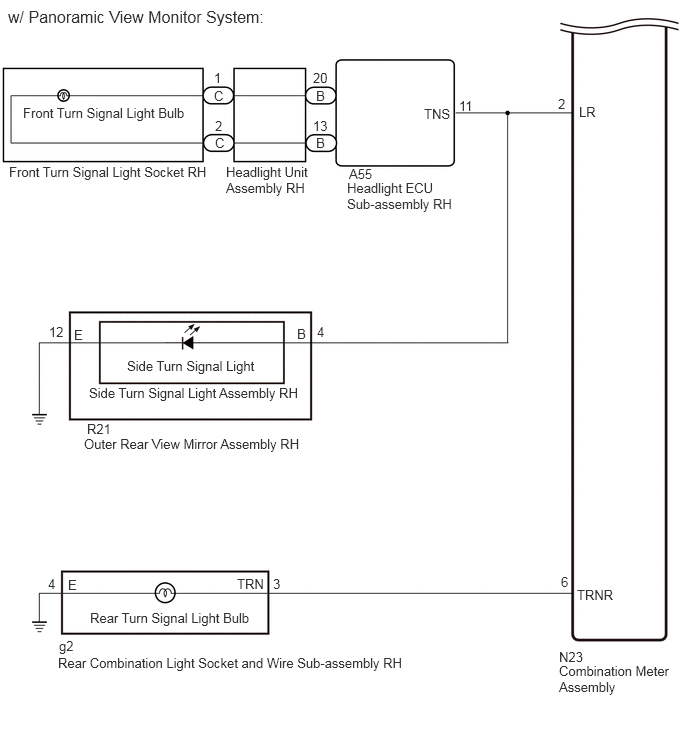

B555905E08
0.083,0.073 4.667,0.271 4.583,0.198 12 false w/ Panoramic View Monitor System: 0.927,4.01 5.51,4.208 4.583,0.198 10 false Side Turn Signal Light Assembly RH 0.875,4.542 5.458,4.74 4.583,0.198 10 false Outer Rear View Mirror Assembly RH 3.094,3.396 6.75,3.625 3.656,0.229 10 false B 0.771,3.406 4.927,3.635 4.156,0.229 10 false E 3.302,3.375 5.771,3.635 2.469,0.26 10 false 4 0.51,3.375 2.979,3.635 2.469,0.26 10 false 12 5.813,1 6.667,1.292 0.854,0.292 10 false 2 6.031,1.083 6.885,1.375 0.854,0.292 10 false LR 0.604,6.823 5.188,7.021 4.583,0.198 10 false Rear Combination Light Socket and Wire Sub-assembly RH 0.615,6.646 5.198,6.844 4.583,0.198 10 false g2 2.469,6 4.635,6.188 2.167,0.188 10 false TRN 0.708,6.01 5.292,6.208 4.583,0.198 10 false E 0.5,6 2.969,6.26 2.469,0.26 10 false 4 2.844,6 5.344,6.177 2.5,0.177 10 false 3 6.01,6.115 6.531,6.323 0.521,0.208 10 false TRNR 5.844,5.979 6.365,6.188 0.521,0.208 10 false 6 5.823,6.906 7.063,7.375 1.24,0.469 10 false Combination Meter Assembly 5.823,6.76 6.344,6.969 0.521,0.208 10 false N23 0.906,4.385 2.417,4.719 1.51,0.333 10 false R21 0.24,1.094 2.677,1.458 2.438,0.365 10 false Front Turn Signal Light Bulb 0.094,1.708 2.531,2.073 2.438,0.365 10 false Front Turn Signal Light Socket RH 0.938,6.354 3.375,6.719 2.438,0.365 10 false Rear Turn Signal Light Bulb 3.615,1.875 4.75,2.313 1.135,0.438 10 false Headlight ECU Sub-assembly RH 3.635,1.729 4.49,2.021 0.854,0.292 10 false A55 4.417,1.104 5.271,1.396 0.854,0.292 10 false TNS 2.354,1.708 3.313,2.219 0.958,0.51 10 false Headlight Unit Assembly RH 4.781,1.021 5.635,1.313 0.854,0.292 10 false 11 1.323,3.729 5.906,3.927 4.583,0.198 10 false Side Turn Signal Light 2.24,1.229 3.094,1.521 0.854,0.292 10 false 2 2.229,0.917 3.083,1.208 0.854,0.292 10 false C 2.24,1.406 3.094,1.698 0.854,0.292 10 false C 3.292,0.917 4.146,1.208 0.854,0.292 10 false B 3.292,1.406 4.146,1.698 0.854,0.292 10 false B 3.26,0.729 4.115,1.021 0.854,0.292 10 false 20 3.26,1.229 4.115,1.521 0.854,0.292 10 false 13 2.229,0.729 3.083,1.021 0.854,0.292 10 false 1

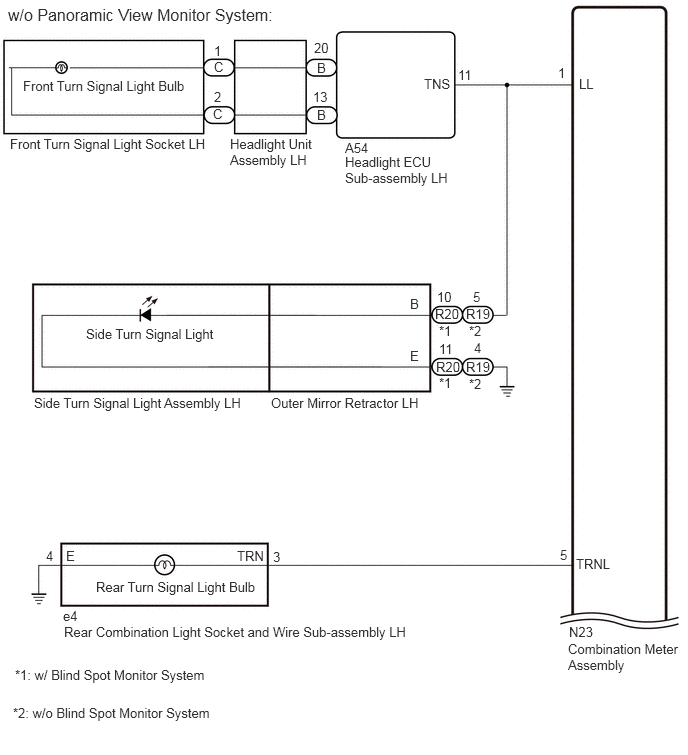

B571185E05
0.083,0.052 4.667,0.25 4.583,0.198 12 false w/o Panoramic View Monitor System: 0.354,4.115 4.938,4.313 4.583,0.198 10 false Side Turn Signal Light Assembly LH 2.823,4.115 5.313,4.344 2.49,0.229 10 false Outer Mirror Retractor LH 4.271,3.083 5.25,3.344 0.979,0.26 10 false B 4.271,3.625 4.792,3.833 0.521,0.208 10 false E 4.552,3.01 6.052,3.354 1.5,0.344 10 false 10 4.573,3.552 5.104,3.833 0.531,0.281 10 false 11 5.813,0.677 6.667,0.969 0.854,0.292 10 false 1 6.031,0.792 6.885,1.083 0.854,0.292 10 false LL 0.667,6.5 5.25,6.698 4.583,0.198 10 false Rear Combination Light Socket and Wire Sub-assembly LH 0.656,6.333 5.24,6.531 4.583,0.198 10 false e4 2.469,5.708 4.635,5.896 2.167,0.188 10 false TRN 0.688,5.708 5.271,5.906 4.583,0.198 10 false E 0.479,5.708 2.948,5.969 2.469,0.26 10 false 4 2.844,5.719 5.344,5.896 2.5,0.177 10 false 3 6,5.792 6.521,6 0.521,0.208 10 false TRNL 5.833,5.698 6.354,5.906 0.521,0.208 10 false 5 5.917,6.677 7.156,7.146 1.24,0.469 10 false Combination Meter Assembly 5.927,6.5 6.448,6.708 0.521,0.208 10 false N23 0.24,0.813 2.677,1.177 2.438,0.365 10 false Front Turn Signal Light Bulb 0.104,1.417 2.542,1.781 2.438,0.365 10 false Front Turn Signal Light Socket LH 1,6.031 3.438,6.396 2.438,0.365 10 false Rear Turn Signal Light Bulb 3.594,1.604 4.729,2.042 1.135,0.438 10 false Headlight ECU Sub-assembly LH 3.594,1.458 4.448,1.75 0.854,0.292 10 false A54 4.417,0.792 5.271,1.083 0.854,0.292 10 false TNS 2.396,1.417 3.354,1.927 0.958,0.51 10 false Headlight Unit Assembly LH 3.26,0.927 4.115,1.219 0.854,0.292 10 false 13 0.896,3.396 5.479,3.594 4.583,0.198 10 false Side Turn Signal Light 3.302,0.625 4.156,0.917 0.854,0.292 10 false B 3.302,1.115 4.156,1.406 0.854,0.292 10 false B 2.229,0.615 3.083,0.906 0.854,0.292 10 false C 2.219,1.104 3.073,1.396 0.854,0.292 10 false C 2.229,0.448 3.083,0.74 0.854,0.292 10 false 1 2.229,0.927 3.083,1.219 0.854,0.292 10 false 2 3.271,0.417 4.125,0.708 0.854,0.292 10 false 20 4.771,0.698 5.625,0.99 0.854,0.292 10 false 11 4.927,3.01 5.083,3.208 0.156,0.198 10 false 5 4.938,3.542 5.094,3.74 0.156,0.198 10 false 4 4.573,3.365 4.885,3.563 0.313,0.198 10 false *1 4.885,3.365 5.198,3.563 0.313,0.198 10 false *2 4.885,3.917 5.198,4.115 0.313,0.198 10 false *2 4.573,3.906 4.885,4.104 0.313,0.198 10 false *1 4.854,3.188 6.365,3.521 1.51,0.333 10 false R19 4.531,3.188 6.042,3.521 1.51,0.333 10 false R20 4.542,3.74 6.052,4.073 1.51,0.333 10 false R20 4.854,3.74 6.365,4.073 1.51,0.333 10 false R19 0.156,6.948 4.896,7.146 4.74,0.198 10 false *1: w/ Blind Spot Monitor System 0.135,7.344 4.875,7.542 4.74,0.198 10 false *2: w/o Blind Spot Monitor System

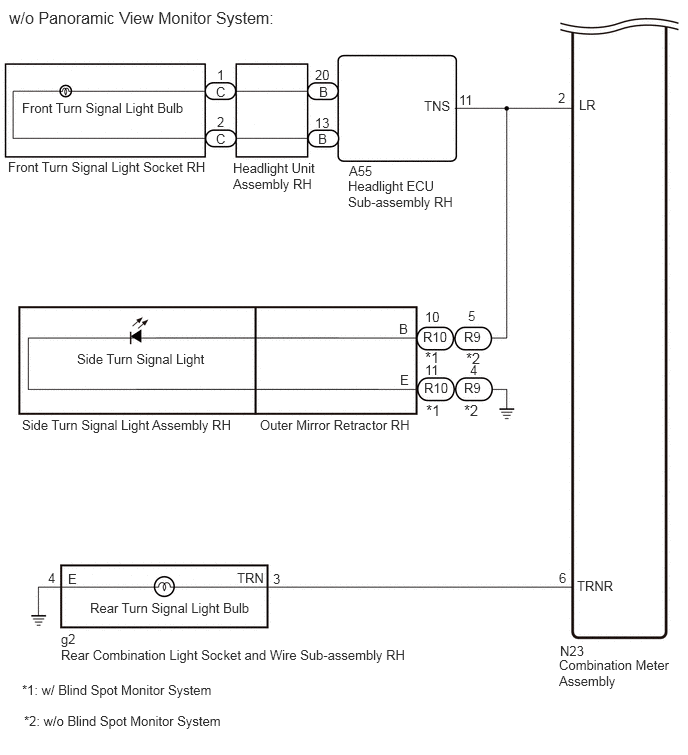

B571237E05
0.094,0.083 4.677,0.281 4.583,0.198 12 false w/o Panoramic View Monitor System: 0.229,4.344 4.813,4.542 4.583,0.198 10 false Side Turn Signal Light Assembly RH 2.708,4.344 5.281,4.604 2.573,0.26 10 false Outer Mirror Retractor RH 4.156,3.344 5.354,3.604 1.198,0.26 10 false B 4.167,3.875 4.865,4.094 0.698,0.219 10 false E 4.427,3.219 4.938,3.542 0.51,0.323 10 false 10 4.427,3.771 5.219,4.094 0.792,0.323 10 false 11 5.813,0.938 6.667,1.229 0.854,0.292 10 false 2 6.031,1.01 6.885,1.302 0.854,0.292 10 false LR 0.635,6.74 5.219,6.938 4.583,0.198 10 false Rear Combination Light Socket and Wire Sub-assembly RH 0.635,6.573 5.219,6.771 4.583,0.198 10 false g2 2.469,5.938 4.635,6.125 2.167,0.188 10 false TRN 0.708,5.948 5.292,6.146 4.583,0.198 10 false E 0.5,5.938 2.969,6.198 2.469,0.26 10 false 4 2.844,5.948 5.344,6.125 2.5,0.177 10 false 3 6.01,6.021 6.531,6.229 0.521,0.208 10 false TRNR 5.823,5.938 6.344,6.146 0.521,0.208 10 false 6 5.823,6.844 7.063,7.313 1.24,0.469 10 false Combination Meter Assembly 5.833,6.698 6.354,6.906 0.521,0.208 10 false N23 0.229,1.042 2.667,1.406 2.438,0.365 10 false Front Turn Signal Light Bulb 0.083,1.656 2.521,2.021 2.438,0.365 10 false Front Turn Signal Light Socket RH 0.938,6.25 3.375,6.615 2.438,0.365 10 false Rear Turn Signal Light Bulb 3.625,1.854 4.76,2.292 1.135,0.438 10 false Headlight ECU Sub-assembly RH 3.635,1.698 4.49,1.99 0.854,0.292 10 false A55 4.417,1.021 5.271,1.313 0.854,0.292 10 false TNS 2.427,1.667 3.385,2.177 0.958,0.51 10 false Headlight Unit Assembly RH 4.781,0.958 5.635,1.25 0.854,0.292 10 false 11 0.802,3.656 5.385,3.854 4.583,0.198 10 false Side Turn Signal Light 3.323,0.875 4.177,1.167 0.854,0.292 10 false B 3.313,1.365 4.167,1.656 0.854,0.292 10 false B 2.25,0.875 3.104,1.167 0.854,0.292 10 false C 2.25,1.365 3.104,1.656 0.854,0.292 10 false C 2.26,1.188 3.115,1.479 0.854,0.292 10 false 2 2.26,0.698 3.115,0.99 0.854,0.292 10 false 1 3.281,0.698 4.135,0.99 0.854,0.292 10 false 20 3.281,1.198 4.135,1.49 0.854,0.292 10 false 13 4.875,3.208 5.385,3.531 0.51,0.323 10 false 5 4.896,3.771 5.688,4.094 0.792,0.323 10 false 4 4.406,3.427 5.917,3.76 1.51,0.333 10 false R10 4.833,3.427 6.344,3.76 1.51,0.333 10 false R9 4.417,3.958 5.927,4.292 1.51,0.333 10 false R10 4.833,3.958 6.344,4.292 1.51,0.333 10 false R9 4.427,3.625 4.771,3.844 0.344,0.219 11 false *1 4.854,3.635 5.198,3.854 0.344,0.219 11 false *2 4.438,4.177 4.781,4.396 0.344,0.219 11 false *1 4.833,4.177 5.177,4.396 0.344,0.219 11 false *2 0.229,7.104 2.677,7.302 2.448,0.198 10 false *1: w/ Blind Spot Monitor System 0.25,7.427 5.292,7.625 5.042,0.198 10 false *2: w/o Blind Spot Monitor System


w/o Headlight ECU, for TAW Made:

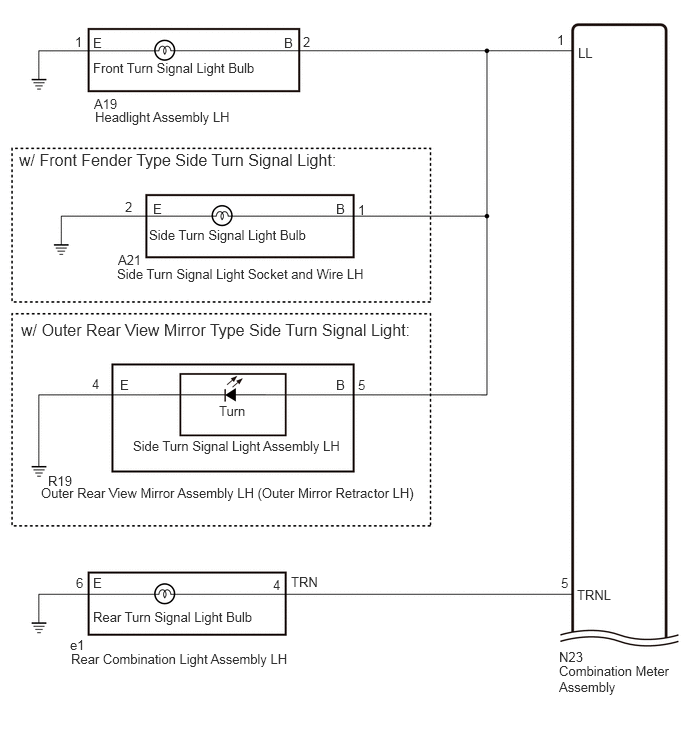

B571238E03
0.99,1.135 5.573,1.333 4.583,0.198 10 false Headlight Assembly LH 0.979,1 5.563,1.198 4.583,0.198 10 false A19 0.781,0.354 5.365,0.552 4.583,0.198 10 false 1 0.969,0.365 5.552,0.563 4.583,0.198 10 false E 2.958,0.365 6.615,0.75 3.656,0.385 10 false B 3.156,0.354 5.385,0.615 2.229,0.26 10 false 2 0.198,1.563 4.781,1.76 4.583,0.198 12 false w/ Front Fender Type Side Turn Signal Light: 3.729,2.104 5.896,2.375 2.167,0.271 10 false 1 1.594,2.094 6.177,2.292 4.583,0.198 10 false E 3.5,2.094 6.927,2.354 3.427,0.26 10 false B 1.229,2.625 5.813,2.823 4.583,0.198 10 false A21 1.219,2.771 5.802,2.969 4.583,0.198 10 false Side Turn Signal Light Socket and Wire LH 1.385,4.563 5.969,4.76 4.583,0.198 10 false Side Turn Signal Light Assembly LH 0.427,5.052 5.01,5.25 4.583,0.198 10 false Outer Rear View Mirror Assembly LH (Outer Mirror Retractor LH) 0.219,3.333 4.802,3.531 4.583,0.198 12 false w/ Outer Rear View Mirror Type Side Turn Signal Light: 3.5,3.927 7.156,4.156 3.656,0.229 10 false B 1.25,3.927 5.406,4.156 4.156,0.229 10 false E 2.281,4.198 6.865,4.396 4.583,0.198 10 false Turn 5.802,0.333 6.656,0.625 0.854,0.292 10 false 1 6.021,0.469 6.875,0.76 0.854,0.292 10 false LL 0.74,6.781 5.323,6.979 4.583,0.198 10 false Rear Combination Light Assembly LH 0.729,6.635 5.313,6.833 4.583,0.198 10 false e1 3.031,5.979 5.198,6.167 2.167,0.188 10 false TRN 0.969,5.99 5.552,6.188 4.583,0.198 10 false E 0.792,5.99 3.26,6.25 2.469,0.26 10 false 6 2.844,6.01 5.344,6.188 2.5,0.177 10 false 4 6.01,6.115 6.531,6.323 0.521,0.208 10 false TRNL 5.844,5.99 6.365,6.198 0.521,0.208 10 false 5 5.823,6.906 7.063,7.375 1.24,0.469 10 false Combination Meter Assembly 5.823,6.76 6.344,6.969 0.521,0.208 10 false N23 1.302,2.073 5.885,2.271 4.583,0.198 10 false 2 3.729,3.927 6.198,4.188 2.469,0.26 10 false 5 0.958,3.917 3.427,4.177 2.469,0.26 10 false 4 0.969,0.625 3.406,0.99 2.438,0.365 10 false Front Turn Signal Light Bulb 1.552,2.365 3.99,2.729 2.438,0.365 10 false Side Turn Signal Light Bulb 0.969,6.344 3.406,6.708 2.438,0.365 10 false Rear Turn Signal Light Bulb 0.5,4.927 0.958,5.125 0.458,0.198 10 false R19

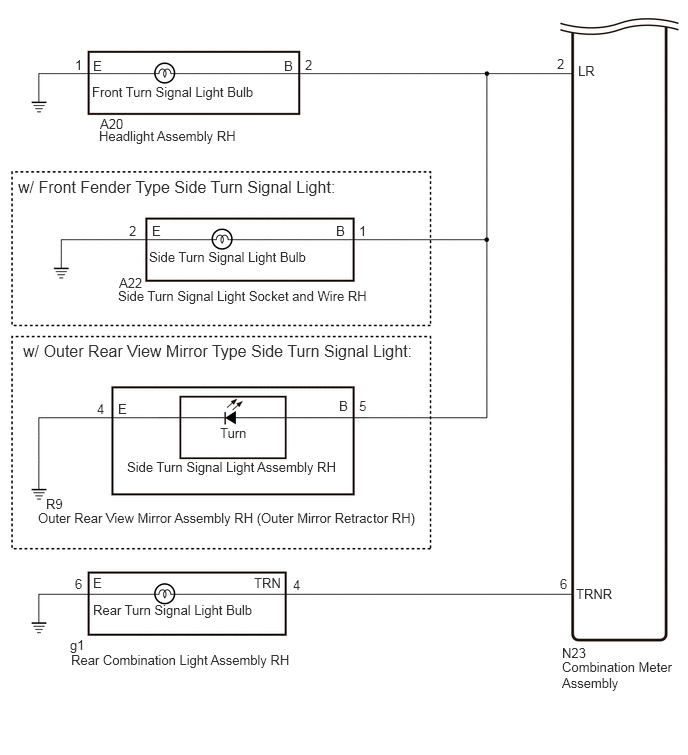

B571239E07
1.031,1.333 5.615,1.531 4.583,0.198 10 false Headlight Assembly RH 1.042,1.208 5.625,1.406 4.583,0.198 10 false A20 0.781,0.594 5.365,0.792 4.583,0.198 10 false 1 0.969,0.604 5.552,0.802 4.583,0.198 10 false E 2.958,0.604 5.427,0.865 2.469,0.26 10 false B 3.177,0.594 6.208,0.854 3.031,0.26 10 false 2 0.188,1.844 4.771,2.042 4.583,0.198 12 false w/ Front Fender Type Side Turn Signal Light: 3.74,2.323 5.792,2.719 2.052,0.396 10 false 1 1.344,2.323 5.927,2.521 4.583,0.198 10 false 2 1.583,2.323 6.167,2.521 4.583,0.198 10 false E 3.5,2.323 6.438,2.583 2.938,0.26 10 false B 1.24,2.865 5.823,3.063 4.583,0.198 10 false A22 1.229,3 5.813,3.198 4.583,0.198 10 false Side Turn Signal Light Socket and Wire RH 1.323,4.781 5.906,4.979 4.583,0.198 10 false Side Turn Signal Light Assembly RH 0.24,3.552 4.823,3.75 4.583,0.198 12 false w/ Outer Rear View Mirror Type Side Turn Signal Light: 3.531,4.146 5.51,4.49 1.979,0.344 10 false B 1.229,4.177 5.385,4.406 4.156,0.229 10 false E 2.292,4.427 6.875,4.625 4.583,0.198 10 false Turn 6.021,0.656 6.875,0.948 0.854,0.292 10 false LR 0.74,6.792 5.323,6.99 4.583,0.198 10 false Rear Combination Light Assembly RH 0.729,6.635 5.313,6.833 4.583,0.198 10 false g1 2.646,5.99 5.073,6.146 2.427,0.156 10 false TRN 0.969,5.99 5.552,6.188 4.583,0.198 10 false E 0.781,6 3.25,6.26 2.469,0.26 10 false 6 3.052,6.01 5.75,6.281 2.698,0.271 10 false 4 6,6.104 7.156,6.406 1.156,0.302 10 false TRNR 5.833,6 6.99,6.302 1.156,0.302 10 false 6 5.854,6.719 7.01,7.021 1.156,0.302 10 false N23 5.854,6.865 7.115,7.281 1.26,0.417 10 false Combination Meter Assembly 5.802,0.583 6.406,0.823 0.604,0.24 10 false 2 3.74,4.146 6.208,4.406 2.469,0.26 10 false 5 1.01,4.177 3.479,4.438 2.469,0.26 10 false 4 0.958,0.875 5.542,1.073 4.583,0.198 10 false Front Turn Signal Light Bulb 1.552,2.594 6.135,2.792 4.583,0.198 10 false Side Turn Signal Light Bulb 0.969,6.271 5.552,6.469 4.583,0.198 10 false Rear Turn Signal Light Bulb 0.396,5.313 4.979,5.51 4.583,0.198 10 false Outer Rear View Mirror Assembly RH (Outer Mirror Retractor RH) 0.479,5.167 0.792,5.365 0.313,0.198 10 false R9


w/o Headlight ECU, except TAW Made:

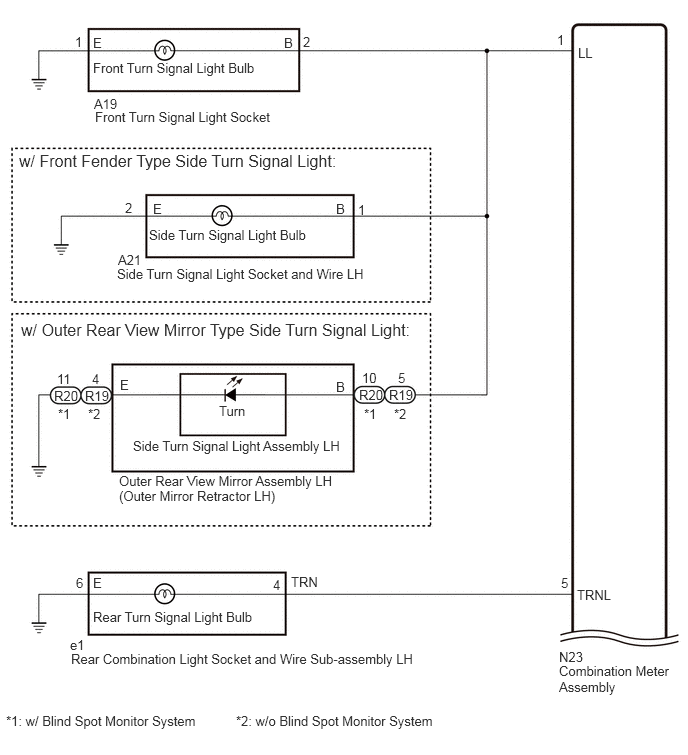

B539032E01

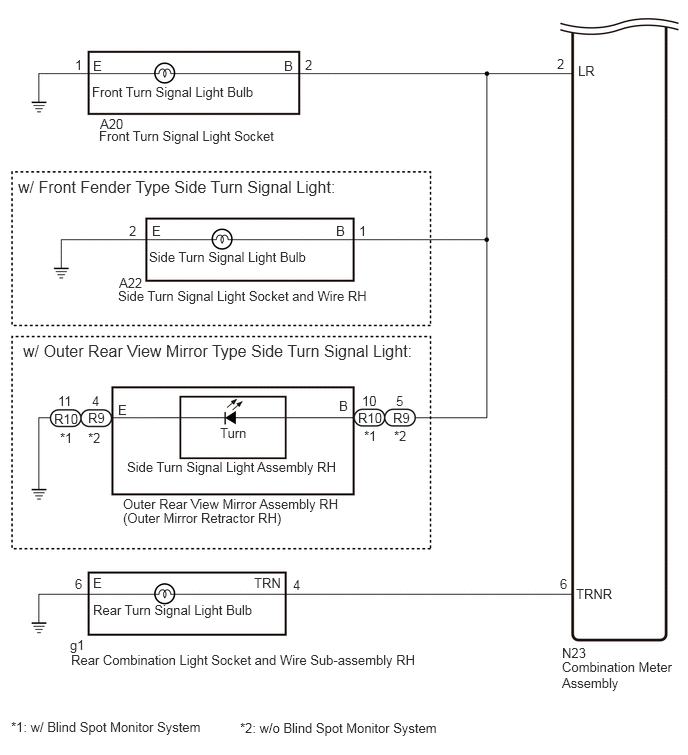

0.99,1.135 5.573,1.333 4.583,0.198 10 false Front Turn Signal Light Socket 0.979,1 5.563,1.198 4.583,0.198 10 false A19 0.781,0.354 5.365,0.552 4.583,0.198 10 false 1 0.969,0.365 5.552,0.563 4.583,0.198 10 false E 2.958,0.365 6.615,0.75 3.656,0.385 10 false B 3.156,0.354 5.385,0.615 2.229,0.26 10 false 2 0.198,1.573 4.781,1.771 4.583,0.198 12 false w/ Front Fender Type Side Turn Signal Light: 3.729,2.104 5.896,2.375 2.167,0.271 10 false 1 1.594,2.094 6.177,2.292 4.583,0.198 10 false E 3.5,2.094 6.927,2.354 3.427,0.26 10 false B 1.229,2.625 5.813,2.823 4.583,0.198 10 false A21 1.219,2.771 5.802,2.969 4.583,0.198 10 false Side Turn Signal Light Socket and Wire LH 1.385,4.563 5.969,4.76 4.583,0.198 10 false Side Turn Signal Light Assembly LH 1.24,4.927 5.823,5.125 4.583,0.198 10 false Outer Rear View Mirror Assembly LH 0.604,4.229 2.115,4.563 1.51,0.333 10 false *1 0.219,3.333 4.802,3.531 4.583,0.198 12 false w/ Outer Rear View Mirror Type Side Turn Signal Light: 3.5,3.948 7.156,4.177 3.656,0.229 10 false B 1.25,3.927 5.406,4.156 4.156,0.229 10 false E 2.281,4.198 6.865,4.396 4.583,0.198 10 false Turn 3.771,3.854 6.24,4.115 2.469,0.26 10 false 10 0.594,3.865 3.063,4.125 2.469,0.26 10 false 11 5.802,0.333 6.656,0.625 0.854,0.292 10 false 1 6.021,0.469 6.875,0.76 0.854,0.292 10 false LL 0.74,6.781 5.323,6.979 4.583,0.198 10 false Rear Combination Light Socket and Wire Sub-assembly LH 0.729,6.635 5.313,6.833 4.583,0.198 10 false e1 3.031,5.979 5.198,6.167 2.167,0.188 10 false TRN 0.969,5.99 5.552,6.188 4.583,0.198 10 false E 0.792,5.99 3.26,6.25 2.469,0.26 10 false 6 2.844,6.01 5.344,6.188 2.5,0.177 10 false 4 6.01,6.115 6.531,6.323 0.521,0.208 10 false TRNL 5.844,5.99 6.365,6.198 0.521,0.208 10 false 5 5.823,6.906 7.063,7.375 1.24,0.469 10 false Combination Meter Assembly 5.823,6.76 6.344,6.969 0.521,0.208 10 false N23 1.302,2.083 5.885,2.281 4.583,0.198 10 false 2 0.063,7.427 4.646,7.625 4.583,0.198 10 false *1: w/ Blind Spot Monitor System 2.458,7.427 7.042,7.625 4.583,0.198 10 false *2: w/o Blind Spot Monitor System 4.146,3.854 6.615,4.115 2.469,0.26 10 false 5 3.74,4.031 5.25,4.365 1.51,0.333 10 false R20 4.052,4.031 5.563,4.365 1.51,0.333 10 false R19 0.958,3.865 3.427,4.125 2.469,0.26 10 false 4 0.563,4.042 2.073,4.375 1.51,0.333 10 false R20 0.885,4.042 2.396,4.375 1.51,0.333 10 false R19 3.792,4.229 5.302,4.563 1.51,0.333 10 false *1 0.917,4.229 2.427,4.563 1.51,0.333 10 false *2 4.104,4.229 5.615,4.563 1.51,0.333 10 false *2 0.969,0.625 3.406,0.99 2.438,0.365 10 false Front Turn Signal Light Bulb 1.552,2.365 3.99,2.729 2.438,0.365 10 false Side Turn Signal Light Bulb 0.969,6.344 3.406,6.708 2.438,0.365 10 false Rear Turn Signal Light Bulb 1.24,5.083 5.823,5.281 4.583,0.198 10 false (Outer Mirror Retractor LH)

B539033E01
1.031,1.333 5.615,1.531 4.583,0.198 10 false Front Turn Signal Light Socket 1.042,1.208 5.625,1.406 4.583,0.198 10 false A20 0.781,0.594 5.365,0.792 4.583,0.198 10 false 1 0.969,0.604 5.552,0.802 4.583,0.198 10 false E 2.958,0.604 5.427,0.865 2.469,0.26 10 false B 3.177,0.594 6.208,0.854 3.031,0.26 10 false 2 0.188,1.844 4.771,2.042 4.583,0.198 12 false w/ Front Fender Type Side Turn Signal Light: 3.74,2.323 5.792,2.719 2.052,0.396 10 false 1 1.344,2.323 5.927,2.521 4.583,0.198 10 false 2 1.583,2.323 6.167,2.521 4.583,0.198 10 false E 3.5,2.323 6.438,2.583 2.938,0.26 10 false B 1.24,2.865 5.823,3.063 4.583,0.198 10 false A22 1.229,3 5.813,3.198 4.583,0.198 10 false Side Turn Signal Light Socket and Wire RH 1.323,4.781 5.906,4.979 4.583,0.198 10 false Side Turn Signal Light Assembly RH 0.24,3.552 4.823,3.75 4.583,0.198 12 false w/ Outer Rear View Mirror Type Side Turn Signal Light: 3.531,4.146 5.51,4.49 1.979,0.344 10 false B 1.229,4.188 5.385,4.417 4.156,0.229 10 false E 2.292,4.427 6.875,4.625 4.583,0.198 10 false Turn 3.771,4.094 6.24,4.354 2.469,0.26 10 false 10 0.604,4.094 3.073,4.354 2.469,0.26 10 false 11 6.021,0.656 6.875,0.948 0.854,0.292 10 false LR 0.74,6.792 5.323,6.99 4.583,0.198 10 false Rear Combination Light Socket and Wire Sub-assembly RH 0.729,6.635 5.313,6.833 4.583,0.198 10 false g1 2.646,5.99 5.073,6.146 2.427,0.156 10 false TRN 0.969,5.99 5.552,6.188 4.583,0.198 10 false E 0.781,6 3.25,6.26 2.469,0.26 10 false 6 3.052,6.01 5.75,6.281 2.698,0.271 10 false 4 6,6.104 7.156,6.406 1.156,0.302 10 false TRNR 5.833,6 6.99,6.302 1.156,0.302 10 false 6 5.854,6.719 7.01,7.021 1.156,0.302 10 false N23 5.854,6.865 7.115,7.281 1.26,0.417 10 false Combination Meter Assembly 0.115,7.49 4.698,7.688 4.583,0.198 10 false *1: w/ Blind Spot Monitor System 2.5,7.5 7.083,7.698 4.583,0.198 10 false *2: w/o Blind Spot Monitor System 5.802,0.583 6.406,0.823 0.604,0.24 10 false 2 4.125,4.094 6.594,4.354 2.469,0.26 10 false 5 0.917,4.271 2.156,4.615 1.24,0.344 10 false R9 3.729,4.271 5.125,4.531 1.396,0.26 10 false R10 0.563,4.281 1.958,4.542 1.396,0.26 10 false R10 4.094,4.271 5.333,4.615 1.24,0.344 10 false R9 0.958,4.094 3.427,4.354 2.469,0.26 10 false 4 4.104,4.458 6.573,4.719 2.469,0.26 10 false *2 0.625,4.479 3.094,4.74 2.469,0.26 10 false *1 0.917,4.479 3.385,4.74 2.469,0.26 10 false *2 3.792,4.458 6.26,4.719 2.469,0.26 10 false *1 0.958,0.875 5.542,1.073 4.583,0.198 10 false Front Turn Signal Light Bulb 1.552,2.594 6.135,2.792 4.583,0.198 10 false Side Turn Signal Light Bulb 0.969,6.271 5.552,6.469 4.583,0.198 10 false Rear Turn Signal Light Bulb 1.281,5.167 5.865,5.365 4.583,0.198 10 false Outer Rear View Mirror Assembly RH 1.281,5.313 5.865,5.51 4.583,0.198 10 false (Outer Mirror Retractor RH)


CAUTION / NOTICE / HINT

NOTICE:
·

When replacing the combination meter assembly, always replace it with a new one. If a combination meter assembly which was installed to another vehicle is used, the information stored in it will not match the information from the vehicle and a DTC may be stored.

·

When replacing the headlight ECU sub-assembly LH, always replace it with a new one. If a headlight ECU sub-assembly LH which was installed to another vehicle is used, the information stored in it will not match the information from the vehicle and a DTC may be stored.

·

Inspect the bulbs before performing the following procedure.



PROCEDURE

1.CHECK VEHICLE TYPE
a.

Check vehicle condition.


Result:
Result Proceed to
w/o Headlight ECU A
w/ Headlight ECU B



A

2.INSPECT LIGHTS

B

39.INSPECT LIGHTS
2.INSPECT LIGHTS
a.

Inspect the illumination of each turn signal light.


Result:
Result Proceed to
Front turn signal light LH and side turn signal light LH do not blink. A
Front turn signal light RH and side turn signal light RH do not blink. B
Rear turn signal light LH does not blink. C
Rear turn signal light RH does not blink. D



A

3.CHECK VEHICLE TYPE

B

16.CHECK VEHICLE TYPE

C

29.CHECK VEHICLE TYPE

D

34.CHECK VEHICLE TYPE
3.CHECK VEHICLE TYPE
a.

Check vehicle condition.


Result:
Result Proceed to
for TAW Made A
except TAW Made B



A

4.CHECK HEADLIGHT ASSEMBLY LH

B

10.CHECK FRONT TURN SIGNAL LIGHT SOCKET
4.CHECK HEADLIGHT ASSEMBLY LH
a.

Disconnect the A19 headlight assembly LH connector.


b.

c.

Check for DTC.

Click hereVehicle Interior>METER / GAUGE / DISPLAY>METER / GAUGE SYSTEM>DTC CHECK / CLEAR

Body Electrical > Combination Meter > Trouble Codes
50001 409

Result:
Result Proceed to
DTC B150819 is output. (w/ Front Fender Type Side Turn Signal Light) A
DTC B150819 is output. (w/ Outer Rear View Mirror Type Side Turn Signal Light) B
DTC B150718 is output. C



A

5.CHECK SIDE TURN SIGNAL LIGHT SOCKET AND WIRE LH

B

7.CHECK OUTER REAR VIEW MIRROR ASSEMBLY LH (OUTER MIRROR RETRACTOR LH)

C

5.CHECK SIDE TURN SIGNAL LIGHT SOCKET AND WIRE LH
a.

Disconnect the A21 side turn signal light socket and wire LH connector.


b.

c.

Check for DTC.

Click hereVehicle Interior>METER / GAUGE / DISPLAY>METER / GAUGE SYSTEM>DTC CHECK / CLEAR

Body Electrical > Combination Meter > Trouble Codes
50001 409

Result:
Result Proceed to
DTC B150819 is output. A
DTC B150718 is output. B



A

6.CHECK HARNESS AND CONNECTOR (COMBINATION METER ASSEMBLY - HEADLIGHT ASSEMBLY LH)

B

6.CHECK HARNESS AND CONNECTOR (COMBINATION METER ASSEMBLY - HEADLIGHT ASSEMBLY LH)
a.

Disconnect the N23 combination meter assembly connector.


b.

Disconnect the A19 headlight assembly LH connector.


c.

Disconnect the A21 side turn signal light socket and wire LH connector.


d.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
N23-1 (LL) or A19-2 (B) or A21-1 (B) - Body ground Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

7.CHECK OUTER REAR VIEW MIRROR ASSEMBLY LH (OUTER MIRROR RETRACTOR LH)
a.

Disconnect the R19 outer rear view mirror assembly LH (outer mirror retractor LH) connector.


b.

c.

Check for DTC.

Click hereVehicle Interior>METER / GAUGE / DISPLAY>METER / GAUGE SYSTEM>DTC CHECK / CLEAR

Body Electrical > Combination Meter > Trouble Codes
50001 409

Result:
Result Proceed to
DTC B150819 is output. A
DTC B150718 is output. B



A

8.CHECK HARNESS AND CONNECTOR (COMBINATION METER ASSEMBLY - HEADLIGHT ASSEMBLY LH)

B

9.CHECK SIDE TURN SIGNAL LIGHT ASSEMBLY LH
8.CHECK HARNESS AND CONNECTOR (COMBINATION METER ASSEMBLY - HEADLIGHT ASSEMBLY LH)
a.

Disconnect the N23 combination meter assembly connector.


b.

Disconnect the A19 headlight assembly LH connector.


c.

Disconnect the R19 outer rear view mirror assembly LH (outer mirror retractor LH) connector.


d.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
N23-1 (LL) or A19-2 (B) or R19-5 (B) - Body ground Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

9.CHECK SIDE TURN SIGNAL LIGHT ASSEMBLY LH

b.

Reconnect the R19 outer rear view mirror assembly LH (outer mirror retractor LH) connector.


c.

d.

Check for DTC.

Click hereVehicle Interior>METER / GAUGE / DISPLAY>METER / GAUGE SYSTEM>DTC CHECK / CLEAR

Body Electrical > Combination Meter > Trouble Codes
50001 409

Result:
Result Proceed to
DTC B150819 is output. A
DTC B150718 is output. B



A

REPLACE OUTER REAR VIEW MIRROR ASSEMBLY LH (OUTER MIRROR RETRACTOR LH)

B

10.CHECK FRONT TURN SIGNAL LIGHT SOCKET
a.

Disconnect the A19 front turn signal light socket connector.


b.

c.

Check for DTC.

Click hereVehicle Interior>METER / GAUGE / DISPLAY>METER / GAUGE SYSTEM>DTC CHECK / CLEAR

Body Electrical > Combination Meter > Trouble Codes
50001 409

Result:
Result Proceed to
DTC B150819 is output. (w/ Front Fender Type Side Turn Signal Light) A
DTC B150819 is output. (w/ Outer Rear View Mirror Type Side Turn Signal Light) B
DTC B150718 is output. C



A

11.CHECK SIDE TURN SIGNAL LIGHT SOCKET AND WIRE LH

B

13.CHECK OUTER REAR VIEW MIRROR ASSEMBLY LH (OUTER MIRROR RETRACTOR LH)

C

11.CHECK SIDE TURN SIGNAL LIGHT SOCKET AND WIRE LH
a.

Disconnect the A21 side turn signal light socket and wire LH connector.


b.

c.

Check for DTC.

Click hereVehicle Interior>METER / GAUGE / DISPLAY>METER / GAUGE SYSTEM>DTC CHECK / CLEAR

Body Electrical > Combination Meter > Trouble Codes
50001 409

Result:
Result Proceed to
DTC B150819 is output. A
DTC B150718 is output. B



A

12.CHECK HARNESS AND CONNECTOR (COMBINATION METER ASSEMBLY - FRONT TURN SIGNAL LIGHT SOCKET)

B

12.CHECK HARNESS AND CONNECTOR (COMBINATION METER ASSEMBLY - FRONT TURN SIGNAL LIGHT SOCKET)
a.

Disconnect the N23 combination meter assembly connector.


b.

Disconnect the A19 front turn signal light socket connector.


c.

Disconnect the A21 side turn signal light socket and wire LH connector.


d.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
N23-1 (LL) or A19-2 (B) or A21-1 (B) - Body ground Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

13.CHECK OUTER REAR VIEW MIRROR ASSEMBLY LH (OUTER MIRROR RETRACTOR LH)
a.

Disconnect the R20*1 or R19*2 outer rear view mirror assembly LH (outer mirror retractor LH) connector.

*1: w/ Blind Spot Monitor System

*2: w/o Blind Spot Monitor System



b.

c.

Check for DTC.

Click hereVehicle Interior>METER / GAUGE / DISPLAY>METER / GAUGE SYSTEM>DTC CHECK / CLEAR

Body Electrical > Combination Meter > Trouble Codes
50001 409

Result:
Result Proceed to
DTC B150819 is output. A
DTC B150718 is output. B



A

14.CHECK HARNESS AND CONNECTOR (COMBINATION METER ASSEMBLY - FRONT TURN SIGNAL LIGHT SOCKET)

B

15.CHECK SIDE TURN SIGNAL LIGHT ASSEMBLY LH
14.CHECK HARNESS AND CONNECTOR (COMBINATION METER ASSEMBLY - FRONT TURN SIGNAL LIGHT SOCKET)

*1: w/ Blind Spot Monitor System

*2: w/o Blind Spot Monitor System


a.

Disconnect the N23 combination meter assembly connector.


b.

Disconnect the A19 front turn signal light socket connector.


c.

Disconnect the R20*1 or R19*2 outer rear view mirror assembly LH (outer mirror retractor LH) connector.


d.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
N23-1 (LL) or A19-2 (B) or R20-10 (B) - Body ground*1 Always 10 kΩ or higher
N23-1 (LL) or A19-2 (B) or R19-5 (B) - Body ground*2 Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

15.CHECK SIDE TURN SIGNAL LIGHT ASSEMBLY LH

b.

Reconnect the R20*1 or R19*2 outer rear view mirror assembly LH connector.

*1: w/ Blind Spot Monitor System

*2: w/o Blind Spot Monitor System



c.

d.

Check for DTC.

Click hereVehicle Interior>METER / GAUGE / DISPLAY>METER / GAUGE SYSTEM>DTC CHECK / CLEAR

Body Electrical > Combination Meter > Trouble Codes
50001 409

Result:
Result Proceed to
DTC B150819 is output. A
DTC B150718 is output. B



A

REPLACE OUTER REAR VIEW MIRROR ASSEMBLY LH (OUTER MIRROR RETRACTOR LH)

B

16.CHECK VEHICLE TYPE
a.

Check vehicle condition.


Result:
Result Proceed to
for TAW Made A
except TAW Made B



A

17.CHECK HEADLIGHT ASSEMBLY RH

B

23.CHECK FRONT TURN SIGNAL LIGHT SOCKET
17.CHECK HEADLIGHT ASSEMBLY RH
a.

Disconnect the A20 headlight assembly RH connector.


b.

c.

Check for DTC.

Click hereVehicle Interior>METER / GAUGE / DISPLAY>METER / GAUGE SYSTEM>DTC CHECK / CLEAR

Body Electrical > Combination Meter > Trouble Codes
50001 409

Result:
Result Proceed to
DTC B150819 is output. (w/ Front Fender Type Side Turn Signal Light) A
DTC B150819 is output. (w/ Outer Rear View Mirror Type Side Turn Signal Light) B
DTC B150718 is output. C



A

18.CHECK SIDE TURN SIGNAL LIGHT SOCKET AND WIRE RH

B

20.CHECK OUTER REAR VIEW MIRROR ASSEMBLY RH (OUTER MIRROR RETRACTOR RH)

C

18.CHECK SIDE TURN SIGNAL LIGHT SOCKET AND WIRE RH
a.

Disconnect the A22 side turn signal light socket and wire RH connector.


b.

c.

Check for DTC.

Click hereVehicle Interior>METER / GAUGE / DISPLAY>METER / GAUGE SYSTEM>DTC CHECK / CLEAR

Body Electrical > Combination Meter > Trouble Codes
50001 409

Result:
Result Proceed to
DTC B150819 is output. A
DTC B150718 is output. B



A

19.CHECK HARNESS AND CONNECTOR (COMBINATION METER ASSEMBLY - HEADLIGHT ASSEMBLY RH)

B

19.CHECK HARNESS AND CONNECTOR (COMBINATION METER ASSEMBLY - HEADLIGHT ASSEMBLY RH)
a.

Disconnect the N23 combination meter assembly connector.


b.

Disconnect the A20 headlight assembly RH connector.


c.

Disconnect the A22 side turn signal light socket and wire RH connector.


d.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
N23-2 (LR) or A20-2 (B) or A22-1 (B) - Body ground Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

20.CHECK OUTER REAR VIEW MIRROR ASSEMBLY RH (OUTER MIRROR RETRACTOR RH)
a.

Disconnect the R9 outer rear view mirror assembly RH (outer mirror retractor RH) connector.


b.

c.

Check for DTC.

Click hereVehicle Interior>METER / GAUGE / DISPLAY>METER / GAUGE SYSTEM>DTC CHECK / CLEAR

Body Electrical > Combination Meter > Trouble Codes
50001 409

Result:
Result Proceed to
DTC B150819 is output. A
DTC B150718 is output. B



A

21.CHECK HARNESS AND CONNECTOR (COMBINATION METER ASSEMBLY - HEADLIGHT ASSEMBLY RH)

B

22.CHECK SIDE TURN SIGNAL LIGHT ASSEMBLY RH
21.CHECK HARNESS AND CONNECTOR (COMBINATION METER ASSEMBLY - HEADLIGHT ASSEMBLY RH)
a.

Disconnect the N23 combination meter assembly connector.


b.

Disconnect the A20 headlight assembly RH connector.


c.

Disconnect the R9 outer rear view mirror assembly RH (outer mirror retractor RH) connector.


d.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
N23-2 (LR) or A20-2 (B) or R9-5 (B) - Body ground Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

22.CHECK SIDE TURN SIGNAL LIGHT ASSEMBLY RH

b.

Reconnect the R9 outer rear view mirror assembly RH (outer mirror retractor RH) connector.


c.

d.

Check for DTC.

Click hereVehicle Interior>METER / GAUGE / DISPLAY>METER / GAUGE SYSTEM>DTC CHECK / CLEAR

Body Electrical > Combination Meter > Trouble Codes
50001 409

Result:
Result Proceed to
DTC B150819 is output. A
DTC B150718 is output. B



A

REPLACE OUTER REAR VIEW MIRROR ASSEMBLY RH (OUTER MIRROR RETRACTOR RH)

B

23.CHECK FRONT TURN SIGNAL LIGHT SOCKET
a.

Disconnect the A20 front turn signal light socket connector.


b.

c.

Check for DTC.

Click hereVehicle Interior>METER / GAUGE / DISPLAY>METER / GAUGE SYSTEM>DTC CHECK / CLEAR

Body Electrical > Combination Meter > Trouble Codes
50001 409

Result:
Result Proceed to
DTC B150819 is output. (w/ Front Fender Type Side Turn Signal Light) A
DTC B150819 is output. (w/ Outer Rear View Mirror Type Side Turn Signal Light) B
DTC B150718 is output. C



A

24.CHECK SIDE TURN SIGNAL LIGHT SOCKET AND WIRE RH

B

26.CHECK OUTER REAR VIEW MIRROR ASSEMBLY RH (OUTER MIRROR RETRACTOR RH)

C

24.CHECK SIDE TURN SIGNAL LIGHT SOCKET AND WIRE RH
a.

Disconnect the A22 side turn signal light socket and wire RH connector.


b.

c.

Check for DTC.

Click hereVehicle Interior>METER / GAUGE / DISPLAY>METER / GAUGE SYSTEM>DTC CHECK / CLEAR

Body Electrical > Combination Meter > Trouble Codes
50001 409

Result:
Result Proceed to
DTC B150819 is output. A
DTC B150718 is output. B



A

25.CHECK HARNESS AND CONNECTOR (COMBINATION METER ASSEMBLY - FRONT TURN SIGNAL LIGHT SOCKET)

B

25.CHECK HARNESS AND CONNECTOR (COMBINATION METER ASSEMBLY - FRONT TURN SIGNAL LIGHT SOCKET)
a.

Disconnect the N23 combination meter assembly connector.


b.

Disconnect the A20 front turn signal light socket connector.


c.

Disconnect the A22 side turn signal light socket and wire RH connector.


d.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
N23-2 (LR) or A20-2 (B) or A22-1 (B) - Body ground Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

26.CHECK OUTER REAR VIEW MIRROR ASSEMBLY RH (OUTER MIRROR RETRACTOR RH)
a.

Disconnect the R10*1 or R9*2 outer rear view mirror assembly RH (outer mirror retractor RH) connector.

*1: w/ Blind Spot Monitor System

*2: w/o Blind Spot Monitor System



b.

c.

Check for DTC.

Click hereVehicle Interior>METER / GAUGE / DISPLAY>METER / GAUGE SYSTEM>DTC CHECK / CLEAR

Body Electrical > Combination Meter > Trouble Codes
50001 409

Result:
Result Proceed to
DTC B150819 is output. A
DTC B150718 is output. B



A

27.CHECK HARNESS AND CONNECTOR (COMBINATION METER ASSEMBLY - FRONT TURN SIGNAL LIGHT SOCKET)

B

28.CHECK SIDE TURN SIGNAL LIGHT ASSEMBLY RH
27.CHECK HARNESS AND CONNECTOR (COMBINATION METER ASSEMBLY - FRONT TURN SIGNAL LIGHT SOCKET)

*1: w/ Blind Spot Monitor System

*2: w/o Blind Spot Monitor System


a.

Disconnect the N23 combination meter assembly connector.


b.

Disconnect the A20 front turn signal light socket connector.


c.

Disconnect the R10*1 or R9*2 outer rear view mirror assembly RH (outer mirror retractor RH) connector.


d.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
N23-2 (LR) or A20-2 (B) or R10-10 (B) - Body ground*1 Always 10 kΩ or higher
N23-2 (LR) or A20-2 (B) or R9-5 (B) - Body ground*2 Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

28.CHECK SIDE TURN SIGNAL LIGHT ASSEMBLY RH

b.

Reconnect the R10*1 or R9*2 outer rear view mirror assembly RH (outer mirror retractor RH) connector.

*1: w/ Blind Spot Monitor System

*2: w/o Blind Spot Monitor System



c.

d.

Check for DTC.

Click hereVehicle Interior>METER / GAUGE / DISPLAY>METER / GAUGE SYSTEM>DTC CHECK / CLEAR

Body Electrical > Combination Meter > Trouble Codes
50001 409

Result:
Result Proceed to
DTC B150819 is output. A
DTC B150718 is output. B



A

REPLACE OUTER REAR VIEW MIRROR ASSEMBLY RH (OUTER MIRROR RETRACTOR RH)

B

29.CHECK VEHICLE TYPE
a.

Check vehicle condition.


Result:
Result Proceed to
for TAW Made A
except TAW Made B



A

30.CHECK REAR COMBINATION LIGHT ASSEMBLY LH

B

32.CHECK REAR COMBINATION LIGHT SOCKET AND WIRE SUB-ASSEMBLY LH
30.CHECK REAR COMBINATION LIGHT ASSEMBLY LH
a.

Disconnect the e1 rear combination light assembly LH connector.


b.

c.

Check for DTC.

Click hereVehicle Interior>METER / GAUGE / DISPLAY>METER / GAUGE SYSTEM>DTC CHECK / CLEAR

Body Electrical > Combination Meter > Trouble Codes
50001 409

Result:
Result Proceed to
DTC B150819 is output. A
DTC B150718 is output. B



A

31.CHECK HARNESS AND CONNECTOR (COMBINATION METER ASSEMBLY - REAR COMBINATION LIGHT ASSEMBLY LH)

B

31.CHECK HARNESS AND CONNECTOR (COMBINATION METER ASSEMBLY - REAR COMBINATION LIGHT ASSEMBLY LH)
a.

Disconnect the N23 combination meter assembly connector.


b.

Disconnect the e1 rear combination light assembly LH connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
N23-5 (TRNL) or e1-4 (TRN) - Body ground Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

32.CHECK REAR COMBINATION LIGHT SOCKET AND WIRE SUB-ASSEMBLY LH
a.

Disconnect the e1 rear combination light socket and wire sub-assembly LH connector.


b.

c.

Check for DTC.

Click hereVehicle Interior>METER / GAUGE / DISPLAY>METER / GAUGE SYSTEM>DTC CHECK / CLEAR

Body Electrical > Combination Meter > Trouble Codes
50001 409

Result:
Result Proceed to
DTC B150819 is output. A
DTC B150718 is output. B



A

33.CHECK HARNESS AND CONNECTOR (COMBINATION METER ASSEMBLY - REAR COMBINATION LIGHT SOCKET AND WIRE SUB-ASSEMBLY LH)

B

33.CHECK HARNESS AND CONNECTOR (COMBINATION METER ASSEMBLY - REAR COMBINATION LIGHT SOCKET AND WIRE SUB-ASSEMBLY LH)
a.

Disconnect the N23 combination meter assembly connector.


b.

Disconnect the e1 rear combination light socket and wire sub-assembly LH connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
N23-5 (TRNL) or e1-4 (TRN) - Body ground Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

34.CHECK VEHICLE TYPE
a.

Check vehicle condition.


Result:
Result Proceed to
for TAW Made A
except TAW Made B



A

35.CHECK REAR COMBINATION LIGHT ASSEMBLY RH

B

37.CHECK REAR COMBINATION LIGHT SOCKET AND WIRE SUB-ASSEMBLY RH
35.CHECK REAR COMBINATION LIGHT ASSEMBLY RH
a.

Disconnect the g1 rear combination light assembly RH connector.


b.

c.

Check for DTC.

Click hereVehicle Interior>METER / GAUGE / DISPLAY>METER / GAUGE SYSTEM>DTC CHECK / CLEAR

Body Electrical > Combination Meter > Trouble Codes
50001 409

Result:
Result Proceed to
DTC B150819 is output. A
DTC B150718 is output. B



A

36.CHECK HARNESS AND CONNECTOR (COMBINATION METER ASSEMBLY - REAR COMBINATION LIGHT ASSEMBLY RH)

B

36.CHECK HARNESS AND CONNECTOR (COMBINATION METER ASSEMBLY - REAR COMBINATION LIGHT ASSEMBLY RH)
a.

Disconnect the N23 combination meter assembly connector.


b.

Disconnect the g1 rear combination light assembly RH connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
N23-6 (TRNR) or g1-4 (TRN) - Body ground Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

37.CHECK REAR COMBINATION LIGHT SOCKET AND WIRE SUB-ASSEMBLY RH
a.

Disconnect the g1 rear combination light socket and wire sub-assembly RH connector.


b.

c.

Check for DTC.

Click hereVehicle Interior>METER / GAUGE / DISPLAY>METER / GAUGE SYSTEM>DTC CHECK / CLEAR

Body Electrical > Combination Meter > Trouble Codes
50001 409

Result:
Result Proceed to
DTC B150819 is output. A
DTC B150718 is output. B



A

38.CHECK HARNESS AND CONNECTOR (COMBINATION METER ASSEMBLY - REAR COMBINATION LIGHT SOCKET AND WIRE SUB-ASSEMBLY RH)

B

38.CHECK HARNESS AND CONNECTOR (COMBINATION METER ASSEMBLY - REAR COMBINATION LIGHT SOCKET AND WIRE SUB-ASSEMBLY RH)
a.

Disconnect the N23 combination meter assembly connector.


b.

Disconnect the g1 rear combination light socket and wire sub-assembly RH connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
N23-6 (TRNR) or g1-4 (TRN) - Body ground Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

39.INSPECT LIGHTS
a.

Inspect the illumination of each turn signal light.


Result:
Result Proceed to
Front turn signal light LH and side turn signal light LH do not blink. A
Front turn signal light RH and side turn signal light RH do not blink. B
Rear turn signal light LH does not blink. C
Rear turn signal light RH does not blink. D



A

40.CHECK HEADLIGHT ECU SUB-ASSEMBLY LH

B

46.CHECK HEADLIGHT ECU SUB-ASSEMBLY RH

C

52.CHECK REAR COMBINATION LIGHT SOCKET AND WIRE SUB-ASSEMBLY LH

D

54.CHECK REAR COMBINATION LIGHT SOCKET AND WIRE SUB-ASSEMBLY RH
40.CHECK HEADLIGHT ECU SUB-ASSEMBLY LH
a.

Disconnect the A54 headlight ECU sub-assembly LH connector.


b.

c.

Check for DTC.

Click hereVehicle Interior>METER / GAUGE / DISPLAY>METER / GAUGE SYSTEM>DTC CHECK / CLEAR

Body Electrical > Combination Meter > Trouble Codes
50001 409

Result:
Result Proceed to
DTC B150819 is output. A
DTC B150718 is output. B



A

41.CHECK OUTER REAR VIEW MIRROR ASSEMBLY LH

B

43.CHECK HEADLIGHT UNIT ASSEMBLY LH
41.CHECK OUTER REAR VIEW MIRROR ASSEMBLY LH
a.

w/ Panoramic View Monitor System:

Disconnect the R23 outer rear view mirror assembly LH connector.


b.

w/o Panoramic View Monitor System:

Disconnect the R19*1 or R20*2 outer rear view mirror assembly LH connector.

*1: w/o Blind Spot Monitor System

*2: w/ Blind Spot Monitor System



c.

d.

Check for DTC.

Click hereVehicle Interior>METER / GAUGE / DISPLAY>METER / GAUGE SYSTEM>DTC CHECK / CLEAR

Body Electrical > Combination Meter > Trouble Codes
50001 409

Result:
Result Proceed to
DTC B150819 is output. A
DTC B150718 is output. B



A

42.CHECK HARNESS AND CONNECTOR (COMBINATION METER ASSEMBLY - HEADLIGHT ECU SUB-ASSEMBLY LH)

B

44.CHECK SIDE TURN SIGNAL LIGHT ASSEMBLY LH
42.CHECK HARNESS AND CONNECTOR (COMBINATION METER ASSEMBLY - HEADLIGHT ECU SUB-ASSEMBLY LH)

*1: w/o Blind Spot Monitor System

*2: w/ Blind Spot Monitor System


a.

Disconnect the N23 combination meter assembly connector.


b.

Disconnect the A54 headlight ECU sub-assembly LH connector.


c.

w/ Panoramic View Monitor System:

Disconnect the R23 outer rear view mirror assembly LH connector.


d.

w/o Panoramic View Monitor System:

Disconnect the R19*1 or R20*2 outer rear view mirror assembly LH connector.


e.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
w/ Panoramic View Monitor System:
Tester Connection Condition Specified Condition
N23-1 (LL) or A54-11 (TNS) or R23-4 (B) - Body ground Always 10 kΩ or higher

w/o Panoramic View Monitor System:
Tester Connection Condition Specified Condition
N23-1 (LL) or A54-11 (TNS) or R20-10 (B)*2 or R19-5 (B)*1 - Body ground Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

43.CHECK HEADLIGHT UNIT ASSEMBLY LH

b.

c.

Check for DTC.

Click hereVehicle Interior>METER / GAUGE / DISPLAY>METER / GAUGE SYSTEM>DTC CHECK / CLEAR

Body Electrical > Combination Meter > Trouble Codes
50001 409

Result:
Result Proceed to
DTC B150819 is output. A
DTC B150718 is output. B



A

B

45.CHECK FRONT TURN SIGNAL LIGHT SOCKET
44.CHECK SIDE TURN SIGNAL LIGHT ASSEMBLY LH

b.

w/ Panoramic View Monitor System:

Disconnect the R23 outer rear view mirror assembly LH connector.


c.

w/o Panoramic View Monitor System:

Disconnect the R19*1 or R20*2 outer rear view mirror assembly LH connector.

*1: w/o Blind Spot Monitor System

*2: w/ Blind Spot Monitor System



d.

e.

Check for DTC.

Click hereVehicle Interior>METER / GAUGE / DISPLAY>METER / GAUGE SYSTEM>DTC CHECK / CLEAR

Body Electrical > Combination Meter > Trouble Codes
50001 409

Result:
Result Proceed to
DTC B150819 is output. (w/ Panoramic View Monitor System) A
DTC B150819 is output. (w/o Panoramic View Monitor System) B
DTC B150718 is output. C



A

B

C

45.CHECK FRONT TURN SIGNAL LIGHT SOCKET
a.

Disconnect the front turn signal light socket connector.


b.

c.

Check for DTC.

Click hereVehicle Interior>METER / GAUGE / DISPLAY>METER / GAUGE SYSTEM>DTC CHECK / CLEAR

Body Electrical > Combination Meter > Trouble Codes
50001 409

Result:
Result Proceed to
DTC B150819 is output. A
DTC B150718 is output. B



A

B

46.CHECK HEADLIGHT ECU SUB-ASSEMBLY RH
a.

Disconnect the A55 headlight ECU sub-assembly RH connector.


b.

c.

Check for DTC.

Click hereVehicle Interior>METER / GAUGE / DISPLAY>METER / GAUGE SYSTEM>DTC CHECK / CLEAR

Body Electrical > Combination Meter > Trouble Codes
50001 409

Result:
Result Proceed to
DTC B150819 is output. A
DTC B150718 is output. B



A

47.CHECK OUTER REAR VIEW MIRROR ASSEMBLY RH

B

49.CHECK HEADLIGHT UNIT ASSEMBLY RH
47.CHECK OUTER REAR VIEW MIRROR ASSEMBLY RH
a.

w/ Panoramic View Monitor System:

Disconnect the R21 outer rear view mirror assembly LH connector.


b.

w/o Panoramic View Monitor System:

Disconnect the R9*1 or R10*2 outer rear view mirror assembly LH connector.

*1: w/o Blind Spot Monitor System

*2: w/ Blind Spot Monitor System



c.

d.

Check for DTC.

Click hereVehicle Interior>METER / GAUGE / DISPLAY>METER / GAUGE SYSTEM>DTC CHECK / CLEAR

Body Electrical > Combination Meter > Trouble Codes
50001 409

Result:
Result Proceed to
DTC B150819 is output. A
DTC B150718 is output. B



A

48.CHECK HARNESS AND CONNECTOR (COMBINATION METER ASSEMBLY - HEADLIGHT ECU SUB-ASSEMBLY RH)

B

50.CHECK SIDE TURN SIGNAL LIGHT ASSEMBLY RH
48.CHECK HARNESS AND CONNECTOR (COMBINATION METER ASSEMBLY - HEADLIGHT ECU SUB-ASSEMBLY RH)

*1: w/o Blind Spot Monitor System

*2: w/ Blind Spot Monitor System


a.

Disconnect the N23 combination meter assembly connector.


b.

Disconnect the A55 headlight ECU sub-assembly RH connector.


c.

w/ Panoramic View Monitor System:

Disconnect the R21 outer rear view mirror assembly LH connector.


d.

w/o Panoramic View Monitor System:

Disconnect the R9*1 or R10*2 outer rear view mirror assembly LH connector.


e.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
w/ Panoramic View Monitor System:
Tester Connection Condition Specified Condition
N23-2 (LR) or A55-11 (TNS) or R21-4 (B) - Body ground Always 10 kΩ or higher

w/o Panoramic View Monitor System:
Tester Connection Condition Specified Condition
N23-2 (LR) or A55-11 (TNS) or R9-5 (B)*1 or R10-10 (B)*2 - Body ground Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

49.CHECK HEADLIGHT UNIT ASSEMBLY RH

b.

c.

Check for DTC.

Click hereVehicle Interior>METER / GAUGE / DISPLAY>METER / GAUGE SYSTEM>DTC CHECK / CLEAR

Body Electrical > Combination Meter > Trouble Codes
50001 409

Result:
Result Proceed to
DTC B150819 is output. A
DTC B150718 is output. B



A

B

51.CHECK FRONT TURN SIGNAL LIGHT SOCKET
50.CHECK SIDE TURN SIGNAL LIGHT ASSEMBLY RH

b.

w/ Panoramic View Monitor System:

Disconnect the R21 outer rear view mirror assembly LH connector.


c.

w/o Panoramic View Monitor System:

Disconnect the R9*1 or R10*2 outer rear view mirror assembly LH connector.

*1: w/o Blind Spot Monitor System

*2: w/ Blind Spot Monitor System



d.

e.

Check for DTC.

Click hereVehicle Interior>METER / GAUGE / DISPLAY>METER / GAUGE SYSTEM>DTC CHECK / CLEAR

Body Electrical > Combination Meter > Trouble Codes
50001 409

Result:
Result Proceed to
DTC B150819 is output. (w/ Panoramic View Monitor System) A
DTC B150819 is output. (w/o Panoramic View Monitor System) B
DTC B150718 is output. C



A

B

C

51.CHECK FRONT TURN SIGNAL LIGHT SOCKET
a.

Disconnect the front turn signal light socket connector.


b.

c.

Check for DTC.

Click hereVehicle Interior>METER / GAUGE / DISPLAY>METER / GAUGE SYSTEM>DTC CHECK / CLEAR

Body Electrical > Combination Meter > Trouble Codes
50001 409

Result:
Result Proceed to
DTC B150819 is output. A
DTC B150718 is output. B



A

B

52.CHECK REAR COMBINATION LIGHT SOCKET AND WIRE SUB-ASSEMBLY LH
a.

Disconnect the e4 rear combination light socket and wire sub-assembly LH connector.


b.

c.

Check for DTC.

Click hereVehicle Interior>METER / GAUGE / DISPLAY>METER / GAUGE SYSTEM>DTC CHECK / CLEAR

Body Electrical > Combination Meter > Trouble Codes
50001 409

Result:
Result Proceed to
DTC B150819 is output. A
DTC B150718 is output. B



A

53.CHECK HARNESS AND CONNECTOR (COMBINATION METER ASSEMBLY - REAR COMBINATION LIGHT SOCKET AND WIRE SUB-ASSEMBLY LH)

B

53.CHECK HARNESS AND CONNECTOR (COMBINATION METER ASSEMBLY - REAR COMBINATION LIGHT SOCKET AND WIRE SUB-ASSEMBLY LH)
a.

Disconnect the N23 combination meter assembly connector.


b.

Disconnect the e4 rear combination light socket and wire sub-assembly LH connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
N23-5 (TRNL) or e4-3 (TRN) - Body ground Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

54.CHECK REAR COMBINATION LIGHT SOCKET AND WIRE SUB-ASSEMBLY RH
a.

Disconnect the g2 rear combination light socket and wire sub-assembly RH connector.


b.

c.

Check for DTC.

Click hereVehicle Interior>METER / GAUGE / DISPLAY>METER / GAUGE SYSTEM>DTC CHECK / CLEAR

Body Electrical > Combination Meter > Trouble Codes
50001 409

Result:
Result Proceed to
DTC B150819 is output. A
DTC B150718 is output. B



A

55.CHECK HARNESS AND CONNECTOR (COMBINATION METER ASSEMBLY - REAR COMBINATION LIGHT SOCKET AND WIRE SUB-ASSEMBLY RH)

B

55.CHECK HARNESS AND CONNECTOR (COMBINATION METER ASSEMBLY - REAR COMBINATION LIGHT SOCKET AND WIRE SUB-ASSEMBLY RH)
a.

Disconnect the N23 combination meter assembly connector.


b.

Disconnect the g2 rear combination light socket and wire sub-assembly RH connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
N23-6 (TRNR) or g2-3 (TRN) - Body ground Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
