RM35X0E _59 Vehicle Exterior _079256 LIGHTING (EXT) _0396105 REAR COMBINATION LIGHT ASSEMBLY(for Bulb Type) A

LIGHTING (EXT)  REAR COMBINATION LIGHT ASSEMBLY(for Bulb Type)  DISASSEMBLY


CAUTION / NOTICE / HINT

HINT:
·

Use the same procedure for the RH and LH sides.

·

The procedure described below is for the LH side.



PROCEDURE

Hide 81550H 1.REMOVE TAIL AND STOP LIGHT BULB

a.

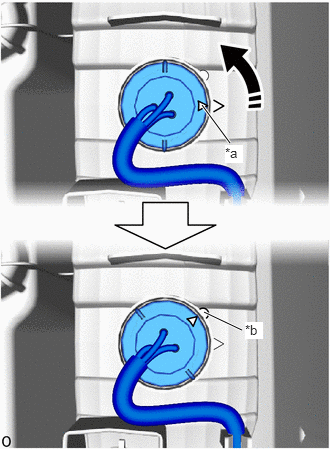

E413224C01
2.104,1.094 2.396,1.49 true 2.125,3.25 2.521,3.438 true 2.344,1.51 2.531,1.698 0.188,0.188 10 true *a 2.552,3.354 2.74,3.531 0.188,0.177 10 true *b
*a Matchmark
*b Unlock Position Mark
V113147

Turn in this Direction


Turn the bulb socket counterclockwise until the matchmark is aligned with the unlock position mark to disconnect the bulb socket.


b.

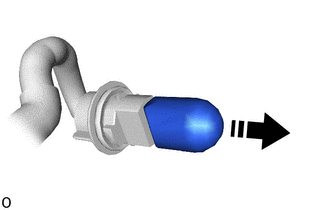

E413226C01
0,0 0,0 false
V113147

Remove in this Direction


Remove the tail and stop light bulb from the bulb socket.


Hide 81550L 2.REMOVE REAR TURN SIGNAL LIGHT BULB

a.

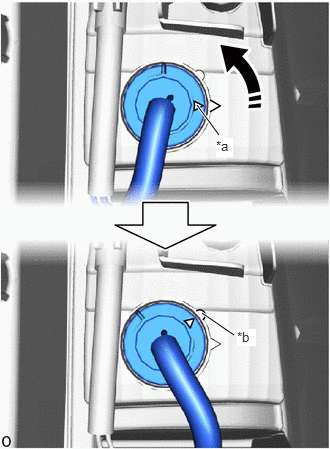

E413228C01
2.052,1.094 2.281,1.406 true 2.104,3.26 2.438,3.49 true 2.25,1.438 2.427,1.635 0.177,0.198 10 true *a 2.469,3.427 2.667,3.604 0.198,0.177 10 true *b
*a Matchmark
*b Unlock Position Mark
V113147

Turn in this Direction


Turn the bulb socket counterclockwise until the matchmark is aligned with the unlock position mark to disconnect the bulb socket.


b.
E413230C01
0,0 0,0 false
V113147

Remove in this Direction


Remove the rear turn signal light bulb from the bulb socket.


Hide 81550N 3.REMOVE BACK-UP LIGHT BULB

a.

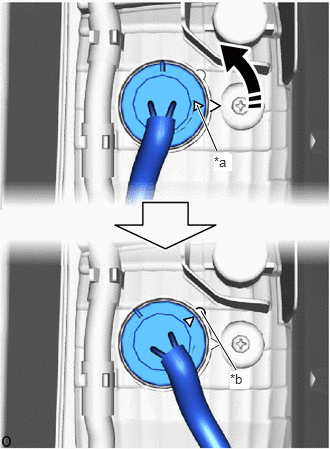

E413232C01
2.052,1.094 2.26,1.573 true 2.094,3.24 2.458,3.854 true 2.229,1.604 2.417,1.781 0.188,0.177 10 true *a 2.396,3.865 2.594,4.052 0.198,0.188 10 true *b
*a Matchmark
*b Unlock Position Mark
V113147

Turn in this Direction


Turn the bulb socket counterclockwise until the matchmark is aligned with the unlock position mark to disconnect the bulb socket.


b.
E413234C01
0,0 0,0 false
V113147

Remove in this Direction


Remove the back-up light bulb from the bulb socket.


Hide 81210T 4.REMOVE REAR FOG LIGHT BULB (w/ Rear Fog Light)

a.
E413232C01
2.052,1.094 2.26,1.573 true 2.094,3.24 2.458,3.854 true 2.229,1.604 2.417,1.781 0.188,0.177 10 true *a 2.396,3.865 2.594,4.052 0.198,0.188 10 true *b
*a Matchmark
*b Unlock Position Mark
V113147

Turn in this Direction


Turn the bulb socket counterclockwise until the matchmark is aligned with the unlock position mark to disconnect the bulb socket.


b.
E413234C01
0,0 0,0 false
V113147

Remove in this Direction


Remove the rear fog light bulb from the bulb socket.


Hide 81565 5.REMOVE REAR COMBINATION LIGHT SOCKET AND WIRE SUB-ASSEMBLY LH

a.
E413236

Remove the screw.


b.

Detach the wire harness clamp to remove the rear combination light socket and wire sub-assembly LH.
