RM35X0E _59 Vehicle Exterior _079256 LIGHTING (EXT) _0396103 HEADLIGHT ASSEMBLY(for Halogen Headlight) A

LIGHTING (EXT)  HEADLIGHT ASSEMBLY(for Halogen Headlight)  DISASSEMBLY


CAUTION / NOTICE / HINT

HINT:
·

Use the same procedure for the RH and LH sides.

·

The procedure listed below is for the LH side.



PROCEDURE

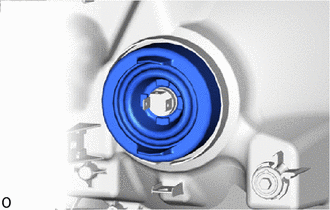

Hide 81144C 1.REMOVE HEADLIGHT SOCKET COVER

E413156

a.

Remove the headlight socket cover.


Hide 81110B 2.REMOVE NO. 1 HEADLIGHT BULB

a.

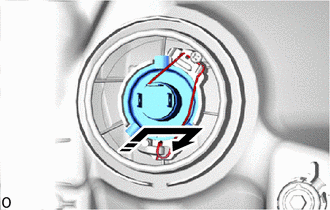

B544913C02
0,0 0,0 false
V113147

Release in this Direction


Push and pull up the set spring to release it.


b.

Remove the No. 1 headlight bulb.

NOTICE:

Do not touch the glass part of the No. 1 headlight bulb.



Hide 81610F 3.REMOVE CLEARANCE LIGHT BULB (w/o Daytime Running Light)

a.

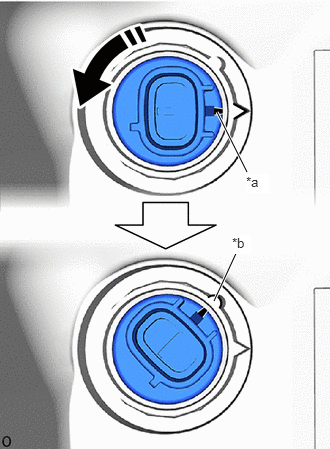

B544915C01
2.573,1.792 2.26,1.167 true 2.229,3.135 2.469,2.615 true 2.563,1.813 2.813,2.01 0.25,0.198 10 true *a 2.417,2.448 2.615,2.646 0.198,0.198 10 true *b
*a Matchmark
*b Unlock Position Mark
V113147

Turn in this Direction


Turn the bulb socket counterclockwise until the matchmark is aligned with the unlock position mark and remove it.


b.

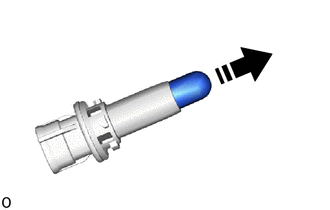

E413165C01
0,0 0,0 false
V113147

Remove in this Direction


Remove the clearance light bulb from the bulb socket.


Hide 81510J 4.REMOVE DAYTIME RUNNING LIGHT BULB (w/ Daytime Running Light)

a.

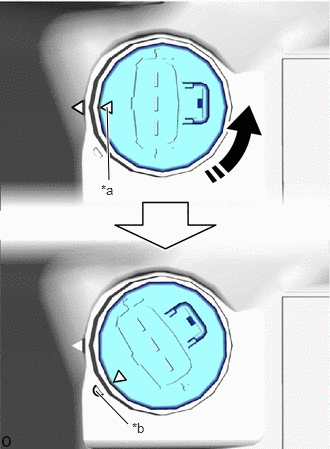

E413167C01
1.135,1.875 1.115,1.115 true 1,4.073 1.333,4.417 true 1.052,1.896 1.365,2.052 0.313,0.156 10 false *a 1.375,4.375 1.688,4.531 0.313,0.156 10 false *b
*a Matchmark
*b Unlock Position Mark
V113147

Turn in this Direction


Turn the bulb socket counterclockwise until the matchmark is aligned with the unlock position mark and remove it.


b.

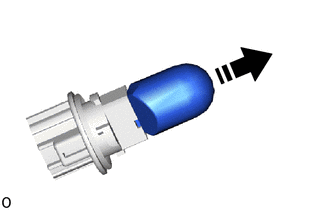

E413169C01
0,0 0,0 false
V113147

Remove in this Direction


Remove the daytime running light bulb from the bulb socket.


Hide 81510D 5.REMOVE FRONT TURN SIGNAL LIGHT BULB

a.

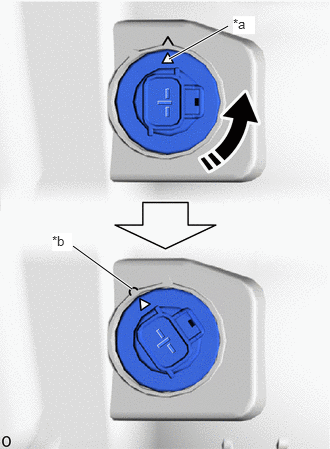

E413159C01
2.375,0.271 1.76,0.615 true 1.375,3.01 0.76,2.563 true 2.427,0.167 2.656,0.354 0.229,0.188 10 true *a 0.542,2.427 0.75,2.615 0.208,0.188 10 true *b
*a Matchmark
*b Unlock Position Mark
V113147

Turn in this Direction


Turn the bulb socket counterclockwise until the matchmark is aligned with the unlock position mark and remove it.


b.

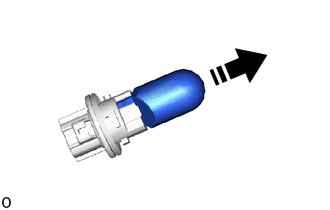

E413161C01
0,0 0,0 false
V113147

Remove in this Direction


Remove the front turn signal light bulb from the bulb socket.


Hide 81194A 6.REMOVE HEADLIGHT PROTECTOR LH (w/ Protector)

a.
E413178

Remove the headlight protector LH.

NOTICE:

The headlight protector LH must not be reused.



Hide 85662 7.REMOVE HEADLIGHT LEVELING MOTOR LH (w/ Headlight Leveling)

a.

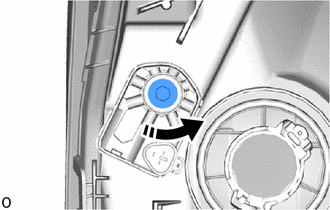

E413174C02
0,0 0,0 false
V113147

Loosen in this Direction


Loosen the aiming screw 10 rotations.


b.

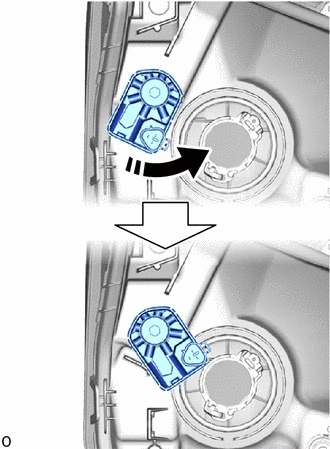

E413176C01
0,0 0,0 false
V113147

Remove in this Direction


Turn the headlight leveling motor LH counterclockwise and remove it.

NOTICE:
·

Do not pull excessively as the headlight unit and headlight leveling motor LH are connected at this time.

·

Turn while holding with one hand as the headlight leveling motor LH may jump out.

·

If the headlight leveling motor LH is removed, make sure to replace the headlight leveling motor LH base packing with a new one.



HINT:

For the headlight assembly RH, turn the headlight leveling motor RH clockwise to remove it.



c.

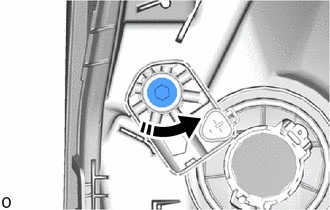

E413175C01
0,0 0,0 false
V113147

Loosen in this Direction


Loosen the aiming screw of the headlight leveling motor LH until it disconnected.

HINT:

Count and record the number of rotations before the headlight leveling motor LH are disconnected.



Hide 85669 8.REMOVE HEADLIGHT LEVELING MOTOR BASE PACKING (w/ Headlight Leveling)

a.

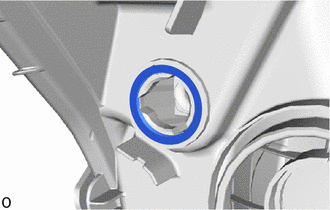

E413171

Remove the headlight leveling motor base packing.

NOTICE:

Make sure to replace the headlight leveling motor base packing with a new one.
