☰ Toyota HiAce☰ فهرستVehicle Exterior › LIGHTING (EXT) › REAR COMBINATION LIGHT ASSEMBLY(for Bulb Type)
RM35X0E
_59
Vehicle Exterior
_079256
LIGHTING (EXT)
_0396105
REAR COMBINATION LIGHT ASSEMBLY(for Bulb Type)
A
LIGHTING (EXT) REAR COMBINATION LIGHT ASSEMBLY(for Bulb Type) REMOVAL
CAUTION / NOTICE / HINT
- HINT:
- ·
Use the same procedure for the RH and LH sides.
·The procedure described below is for the LH side.
PROCEDURE
1.REMOVE REAR COMBINATION LIGHT ASSEMBLY LH
a.

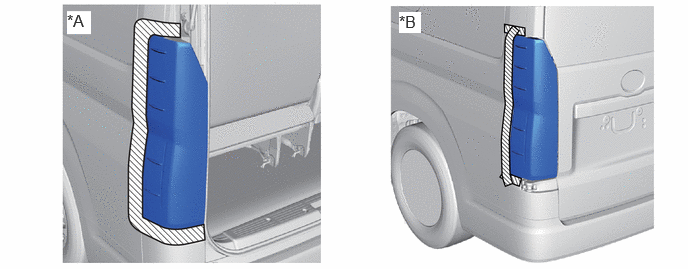

Apply protective tape around the rear combination light assembly LH.
0.698,0.115 0.948,0.354
0.25,0.24
12
true
*A
4.156,0.125 4.385,0.344
0.229,0.219
12
true
*B
| *A | except Double Swing Out Type | *B | for Double Swing Out Type |
|
Protective Tape | - | - |
b.
Remove the 3 screws.
0.948,0.115 1.198,0.354
0.25,0.24
12
false
*A
4.104,0.125 4.344,0.354
0.24,0.229
12
true
*B
| *A | except Double Swing Out Type | *B | for Double Swing Out Type |
c.

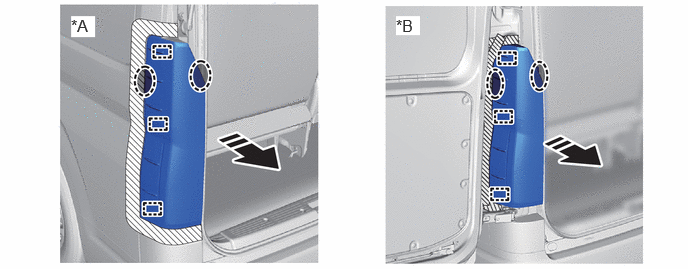

Place your hand at the location shown in the illustration and pull the rear combination light assembly LH toward the rear of the vehicle to detach the pin to remove it.
- HINT:
-
Support the rear combination light assembly LH with one hand.
0.74,0.167 0.99,0.385
0.25,0.219
12
true
*A
4.125,0.167 4.375,0.365
0.25,0.198
12
true
*B
| *A | except Double Swing Out Type | *B | for Double Swing Out Type |
|
Place Hands Here |
|
Remove in this Direction |
d.
Disconnect the connector.
