RM35X0E _59 Vehicle Exterior _079256 LIGHTING (EXT) _0396103 HEADLIGHT ASSEMBLY(for Halogen Headlight) A

LIGHTING (EXT)  HEADLIGHT ASSEMBLY(for Halogen Headlight)  REMOVAL


CAUTION / NOTICE / HINT

HINT:
·

Use the same procedure for the RH and LH sides.

·

The procedure listed below is for the LH side.



PROCEDURE

Hide 2.REMOVE HEADLIGHT ASSEMBLY LH

a.

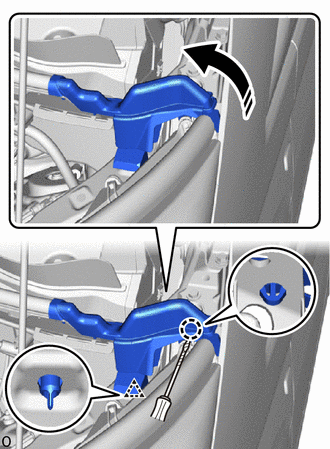

B544924C01
0,0 0,0 false
V113147

Raise in this Direction
V100155

Protective Tape


Using a thin-bladed screwdriver, detach the claw.

HINT:

Tape the thin-bladed screwdriver tip before use.



b.

Detach the clip and raise the fender apron mudguard seal sub-assembly LH as shown in the illustration.


c.
E413151C01
0,0 0,0 false
V100135

Screw
V100136

Bolt
V100155

Protective Tape


Apply protective tape as shown in the illustration.


d.

Remove the 2 screws and bolt.


e.

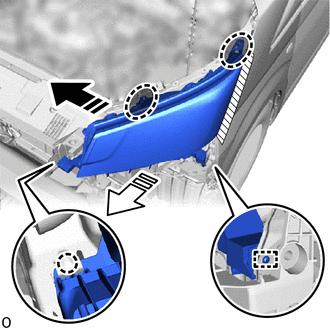

E413152C01
0,0 0,0 false
V113146

Place Hands Here
V113147

Remove in this Direction (1)
V113148

Remove in this Direction (2)


Place your hand on the 2 brackets of the headlight assembly LH and disconnect them from the screw seats.

NOTICE:

Be careful not to break the bracket.



f.

Slide the headlight assembly LH in the direction indicated by the arrow (1) and detach the guide.


g.

Slide the headlight assembly LH in the direction indicated by the arrow (2) to detach the claw and remove it.


h.
E413155C01
0.094,1.396 0.333,1.615 0.24,0.219 12 false *A 2.396,1.188 2.635,1.406 0.24,0.219 12 true *B
*A w/ Headlight Leveling
*B w/ Clearance Light


Detach the wire harness clamp and disconnect each connector.
