RM35X0E _59 Vehicle Exterior _079256 LIGHTING (EXT) _0396100 REAR COMBINATION LIGHT ASSEMBLY(for LED Type) A

LIGHTING (EXT)  REAR COMBINATION LIGHT ASSEMBLY(for LED Type)  DISASSEMBLY


CAUTION / NOTICE / HINT

HINT:
·

Use the same procedure for the RH and LH sides.

·

The procedure listed below is for the LH side.



PROCEDURE

Hide 81550L 1.REMOVE REAR TURN SIGNAL LIGHT BULB

a.

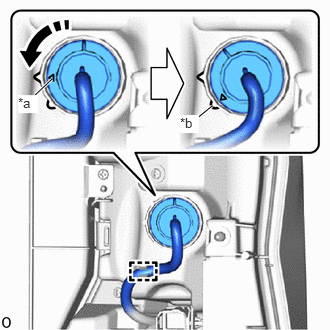

B544600C01
0.365,0.99 0.542,0.823 true 2.042,1.24 2.208,1.104 true 0.188,0.99 0.396,1.177 0.208,0.188 10 true *a 1.875,1.198 2.073,1.385 0.198,0.188 10 true *b
*a Matchmark
*b Unlock Position Mark
V113147

Turn in this Direction


Detach the clamp.


b.

Turn the bulb socket counterclockwise until the matchmark is aligned with the unlock position mark and disconnect the bulb socket.


c.

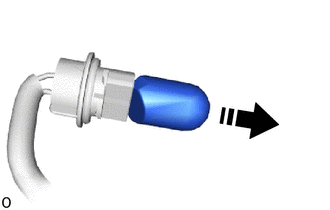

E413230C01
0,0 0,0 false
V113147

Remove in this Direction


Remove the rear turn signal light bulb from the bulb socket.


Hide 81565 2.REMOVE REAR COMBINATION LIGHT SOCKET AND WIRE SUB-ASSEMBLY LH

a.
B544911C01
1.156,2.073 1.302,2.323 true 1.979,1.458 2.188,1.344 true 0.99,1.844 1.198,2.063 0.208,0.219 10 true *a 2.219,1.219 2.438,1.417 0.219,0.198 10 true *b
*a Wire Harness Clamp
*b Connector Clamp


Disconnect the connector.


b.

Detach the wire harness clamp and connector clamp and remove the rear combination light socket and wire sub-assembly LH.
