RM35X0E _59 Vehicle Exterior _079256 LIGHTING (EXT) _0384404 SIDE TURN SIGNAL LIGHT ASSEMBLY(for Front Fender) A

LIGHTING (EXT)  SIDE TURN SIGNAL LIGHT ASSEMBLY(for Front Fender)  REMOVAL


CAUTION / NOTICE / HINT

HINT:
·

Use the same procedure for the RH and LH sides.

·

The procedure listed below is for the LH side.



PROCEDURE

Hide 81740 1.REMOVE SIDE TURN SIGNAL LIGHT ASSEMBLY LH

a.
E414884C01
0,0 0,0 false
V113147

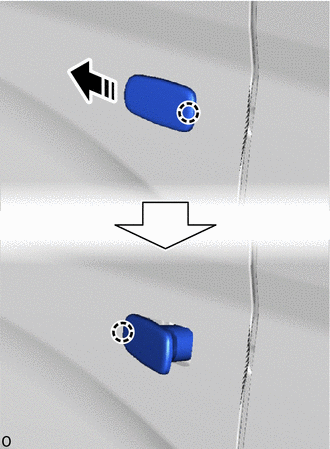

Slide in this Direction


Slide the side turn signal light assembly LH toward the front of the vehicle to detach the claw.


b.

Raise the side turn signal light assembly LH and detach the claw and remove it.


c.

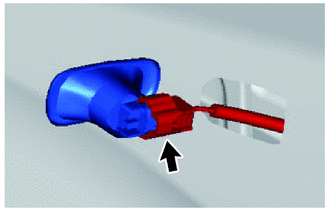

E416348

Disconnect the connector.
