RM35X0E _59 Vehicle Exterior _079319 MIRROR (EXT) _0384984 OUTER REAR VIEW MIRROR A

MIRROR (EXT) OUTER REAR VIEW MIRROR REMOVAL

CAUTION / NOTICE / HINT

w/ Panoramic view monitor system:

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are installed, removed or replaced during the outer rear view mirror assembly and side television camera assembly removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced
Replacement Part or Procedure	Necessary Procedures	Effects/Inoperative Functions when not Performed	Link
· Side television camera assembly LH (Including removal and installation) · Outer rear view mirror assembly LH (Including removal and installation) · Side television camera assembly RH (Including removal and installation) · Outer rear view mirror assembly RH (Including removal and installation)	Side television camera view adjustment	Panoramic view monitor system	(201906,202310,_56,_079315,_0396274,RM100000001IGR4,202310,999999,_56,_079315,_0396274,RM100000002G5L7,)
· Side television camera assembly LH or outer rear view mirror assembly LH · Side television camera assembly RH or outer rear view mirror assembly RH	Television camera view adjustment (Adjustment of all cameras) HINT: Replacement or removal and installation of 2 or more parts	Panoramic view monitor system

HINT:: ·

Use the same procedure for RHD and LHD vehicles.

·

The procedure listed below is for LHD vehicles.

·

Use the same procedure for the RH and LH sides.

·

Use the same procedure described for the LH side.

PROCEDURE

Hide Display 60117A 1.REMOVE FRONT PILLAR UPPER COVER SUB-ASSEMBLY LH

Click hereVehicle Exterior>EXTERIOR PANELS / TRIM>FRONT PILLAR UPPER COVER>REMOVAL201902,999999,_59,_079322,_0385759,RM100000001GNV9,

Hide Display 69278B 2.REMOVE FRONT DOOR INSIDE HANDLE BEZEL LH

Click hereVehicle Exterior>DOOR / HATCH>FRONT DOOR>DISASSEMBLY201906,202310,_59,_078503,_0385651,RM100000001IQ0Q_02_0006,202310,999999,_59,_078503,_0385651,RM100000002EPYU_02_0006,

Hide Display 3.REMOVE MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WITH FRONT DOOR ARMREST BASE PANEL (for Driver Side)

Click hereVehicle Exterior>DOOR / HATCH>FRONT DOOR>DISASSEMBLY201906,202310,_59,_078503,_0385651,RM100000001IQ0Q_02_0008,202310,999999,_59,_078503,_0385651,RM100000002EPYU_02_0008,

Hide Display 4.REMOVE POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR ARMREST BASE PANEL (for Front Passenger Side)

Click hereVehicle Exterior>DOOR / HATCH>FRONT DOOR>DISASSEMBLY201906,202310,_59,_078503,_0385651,RM100000001IQ0Q_02_0012,202310,999999,_59,_078503,_0385651,RM100000002EPYU_02_0012,

Hide Display 67602 5.REMOVE FRONT DOOR TRIM BOARD SUB-ASSEMBLY LH

Click hereVehicle Exterior>DOOR / HATCH>FRONT DOOR>DISASSEMBLY201906,202310,_59,_078503,_0385651,RM100000001IQ0Q_02_0001,202310,999999,_59,_078503,_0385651,RM100000002EPYU_02_0001,

Hide Display 68172A 6.REMOVE FRONT DOOR INNER GLASS WEATHERSTRIP LH

Click hereVehicle Exterior>DOOR / HATCH>FRONT DOOR>DISASSEMBLY201906,202310,_59,_078503,_0385651,RM100000001IQ0Q_02_0026,202310,999999,_59,_078503,_0385651,RM100000002EPYU_02_0026,

Hide Display 68193C 7.REMOVE FRONT DOOR FRONT BELT SEAL LH

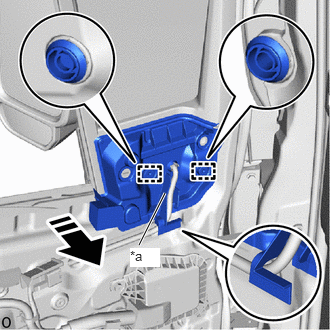

1.448,2.552 1.719,2.01 true 1.354,2.583 1.667,2.781 0.313,0.198 10 true *a

*a	Slit
	Remove in this Direction

w/ Power Mirror Control System:

Detach the grommet as shown in the illustration.

ii.

Remove the outer mirror wire harness from the slit and remove the front door front belt seal LH as shown in the illustration.

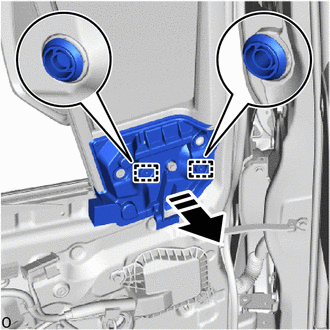

0,0 0,0 false

Remove in this Direction

w/o Power Mirror Control System:

Detach the grommet and remove the front door front belt seal LH as shown in the illustration.

Hide Display 87940 8.REMOVE OUTER REAR VIEW MIRROR ASSEMBLY LH

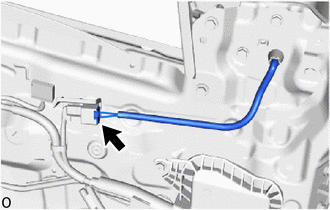

w/ Power Mirror Control System:

Disconnect the wire harness connector.

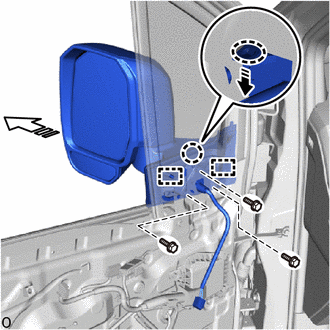

0,0 0,0 false

	Protective Tape
	Press with Finger
	Press in this Direction (1)
	Remove in this Direction(2)

Remove the 3 bolts.

Using your finger, press the claw in the direction indicated by the arrow (1) and detach the claw.

NOTICE:: Hold the outer rear view mirror assembly LH with one hand so that it does not drop.

Detach the guide and remove the outer rear view mirror assembly LH in the direction indicated by the arrow (2) shown in the illustration.
