RM35X0E _59 Vehicle Exterior _079256 LIGHTING (EXT) _0396098 HEADLIGHT ASSEMBLY(for LED Headlight) A

LIGHTING (EXT) HEADLIGHT ASSEMBLY(for LED Headlight) REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are installed, removed or replaced during the headlight assembly LH removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced
Replacement Part or Procedure	Necessary Procedures	Effects/Inoperative Functions when not Performed	Link
Replacement of the headlight ECU sub-assembly LH	· Synchronize the vehicle information · Perform headlight ECU sub-assembly LH initialization	Lighting system (EXT)	(201906,999999,_59,_079256,_0396321,RM100000001IGX8,)
Front bumper assembly (Including removal and installation)	Front television camera view adjustment	Panoramic view monitor system	(201906,202310,_56,_079315,_0396274,RM100000001IGR4,202310,999999,_56,_079315,_0396274,RM100000002G5L7,)

NOTICE:: Even if the headlight ECU sub-assembly RH is replaced with a new one, synchronize the vehicle information and initialization are not necessary.

HINT:: ·

Use the same procedure for the RH and LH sides.

·

The procedure listed below is for the LH side.

PROCEDURE

Hide Display 1.REMOVE FRONT BUMPER ASSEMBLY

Click hereVehicle Exterior>EXTERIOR PANELS / TRIM>FRONT BUMPER (for Wagon)>REMOVAL201906,999999,_59,_079322,_0397092,RM100000001IMT8,

Hide Display 2.REMOVE HEADLIGHT ASSEMBLY LH

0,0 0,0 false

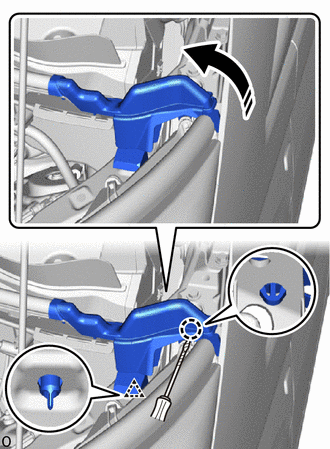

Raise in this Direction

Using a thin-bladed screwdriver, detach the claw.

HINT:: Tape the thin-bladed screwdriver tip before use.

Detach the clip and raise the fender apron mudguard seal sub-assembly LH as shown in the illustration.

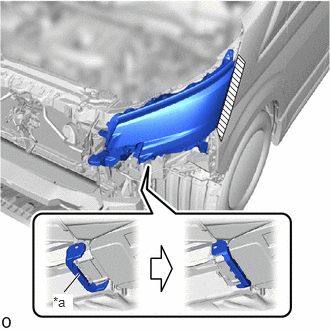

0.667,3.042 0.823,2.854 true 0.552,3.063 0.76,3.25 0.208,0.188 10 true *a

*a	Connector Lock Lever
	Protective Tape

Apply protective tape as shown in the illustration.

Release the connector lock lever and disconnect the connector under the headlight assembly LH.

0,0 0,0 false

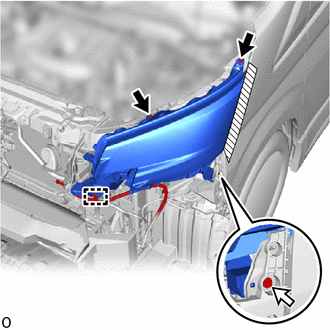

	Screw
	Bolt

Remove the 2 screws and bolt.

w/ Headlight Cleaner System:

Detach the clamp.

0,0 0,0 false

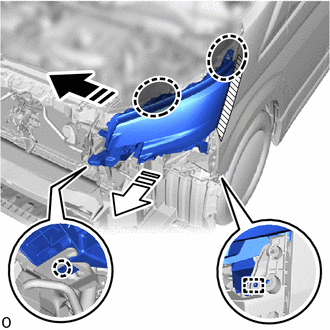

	Place Hand Here
	Remove in this Direction (1)
	Remove in this Direction (2)

Place your hand on the 2 brackets of the headlight assembly LH and disconnect them from the screw seats.

NOTICE:: Be careful not to break the bracket.

Slide the headlight assembly LH in the direction indicated by the arrow (1) and detach the guide.

Slide the headlight assembly LH in the direction indicated by the arrow (2) and detach the claw and remove it.
